2017 KIA OPTIMA PHEV snow chains

857

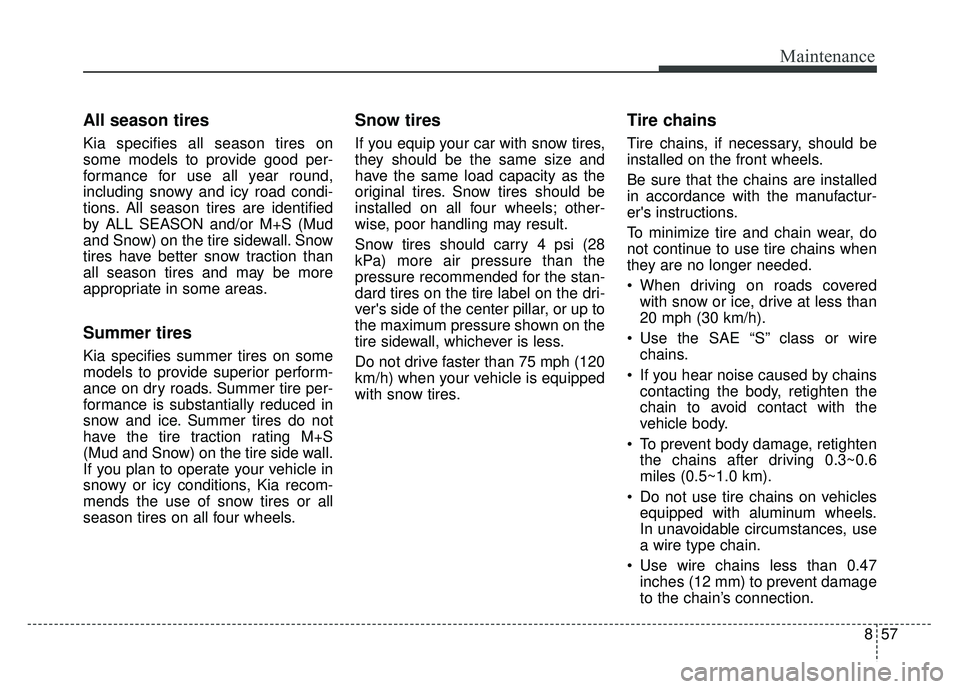

Maintenance
All season tires
Kia specifies all season tires on
some models to provide good per-
formance for use all year round,
including snowy and icy road condi-
tions. All season tires are identified
by ALL SEASON and/or M+S (Mud
and Snow) on the tire sidewall. Snow
tires have better snow traction than
all season tires and may be more
appropriate in some areas.
Summer tires
Kia specifies summer tires on some
models to provide superior perform-
ance on dry roads. Summer tire per-
formance is substantially reduced in
snow and ice. Summer tires do not
have the tire traction rating M+S
(Mud and Snow) on the tire side wall.
If you plan to operate your vehicle in
snowy or icy conditions, Kia recom-
mends the use of snow tires or all
season tires on all four wheels.
Snow tires
If you equip your car with snow tires,
they should be the same size and
have the same load capacity as the
original tires. Snow tires should be
installed on all four wheels; other-
wise, poor handling may result.
Snow tires should carry 4 psi (28
kPa) more air pressure than the
pressure recommended for the stan-
dard tires on the tire label on the dri-
ver's side of the center pillar, or up to
the maximum pressure shown on the
tire sidewall, whichever is less.
Do not drive faster than 75 mph (120
km/h) when your vehicle is equipped
with snow tires.
Tire chains
Tire chains, if necessary, should be
installed on the front wheels.
Be sure that the chains are installed
in accordance with the manufactur-
er's instructions.
To minimize tire and chain wear, do
not continue to use tire chains when
they are no longer needed.
When driving on roads coveredwith snow or ice, drive at less than
20 mph (30 km/h).
Use the SAE “S” class or wire chains.
If you hear noise caused by chains contacting the body, retighten the
chain to avoid contact with the
vehicle body.
To prevent body damage, retighten the chains after driving 0.3~0.6
miles (0.5~1.0 km).
Do not use tire chains on vehicles equipped with aluminum wheels.
In unavoidable circumstances, use
a wire type chain.
Use wire chains less than 0.47 inches (12 mm) to prevent damage
to the chain’s connection.

Index
12I
Loss of the smart key . . . . . . . . . . . . . . . . . . . . . . . . . 4-7
Smart key precautions . . . . . . . . . . . . . . . . . . . . . . . . 4-7
Battery replacement . . . . . . . . . . . . . . . . . . . . . . . . . . 4-8
Immobilizer system . . . . . . . . . . . . . . . . . . . . . . . . . . 4-8
Smart key battery replacement . . . . . . . . . . . . . . . . . . . . 4-8
Smart key immobilizer system . . . . . . . . . . . . . . . . . . . . 4-8
Smart trunk . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-19\
Smooth cornering . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-92
Snow tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-\
95
Special driving conditions . . . . . . . . . . . . . . . . . . . . . . 6-91 Hazardous driving conditions . . . . . . . . . . . . . . . . . 6-91
Rocking the vehicle . . . . . . . . . . . . . . . . . . . . . . . . . 6-91
Smooth cornering . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-92
Driving at night . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-92
Driving in the rain . . . . . . . . . . . . . . . . . . . . . . . . . . 6-93
Driving in flooded areas. . . . . . . . . . . . . . . . . . . . . . 6-94
Driving off-road . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-94
Highway driving . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-94
Speedometer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-53
SPORT mode (Drive mode integrated control system) . . 6-74
SRS Care. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
3-69
SRS components and functions . . . . . . . . . . . . . . . . . . 3-47
Starting difficulties, see engine will not start . . . . . . . . . 7-4
Starting the hybrid system - With a smart key . . . . . . . . 6-8
Steering wheel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-42 Electric power steering. . . . . . . . . . . . . . . . . . . . . . . 4-42
Tilt and telescopic steering. . . . . . . . . . . . . . . . . . . . 4-43
Heated steering wheel . . . . . . . . . . . . . . . . . . . . . . . 4-44 Horn . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. 4-45
Stop and tail lamp (LED type) bulb replacement. . . . . 8-88
Storage compartment . . . . . . . . . . . . . . . . . . . . . . . . . 4-133 Center console storage . . . . . . . . . . . . . . . . . . . . . . 4-133
Glove box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-133
Sunglass holder . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-134
Sunglass holder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-134
Sunroof open warning . . . . . . . . . . . . . . . . . . . . . . . . . 4-37
Sunshade . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-\
38
Sunvisor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-\
137
Tether anchor system . . . . . . . . . . . . . . . . . . . . . . . . . . 3-39
Theft-alarm stage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-11
Theft-alarm system . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-10 Armed stage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-10
Theft-alarm stage . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-11
Disarmed stage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-11
Tilt and telescopic steering . . . . . . . . . . . . . . . . . . . . . . 4-43
Tilting the sunroof . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-40
Tire chains. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-\
96
Tire Mobility Kit. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-16
Tire pressure monitoring system . . . . . . . . . . . . . . . . . . 7-9
Tire replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-49
Tire rotation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-47
Tire specification and pressure label . . . . . . . . . . . . . . . 9-9
Tires and wheels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-4
T

I13
Index
Tire care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-45\
Recommended cold tire inflation pressures . . . . . . . 8-45
Tire pressure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-46
Checking tire inflation pressure . . . . . . . . . . . . . . . . 8-46
Tire rotation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-47
Wheel alignment and tire balance . . . . . . . . . . . . . . 8-48
Tire replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-49
Wheel replacement . . . . . . . . . . . . . . . . . . . . . . . . . . 8-49
Tire traction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-50
Tire maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-50
Tire sidewall labeling . . . . . . . . . . . . . . . . . . . . . . . 8-50
Tire terminology and definitions . . . . . . . . . . . . . . . 8-54
All season tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-57
Summer tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-57
Snow tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-57
Tire chains . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-57
Radial-ply tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-58
Low aspect ratio tire. . . . . . . . . . . . . . . . . . . . . . . . . 8-58
Towing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. 7-24 Towing service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-24
Removable towing hook (front) . . . . . . . . . . . . . . . . 7-25
Emergency towing . . . . . . . . . . . . . . . . . . . . . . . . . . 7-26
Trailer towing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-98
Transaxle - Automatic transaxle . . . . . . . . . . . . . . . . . . 6-11
Transaxle shift indicator . . . . . . . . . . . . . . . . . . . . . . . . 4-57
Trip computer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-67
Trip modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-67\
Trunk . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . 4-17 Opening trunk. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-17
Closing trunk . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-18
Emergency trunk safety release . . . . . . . . . . . . . . . . 4-18
Trunk lamp bulb replacement . . . . . . . . . . . . . . . . . . . . 8-93
Trunk room lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-112
Turn By Turn Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-71
Turn signals and lane change signals . . . . . . . . . . . . . 4-105
USB charger . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-139
User settings mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-61
Vanity mirror lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-112
Vanity mirror lamp bulb replacement . . . . . . . . . . . . . . 8-91
Vehicle break-in process . . . . . . . . . . . . . . . . . . . . . . . . . 1-5
Vehicle certification label . . . . . . . . . . . . . . . . . . . . . . . . 9-8
Vehicle data collection and event data recorders . . . . . . 1-6
Vehicle handling instructions . . . . . . . . . . . . . . . . . . . . . 1-5
Vehicle identification number (VIN) . . . . . . . . . . . . . . . 9-8
Vehicle load limit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-99 Tire and loading information label. . . . . . . . . . . . . . 6-99
Certification label . . . . . . . . . . . . . . . . . . . . . . . . . . 6-102
Vehicle stability management (VSM) . . . . . . . . . . . . . 6-38
Vehicle weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-103
U
V

Index
14I
Warning and Indicator lights . . . . . . . . . . . . . . . . . . . . 4-82
Warning lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-82
Warning Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-72
Washer fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-32Checking the washer fluid level . . . . . . . . . . . . . . . 8-32
Welcome system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-113 Headlight (Headlamp) escort function . . . . . . . . . . 4-113
Interior light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-113
Pocket lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-113
Wheel alignment and tire balance . . . . . . . . . . . . . . . . 8-48
Wheel replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-49
Windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
4-23 Power window lock button. . . . . . . . . . . . . . . . . . . . 4-26
Windshield defrosting and defogging. . . . . . . . . . . . . 4-129
Windshield washers . . . . . . . . . . . . . . . . . . . . . . . . . . 4-108
Windshield wipers . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-108
Winter driving . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-95 Snow tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-95
Tire chains . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-96
Wiper blades . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-38 Blade inspection . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-38
Blade replacement . . . . . . . . . . . . . . . . . . . . . . . . . . 8-38
Wipers and washers . . . . . . . . . . . . . . . . . . . . . . . . . . 4-108 Windshield wipers . . . . . . . . . . . . . . . . . . . . . . . . . 4-108
Windshield washers . . . . . . . . . . . . . . . . . . . . . . . . 4-108
W
