2017 KIA OPTIMA PHEV run flat

721
What to do in an emergency
6. Ensure that the compressor isswitched off, position 0.
7 Connect between compressor and the vehicle power outlet using the
cable and connectors. 8. With the engine start/stop button
position on or ignition switch posi-
tion on, switch on the compressor
and let it run for approximately 5~7
minutes to fill the sealant up to
proper pressure. (refer to the Tire
and Wheels, chapter 9). The infla-
tion pressure of the tire after filling
is unimportant and will be
checked/corrected later. Be careful
not to overinflate the tire and stay
away from the tire when filling it. 9. Switch off the compressor.
10. Detach the hoses from the
sealant bottle connector and
from the tire valve.
Return the Tire Mobility Kit to its stor-
age location in the vehicle.
OJFA065038
WARNING - Carbon monoxide
Carbon monoxide poisoning
and suffocation is possible if
the engine is left running in a
poorly ventilated or unventilat-
ed location (such as inside a
building).
WARNING - Tire pressure
Do not attempt to drive your
vehicle if the tire pressure is
below 29 psi (200 kPa). This
could result in an accident due
to sudden tire failure.

What to do in an emergency
22
7
Distributing the sealant
11. Immediately drive approximately
4~6 miles (7~10 km or, about 10
min) to evenly distribute the
sealant in the tire.
Do not exceed a speed of 50 mph
(80 km/h). If possible, do not fall
below a speed of 12 mph (20 km/h).
While driving, if you experience any
unusual vibration, ride disturbance or
noise, reduce your speed and drive
with caution until you can safely pull
off of the side of the road.
Call for road side service or towing.
When you use the Tire Mobility Kit,
the tire pressure sensors and wheel
may be stained by sealant. Therefore,
remove the tire pressure sensors and
wheel stained by sealant and have
your vehicle inspected by an author-
ized Kia dealer.
Checking the tire inflation
pressure
1.After driving approximately 4 ~ 6 miles (7 ~ 10 km or about 10 min),
stop at a safe location.
2.Connect connection hose (2) of the compressor directly to the tire
valve.
3.Plug the compressor power cord into the vehicle power outlet. 4.Adjust the tire inflation pressure to
the recomended tire inflation.
With the ignition switch on, pro-
ceed as follows.
- To increase the inflation pres-sure : Switch on the compressor,
position I. To check the current
inflation pressure setting, briefly
switch off the compressor.
✽ ✽ NOTICE
The pressure gauge may show high-
er than actual reading when the
compressor is running. To get an
accurate tire reading, the compres-
sor needs to be turned off.
OJF065013

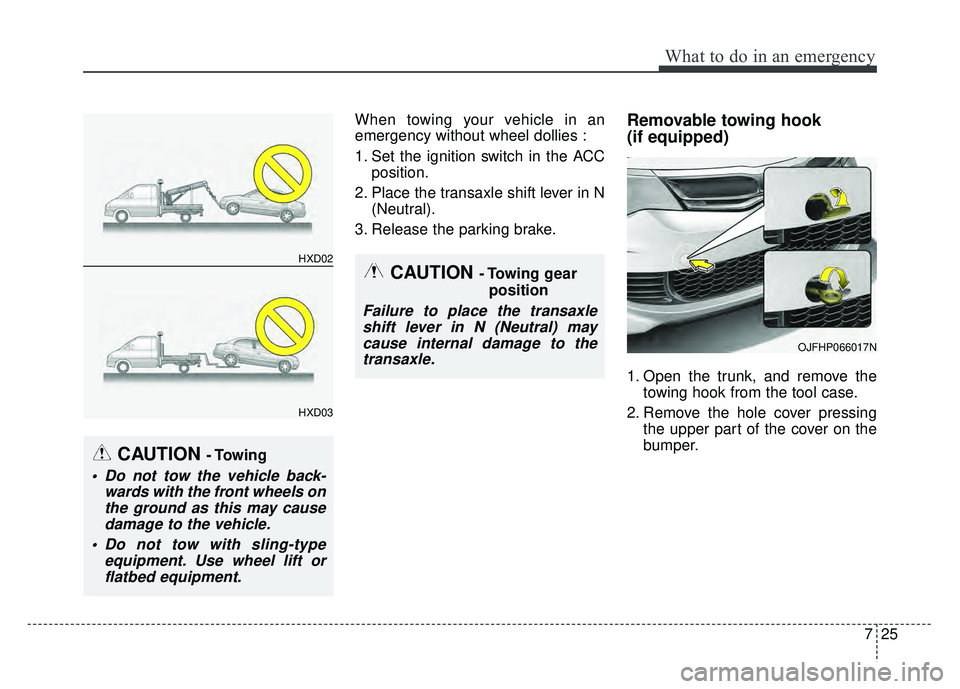

725
What to do in an emergency
When towing your vehicle in an
emergency without wheel dollies :
1. Set the ignition switch in the ACCposition.
2. Place the transaxle shift lever in N (Neutral).
3. Release the parking brake.Removable towing hook
(if equipped)
1. Open the trunk, and remove the towing hook from the tool case.
2. Remove the hole cover pressing the upper part of the cover on the
bumper.
CAUTION - Towing gear
position
Failure to place the transaxleshift lever in N (Neutral) maycause internal damage to thetransaxle.
CAUTION - Towing
Do not tow the vehicle back- wards with the front wheels onthe ground as this may causedamage to the vehicle.
Do not tow with sling-type equipment. Use wheel lift orflatbed equipment.
HXD02
HXD03
OJFHP066017N

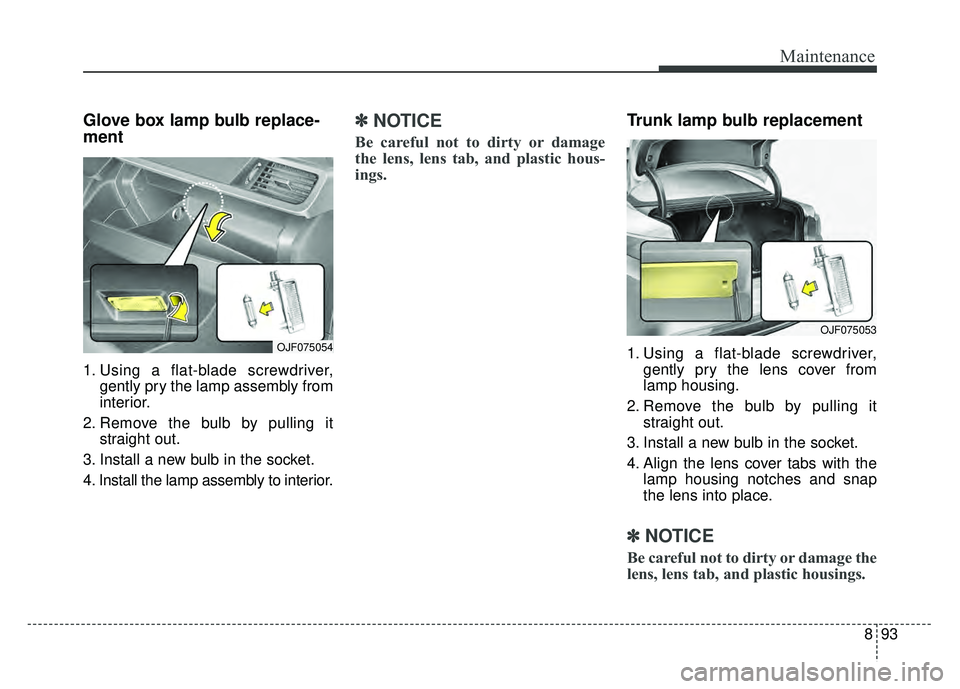

893
Maintenance
Glove box lamp bulb replace-
ment
1. Using a flat-blade screwdriver,gently pry the lamp assembly from
interior.
2. Remove the bulb by pulling it straight out.
3. Install a new bulb in the socket.
4. Install the lamp assembly to interior.
✽ ✽ NOTICE
Be careful not to dirty or damage
the lens, lens tab, and plastic hous-
ings.
Trunk lamp bulb replacement
1. Using a flat-blade screwdriver,
gently pry the lens cover from
lamp housing.
2. Remove the bulb by pulling it straight out.
3. Install a new bulb in the socket.
4. Align the lens cover tabs with the lamp housing notches and snap
the lens into place.
✽ ✽NOTICE
Be careful not to dirty or damage the
lens, lens tab, and plastic housings.
OJF075054
OJF075053

8105
Maintenance
Your vehicle is equipped with a cat-
alytic converter emission control
device.
Therefore, the following precautions
must be observed:
Use only UNLEADED FUEL forgasoline engines.
Do not operate the vehicle when there are signs of engine malfunc-
tion, such as misfire or a noticeable
loss of performance.
Do not misuse or abuse the engine. Examples of misuse are
coasting with the ignition off and
descending steep grades in gear
with the ignition off.
Do not operate the engine at high idle speed for extended periods (5
minutes or more).
Do not modify or tamper with any part of the engine or emission con-
trol system. All inspections and
adjustments must be made by an
authorized Kia dealer.
Avoid driving with an extremely low fuel level. Running out of fuel could
cause the engine to misfire, dam-
aging the catalytic converter. Failure to observe these precautions
could result in damage to the catalyt-
ic converter and to your vehicle.
Additionally, such actions could void
your warranties.
Perchlorate Material-special handling
may apply, See www.dtsc.ca.gov/haz-
ardouswaste/ perchlorate.
Notice to California Vehicle Dismantlers:
Perchlorate containing materials,
such as air bag inflators, seatbelt
pretensioners and keyless remote
entry batteries, must be disposed of
according to Title 22 California Code
of Regulations Chapter 67384.10
(a).
CALIFORNIA
PERCHLORATE NOTICE

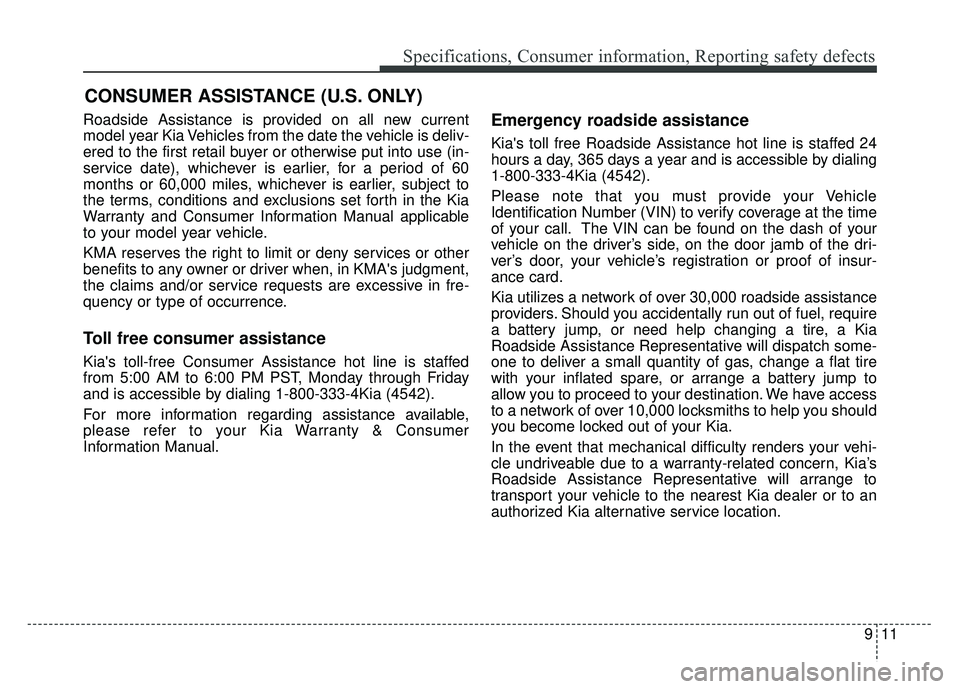

911
Specifications, Consumer information, Reporting safety defects
Roadside Assistance is provided on all new current
model year Kia Vehicles from the date the vehicle is deliv-
ered to the first retail buyer or otherwise put into use (in-
service date), whichever is earlier, for a period of 60
months or 60,000 miles, whichever is earlier, subject to
the terms, conditions and exclusions set forth in the Kia
Warranty and Consumer Information Manual applicable
to your model year vehicle.
KMA reserves the right to limit or deny services or other
benefits to any owner or driver when, in KMA's judgment,
the claims and/or service requests are excessive in fre-
quency or type of occurrence.
Toll free consumer assistance
Kia's toll-free Consumer Assistance hot line is staffed
from 5:00 AM to 6:00 PM PST, Monday through Friday
and is accessible by dialing 1-800-333-4Kia (4542).
For more information regarding assistance available,
please refer to your Kia Warranty & Consumer
Information Manual.
Emergency roadside assistance
Kia's toll free Roadside Assistance hot line is staffed 24
hours a day, 365 days a year and is accessible by dialing
1-800-333-4Kia (4542).
Please note that you must provide your Vehicle
Identification Number (VIN) to verify coverage at the time
of your call. The VIN can be found on the dash of your
vehicle on the driver’s side, on the door jamb of the dri-
ver’s door, your vehicle’s registration or proof of insur-
ance card.
Kia utilizes a network of over 30,000 roadside assistance
providers. Should you accidentally run out of fuel, require
a battery jump, or need help changing a tire, a Kia
Roadside Assistance Representative will dispatch some-
one to deliver a small quantity of gas, change a flat tire
with your inflated spare, or arrange a battery jump to
allow you to proceed to your destination. We have access
to a network of over 10,000 locksmiths to help you should
you become locked out of your Kia.
In the event that mechanical difficulty renders your vehi-
cle undriveable due to a warranty-related concern, Kia’s
Roadside Assistance Representative will arrange to
transport your vehicle to the nearest Kia dealer or to an
authorized Kia alternative service location.
CONSUMER ASSISTANCE (U.S. ONLY)

Index
4I
CareCare of seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-31
SRS Care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-69
Tire care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-45\
Exterior care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-94
Interior care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-99
Care of seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-31
Center console storage . . . . . . . . . . . . . . . . . . . . . . . . 4-133
Central door lock switch. . . . . . . . . . . . . . . . . . . . . . . . 4-14
Chains - Tire . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-96
Checking the amount of air conditioner refrigerant and compressor lubricant . . . . . . . . . . . 4-127
Checking tire inflation pressure . . . . . . . . . . . . . . . . . . 8-46
Child restraint system . . . . . . . . . . . . . . . . . . . . . . . . . . 3-32 Selecting a Child Restraint System (CRS) . . . . . . . 3-33
Installing a Child Restraint System (CRS) . . . . . . . 3-36
Securing a child restraint with the LATCHanchors system . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-38
"Securing a child restraint seatwith " "Tether Anchor"" system" . . . . . . . . . . . . . . . . . . . 3-39
Child-protector rear door lock . . . . . . . . . . . . . . . . . . . 4-15
Clean air . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-\
132
Climate control air filter . . . . . . . . . . . . . . . . . . . . . . . . 8-36 Filter inspection . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-36. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . 4-127
Closing the sunroof. . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-40
Clothes hanger . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-140
Combined instrument, see instrument cluster . . . . . . . 4-51 consumer assistance . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-11
Coolant . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. 8-27
Coolant(Engine/Inverter) . . . . . . . . . . . . . . . . . . . . . . . 8-27
Checking the coolant level . . . . . . . . . . . . . . . . . . . . 8-27
Changing the coolant . . . . . . . . . . . . . . . . . . . . . . . . 8-30
Cooling fluid, see engine coolant . . . . . . . . . . . . . . . . . 8-27
Crankcase emission control system . . . . . . . . . . . . . . 8-102
Cruise control system . . . . . . . . . . . . . . . . . . . . . . . . . . 6-52 To set cruise control speed . . . . . . . . . . . . . . . . . . . . 6-53
To increase cruise control set speed . . . . . . . . . . . . . 6-53
To decrease the cruising speed . . . . . . . . . . . . . . . . . 6-54
To temporarily accelerate with the cruise control on . . 6-54
To cancel cruise control . . . . . . . . . . . . . . . . . . . . . . 6-54
To resume cruising speed at more than approximately 20mph (30 km/h) . . . . . . . . . . . . . . 6-55
To turn cruise control off . . . . . . . . . . . . . . . . . . . . . 6-55
Cup holder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-135
Curtain air bag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-63
Dashboard illumination, see instrument panel illumination . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-52
Dashboard, see instrument cluster . . . . . . . . . . . . . . . . 4-51
Day/night rearview mirror . . . . . . . . . . . . . . . . . . . . . . 4-46
Daytime running light . . . . . . . . . . . . . . . . . . . . . . . . 4-100
Declaration of Conformity . . . . . . . . . . . . . . . . . . . . . . 5-65 FCC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. 5-65
D

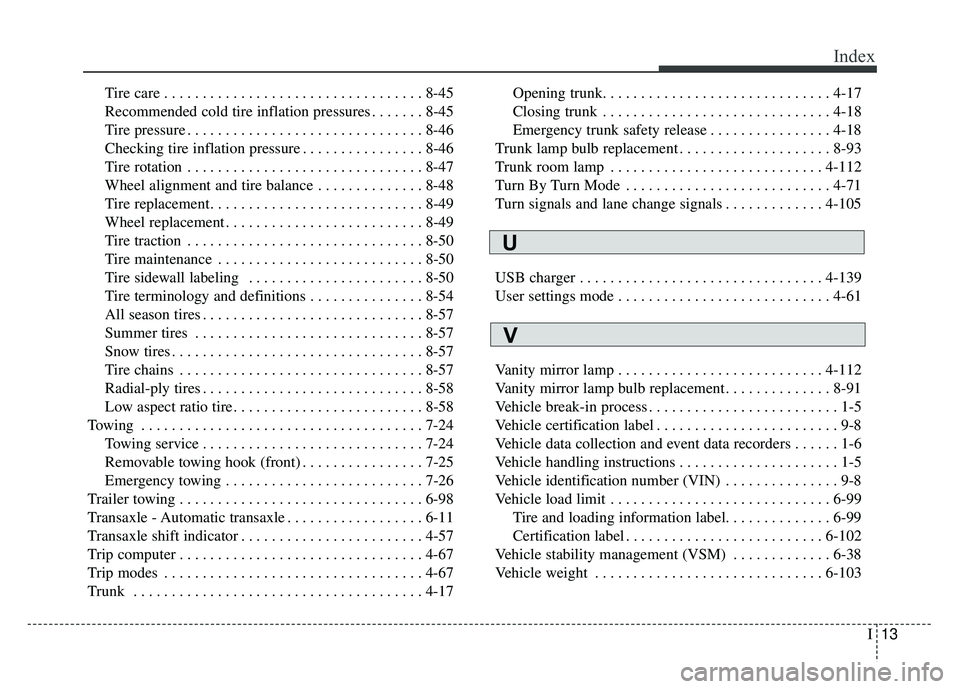

I13
Index
Tire care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-45\
Recommended cold tire inflation pressures . . . . . . . 8-45
Tire pressure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-46
Checking tire inflation pressure . . . . . . . . . . . . . . . . 8-46
Tire rotation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-47
Wheel alignment and tire balance . . . . . . . . . . . . . . 8-48
Tire replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-49
Wheel replacement . . . . . . . . . . . . . . . . . . . . . . . . . . 8-49
Tire traction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-50
Tire maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-50
Tire sidewall labeling . . . . . . . . . . . . . . . . . . . . . . . 8-50
Tire terminology and definitions . . . . . . . . . . . . . . . 8-54
All season tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-57
Summer tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-57
Snow tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-57
Tire chains . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-57
Radial-ply tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-58
Low aspect ratio tire. . . . . . . . . . . . . . . . . . . . . . . . . 8-58
Towing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. 7-24 Towing service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-24
Removable towing hook (front) . . . . . . . . . . . . . . . . 7-25
Emergency towing . . . . . . . . . . . . . . . . . . . . . . . . . . 7-26
Trailer towing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-98
Transaxle - Automatic transaxle . . . . . . . . . . . . . . . . . . 6-11
Transaxle shift indicator . . . . . . . . . . . . . . . . . . . . . . . . 4-57
Trip computer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-67
Trip modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-67\
Trunk . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . 4-17 Opening trunk. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-17
Closing trunk . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-18
Emergency trunk safety release . . . . . . . . . . . . . . . . 4-18
Trunk lamp bulb replacement . . . . . . . . . . . . . . . . . . . . 8-93
Trunk room lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-112
Turn By Turn Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-71
Turn signals and lane change signals . . . . . . . . . . . . . 4-105
USB charger . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-139
User settings mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-61
Vanity mirror lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-112
Vanity mirror lamp bulb replacement . . . . . . . . . . . . . . 8-91
Vehicle break-in process . . . . . . . . . . . . . . . . . . . . . . . . . 1-5
Vehicle certification label . . . . . . . . . . . . . . . . . . . . . . . . 9-8
Vehicle data collection and event data recorders . . . . . . 1-6
Vehicle handling instructions . . . . . . . . . . . . . . . . . . . . . 1-5
Vehicle identification number (VIN) . . . . . . . . . . . . . . . 9-8
Vehicle load limit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-99 Tire and loading information label. . . . . . . . . . . . . . 6-99
Certification label . . . . . . . . . . . . . . . . . . . . . . . . . . 6-102
Vehicle stability management (VSM) . . . . . . . . . . . . . 6-38
Vehicle weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-103
U
V
