2017 KIA OPTIMA sensor

873
Maintenance
Fuse NameFuse ratingCircuit Protected
FUSE
B+440ASmart Junction Block (Leak Current Autocut Device Fuse - INTERIOR LAMP, MEMORY1, MULTI
MEDIA, Fuse - DOOR LOCK, MODULE1, SMART KEY, BRAKE SWITCH)
E-CVVT 140AE-CVVT Relay
VACUUMPUMP 120AVacuum Pump
DEICER20ADeicer Relay
AMS10ABattery Sensor
E-CVVT 220APCM
A/CON10AA/C Control Module
E-CVVT 320APCM
HEATED
MIRROR10AA/C Control Module, Driver/Passenger Power Outside Mirror, ECM
WIPER 210ABCM, PCM/ECM
H/LAMP HI20AHead Lamp HI Relay
JF CAN (ENG) 8.qxp 2016-09-23 10:24 Page 73

Maintenance
74
8
Fuse NameFuse ratingCircuit Protected
FUSE
FUEL PUMP20AFuel Pump Relay
ECU 120APCM/ECM
SENSORS 210A
E/R Junction Block (Fuel Pump Relay, Cooling Fan 1/2 Relay)
[G4KJ] Oil Control Valve (Exhaust), Purge Control Solenoid Valve, Variable Intake Solenoid Valve, Canister
Close Valve
[G4KH] Oil Control Valve (Exhaust), Purge Control Solenoid Valve, RCV Control Solenoid Valve, Canister Close Valve
[G4FJ] Oil Control Valve #1/#2, Purge Control Solenoid Valve, RCV Control Solenoid Valve, Canister Close Va l ve
TCU 215ATransaxle Range Switch, TCM
ABS 310AESC Module, Multipurpose Check Connector
POWER
OUTLET 320ARear Power Outlet
B/UP LAMP10APCM/TCM, Transaxle Range Switch, Audio, Electro Chromic Mirror, Rear Combination Lamp (IN) LH/RH
SENSOR 115AOxygen Sensor (Up/Down)
IGN COIL20AIgnition Coil #1/#2/#3/#4
ECU 210APCM/ECM
TCU 110APCM/TCM
VACUUM PUMP 210AVacuum Pump, Vacuum Switch
ECU 310APCM/ECM
POWER
OUTLET 220AFront Power Outlet #1
HORN20AHorn Relay, ICM Relay Box (Burglar Alarm Horn Relay)
WIPER 130AWiper Power Relay
JF CAN (ENG) 8.qxp 2016-09-23 10:24 Page 74

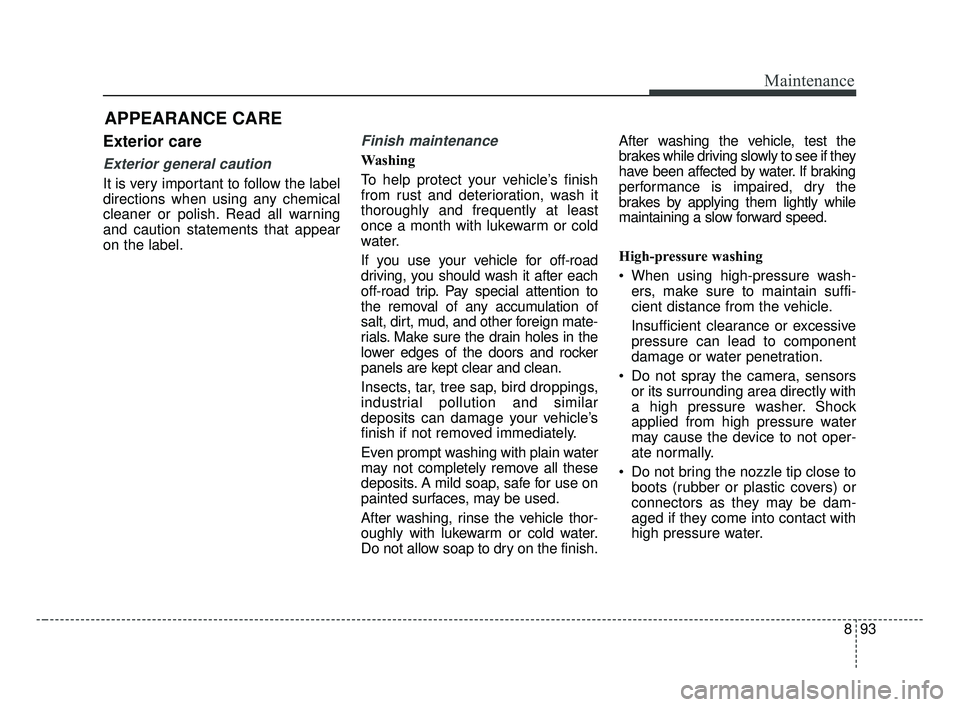

893
Maintenance
APPEARANCE CARE
Exterior care
Exterior general caution
It is very important to follow the label
directions when using any chemical
cleaner or polish. Read all warning
and caution statements that appear
on the label.
Finish maintenance
Washing
To help protect your vehicle’s finish
from rust and deterioration, wash it
thoroughly and frequently at least
once a month with lukewarm or cold
water.
If you use your vehicle for off-road
driving, you should wash it after each
off-road trip. Pay special attention to
the removal of any accumulation of
salt, dirt, mud, and other foreign mate-
rials. Make sure the drain holes in the
lower edges of the doors and rocker
panels are kept clear and clean.
Insects, tar, tree sap, bird droppings,
industrial pollution and similar
deposits can damage your vehicle’s
finish if not removed immediately.
Even prompt washing with plain water
may not completely remove all these
deposits. A mild soap, safe for use on
painted surfaces, may be used.
After washing, rinse the vehicle thor-
oughly with lukewarm or cold water.
Do not allow soap to dry on the finish.After washing the vehicle, test the
brakes while driving slowly to see if they
have been affected by water. If braking
performance is impaired, dry the
brakes by applying them lightly while
maintaining a slow forward speed.
High-pressure washing
When using high-pressure wash-
ers, make sure to maintain suffi-
cient distance from the vehicle.
Insufficient clearance or excessive
pressure can lead to component
damage or water penetration.
Do not spray the camera, sensors or its surrounding area directly with
a high pressure washer. Shock
applied from high pressure water
may cause the device to not oper-
ate normally.
Do not bring the nozzle tip close to boots (rubber or plastic covers) or
connectors as they may be dam-
aged if they come into contact with
high pressure water.
JF CAN (ENG) 8.qxp 2016-09-23 10:25 Page 93

I3
Index
Automatic climate control system ..............................4-128Automatic heating and air conditioning ..................4-129
Checking the amount of air conditioner refrigerant and compressor lubricant ..............................................4-138
Climate control air filter ..........................................4-138
Manual heating and air conditioning ........................4-130
System operation ......................................................4-136
Automatic transaxle ......................................................6-13 Automatic transaxle operation ....................................6-13
Good driving practices ................................................6-19
Paddle shifter ..............................................................6-17
Shift lock system ........................................................6-18
Autonomous emergency braking (AEB)/ Forward collision warning (FCW) ..............................6-51AEB warning message and system control ................6-54
Brake operation ..........................................................6-55
Limitations of the system............................................6-5\
8
Recognizing pedestrians ............................................6-61
Sensor to detect the distance from the vehicle in front (front radar) ..............................................................6-56
System malfunction ....................................................6-57
System setting and activation ....................................6-51 Battery........................................................................\
....8-43
For best battery service ..............................................8-43
Recharging the battery ................................................8-44
Reset items ..................................................................8-45
Before driving ..................................................................6-4 Before entering vehicle ................................................6-4
Before starting ..............................................................6-4
Necessary inspections ..................................................6-4
Blind spot detection system (BSD) ..............................6-86 BSD (Blind Spot Detection) / LCA (Lane Change Assist) ......................................6-87
Limitations condition condition ..................................6-92
RCTA (Rear Cross Traffic Alert) ................................6-90
Brake fluid ....................................................................8-32\
Checking the brake fluid level ....................................8-32
Brake system..................................................................6-28 Anti-lock brake system (ABS)....................................6-42
Auto hold ....................................................................6-38\
Electronic parking brake (EPB) ..................................6-31
Electronic stability control (ESC) ..............................6-44
Good braking practices ..............................................6-50
Hill-start assist control (HAC) ....................................6-49
Parking brake - Foot type ..........................................6-30
Power brakes ..............................................................6-28
Vehicle stability management (VSM) ........................6-48
Warning messages ......................................................6-40
Bulb wattage ....................................................................9-3B
JF CAN (ENG) Index.qxp 8/30/2016 6:11 PM Page 3
