2017 KIA OPTIMA headlamp

Maintenance
80
8

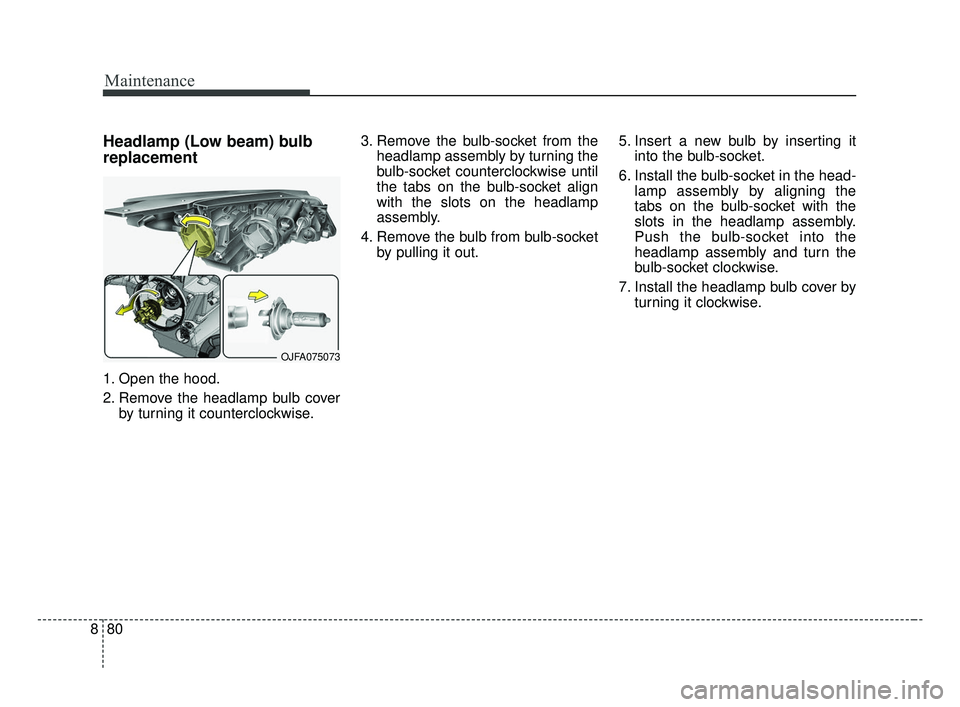

Headlamp (Low beam) bulb
replacement
1. Open the hood.
2. Remove the headlamp bulb cover
by turning it counterclockwise. 3. Remove the bulb-socket from the
headlamp assembly by turning the
bulb-socket counterclockwise until
the tabs on the bulb-socket align
with the slots on the headlamp
assembly.
4. Remove the bulb from bulb-socket by pulling it out. 5. Insert a new bulb by inserting it
into the bulb-socket.
6. Install the bulb-socket in the head- lamp assembly by aligning the
tabs on the bulb-socket with the
slots in the headlamp assembly.
Push the bulb-socket into the
headlamp assembly and turn the
bulb-socket clockwise.
7. Install the headlamp bulb cover by turning it clockwise.
OJFA075073
JF CAN (ENG) 8.qxp 2016-09-23 10:24 Page 80

881
Maintenance
Headlamp bulb Always handle them carefully, andavoid scratches and abrasions. If
the bulbs are lit, avoid contact with
liquids. Never touch the glass with
bare hands. Residual oil may
cause the bulb to overheat and
burst when lit. A bulb should be
operated only when installed in a
headlamp.
If a bulb becomes damaged or cracked, replace it immediately
and carefully dispose of it.
Wear eye protection when chang- ing a bulb. Allow the bulb to cool
down before handling it.
WARNING- Halogen
bulbs
Handle halogen bulbs with care.
Halogen bulbs contain pres- surized gas that will produce
flying pieces of glass if bro-
ken.
OHD076046
JF CAN (ENG) 8.qxp 2016-09-23 10:24 Page 81

Maintenance
82
8
Headlamp (High beam) bulb
replacement
1. Open the hood.
2. Remove the headlamp bulb cover
by turning it counterclockwise.
3. Disconnect the headlamp bulb socket-connector.
4. Remove the bulb-socket from the headlamp assembly by turning the
bulb-socket counterclockwise until
the tabs on the bulb-socket align
with the slots on the headlamp
assembly. 5. Install a new bulb-socket assem-
bly in the headlamp assembly by
aligning the tabs on the bulb-sock-
et with the slots in the headlamp
assembly. Push the bulb-socket
into the headlamp assembly and
turn the bulb-socket clockwise.
6. Install the headlamp bulb cover by turning it clockwise.
Headlamp (Low/High beam,LED
type) bulb replacement
If the head lamp (LED) (1,2) does not
operate, have the vehicle checked by
an authorized Kia dealer.
OJFA075076OJFHP076231N
JF CAN (ENG) 8.qxp 2016-09-23 10:24 Page 82

883
Maintenance
Front turn signal lamp bulb
replacement
1. Open the hood.
2. Remove the bulb-socket from theheadlamp assembly by turning the
bulb-socket counterclockwise until
the tabs on the bulb-socket align
with the slots on the headlamp
assembly.
3. Remove the bulb from the bulb- socket by pressing it in and rotat-
ing it counterclockwise until the
tabs on the bulb align with the
slots in the bulb-socket. Pull the
bulb out of the bulb-socket 4. Insert a new bulb by inserting it
into the bulb-socket and rotating it
until it locks into place.
5. Install the socket in the headlamp assembly by aligning the tabs on
the bulb-socket with the slots in
the assembly. Push the bulb-sock-
et into the headlamp assembly
and turn the socket clockwise.
Position lamp + DRL (LED
type) bulb replacement
If the position lamp + DRL (1) does
not operate, have the vehicle
checked by an authorized Kia dealer.
OJFA075079OJFA075150
JF CAN (ENG) 8.qxp 2016-09-23 10:25 Page 83

93
Specifications & Consumer information
BULB WATTAGE
Light BulbWattage (W) Bulb type
Front Headlamps (Low)
55W HB3 (9005+)
Headlamps (Low) - LED type 28WLED
Headlamps (High) Type A 65W HB3 (9005+)
Type B 55W H7 SUPER L/L
Type C
(LED type) 16W
LED
Front turn signal lamps 28W2357NALL
Front position lamps 0.9WLED
Daytime running light LED type 14W LED
Side Repeater lamps Bulb type 5W
W5W LL
LED type0.5WLED
Side marker5WW5W LL
Rear Rear Stop/Tail lamps (outside)
Bulb type5W P21
Rear tail lamps (Inside) 5W W5W
Rear Stop/Tail lamps (outside) LED type12W LED
Rear tail lamps (Inside) 6W LED
Rear turn signal lamps 21W PY21W
Back-up lamps 16W W16W
High mounted stop lamp 3W LED
License plate lamps 5W W5W
Side marker LED type 0.8W LED
Bulb type 5W W5W
(Continue)
JF CAN (ENG) 9.qxp 8/29/2016 6:20 PM Page 3

I7
Index
Key positions ..................................................................6-6Ignition switch position ................................................6-6
Illuminated ignition switch ..........................................6-6
Starting the engine ........................................................6-8
Lane departure warning system (LDWS) ......................6-94 Conditions that cause the LDWS not to operate ........6-96
Conditions that cause missed warnings and false warnings ..........................................................6-97
Warning indicator........................................................6-96
LCD display ..................................................................4-63 LCD Modes ................................................................4-63
Service Mode ..............................................................4-64
User Settings Mode ....................................................4-66
Light bulbs ....................................................................8-76\
Back-up lamp bulb replacement ................................8-86
Bulb replacement precaution ......................................8-76
Front turn signal lamp bulb replacement ....................8-82
Glove box lamp bulb replacement ..............................8-91
Headlamp (High beam) bulb replacement ..................8-81
Headlamp (Low beam) bulb replacement ..................8-80
High mounted stop lamp bulb replacement ................8-89
License plate lamp bulb replacement ........................8-88 Light bulb position (Front) ........................................8-77
Light bulb position (Rear) ..........................................8-78
Light bulb position (Side) ..........................................8-79
Map lamp bulb replacement ......................................8-89
Personal lamp bulb replacement ................................8-91
Position lamp + DRL (LED type) bulb replacement..8-82
Rear turn signal lamp bulb replacement ....................8-83
Room lamp bulb replacement ....................................8-90
Side repeater lamp bulb replacement..........................8-83
Stop and tail lamp (LED type) bulb replacement ......8-86
Stop and tail lamp bulb replacement ..........................8-84
Tail lamp bulb replacement ........................................8-87
Trunk lamp bulb replacement ....................................8-92
Vanity mirror lamp bulb replacement ........................8-89
Lighting........................................................................\
4-103 AFLS (Adaptive Front Lighting System) ................4-109
Battery saver function ..............................................4-103
Check headlight ......................................................4-108
Daytime running light ..............................................4-103
Headlight leveling device ........................................4-109
High Beam Assist ....................................................4-106
High beam operation ................................................4-105
Lighting control ........................................................4-103
Turn signals and lane change signals ......................4-108
Luggage volume ..............................................................9-5
K
L
JF CAN (ENG) Index.qxp 8/30/2016 6:11 PM Page 7

Index
10I
Tire replacement ........................................................8-50
Tire rotation ................................................................8-48
Tire sidewall labeling..................................................8-51
Tire traction ................................................................8-51
Wheel alignment and tire balance ..............................8-49
Wheel replacement ....................................................8-51
Tires and wheels ..............................................................9-5
Towing ........................................................................\
..7-31 Towing service ............................................................7-31
Trip modes (Trip computer) ..........................................4-72 A/V Mode ..................................................................4-76
ASCC/LDWS Mode ..................................................4-76
Digital speedometer ....................................................4-75
Fuel Economy ............................................................4-72
One time driving information mode ..........................4-75
Trip A/B ......................................................................4-\
74
Trip Modes ..................................................................4-72
Turn By Turn Mode ....................................................4-76
Warning Messages ......................................................4-77
Trunk ........................................................................\
......4-25 Closing the trunk ........................................................4-26
Emergency trunk safety release ..................................4-26
Opening the trunk ......................................................4-25
Vehicle break-in process ..................................................1-5
Vehicle certification label ..............................................9-10 Vehicle data collection and event data recorders ............1-6
Vehicle identification number (VIN) ............................9-10
Vehicle load limit ........................................................6-107
Certification label ......................................................6-111
Tire and loading information label ..........................6-107
Vehicle weight ................................................................7-2 Hazard warning flasher ................................................7-2
Vehicle weight..............................................................6-112
Warning and indicator lights..........................................4-85 Indicator Lights ..........................................................4-92
Warning lights ............................................................4-85
Washer fluid ..................................................................8-33 Checking the washer fluid level ................................8-33
Welcome system ..........................................................4-116 Headlight (Headlamp) escort function......................4-116
Interior light ..............................................................4-116
Pocket lamp ..............................................................4-116
Windows ........................................................................\
4-31 Power windows ..........................................................4-32
Windshield defrosting and defogging..........................4-140 Automatic climate control system ............................4-141
Defogging logic ........................................................4-142
Manual climate control system ................................4-140
V
W
JF CAN (ENG) Index.qxp 8/30/2016 6:11 PM Page 10
