Maintenance
Engine room compartment fuse panel
Fuse NameFuse ratingCircuit Protected
MULTI FUSE
B+ 560APrinted Circuit Board Block (Fuse - F40, F41, F42, F49, F50, Engine Control Relay)
B+ 260AIntegrated Gateway Power control Module (Fuse - F47, ARISU(4CH), IPS(2CH), IPS(2CH))
B+ 360AIntegrated Gateway Power control Module(ARISU(4CH), IPS(2CH), IPS(2CH), IPS(2CH))
B+ 450AIntegrated Gateway Power control Module (Fuse - F24, F30, F31, F32, F38, F39, F40, F41,
F42)
COOLING FAN60ARelay.9
REAR HEATED50ARelay.10
BLOWER40ARelay.12
IG 140AIgnition Switch/ Engine Room Junction Block (Relay.3/8)
IG 240AIgnition Switch/ Engine Room Junction Block (Relay.6)
MDPS80AMDPS (Motor Driven Power Steering) Unit
PTC
HEATER 150ARelay
PTC
HEATER 250ARelay
CLUTCH
ACTUATOR40AClutch Actuator (HEV)
MAIN150AFuse - F26, F27, F28, F29, F31, F32, Low Voltage DC-DC Converter

Maintenance
70
8

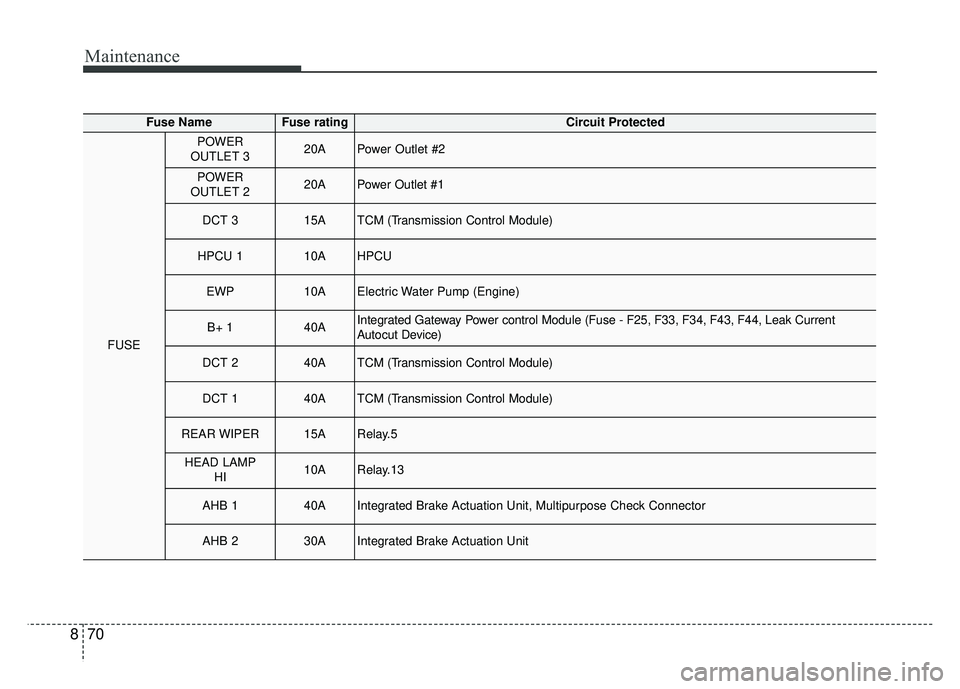

Fuse NameFuse ratingCircuit Protected
FUSE
POWER
OUTLET 320APower Outlet #2
POWER
OUTLET 220APower Outlet #1
DCT 315ATCM (Transmission Control Module)
HPCU 110AHPCU
EWP10AElectric Water Pump (Engine)
B+ 140AIntegrated Gateway Power control Module (Fuse - F25, F33, F34, F43, F44, Leak Current
Autocut Device)
DCT 240ATCM (Transmission Control Module)
DCT 140ATCM (Transmission Control Module)
REAR WIPER15ARelay.5
HEAD LAMP HI10ARelay.13
AHB 140AIntegrated Brake Actuation Unit, Multipurpose Check Connector
AHB 230AIntegrated Brake Actuation Unit

871
Maintenance
Fuse NameFuse ratingCircuit Protected
FUSE
INVERTER30AAC Inverter Module
POWER
OUTLET140ARelay.14
B/UP LAMP10AAudio, Electro Chromic Mirror, Back-Up Lamp Left Handle side/Right Handle side
FUEL PUMP20AFuel Pump Relay

Maintenance
72
8
Fuse ratingFuse NameCircuit Protected
10AECU 3ECU
15AHPCU 2HPCU, Clutch Actuator (HEV)
10AACTIVE
HYDRAULIC BOOTER 3Integrated Brake Actuation Unit, Multipurpose Check Connector
15ADCT 4Dual clutch transmission Shift Lever, TCM (Transmission Control Module), Inhibitor Switch
10ASENSOR 3Fuel Pump Relay, Oil Control Valve #1/#2 (Intake/Exhaust), Camshaft Position Sensor #1/#2
(Intake/Exhaust)
15ABATTERY C/FANEngine Room Junction Block (Relay.4)
20AHORNHorn Relay
10ASENSOR 2Purge Control Solenoid Valve, Engine Room Junction Block (RLY.9), Mass Air Flow Sensor
20AECU 1ECU
Circuit (PCB Block)

873
Maintenance
Fuse ratingFuse NameCircuit Protected
15ASENSOR 1Oxygen Sensor (UP/DOWN)
20AIGN COILIgnition Coil #1~#4
15AECU 2ECM (Engine Control Module)
10AB/ALARM HORNBurglar Alarm Horn Relay

Maintenance
74
8
Relay
Relay NameType
PTC Heater #2 RelayMICRO
PTC Heater #1 RelayMICRO
Button Start #2 (IG1) RelayMICRO
Battery C/FAN RelayMICRO
Rear Wiper RelayMICRO
Button Start #3 (IG2) RelayMICRO
Button Start #1 (ACC) RelayMICRO
Cooling Fan RelayMINI
Rear Defogger RelayMINI
Blower RelayMICRO
HEAD LAMP HI RelayMICRO
Power Outlet RelayMICRO
Fuel PumpMICRO
