2017 KIA FORTE KOUP wiper blades

Your vehicle at a glance
2 2
EXTERIOR OVERVIEW
1. Hood...................................................4-35
2. Head lamp ..............................4-100, 7-85
3. Fog lamp .................................4-103, 7-85
4. Wheel and tire.............................7-55, 8-5
5. Outside rearview mirror......................4-54
6. Front windshield wiper blades ...4-105, 7-49
7. Windows .............................................4-30
8. Front removable towing hook .............6-23
9. Parking assist system ........................4-92
10. Autonomous Emergency
Braking System ................................5-45
OYDM016005
■Front view
❈The actual shape may differ from the illustration.

Features of your vehicle
106 4
Windshield washers (front)
In the OFF position, pull the lever
gently toward you to spray washer
fluid on the windshield and to run the
wipers 1-3 cycles.
Use this function when the wind-
shield is dirty.
The spray and wiper operation will
continue until you release the lever. If
the washer does not work, check the
washer fluid level.
If the fluid level is not sufficient, you
add appropriate non-abrasive wind-
shield washer fluid to the washer
reservoir.The reservoir filler neck is located in
the front of the engine compartment
on the passenger side.
OYF049101
CAUTION - Washer pump
To prevent possible damage to
the washer pump, do not oper-
ate the washer when the fluid
reservoir is empty.
CAUTION - Wiper position
When washing the vehicle, set
the wiper switch in the off posi-
tion to stop the auto wiper oper-
ation. The wiper may operate
and be damaged if the switch is
set in the AUTO mode while
washing the vehicle.
WARNING - Obscured
visibility
Do not use the washer in freez-
ing temperatures without first
warming the windshield with
the defrosters; the washer solu-
tion could freeze on the wind-
shield and obscure your vision.
CAUTION - Wipers &
windshields
• To prevent possible damage
to the wipers or windshield,
do not operate the wipers
when the windshield is dry.
• To prevent damage to the wiper
blades, do not use gasoline,
kerosene, paint thinner, or
other solvents on or near them.
• To prevent damage to the
wiper arms and other compo-
nents, do not attempt to move
the wipers manually.

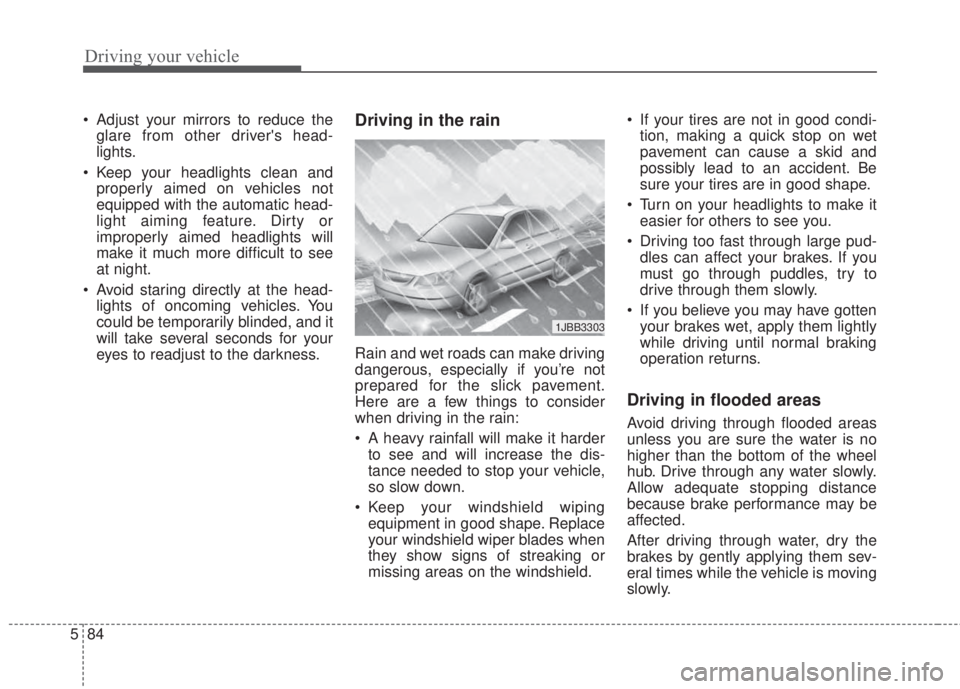

Driving your vehicle
84 5
• Adjust your mirrors to reduce the
glare from other driver's head-
lights.
• Keep your headlights clean and
properly aimed on vehicles not
equipped with the automatic head-
light aiming feature. Dirty or
improperly aimed headlights will
make it much more difficult to see
at night.
• Avoid staring directly at the head-
lights of oncoming vehicles. You
could be temporarily blinded, and it
will take several seconds for your
eyes to readjust to the darkness.Driving in the rain
Rain and wet roads can make driving
dangerous, especially if you’re not
prepared for the slick pavement.
Here are a few things to consider
when driving in the rain:
• A heavy rainfall will make it harder
to see and will increase the dis-
tance needed to stop your vehicle,
so slow down.
• Keep your windshield wiping
equipment in good shape. Replace
your windshield wiper blades when
they show signs of streaking or
missing areas on the windshield.• If your tires are not in good condi-
tion, making a quick stop on wet
pavement can cause a skid and
possibly lead to an accident. Be
sure your tires are in good shape.
• Turn on your headlights to make it
easier for others to see you.
• Driving too fast through large pud-
dles can affect your brakes. If you
must go through puddles, try to
drive through them slowly.
• If you believe you may have gotten
your brakes wet, apply them lightly
while driving until normal braking
operation returns.
Driving in flooded areas
Avoid driving through flooded areas
unless you are sure the water is no
higher than the bottom of the wheel
hub. Drive through any water slowly.
Allow adequate stopping distance
because brake performance may be
affected.
After driving through water, dry the
brakes by gently applying them sev-
eral times while the vehicle is moving
slowly.
1JBB3303

Maintenance
Engine compartment . . . . . . . . . . . . . . . . . . . . . . . . 7-3
Maintenance services . . . . . . . . . . . . . . . . . . . . . . . . 7-5
• Owner’s responsibility . . . . . . . . . . . . . . . . . . . . . . . . . 7-5
• Owner maintenance precautions . . . . . . . . . . . . . . . . . 7-6
Owner maintenance . . . . . . . . . . . . . . . . . . . . . . . . . 7-7
• Owner maintenance schedule. . . . . . . . . . . . . . . . . . . . 7-7
Scheduled maintenance service. . . . . . . . . . . . . . . . 7-9
Explanation of scheduled maintenance items . . . 7-32
Engine oil. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-36
• Checking the engine oil level . . . . . . . . . . . . . . . . . . . 7-36
• Changing the engine oil and filter . . . . . . . . . . . . . . . 7-37
Engine coolant . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-38
• Checking the coolant level . . . . . . . . . . . . . . . . . . . . . 7-38
• Changing the coolant . . . . . . . . . . . . . . . . . . . . . . . . . 7-41
Brake/clutch fluid . . . . . . . . . . . . . . . . . . . . . . . . . . 7-42
• Checking the brake/clutch* fluid level . . . . . . . . . . . 7-42
Washer fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-43
• Checking the washer fluid level . . . . . . . . . . . . . . . . . 7-43
Parking brake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-43
• Checking the parking brake. . . . . . . . . . . . . . . . . . . . 7-43
Air cleaner. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-44
• Filter replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-44
Climate control air filter . . . . . . . . . . . . . . . . . . . . 7-46
• Filter inspection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-46• Filter replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-46
Wiper blades . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-48
• Blade inspection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-48
• Blade replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-48
Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-52
• For best battery service . . . . . . . . . . . . . . . . . . . . . . . 7-52
• Battery recharging . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-54
• Reset items . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-54
Tires and wheels . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-55
• Tire care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-55
• Recommended cold tire inflation pressures . . . . . . . 7-55
• Checking tire inflation pressure. . . . . . . . . . . . . . . . . 7-56
• Tire rotation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-57
• Wheel alignment and tire balance . . . . . . . . . . . . . . . 7-58
• Tire replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-59
• Wheel replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-60
• Tire traction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-60
• Tire maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-60
• Tire sidewall labeling . . . . . . . . . . . . . . . . . . . . . . . . . 7-60
• All season tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-66
• Summer tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-66
• Snow tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-67
• Radial-ply tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-67
• Low aspect ratio tire . . . . . . . . . . . . . . . . . . . . . . . . . . 7-67
7

Maintenance
8 7
At least monthly:
• Check the coolant level in the
engine coolant reservoir.
• Check the operation of all exterior
lights, including the stoplights, turn
signals and hazard warning flash-
ers.
• Check the inflation pressures of all
tires including the spare.
At least twice a year
(i.e., every Spring and Fall) :
• Check the radiator, heater and air
conditioning hoses for leaks or
damage.
• Check the windshield washer
spray and wiper operation. Clean
the wiper blades with clean cloth
dampened with washer fluid.
• Check the headlight alignment.
• Check the muffler, exhaust pipes,
shields and clamps.
• Check the lap/shoulder belts for
wear and function.
• Check for worn tires and loose
wheel lug nuts.
At least once a year :
• Clean the body and door drain
holes.
• Lubricate the door hinges and
check the hood hinges.
• Lubricate the door and hood locks
and latches.
• Lubricate the door rubber weather-
strips.
• Check the air conditioning system.
• Check the power steering fluid
level.
• Inspect and lubricate automatic
transaxle linkage and controls.
• Clean the battery and terminals.
• Check the brake/clutch fluid level.

Maintenance
48 7
WIPER BLADES
Blade inspection
Commercial hot waxes applied by
automatic car washes have been
known to make the windshield diffi-
cult to clean.Contamination of either the wind-
shield or the wiper blades with for-
eign matter can reduce the effective-
ness of the windshield wipers.
Common sources of contamination
are insects, tree sap, and hot wax
treatments used by some commer-
cial car washes. If the blades are not
wiping properly, clean both the win-
dow and the blades with a good
cleaner or mild detergent, and rinse
thoroughly with clean water.
Blade replacement
When the wipers no longer clean
adequately, the blades may be worn
or cracked, and require replacement.
To prevent damage to the wiper arms
or other components, do not attempt
to move the wipers manually.
The use of a non-specified wiper
blade could result in wiper malfunc-
tion and failure.
1JBA5122CAUTION - Wiper blades
To prevent damage to the wiper
blades, do not use gasoline,
kerosene, paint thinner, or other
solvents on or near them.

I9
Index
Vehicle identification number (VIN) . . . . . . . . . . . . . . 8-10
Vehicle load limit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-89
Certification label . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-92
Tire and loading information label. . . . . . . . . . . . . . 5-89
Vehicle weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-94
Base curb weight . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-94
Cargo weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-94
GAW (Gross axle weight) . . . . . . . . . . . . . . . . . . . . 5-94
GAWR (Gross axle weight rating) . . . . . . . . . . . . . . 5-94
GVW (Gross vehicle weight). . . . . . . . . . . . . . . . . . 5-94
GVWR (Gross vehicle weight rating) . . . . . . . . . . . 5-94
Vehicle curb weight . . . . . . . . . . . . . . . . . . . . . . . . . 5-94
Warning and indicator lights. . . . . . . . . . . . . . . . . . . . . 4-79
Indicator Lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-87
Warning lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-79
Washer fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-43
Checking the washer fluid level . . . . . . . . . . . . . . . . 7-43
Weight/volume . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-6
Welcome system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-112
Headlamp welcome . . . . . . . . . . . . . . . . . . . . . . . . 4-112
Interior light welcome . . . . . . . . . . . . . . . . . . . . . . 4-112
Puddle lamp and pocket lamp . . . . . . . . . . . . . . . . 4-112
Windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-30
Power windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-31
Windshield defrosting and defogging. . . . . . . . . . . . . 4-134Automatic climate control system . . . . . . . . . . . . . 4-135
Defogging logic . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-136
Manual climate control system . . . . . . . . . . . . . . . 4-134
Winter driving . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-86
Carry emergency equipment . . . . . . . . . . . . . . . . . . 5-88
Change to "winter weight" oil if necessary . . . . . . . 5-87
Check battery and cables . . . . . . . . . . . . . . . . . . . . . 5-87
Check spark plugs and ignition system . . . . . . . . . . 5-87
Don't let ice and snow accumulate underneath . . . . 5-88
Don't let your parking brake freeze . . . . . . . . . . . . . 5-88
Snowy or Icy conditions. . . . . . . . . . . . . . . . . . . . . . 5-86
To keep locks from freezing. . . . . . . . . . . . . . . . . . . 5-87
Use approved window washer anti-freeze
in system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-87
Use high quality ethylene glycol coolant. . . . . . . . . 5-87
Wiper blades . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-48
Blade inspection . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-48
Blade replacement . . . . . . . . . . . . . . . . . . . . . . . . . . 7-48
Wipers and washers . . . . . . . . . . . . . . . . . . . . . . . . . . 4-105
Rear window wiper and washer switch (5 Door) . . 4-107
Windshield washers (Front) . . . . . . . . . . . . . . . . . . 4-106
Windshield wipers . . . . . . . . . . . . . . . . . . . . . . . . . 4-105
W
