2017 KIA FORTE 5 display

4 242
Features of your vehicle
With the iPod®Mode
Playing/Pausing iPod®Songs
Once an iPod
®is connected, the
mode will automatically start and
begin playing an iPod
®song.
While playing, press the [II] to pause
and press [] to play.
iPod
®products with unsupported
communication protocols may not
properly operate in the audio system.
Changing Songs
Press the [
SEEK/TRACK]button to
move to the previous or next song.
Pressing the [
SEEK/TRACK
∨]but-
ton after the song has been playing
for 2 seconds will start the current
song from the beginning.
Pressing the [
SEEK/TRACK
∨]but-
ton before the song has been playing
for 1 second will start the previous
song.
Slight time differences may exist
depending your iPod
®product.Rewinding/Fast-forwarding Songs
While playing, press and hold the
[SEEK/TRACK]button to rewind or
fast-forward the current song.
Searching Categories
Tu r n t h e TUNEknob left/right to
search for the desired category.
Once you find the desired category,
press the TUNEknob to select and
play.
There are eight categories that can be
searched, including Playlists, Artists,
Albums, Genres, Songs, Composers,
Audiobooks and Podcasts.Category Menu
(1) Displays the play screen.
(2) Moves to the iPod
®root category
screen.
(3) Moves to the previous category.
If the search mode is accessed while
playing a song, the most recently
searched category is displayed.
Search steps upon initial connection
may differ depending on the type of
iPod
®device.

243 4
Features of your vehicle
MENU: AUX
AUX Mode Display Controls
Press the [MEDIA]button
Select
[AUX].
An external device can be connected
to play music.
Connecting an External Device
External audio players (Camcorders,
car VCR, etc.) can be played through
a dedicated cable.
If an external device connector is
connected with the AUX terminal,
then AUX mode will automatically
operate. Once the connector is dis-
connected, the previous mode will be
restored.
AUX mode can be used only when
an external audio player (camcorder,
car VCR, etc.) has been connected.
The AUX volume can be controlled
separately from other audio modes.
Connecting a connector jack to the
AUX terminal without an external
device will convert the system to
AUX mode, but only output noise.
When an external device is not being
used, also remove the connector
jack.
When the external device power is
connected to the power jack, playing
the external device may output
noise. In such cases, disconnect the
power connection before use.
Fully insert the AUX cable to the AUX
jack upon use.

4 244
Features of your vehicle
MENU: My Music
My Music Mode Display Controls
(1) Mode
Displays current operating mode.
(2) Operation State
From Repeat/Shuffle/Scan, displays the
currently operating function.
(3) File Index
Displays the current file/total number
of files.
(4) File Info
Displays information about the cur-
rent file.
(5) Play/Pause
Changes the play/pause state.
(6) Play Time
Displays the current play time.(7) Info
Displays detailed information for the
current file.
The title, artist and album info are
displayed only when such informa-
tion is recorded within the MP3 file
ID3 tag.
(8) Shuffle
Turns the Shuffle feature on/off.
(9) Repeat
Turns the Repeat feature on/off.
(10) Delete
Deletes the current file.
(11) List
Moves to the list screen.
Turn the TUNEknob left/right to
search for files. Once the desired file
is displayed, press the knob to select
and play.

247 4
Features of your vehicle
Phone Mode
Making a call using the Steering
wheel controls
❈The actual features in the vehicle
may differ from the illustration.
(1) Mutes audio volume.
(2) Each time this button is pressed,
the mode is changed in the order of
FM1➟ FM2➟ AM➟ SAT1 ➟ SAT2
➟ SAT3 ➟ CD➟ USB(iPod
®)➟
AUX ➟ My Music ➟ BT Audio.
If the media is not connected or a
disc is not inserted, correspon-
ding modes will be disabled.
(3) Used to control volume.(4) When pressed shortly
- Radio mode: Searches broad-
cast frequencies saved to pre-
sets.
- Media(CD/USB/iPod
®/My Music/
BT Audio) modes: Changes the
track, file or chapter.
When pressed and held
- Radio mode, automatically
searches broadcast frequencies
and channels.
- Media(CD/USB/iPod
®/My Music)
modes, rewinds or fast forwards
the track or song(file).
- BT Audio mode may not be sup-
ported in some mobile phones.
(5) When pressed shortly
- Starts voice recognition.
- When selecting during a voice
prompt, stops the prompt and
converts to voice command wait-
ing state.
When pressed and held
- Ends voice recognition.(6) When pressed shortly
- When pressed in the phone
screen, displays call history
screen.
- When pressed in the dial screen,
makes a call.
- When pressed in the incoming
call screen, answers the call.
- When pressed during call wait-
ing, switches to waiting call (Call
Waiting).
When pressed and held
- When pressed in the
Bluetooth®
Wireless Technology Handsfree
wait mode, redials the last call.
- When pressed during a
Bluetooth®
Wireless Technology Handsfree
call, switches call back to mobile
phone. (Private)
- When pressed while calling on
the mobile phone, switches call
back to
Bluetooth®Wireless
Technology Handsfree. (Operates
only when
Bluetooth®Wireless
Technology Handsfree is con-
nected)
(7) Ends phone call.

4 248
Features of your vehicle
Bluetooth®Wireless Technology
When No Devices have been
Paired
➀Press the [PHONE]button or the
[CALL]button on the steering
wheel controls. The following
screen is displayed.
➁Press the [OK] to enter the Pair
Phone screen.• Vehicle Name: Name of device as
shown when searching from your
Bluetooth®Wireless Technology
device.
• Passkey: Passkey used to pair the
device.
➂From your
Bluetooth®Wireless
Technology device (i.e. Mobile
Phone), search and select your
car audio system.
❈SSP: Secure Simple Pairing
Non SSP supported device:
➃After a few moments, a screen is
displayed where the passkey is
entered.
Enter the passkey “0000” to pair your
Bluetooth®Wireless Technology
device with the car audio system.SSP supported device:
➃After a few moments, a screen is
displayed 6 digits passkey.
Check the passkey on your
Bluetooth®Wireless Technology
device and confirm.
➄Once pairing is complete, the fol-
lowing screen is displayed.

251 4
Features of your vehicle
Phone Menu Screen
Phone Menus
With a
Bluetooth®Wireless Technology
device connected, press the
[PHONE]button to display the
Phone menu screen.
• Favorites: Up to 20 frequently used
contacts can be saved for easy
access.
• Call History: Displays the call histo-
ry list screen.
• Contacts: Displays the Contacts
list screen.
• Dial Number: Displays the dial
screen where numbers can be
dialed to make calls.
• Setup: Displays Phone related set-
tings.
✽NOTICE
• If you press the [Call History] but
there is no call history data, a
prompt is displayed which asks to
download call history data.
• If you press the [Contacts] but there
is no contact data stored, a prompt is
displayed which asks to download
contacts data.
• This feature may not be supported in
some mobile phones. For more infor-
mation on download support, refer
to your mobile phone user’s manual.Favorites
• Saved favorite contact: Connects
call upon selection.
• To add favorite: Downloaded con-
tacts be saved as favorite.
• Delete All: Deletes all stored
favorite contacts.
✽NOTICE
• To save Favorite, contacts should be
downloaded.
• Contact saved in Favorites will not be
automatically updated if the contact
has been updated in the phone. To
update Favorites, delete the Favorite
and create a new Favorite.

4 252
Features of your vehicle

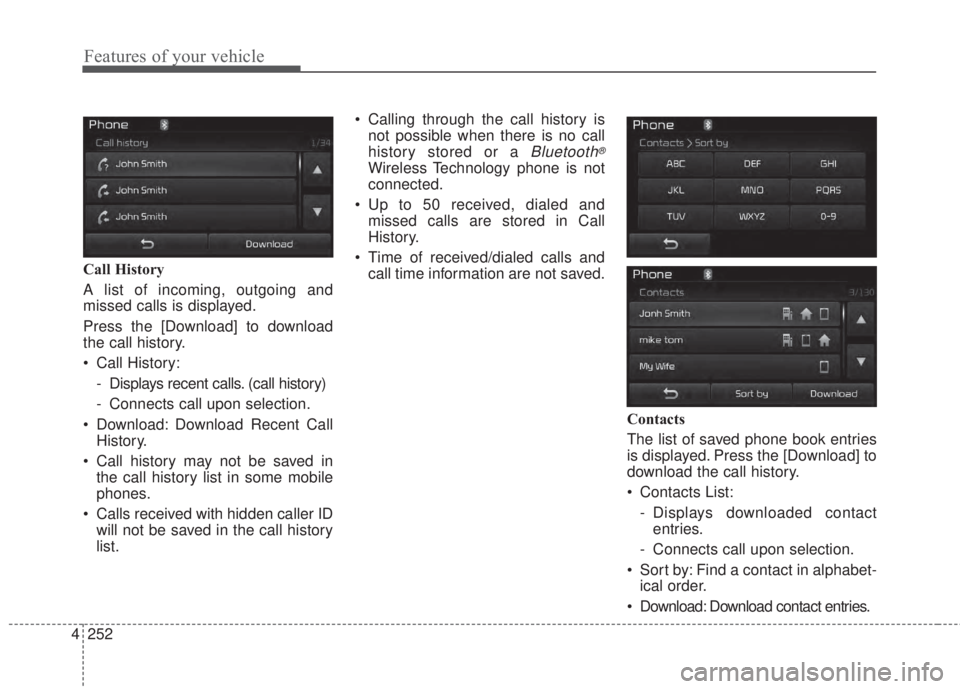

Call History
A list of incoming, outgoing and
missed calls is displayed.
Press the [Download] to download
the call history.
• Call History:
- Displays recent calls. (call history)
- Connects call upon selection.
• Download: Download Recent Call
History.
• Call history may not be saved in
the call history list in some mobile
phones.
• Calls received with hidden caller ID
will not be saved in the call history
list.• Calling through the call history is
not possible when there is no call
history stored or a
Bluetooth®
Wireless Technology phone is not
connected.
• Up to 50 received, dialed and
missed calls are stored in Call
History.
• Time of received/dialed calls and
call time information are not saved.
Contacts
The list of saved phone book entries
is displayed. Press the [Download] to
download the call history.
• Contacts List:
- Displays downloaded contact
entries.
- Connects call upon selection.
• Sort by: Find a contact in alphabet-
ical order.
• Download: Download contact entries.

253 4
Features of your vehicle
✽NOTICE
• Up to 1,000 contacts saved in your
Bluetooth®Wireless Technology
phone can be downloaded into the
car contacts. Contacts that have been
downloaded to the car cannot be
edited or deleted on the phone.
• Mobile phone contacts are managed
separately for each paired Bluetooth
®
Wireless Technology device (max 5
devices x 1,000 contacts each).
Previously downloaded data is main-
tained even if the Bluetooth
®Wireless
Technology device has been discon-
nected. (However, the contacts and
call history saved to the phone will be
deleted if a paired phone is deleted.)
• It is possible to download contacts
during Bluetooth
®streaming audio.
• When downloading contacts, the
icon will be displayed within the sta-
tus bar.
(Continued)(Continued)
• It is not possible to begin download-
ing a contact list when the contact
download feature has been turned
off within the Bluetooth
®Wireless
Technology device. In addition, some
devices may require device authori-
zation upon attempting to download
contacts. If downloading does not
normally occur, check the Bluetooth
®
Wireless Technology device settings
or the screen state.
• The contacts download feature may
not be supported in some mobile
phones. For more information of
supported Bluetooth
®devices and
function support, refer to your
phone’s user manual.Calling by Dialing a Number
• Dial Pad: Used to enter phone
number.
• Call: If a number has been entered,
calls the number. If no number has
been entered, switches to call his-
tory screen.
• End: Deletes the entered phone
number.
• Delete: Deletes entered numbers
one digit at a time.
