Maintenance
WASHER FLUID
Checking the washer fluid level
Check the fluid level in the washer fluid
reservoir and add fluid if necessary.
Plain water may be used if washer fluid is
not available. However, use washer sol-
vent with antifreeze characteristics in
cold climates to prevent freezing. Checking the parking brake
Check the stroke of the parking brake by
counting the number of “clicks’’ heardwhile fully applying it from the released
position. Also, the parking brake alone
should securely hold the vehicle on a fair-
ly steep grade. If the stroke is more or
less than specified, we recommend that
the system be serviced by an authorized
Kia dealer.
Stroke :
6~8 “clicks’’ at a force of
20 kg (44 lbs, 196 N).
OGD071010
WARNING - Coolant
Do not use radiator coolant or antifreeze in the washer fluid
reservoir.
Radiator coolant can severely obscure visibility when sprayed
on the windshield and may cause
loss of vehicle control or damage
to paint and body trim.
Windshield Washer fluid agents contain some amounts of alcohol
and can be flammable under cer-
tain circumstances. Do not allowsparks or flame to contact thewasher fluid or the washer fluid
reservoir. Damage to the vehicle
or occupants could occur.
Windshield washer fluid is poi- sonous to humans and animals.
Do not drink and avoid contacting
windshield washer fluid. Serious
injury or death could occur.
PARKING BRAKE - HAND TYPE
OJD052010
JD PE eng 7.QXP 03.01.2017 17:18 Page 33

737
Maintenance
CLIMATE CONTROL AIR FILTER
Filter inspection
If the vehicle is operated in the severely air-polluted cities or on dusty rough
roads for a long period, it should beinspected more frequently and replaced
earlier. When you, the owner, replace the
climate control air filter, replace it per-
forming the following procedure, and be
careful to avoid damaging other compo-
nents. Replace the filter according to the main-
tenance Schedule.
Filter replacement
1. With the glove box open, remove thestoppers on both sides. 2. Open the glove box and remove the
support strap (1).
OJD072013OJD072012
JD PE eng 7.QXP 03.01.2017 17:18 Page 37

Maintenance
38
7
3. Remove the cover while pressing the
lock on both side of the cover and
remove the climate control air filter. 4. Replace the climate control air filter.
5. Reassemble in the reverse order of
disassembly.
✽✽ NOTICE
When replacing the climate control air
filter install it properly. Otherwise, the
system may produce noise and the effec-
tiveness of the filter may be reduced.
OVG079016OJD072014
JD PE eng 7.QXP 03.01.2017 17:18 Page 38

Maintenance
44
7
Reset items
Items should be reset after the battery
has been discharged or the battery hasbeen disconnected.
Auto up/down window (See chapter 4)
Sunroof (See chapter 4)
Trip computer (See chapter 4)
Climate control system
(See chapter 4)
Audio (See chapter 4)(Continued)
Wear eye protection when check- ing the battery during charging.
Disconnect the battery charger in the following order.
1. Turn off the battery charger main switch.
2. Unhook the negative clamp from the negative battery ter- minal.
3. Unhook the positive clamp from the positive battery termi-nal.
Before performing maintenance or recharging the battery, turn offall accessories and stop the
engine.
The negative battery cable must be removed first and installed
last when the battery is discon-nected.
JD PE eng 7.QXP 03.01.2017 17:19 Page 44

753
Maintenance
3. Checking tire life (TIN : Tire Identification Number)
Any tires that are over 6 years, based
on the manufacturing date, tire
strength and performance, decline
with age naturally (even unused
spare tires). Therefore, the tires(including the spare tire) should be
replaced by new ones. You can find
the manufacturing date on the tire
sidewall (possibly on the inside of the
wheel), displaying the DOT Code.
The DOT Code is a series of num-
bers on a tire consisting of numbers
and English letters. The manufactur-
ing date is designated by the last four
digits (characters) of the DOT code.
DOT : XXXX XXXX OOOO
The front part of the DOT means a
plant code number, tire size and tread
pattern and the last four numbers indi-
cate week and year manufactured.
For example:
DOT XXXX XXXX 1617 represents
that the tire was produced in the 16th
week of 2017.
4. Tire ply composition and material
The number of layers or plies of rub-
ber-coated fabric are in the tire. Tire
manufacturers also must indicate the
materials in the tire, which include
steel, nylon, polyester, and others.
The letter "R" means radial ply con-
struction; the letter "D" means diago-
nal or bias ply construction; and theletter "B" means belted-bias ply con-
struction.
5. Maximum permissible inflationpressure
This number is the greatest amount of air pressure that should be put in
the tire. Do not exceed the maximum
permissible inflation pressure. Refer
to the Tire and Loading Information
label for recommended inflation
pressure.
6. Maximum load rating
This number indicates the maximum
load in kilograms and pounds that can
be carried by the tire. When replacing
the tires on the vehicle, always use a
tire that has the same load rating as
the factory installed tire.
WARNING - Tire age
Tires degrade over time, even
when they are not being used.
Regardless of the remaining
tread, it is recommended that
tires generally be replaced after
six (6) years of normal service.
Heat caused by hot climates orfrequent high loading condi-
tions can accelerate the aging
process. Failure to follow this
Warning can result in sudden
tire failure, which could lead to
a loss of control and an acci-
dent involving serious injury ordeath.
JD PE eng 7.QXP 03.01.2017 17:19 Page 53

Maintenance
54
7

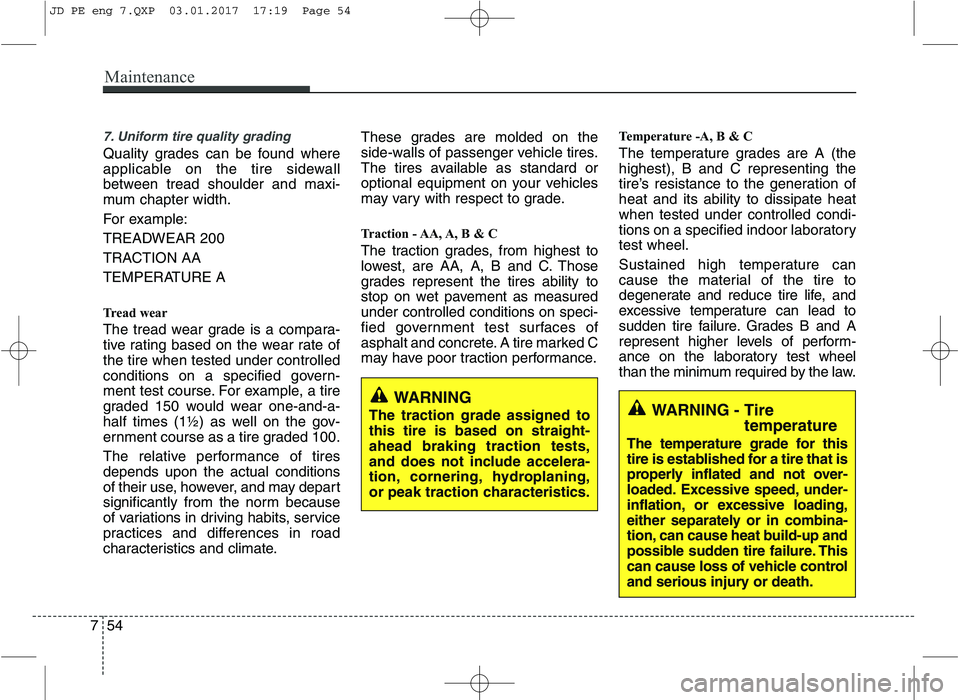

7. Uniform tire quality grading
Quality grades can be found where
applicable on the tire sidewall
between tread shoulder and maxi-
mum chapter width.
For example:
TREADWEAR 200
TRACTION AA
TEMPERATURE A
Tread wear
The tread wear grade is a compara-
tive rating based on the wear rate ofthe tire when tested under controlled
conditions on a specified govern-
ment test course. For example, a tire
graded 150 would wear one-and-a-
half times (1½) as well on the gov-
ernment course as a tire graded 100.
The relative performance of tires depends upon the actual conditions
of their use, however, and may depart
significantly from the norm because
of variations in driving habits, service
practices and differences in road
characteristics and climate. These grades are molded on the
side-walls of passenger vehicle tires.
The tires available as standard or
optional equipment on your vehicles
may vary with respect to grade.
Traction - AA, A, B & C
The traction grades, from highest to
lowest, are AA, A, B and C. Those
grades represent the tires ability to
stop on wet pavement as measuredunder controlled conditions on speci-
fied government test surfaces of
asphalt and concrete. A tire marked C
may have poor traction performance.
Temperature -A, B & C
The temperature grades are A (the highest), B and C representing the
tire’s resistance to the generation ofheat and its ability to dissipate heatwhen tested under controlled condi-
tions on a specified indoor laboratorytest wheel.
Sustained high temperature can
cause the material of the tire to
degenerate and reduce tire life, and
excessive temperature can lead to
sudden tire failure. Grades B and A
represent higher levels of perform-
ance on the laboratory test wheel
than the minimum required by the law.
WARNING
The traction grade assigned to this tire is based on straight-ahead braking traction tests,
and does not include accelera-
tion, cornering, hydroplaning,
or peak traction characteristics.WARNING - Tire temperature
The temperature grade for this
tire is established for a tire that is
properly inflated and not over-
loaded. Excessive speed, under-
inflation, or excessive loading,
either separately or in combina-
tion, can cause heat build-up and
possible sudden tire failure. This
can cause loss of vehicle control
and serious injury or death.
JD PE eng 7.QXP 03.01.2017 17:19 Page 54

Index
2
I
Active ECO system ......................................................5-39
Active ECO operation ................................................5-39
Limitation of Active ECO operation ..........................5-39
When Active ECO is activated ..................................5-39
Air bag - supplemental restraint system ........................3-43 Additional safety precautions ....................................3-65
Air bag warning and indicator ....................................3-46
Air bag warning label ................................................3-66
Curtain air bag ............................................................3-57
Driver's and passenger's front air bag ........................3-51
How does the air bag system operate ........................3-44
Side impact air bag ....................................................3-56
SRS Care ....................................................................3-64
SRS components and functions ..................................3-48
Air cleaner ....................................................................7-35 Filter replacement ......................................................7-35
Air conditioner compressor label ..................................8-15
Air conditioning system ..................................................8-4
Appearance care ..........................................................7-100 Exterior care ..............................................................7-100
Interior care ..............................................................7-105
Audio System ..............................................................4-185 Antenna ....................................................................4-185
AUX, USB and iPod ®
port ......................................4-187
Steering wheel audio controls ..................................4-186 Automatic climate control system ..............................4-149
Automatic heating and air conditioning ..................4-150
Checking the amount of air conditioner refrigerant and compressor lubricant ..............................................4-160
Climate control air filter ..........................................4-157
Manual heating and air conditioning ........................4-152
System operation ......................................................4-157
Automatic transaxle ......................................................5-23 Automatic transaxle operation ....................................5-23
Good driving practices ................................................5-28
Battery............................................................................7-42 Battery capacity label..................................................7-43
Battery recharging ......................................................7-43
For best battery service ..............................................7-42
Reset items ..................................................................7-44
Before driving ..................................................................5-4 Before entering vehicle ................................................5-4
Before starting ..............................................................5-4
Necessary inspections ..................................................5-4
Blind Spot Detection system (BSD)..............................5-74 BSD (Blind Spot Detection)/LCA (Lane Change Assist) ......................................5-74
Driver’s Attention ......................................................5-80
RCTA (Rear cross traffic alert) ..................................5-78
A
B

I3
Index
Brake system..................................................................5-40
Anti-lock brake system (ABS)....................................5-48
Electric parking brake (EPB) ......................................5-44
Electronic stability control (ESC) ..............................5-51
Emergency Stop Signal (ESS) ....................................5-56
Good braking practices ..............................................5-56
Hill-start assist control (HAC) ....................................5-55
Parking brake - Hand type ..........................................5-42
Power brakes ..............................................................5-40
Vehicle stability management (VSM) ........................5-54
Brake/clutch fluid ..........................................................7-32 Checking the brake fluid level ....................................7-32
Bulb wattage ....................................................................8-6
Child restraint system ....................................................3-32 Using a child restraint system ....................................3-34
Clean air ......................................................................4-163
Climate control air filter ................................................7-37 Filter inspection ..........................................................7-37
Filter replacement ......................................................7-37
Cruise Control system ..................................................5-58
Declaration of conformity ............................................8-15 Defroster ......................................................................4-139
Rear window defroster ..............................................4-139
Dimensions ......................................................................8-2
Door locks......................................................................4-17 Child-protector rear door lock ....................................4-21
Deadlocks....................................................................4-20
Door lock/unlock features ..........................................4-20
From inside ................................................................4-18
From outside ..............................................................4-17
Dual Clutch Transmission (DCT)..................................5-30 Dual clutch transmission operation ............................5-30
Good driving practices ................................................5-37
Economical operation ....................................................5-81
Emergency commodity ..................................................6-40 Fire extinguisher ........................................................6-40
First aid kit ..................................................................6-40
Tire pressure gauge ....................................................6-40
Triangle reflector ........................................................6-40
Emergency starting ..........................................................6-5 Jump starting ................................................................6-5
Push-starting ................................................................6-7
Emission control system ..............................................7-107
Engine ..............................................................................8-3
Engine compartment ................................................2-6, 7-3
C
D
E
