Features of your vehicle

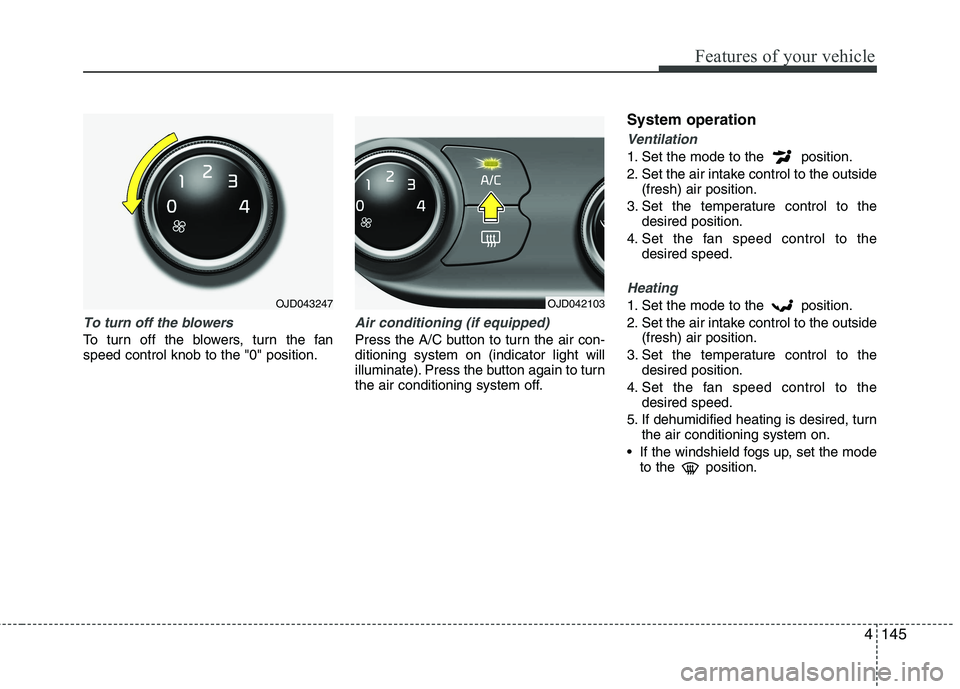

To turn off the blowers
To turn off the blowers, turn the fan speed control knob to the "0" position.
Air conditioning (if equipped)
Press the A/C button to turn the air con- ditioning system on (indicator light will
illuminate). Press the button again to turn
the air conditioning system off.System operation
Ventilation
1. Set the mode to the position.
2. Set the air intake control to the outside
(fresh) air position.
3. Set the temperature control to the desired position.
4. Set the fan speed control to the desired speed.
Heating
1. Set the mode to the position.
2. Set the air intake control to the outside(fresh) air position.
3. Set the temperature control to the desired position.
4. Set the fan speed control to the desired speed.
5. If dehumidified heating is desired, turn the air conditioning system on.
If the windshield fogs up, set the mode to the position.OJD042103OJD043247

Features of your vehicle
156
4
Fan speed control
The fan speed can be set to the desired
speed by pressing the fan speed control
button.
To change the fan speed, press the upper
button ( ) for higher speed, or press
the lower button ( ) for lower speed.
Pressing the OFF button turns off the
fan.
Air conditioning (if equipped)
Press the A/C button to turn the air con- ditioning system on (indicator light willilluminate).
Press the button again to turn the air
conditioning system off.
OJD042114OJD042115
WARNING
The continuous use of recirculat- ed air in the climate control sys-
tem may increase humidity inside
the vehicle, causing the glass to
fog and obscuring visibility.
Do not sleep in a vehicle with the air conditioning or heating system
on. It may cause serious harm or
death due to a drop in the oxygen
level and/or body temperature.
The continuous use of recirculat- ed air in the climate control sys-
tem can produce drowsiness or
sleepiness, which may result in a
loss of vehicle control. Set the air
intake control to the outside
(fresh) air position as much as
possible while driving.

Driving your vehicle
68
5
Warning indicator
When the LDWS is not working properly,
the warning light will illuminate and the
warning message will come on for a few
second. After the message disappears,
the master warning light will illuminate.
We recommend that the system be
checked by an authorized Kia dealer. The LDWS does not operate when:
The driver turns on the turn signal or
the hazard warning flasher to change
lane.
Driving on the lane line.
✽✽ NOTICE
To change lane, operate the turn signal
switch, then change the lane.
The LDWS may not warn you even
if the vehicle leaves the lane, or
may warn you even if the vehicle
does not leave the lane when:
The lane is not visible due to snow, rain, stain, a puddle or many other things.
The brightness of the outside changes suddenly.
Not turning on the headlight even at night or in the tunnel.
Difficult to distinguish the color of the lane from the road.
Driving on a steep grade or a curve. Light reflects from the water on the
road.
The lens or windshield is stained with foreign matter.
The sensor can not detect the lane because of fog, heavy rain or heavy
snow.
The surrounding temperature of the inside rear view mirror is high due to a
direct ray of light.
The lane is very wide or narrow.
The lane line is damaged or indistinct.
The shadow is on the lane line by a median strip.
There is a mark similar to a lane line.
There is a boundary structure.
The distance from vehicle ahead is very short or the vehicle ahead hides
the lane line.
The vehicle shakes heavily.
The lane number increases or decreas- es or the lane lines are crossing com-
plicatedly.
Putting something on the dashboard.
Driving with the sun in front of you.
Driving in areas under construction.
The lane line is more than two in either side (Left/Right).
OUM054158L
OJD055174L

Driving your vehicle
72
5
Warning message
The message will appear when camera’s
field of view is covered by some objects.
The system stops until the field of view is
normal.
Check the windshield around the camera
view area.
If the system does not work normally
even though camera’s field of view is
cleared, we recommend that the system
be checked by an authorized Kia dealer. When SLIF is not working properly, the
warning message will come on for a few
second. After the message disappears,
the master warning light will illuminate.
We recommend that the system be
checked by an authorized Kia dealer.The system may not fully operate and
provide correct information in the follow-
ing situations.
Traffic signs are positioned on sharp
curve.
Poorly positioned traffic sign. (eg. Rotated, shaded by any object, dam- aged…)
Concealed traffic signs by other vehicle.
Broken LED traffic signs.
Poor weather like snow, rain, fog
There is glare around traffic signs by low sun in the sky.
There is insufficient illumination of the traffic signs in the night.
There is bright lights around traffic signs.
There is dirt, ice or frost on the wind- shield in the area of the camera.
When camera field of view is covered by objects such as a sticker, paper, leaf fall.
When driving very close to the vehicle in front of you.
When navigation system has malfunc- tion.
When bus or trucks attached with a speed sticker are passing you.
When you are in area or countries where navigation system is not covered.
When a navigation system not updated latest map version.
OJD055155L
OUM054154L
OJD055174L

 Tire replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-49
 Wheel replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-51
 Tire traction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-51
 Tire maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-51
 Tire sidewall labeling . . . . . . . . . . . . . . . . . . . . . . . . . . 7-51
 Low aspect ratio tire . . . . . . . . . . . . . . . . . . . . . . . . . . 7-55
Fuses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-56  Fuse/relay panel description . . . . . . . . . . . . . . . . . . . . 7-61
Light bulbs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-79  Front light replacement . . . . . . . . . . . . . . . . . . . . . . . . 7-80
 Headlight and front fog light aiming (for Europe) . . 7-85
 Side repeater light bulb replacement . . . . . . . . . . . . . 7-93
 Rear combination light bulb replacement . . . . . . . . . 7-93
 High mounted stop light bulb replacement . . . . . . . . 7-98
 License plate light bulb replacement . . . . . . . . . . . . . 7-98
 Interior light bulb replacement. . . . . . . . . . . . . . . . . . 7-99
Appearance care. . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-100  Exterior care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-100
 Interior care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-105
Emission control system . . . . . . . . . . . . . . . . . . . . . 7-107
7
JD PE eng 7.QXP 03.01.2017 17:16 Page 2

757
Maintenance
Inner panel fuse replacement
1. Turn the ignition switch and all otherswitches off.
2. Open the fuse panel cover. 3. Pull the suspected fuse straight out.
Use the removal tool provided in the
engine compartment fuse panel.
4. Check the removed fuse; replace it if it is blown.
5. Push in a new fuse of the same rating, and make sure it fits tightly in the clips.
If it fits loosely, we recommend that you
consult an authorized Kia dealer.
If you do not have a spare, use a fuse of the same rating from a circuit you may not need for operating the vehicle, suchas the cigar lighter fuse.
If the headlights, fog lights, turn signallights, position lights or interior lights do
not work and there is nothing wrong with the bulbs, we recommend that you con-sult with an authorized Kia dealer.
OJD072016OGD071017
CAUTION
When replacing a blown fuse or
relay with a new one, make surethe new fuse or relay fits tightly into the clips. The incomplete fas-
tening fuse or relay may cause thevehicle wiring and electric sys-tems damage and a possible fire.
Do not remove fuses, relays and terminals fastened with bolts or
nuts. The fuses, relays and termi-nals may be fastened incomplete-ly, and it may cause a possible fire.If fuses, relays and terminals fas-
tened with bolts or nuts are blown, we recommend that you consultwith an authorized Kia dealer.
Do not input any other objects except fuses or relays into
fuse/relay terminals such as a driv-er or wiring. It may cause contactfailure and system malfunction.
Do not plug in screwdrivers or aftermarket wiring into the terminaloriginally designed for fuse and relays only. The electrical systemand wiring of the vehicle interior
may be damaged or burned due to contact failure.
JD PE eng 7.QXP 03.01.2017 17:19 Page 57

779
Maintenance
LIGHT BULBS
Use only the bulbs of the specifiedwattage.
✽✽ NOTICE
After driving in heavy rain or washing
the vehicle, headlight and taillight lenses
could appear foggy. This condition is
caused by the temperature difference
between the lamp inside and outside.
This is similar to the condensation on
your windows inside your vehicle during
rain and does not indicate a problem
with your vehicle. If the water leaks into
the lamp bulb circuitry, we recommend
that the system be checked by an
authorized Kia dealer.WARNING - Working on
the lights
Prior to working on the light, firmly
apply the parking brake, ensure
that the ignition switch is turned to
the “LOCK” position (smart key:turn off the engine) and turn off the
lights to avoid sudden movement
of the vehicle and burning your fin-
gers or getting an electric shock.
CAUTION
Be sure to replace the burned-out bulb with one of the same wattagerating. Otherwise, it may cause damage to the fuse or electric
wiring system.
CAUTION
If you do not have necessary tools, the correct bulbs and theexpertise, we recommend thatyou consult an authorized Kia
dealer. In many cases, it is diffi-cult to replace vehicle light bulbsbecause other parts of the vehiclemust be removed before you can
get to the bulb. This is especially true if you have to remove theheadlight assembly to get to the bulb(s).
Removing/installing the headlightassembly can result in damage to the vehicle.
Do not install additional bulb or LED. If you install that, the lamp
may not be operated properly andfuse box or electric wiring systemmay have problem.
JD PE eng 7.QXP 03.01.2017 17:21 Page 79

Maintenance
80
7
Front light replacement
(1) Front turn signal light
(2) Headlight (Low)(3) Static bending light (if equipped)
(4) Position light
(5) Position light / Daytime running light
(DRL, LED Type) (if equipped)
(6) Headlight (High)
(7) Da ytime running light (DRL, Bulb type)
(if equipped)
(8) Front fog light (if equipped)
1. Turn off the engine and open the hood.
2. Disconnect the negative battery cable.
3. Disconnect the power connector front the back of the headlight assembly.
If you can reach the bulb without remov-
ing the headlight assembly, you do notneed to do step 4 to 7.
4. Loosen the retaining bolts on the frontbumper .
- Front bumper upper board : 4 EA
- Front bumper cover : 1 EA
OJD075052
OJD075066
■ Type A
■Type B
OJD073081
■Type C
OJD072053
OJD072054
Diesel only
