2017 KIA CARENS RHD tailgate

419
Features of your vehicle
Vehicles equipped with a theft alarm
system will have a label attached to
the vehicle with the following words:
1. WARNING
2. SECURITY SYSTEMThis system is designed to provide
protection from unauthorised entry
into the vehicle, movement inside the
vehicle (if equipped), and leaning to
one side (if equipped). This system is
operated in three stages: the first is
the "Armed" stage, the second is the
"Theft-alarm" stage, and the third is
the "Disarmed" stage. If triggered,
the system provides an audible
alarm with blinking of the hazard
warning lights.Armed stage
Park the vehicle and stop the engine.
Arm the system as described below.
1. Remove the ignition key from the
ignition switch or turn off the engine.
2. Make sure the intrusion/tilt sensor is ON (the sensor ON/OFF button
light is off) and exit the vehicle.
3. Make sure that all doors (and tail- gate) and engine bonnet areclosed and latched.
4. Lock the doors using the transmit- ter of the keyless entry system (or
smart key).
After completion of the steps above,
the hazard warning lights will blinkonce to indicate that the system is
armed.
If any door (or tailgate) or engine bonnet remains open, the hazard
warning lights will not operate and
the theft-alarm will not arm. If alldoors (and tailgate) and engine bon-
net are closed after the lock button is
pressed, the hazard warning lights
will blink once.
THEFT-ALARM SYSTEM (INTRUSION PROTECTION SYSTEM, UK ONLY)
OJC040170
Armed
stage
Theft-alarm stageDisarmedstage

421
Features of your vehicle
✽✽NOTICE
 Do not activate the sensor if there are any chances the vehicle tilts by
the outward influences (for exam-
ple, ferry boat travelling, tower
parking etc.), because it could cause
the siren to sound inadvertently.
 Make sure all windows are close whilst the system operates. If not,
the sensor detects the inadvertent
movement inside the vehicle (for
example, blowing a wind or enter-
ing a butterfly) and it makes the
siren sounds.
 If boxes are piled high in the vehi- cle, the sensor may not detect the
movement behind the boxes. Also
the boxes may drop and it makes
the siren sounds.
 If the sensor is stained with for- eign matter such as cosmetics,
spray type air freshener, or spray
type window cleaner, the sensor
may not operate normally.Theft-alarm stage
Intrusion/tilt sensor off condition
The alarm will be activated if any of
the following occurs whilst the sys-
tem is armed.
A front or rear door is opened with-out using the transmitter (or smart
key).
The tailgate is opened without using the transmitter (or smart key).
The engine bonnet is opened.
The ignition switch is in the ON position. Intrusion/tilt sensor on condition
The alarm will be activated if any of
the following occurs whilst the sys-
tem is armed when the sensor is
activated.
The passenger(s) moves in the
vehicle.
The inclination of the vehicle is changed to the certain degree.
A front or rear door is opened without using the transmitter (or smart key).
The tailgate is opened without using the transmitter (or smart key).
The engine bonnet is opened.
The ignition switch is in the ON position.
The siren will sound and the hazard
warning lights will blink continuously
for approximately 27 seconds and
repeat max. 8 times whilst the sys-
tem is met the alarm activate condi-
tion. To turn off the system, unlock
the doors with the transmitter (or
smart key).

Features of your vehicle
22
4
Disarmed stage
The system will be disarmed when:
Transmitter
- The door unlock button is pressed.
- The 3 seconds are passed after
the engine has been started.
Smart key
- The door unlock button is pressed.
- The button of the front outside dooris pressed whilst carrying the
smart key.
- The engine is started.
After the doors are unlocked, the haz-
ard warning lights will blink twice to
indicate that the system is disarmed.
After pressing the unlock button, if
any door (or tailgate) is not opened
within 30 seconds, the system will be
rearmed.
✽✽ NOTICE
 Avoid trying to start the engine whilst the alarm is activated. The
vehicle starting motor is disabled
during the theft-alarm stage.
 If you lose your keys, we recommend that you consult an authorised Kia
dealer.Self-diagnosis (if equipped)
If the siren sounds 3 times when you
lock the doors by using the transmit-
ter, it means the intrusion/tilt sensor
is not working normally. We recom-
mend that you contact an authorised
Kia dealer.
CAUTION
Do not change, alter or adjust the
system because it could causethe system to malfunction and we recommend that the systembe serviced by an authorised Kiadealer.
Malfunctions caused by improp-er alterations, adjustments or modifications to the system arenot covered by your vehiclemanufacturer warranty.

Features of your vehicle
26
4

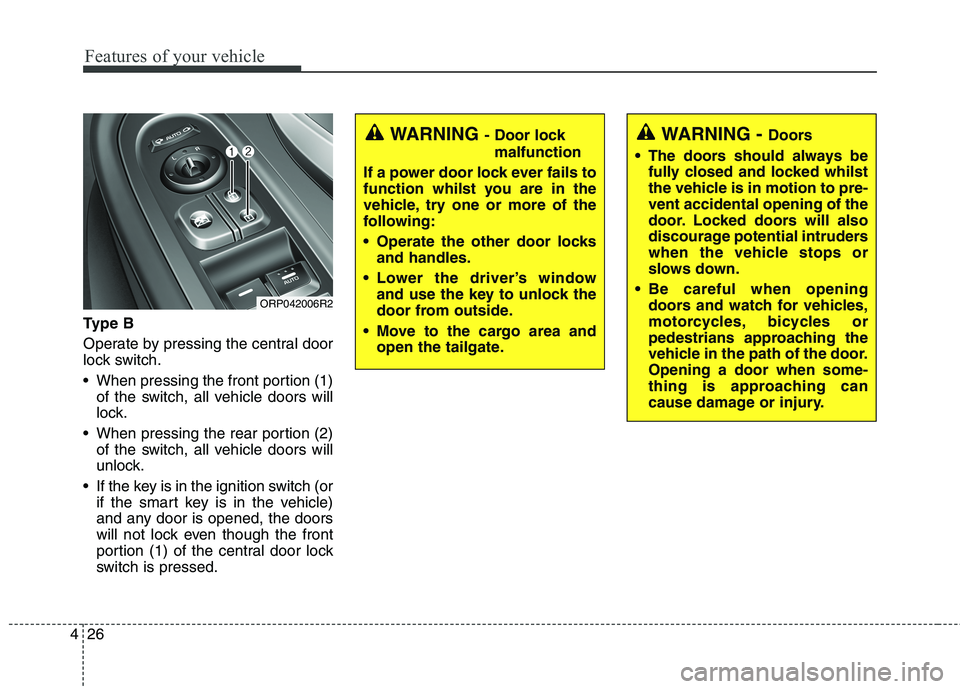

Ty p e B
Operate by pressing the central door
lock switch.
When pressing the front portion (1)
of the switch, all vehicle doors will
lock.
When pressing the rear portion (2) of the switch, all vehicle doors will
unlock.
If the key is in the ignition switch (or if the smart key is in the vehicle)
and any door is opened, the doors
will not lock even though the front
portion (1) of the central door lock
switch is pressed.
WARNING - Door lock
malfunction
If a power door lock ever fails to
function whilst you are in the
vehicle, try one or more of the
following:
Operate the other door locks and handles.
Lower the driver’s window and use the key to unlock the
door from outside.
Move to the cargo area and open the tailgate.WARNING - Doors
The doors should always be fully closed and locked whilst
the vehicle is in motion to pre-vent accidental opening of the
door. Locked doors will also
discourage potential intruders
when the vehicle stops or
slows down.
Be careful when opening doors and watch for vehicles,
motorcycles, bicycles or
pedestrians approaching the
vehicle in the path of the door.Opening a door when some-
thing is approaching can
cause damage or injury.
ORP042006R2

Features of your vehicle
30
4

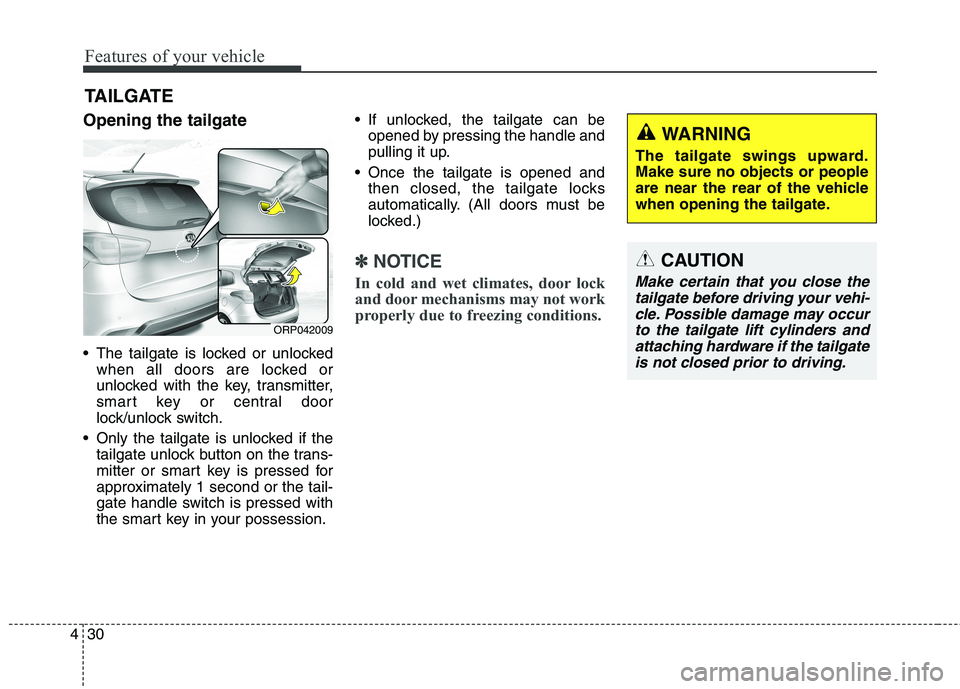

Opening the tailgate
The tailgate is locked or unlocked
when all doors are locked or
unlocked with the key, transmitter,
smart key or central door
lock/unlock switch.
Only the tailgate is unlocked if the tailgate unlock button on the trans-
mitter or smart key is pressed for
approximately 1 second or the tail-
gate handle switch is pressed with
the smart key in your possession. If unlocked, the tailgate can be
opened by pressing the handle and
pulling it up.
Once the tailgate is opened and then closed, the tailgate locks
automatically. (All doors must be
locked.)
✽✽ NOTICE
In cold and wet climates, door lock
and door mechanisms may not work
properly due to freezing conditions.
TAILGATE
WARNING
The tailgate swings upward. Make sure no objects or people
are near the rear of the vehicle
when opening the tailgate.
CAUTION
Make certain that you close the tailgate before driving your vehi-cle. Possible damage may occurto the tailgate lift cylinders and attaching hardware if the tailgateis not closed prior to driving.
ORP042009

431
Features of your vehicle

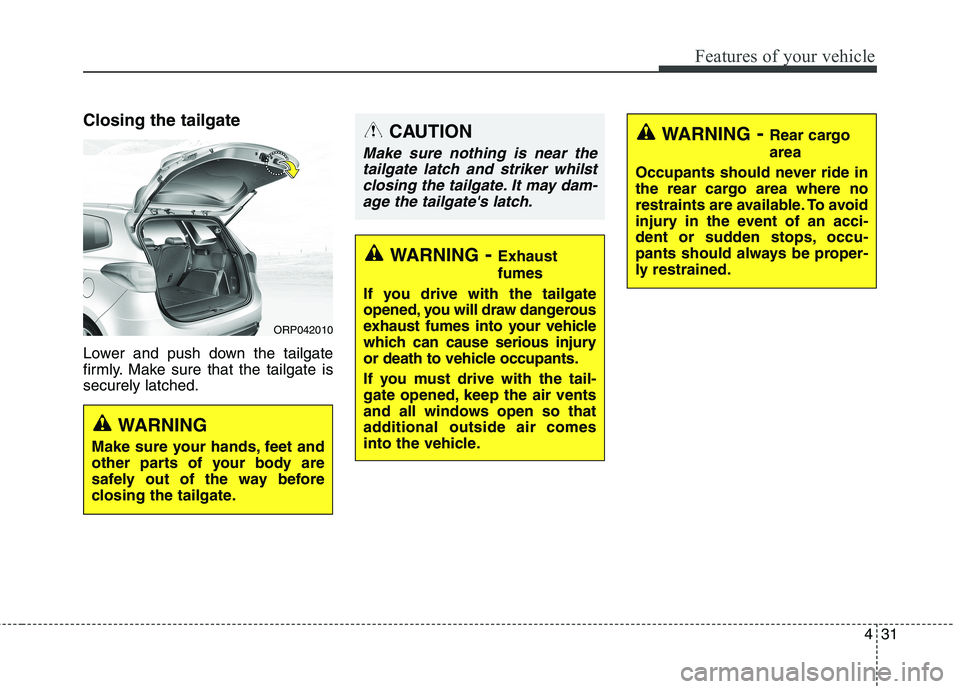

Closing the tailgate
Lower and push down the tailgate
firmly. Make sure that the tailgate issecurely latched.
WARNING- Exhaust fumes
If you drive with the tailgate
opened, you will draw dangerous
exhaust fumes into your vehicle
which can cause serious injury
or death to vehicle occupants.
If you must drive with the tail-
gate opened, keep the air vents
and all windows open so that
additional outside air comes
into the vehicle.
WARNING - Rear cargo area
Occupants should never ride in
the rear cargo area where no
restraints are available. To avoid
injury in the event of an acci-
dent or sudden stops, occu-
pants should always be proper-
ly restrained.CAUTION
Make sure nothing is near the tailgate latch and striker whilstclosing the tailgate. It may dam- age the tailgate's latch.
WARNING
Make sure your hands, feet and
other parts of your body are
safely out of the way before
closing the tailgate.
ORP042010

Features of your vehicle
32
4
Emergency tailgate safety release
Your vehicle is equipped with the
emergency tailgate safety release
lever located on the bottom of the
tailgate. When someone is inadver-
tently locked in the luggage compart-
ment. The tailgate can be opened by
doing as follows:
1. Remove the cover.
2. Push the release lever to the right.
3. Push up the tailgate.WARNING
For emergencies, be fully aware of the location of the
emergency tailgate safety
release lever in the vehicle
and how to open the tailgate if
you are accidentally locked in
the luggage compartment.
No one should be allowed to occupy the luggage compart-
ment of the vehicle at any time.
The luggage compartment is a
very dangerous location in the
event of a crash.
Use the release lever for emergencies only. Use with
extreme caution, especially
whilst the vehicle is in motion.
ORP042011

475
Features of your vehicle

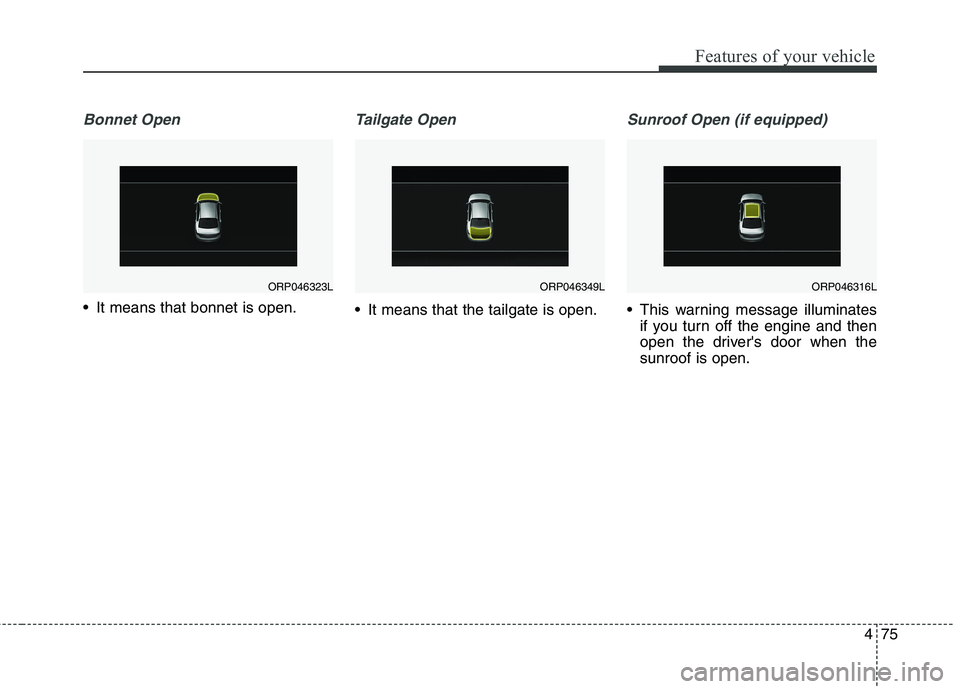

Bonnet Open
It means that bonnet is open.
Tailgate Open
It means that the tailgate is open.
Sunroof Open (if equipped)
This warning message illuminatesif you turn off the engine and then
open the driver's door when thesunroof is open.
ORP046323LORP046349LORP046316L
