What to do in an emergency
28
7
Use a towing strap less than 5 m
(16 feet) long. Attach a white or red
cloth (about 30 cm (12 inches)
wide) in the middle of the strap for
easy visibility.
Drive carefully so that the towing strap is not loosened during tow-
ing.
Emergency towing precautions
Turn the ignition switch to ACC sothe steering wheel isn’t locked.
Place the transaxle shift lever in N (Neutral).
Release the parking brake.
Press the brake pedal with more force than normal since you will
have reduced brake performance.
More steering effort will be required because the power steer-
ing system will be disabled.
If you are driving down a long hill, the brakes may overheat and brake
performance will be reduced. Stop
often and let the brakes cool off.
If the car is being towed with all four
wheels on the ground, it can be
towed only from the front. Be sure
that the transmission is in neutral. Be
sure the steering is unlocked by plac-
ing the ignition switch in the ACC
position. A driver must be in the
towed vehicle to operate the steering
and brakes.WARNING
Use extreme caution when tow-
ing the vehicle.
Avoid sudden starts or erratic driving maneuvers which
would place excessive stress
on the emergency towing
hook and towing cable or
chain. The hook and towing
cable or chain may break and
cause serious injury or dam-
age.
If the disabled vehicle is unable to be moved, do not
forcibly continue the towing.
We recommend that you con-
tact an authorized Kia dealer
or a commercial tow truck
service for assistance.
Tow the vehicle as straight ahead as possible.
Keep away from the vehicle during towing.
OXM069009

Maintenance
74
8
Instrument panel (Driver’s side fuse panel)
No.Fuse ratingDescriptionProtected component
110APDM 2Start/Stop Button Switch, Immobilizer Module
215AMULTI MEDIADC-DC Converter (Audio), A/V & Navigation Head Unit, Audio
37.5AMODULE 3
Seat Warmer Control Module, Rear Seat Warmer Module, Passenger Seat Warmer Module, DC-DC
Converter (AMP), Auto Head Lamp Leveling Device Module, Rain Sensor, Head Lamp Leveling Device
Actuator LH/RH, A/C Control Module, Electro Chromic Mirror, Head Lamp Leveling Device Switch, A/V
Navigation Head Unit
47.5ACLUSTERInstrument Cluster, DC-DC Converter (Audio)
57.5AMDPSMDPS Unit
67.5ASTARTICM Relay Box (B/Alarm Relay), Ignition Lock Switch
[A/T - Transaxle Range Switch], [M/T - E/R Junction Block
(RLY. 10), ECM/PCM, Smart Key Control Module]
710AINTERIOR
LAMPDriver/Passenger Power Outside Mirror, Driver/Passenger Foot Lamp, Ignition Key ILL. & Door Warning
Switch, Overhead Console Lamp, Room Lamp, Vanity Lamp LH/RH, Rear Personal Lamp LH/RH,
Luggage Lamp, Portable Lamp
820APDMSmart Key Control Module
97.5AMEMORY 2RF Receiver
1010AECUSmart Key Control Module, Immobilizer Module,
Vehicle Speed Sensor, ECM/PCM, Air Flow Sensor (D4FD), Glow Relay Unit
1110AABSABS/ESC Control Module

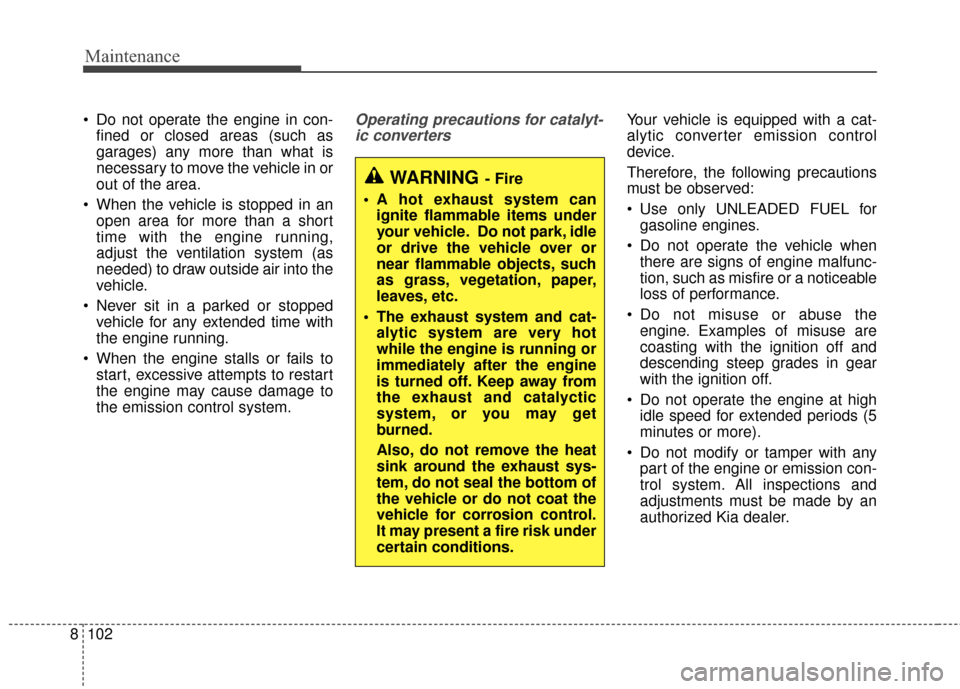

Maintenance
102
8
Do not operate the engine in con-
fined or closed areas (such as
garages) any more than what is
necessary to move the vehicle in or
out of the area.
When the vehicle is stopped in an open area for more than a short
time with the engine running,
adjust the ventilation system (as
needed) to draw outside air into the
vehicle.
Never sit in a parked or stopped vehicle for any extended time with
the engine running.
When the engine stalls or fails to start, excessive attempts to restart
the engine may cause damage to
the emission control system.Operating precautions for catalyt-ic converters Your vehicle is equipped with a cat-
alytic converter emission control
device.
Therefore, the following precautions
must be observed:
Use only UNLEADED FUEL for gasoline engines.
Do not operate the vehicle when there are signs of engine malfunc-
tion, such as misfire or a noticeable
loss of performance.
Do not misuse or abuse the engine. Examples of misuse are
coasting with the ignition off and
descending steep grades in gear
with the ignition off.
Do not operate the engine at high idle speed for extended periods (5
minutes or more).
Do not modify or tamper with any part of the engine or emission con-
trol system. All inspections and
adjustments must be made by an
authorized Kia dealer.
WARNING- Fire
A hot exhaust system can ignite flammable items under
your vehicle. Do not park, idle
or drive the vehicle over or
near flammable objects, such
as grass, vegetation, paper,
leaves, etc.
The exhaust system and cat- alytic system are very hot
while the engine is running or
immediately after the engine
is turned off. Keep away from
the exhaust and catalyctic
system, or you may get
burned.
Also, do not remove the heat
sink around the exhaust sys-
tem, do not seal the bottom of
the vehicle or do not coat the
vehicle for corrosion control.
It may present a fire risk under
certain conditions.

I5
Index
Engine compartment ........................................................2-6
Engine compartment ........................................................8-3
Engine coolant ..............................................................8-31Checking the coolant level..........................................8-31\
Changing the coolant ..................................................8-33
Engine Coolant Temperature Gauge..............................4-61
Engine number ................................................................9-9
Engine oil ......................................................................8-\
29 Checking the engine oil level ....................................8-29
Changing the engine oil and filter ..............................8-30
Engine overheats..............................................................7-8
Engine start/stop button ..................................................6-9 Illuminated engine start/stop button ............................6-9
Engine start/stop button position ..................................6-9
Starting the engine ......................................................6-12
Engine start/stop button illumination ..............................6-9
Engine start/stop button position ....................................6-9
Engine will not start ........................................................7-4
Evaporative emission control (including ORVR: Onboard Refueling Vapor Recovery) system ............8-100
Exhaust emission control system ................................8-101
Explanation of scheduled maintenance items ..............8-25 Engine oil and filter ....................................................8-25
Drive belts ..................................................................8-25
Fuel filter ..................................................................8-25
Fuel lines, fuel hoses and connections ......................8-25
Vapor hose and fuel filler cap ....................................8-25
Vacuum crankcase ventilation hoses ..........................8-26 Air cleaner filter ..........................................................8-26
Spark plugs ................................................................8-26
Cooling system ..........................................................8-26
Coolant ................................................................\
......8-26
Automatic transaxle fluid............................................8-2\
6
Brake hoses and lines..................................................8\
-27
Brake fluid ..................................................................8-27
Parking brake ............................................................8-27
Brake discs, pads, calipers and rotors ........................8-27
Suspension mounting bolts ........................................8-27
Steering gear box, linkage & boots/lower arm ball joint ........................................8-28
Drive shafts and boots ................................................8-28
Air conditioning refrigerant ......................................8-28
Exterior care ..................................................................8-92
Exterior features ..........................................................4-172 Roof rack ..................................................................4-172
Exterior overview (Front) ................................................2-2
Exterior overview (Rear) ................................................2-3
Flat tire ........................................................................\
..7-15 Jack and tools ..............................................................7-15
Removing and storing the spare tire ..........................7-16
Changing tires ............................................................7-17
Removing and storing the spare tire ..........................7-16
Changing tires ............................................................7-17
F

Index
6I
Flex steer........................................................................\
4-51
Floor mat anchor(s) ....................................................4-165
Floor under tray ..........................................................4-155
FluidBrake fluid ..................................................................8-35
Washer fluid ................................................................8-36
Folding key ......................................................................4-\
4 Record your key number ..............................................4-4
Key operations ..............................................................4-4
Transmitter precautions ................................................4-6
Battery replacement ......................................................4-7
Immobilizer system ......................................................4-8
Folding the outside rearview mirror ..............................4-56
Front fog light ..............................................................4-109
Front fog light ................................................................8-85
Front light replacement..................................................8-82
Front Position/Turn signal light ....................................8-84
Front seat adjustment (manual) ......................................3-5
Front seat adjustment (power) ........................................3-6
Fuel filler lid ..................................................................4-39 Opening the fuel filler lid ..........................................4-39
Closing the fuel filler lid ............................................4-39
Fuel Gauge ....................................................................4-61\
Fuel requirements ............................................................1-3
Fuses ........................................................................\
......8-66 Inner panel fuse replacement ....................................8-68
Engine compartment fuse replacement ......................8-69
Fuse/relay panel description ......................................8-72 Gauges ........................................................................\
..4-60
Glove box ....................................................................4-15\
2
Gross vehicle weight ......................................................9-5
Hazard warning flasher....................................................7-2
Hazardous driving conditions ........................................6-59
Headlight (Low, HID type),DRL (LED type)
bulb replacement ........................................................8-83
Headlight (Low, High Non-HID Type) bulb replacement ........................................................8-82
Headlight leveling device ............................................4-109
Headlight position........................................................4-105
Headlight washer ........................................................4-116
Headlight welcome function ......................................4-105
Headrest (rear) ..............................................................3-18
Headrest(front) ................................................................3-9
Heated steering wheel....................................................4-50
High - beam operation ................................................4-107
High mounted stop light bulb replacement ..................8-89
Highway driving ............................................................6-62
Hill-start assist control (HAC) ......................................6-40
Hood ........................................................................\
......4-35
How to use this manual ..................................................1-2
Horn ........................................................................\
......4-50
H
G
