Maintenance

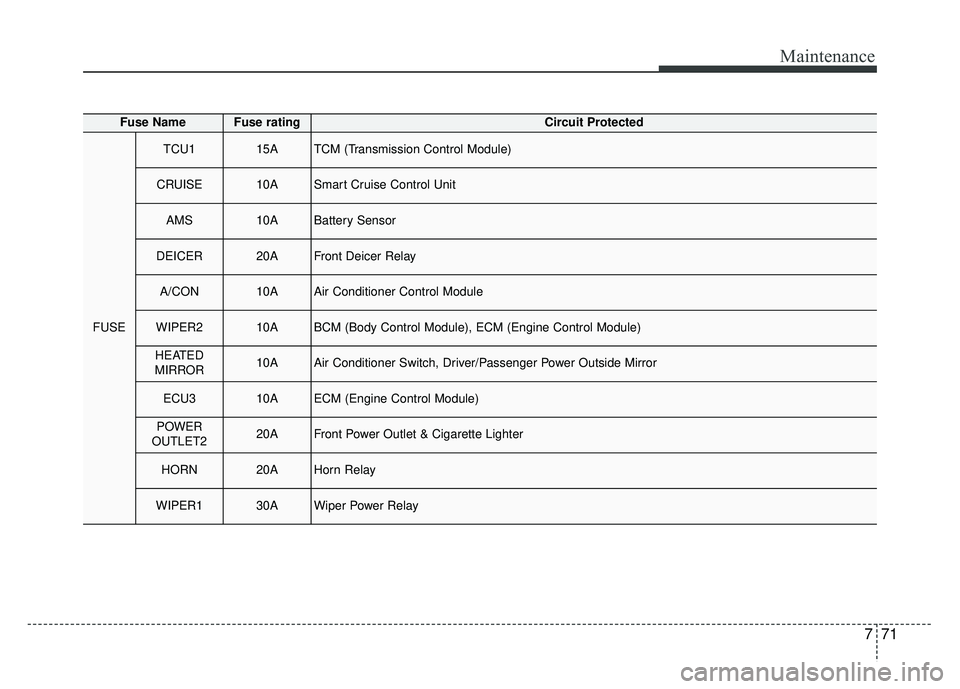

Fuse NameFuse ratingCircuit Protected
FUSE
TCU115ATCM (Transmission Control Module)
CRUISE10ASmart Cruise Control Unit
AMS10ABattery Sensor
DEICER20AFront Deicer Relay
A/CON10AAir Conditioner Control Module
WIPER210ABCM (Body Control Module), ECM (Engine Control Module)
HEATED
MIRROR10AAir Conditioner Switch, Driver/Passenger Power Outside Mirror
ECU310AECM (Engine Control Module)
POWER
OUTLET220AFront Power Outlet & Cigarette Lighter
HORN20AHorn Relay
WIPER130AWiper Power Relay

Maintenance
72
7
Fuse NameFuse ratingCircuit Protected
FUSE
TCU215ATCM (Transmission Control Module), Transaxle Range Switch
ABS310AESC (Electronic Stability Control) Module
POWER
OUTLET320ANot Used
B/UP LAMP10AElectro Chromic Mirror, Rear Combination Lamp (Inside) Left Handle side/Right Handle side
SENSOR115AOxygen Sensor #1~#4
IGN COIL20AIgnition Coil #1~#6
ECU210AECM (Engine Control Module)
FUEL PUMP20AFuel Pump Relay
ECU120AECM (Engine Control Module)
INJECTOR15ANot Used
SENSOR210AVariable Intake Solenoid Valve #1, #2, Electronic Thermostat, Purge Control Solenoid Valve, Canister
Close Valve, Oil Pressure Solenoid Valve, Oil Control Valve #1~#4, Cooling Fan1 Relay, Cooling Fan2
Relay, Fuel Pump Relay

Maintenance
90
7
High-pressure washing
When using high-pressure wash-
ers, make sure to maintain suffi-
cient distance from the vehicle.
Insufficient clearance or excessive
pressure can lead to component
damage or water penetration.
Do not spray the camera, sensors or its surrounding area directly with
a high pressure washer. Shock
applied from high pressure water
may cause the device to not oper-
ate normally.
Do not bring the nozzle tip close to boots (rubber or plastic covers) or
connectors as they may be dam-
aged if they come into contact with
high pressure water. Waxing
Wax the vehicle when water will no
longer bead on the paint.
Always wash and dry the vehicle
before waxing. Use a good quality
liquid or paste wax, and follow the
manufacturer’s instructions. Wax all
metal trim to protect it and to main-
tain its luster.
Removing oil, tar, and similar materi-
als with a spot remover will usually
strip the wax from the finish. Be sure
to re-wax these areas even if the rest
of the vehicle does not yet need wax-
ing.
Do not apply wax on embossed
unpainted unit, as it may tarnish the
unit.
OJB037800
CAUTION - Wet engine
Water washing in the engine
compartment including highpressure water washing maycause the failure of electricalcircuits located in the enginecompartment.
Never allow water or other liq- uids to come in contact withelectrical/electronic compo-nents inside the vehicle asthis may damage them.

I3
Index
AEB warning message and system control . . . . . . . 5-41
Brake operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-42
Sensor to detect the distance from the vehicle infront (front radar) . . . . . . . . . . . . . . . . . . . . . . . . . . 5-43
System malfunction . . . . . . . . . . . . . . . . . . . . . . . . . 5-44
Limitation of the system . . . . . . . . . . . . . . . . . . . . . 5-45
Recognizing pedestrians. . . . . . . . . . . . . . . . . . . . . . 5-48
AUX, USB port. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-156
Back-up lamp bulb replacement . . . . . . . . . . . . . . . . . 7-84
Battery. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . 7-40 For best battery service . . . . . . . . . . . . . . . . . . . . . . 7-40
Recharging the battery . . . . . . . . . . . . . . . . . . . . . . . 7-41
Reset items . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-42
Battery replacement(Smart key) . . . . . . . . . . . . . . . . . . 4-10
Battery saver function . . . . . . . . . . . . . . . . . . . . . . . . . 4-106
Before driving . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-4
Blind Spot Detection System(BSD) . . . . . . . . . . . . . . . 5-76 BSD (Blind Spot Detection) /LCA (Lane Change Assist) . . . . . . . . . . . . . . . . . . 5-77
RCTA (Rear cross traffic alert) . . . . . . . . . . . . . . . . 5-80
Limitations condition . . . . . . . . . . . . . . . . . . . . . . . . 5-82
Bonnet see the hood . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-35
Brake system. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-17 Power brakes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-17
Parking brake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-19 Electric parking brake (EPB) . . . . . . . . . . . . . . . . . . 5-20
AUTO HOLD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-26
Anti-lock brake system (ABS) . . . . . . . . . . . . . . . . . 5-29
Electronic stability control (ESC) . . . . . . . . . . . . . . 5-31
Vehicle stability management (VSM) . . . . . . . . . . . 5-34
Hill-start assist control (HAC) . . . . . . . . . . . . . . . . . 5-36
Brakes fluid. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-29\
Checking the brake fluid level . . . . . . . . . . . . . . . . . 7-29
Bulb replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-75
Bulb replacement precaution . . . . . . . . . . . . . . . . . . . . 7-75
Bulb wattage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-3
Button start/stop, see engine start/stop button . . . . . . . . 5-6
