2017 KIA BORREGO sensor

What to do in an emergency
12
7
The TPMS malfunction indicator
will remain continuously illuminated
while driving because the TPMSsensor is not mounted on the spare
wheel. (changed tire equipped with
a sensor in the vehicle) TPMS (Tire Pressure Monitoring System)malfunction indicator
The TPMS malfunction indicator will
illuminate after it blinks for approxi-
mately one minute when there is a
problem with the Tire Pressure
Monitoring System.
We recommend that the system be
checked by an authorized Kia dealer
to determine the cause of the prob-lem.
✽✽ NOTICE
If there is a malfunction with the
TPMS, the low tire pressure position
telltale will not be displayed even
though the vehicle has an under-
inflated tire.
WARNING - Low pressure
damage
Significantly low tire pressure
makes the vehicle unstable and
can contribute to loss of vehicle
control and increased brakingdistances.
Continued driving on low pres- sure tires can cause the tires to
overheat and fail.
CAUTION
In winter or cold weather, the low tire pressure telltale mayilluminate if the tire pressure was adjusted to the recom-mended tire inflation pressurein warm weather. It does not mean your TPMS is malfunction-ing because the decreased tem-perature leads to a lowering of tire pressure.
When you drive your vehicle froma warm area to a cold area orfrom a cold area to a warm area,or the outside temperature is higher or lower, you shouldcheck the tire inflation pressureand adjust the tires to the recom-mended tire inflation pressure.

713
What to do in an emergency
Changing a tire with TPMS
If you have a flat tire, the low Tire
Pressure and Position telltales will
come on. We recommend that the
system be checked by an authorized
Kia dealer. Each wheel is equipped with a tire pressure sensor mounted inside the
tire behind the valve stem. You must
use TPMS specific wheels. It is rec-
ommended that you have your tires
serviced by an authorized Kia dealer.CAUTION
The TPMS malfunction indica-tor may blink for approximate-ly 1 minute and then remaincontinuously illuminated if thevehicle is moving around elec- tric power supply cables orradios transmitter such as atpolice stations, government and public offices, broadcast-ing stations, military installa-tions, airports, or transmitting towers, etc. This can interferewith normal operation of theTire Pressure MonitoringSystem (TPMS).
The TPMS malfunction indica- tor may blink for approximate-ly 1 minute and then remaincontinuously illuminated ifsnow chains are used or some separate electronic devicessuch as notebook computer,mobile charger, remote starter or navigation etc., are used inthe vehicle.
(Continued)
(Continued)This can interfere with normaloperation of the Tire PressureMonitoring System (TPMS).
CAUTION
We recommend that you use the sealant approved by Kia.
The sealant on the tire pressuresensor and wheel shall be elim-inated when you replace the tire with a new one.

What to do in an emergency
14
7

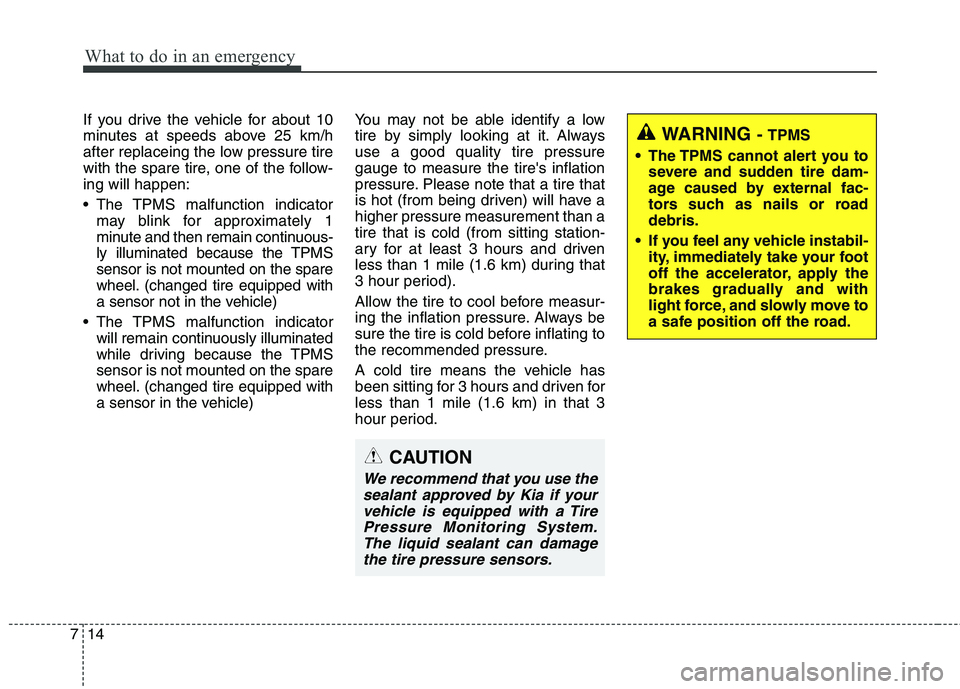

If you drive the vehicle for about 10
minutes at speeds above 25 km/h
after replaceing the low pressure tire
with the spare tire, one of the follow-ing will happen:
The TPMS malfunction indicator
may blink for approximately 1
minute and then remain continuous-
ly illuminated because the TPMSsensor is not mounted on the spare
wheel. (changed tire equipped with
a sensor not in the vehicle)
The TPMS malfunction indicator will remain continuously illuminated
while driving because the TPMSsensor is not mounted on the spare
wheel. (changed tire equipped with
a sensor in the vehicle) You may not be able identify a low
tire by simply looking at it. Alwaysuse a good quality tire pressuregauge to measure the tire's inflation
pressure. Please note that a tire that
is hot (from being driven) will have ahigher pressure measurement than atire that is cold (from sitting station-
ary for at least 3 hours and driven
less than 1 mile (1.6 km) during that
3 hour period).
Allow the tire to cool before measur-
ing the inflation pressure. Always be
sure the tire is cold before inflating to
the recommended pressure.
A cold tire means the vehicle has
been sitting for 3 hours and driven forless than 1 mile (1.6 km) in that 3
hour period.
WARNING
- TPMS
The TPMS cannot alert you to severe and sudden tire dam-
age caused by external fac-
tors such as nails or roaddebris.
If you feel any vehicle instabil- ity, immediately take your foot
off the accelerator, apply the
brakes gradually and with
light force, and slowly move to
a safe position off the road.
CAUTION
We recommend that you use the
sealant approved by Kia if yourvehicle is equipped with a Tire Pressure Monitoring System.The liquid sealant can damagethe tire pressure sensors.

715
What to do in an emergency
WARNING- Protecting TPMS
Tampering with, modifying, or
disabling the Tire PressureMonitoring System (TPMS)
components may interfere withthe system's ability to warn the
driver of low tire pressure con-
ditions and/or TPMS malfunc-
tions. Tampering with, modify-
ing, or disabling the TirePressure Monitoring System
(TPMS) components may void
the warranty for that portion of
the vehicle.WARNING - For EUROPE
Do not modify the vehicle, it may interfere with the TPMS function.
The wheels on the market do not have a TPMS sensor.
For your safety, we recom-
mend that you use parts for
replacement from an author-
ized Kia dealer.
If you use the wheels on the market, use a TPMS sensor
approved by a Kia dealer.
If your vehicle is not equipped
with a TPMS sensor or TPMS
does not work properly, you
may fail the periodic vehicle
inspection conducted in your
country.
(Continued)(Continued)❈
❈ All vehicles sold in the
EUROPE market during
below period must be
equipped with TPMS.
- New model vehicle : Nov. 1, 2012 ~
- Current model vehicle : Nov. 1, 2014~ (Based on
vehicle registrations)

859
Maintenance
Inner fuse panel (Instrument panel)
DescriptionFuse ratingProtected component
AUDIO15AAudio, A/V & Navigation Head Unit, MTS E-Call Module
MEMORY7.5A
Front/Rear A/C Control Module, Instrument Cluster(IND.), FAM, RAM,
Driver/Passenger Door Module, IMS Control Module, Tilt & Telescopic Module,
RF Receiver
IG2-17.5A
Front A/C Control Module, Multifunction Switch, Driver/Passenger Seat Warmer Module,
Rain Sensor, Around View Monitor, Smart Key Control Module,
Relay Block(Front/Rear Blower Relay), E/R Sub Block (COOLING FAN2 Relay,
Fuel Heater Relay), Driver/Passenger CCS Control Module
HEATED S/WHEEL15ASteering Wheel Heated
IG2-27.5ARear A/C Control Module, Driver/Passenger Door Module, FAM
OBD-II7.5AStart Stop Button Switch
ROOM7.5AHazard Switch, Map Lamp, Vanity Lamp Switch LH/RH,
Front/Rear A/C Control Module, Center Room Lamp, Rear Room Lamp
K/LOCK7.5ASport Mode Switch, Driver/Passenger Door Module, Ignition Key Interlock
ILLUMI7.5AIPM
RR S/WARMER20ARear Seat Warmer Relay
SEAT WARMER20ADriver Seat Warmer Module, Passenger Seat Warmer Module,
Driver / Passenger CCS Control Module
SUNROOF25ASunroof Module
TPMS7.5ATire Pressure Monitoring Module
S/TILT20ATilt & Telescopic Module

Maintenance
60
8

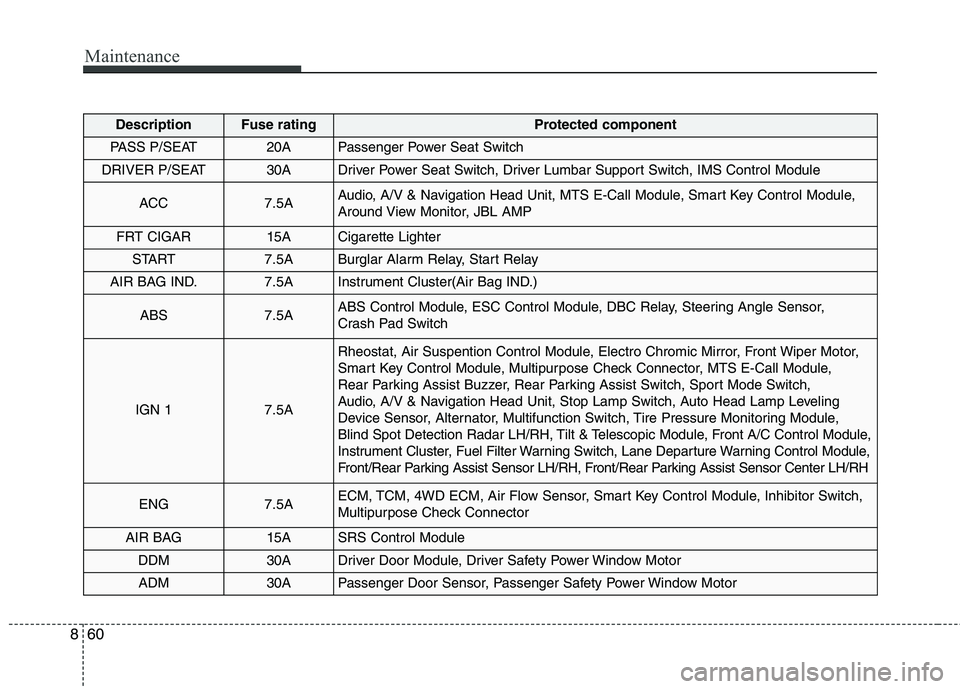

DescriptionFuse ratingProtected component
PASS P/SEAT20APassenger Power Seat Switch
DRIVER P/SEAT30ADriver Power Seat Switch, Driver Lumbar Support Switch, IMS Control Module
ACC7.5AAudio, A/V & Navigation Head Unit, MTS E-Call Module, Smart Key Control Module,
Around View Monitor, JBL AMP
FRT CIGAR15ACigarette Lighter
START7.5ABurglar Alarm Relay, Start Relay
AIR BAG IND.7.5AInstrument Cluster(Air Bag IND.)
ABS7.5AABS Control Module, ESC Control Module, DBC Relay, Steering Angle Sensor,
Crash Pad Switch
IGN 17.5A
Rheostat, Air Suspention Control Module, Electro Chromic Mirror, Front Wiper Motor,
Smart Key Control Module, Multipurpose Check Connector, MTS E-Call Module,
Rear Parking Assist Buzzer, Rear Parking Assist Switch, Sport Mode Switch,
Audio, A/V & Navigation Head Unit, Stop Lamp Switch, Auto Head Lamp Leveling
Device Sensor, Alternator, Multifunction Switch, Tire Pressure Monitoring Module,
Blind Spot Detection Radar LH/RH, Tilt & Telescopic Module, Front A/C Control Module,
Instrument Cluster, Fuel Filter Warning Switch, Lane Departure Warning Control Module,
Front/Rear Parking Assist Sensor LH/RH, Front/Rear Parking Assist Sensor Center LH/RH
ENG7.5AECM, TCM, 4WD ECM, Air Flow Sensor, Smart Key Control Module, Inhibitor Switch,
Multipurpose Check Connector
AIR BAG15ASRS Control Module
DDM30ADriver Door Module, Driver Safety Power Window Motor
ADM30APassenger Door Sensor, Passenger Safety Power Window Motor

Maintenance
64
8
Engine compartment main fuse panel
Fuse NameFuse ratingCircuit Protected
FRT/RR WASHER10AFront/Rear Washer Motor Relay
STOP LAMP20AFAM(STOP SIGNAL 7.5A), DBC Relay, Stop Signal Relay
KEY SW 125AIgnition Switch, PDM Relay Box(IG1 Relay , ACC Relay )
STOP SIGNAL7.5AStop Lamp Switch, Smart Key Control Module
A/C COMP7.5AA/C Comp Relay
FRT DEICER15AFront Deicer Relay
HORN15AHorn Relay
ECU 110A
DIESEL - Immobilizer Module, A/C Comp Relay, Stop Lamp Switch,
E/R Sub Block (Glow Relay, PTC 1~3 Relay), Lambda Sensor
GASOLINE - ECM, Mass Air Flow Sensor, Immobilizer Module, A/C Comp Relay
O2 DN10AGASOLINE - Oxygen Sensor #3/ #4
ECU 215A
DIESEL - EGR Cooling Valve, Electric VGT Actuator /
GASOLINE - Oil Control Valve, ECM, Variable Intake Manifold Valve, Purge Control Solenoid Valve
O2 UP10ADIESEL - Rail Pressure Regulator Valve, Fuel Meter Unit /
GASOLINE : Oxygen Sensor #1/ #2
IGN COIL20AGASOLINE - Ignition Coil #1~#6, Condenser #1,#2
INJECTOR15AECM, Injector #1~#6(GASOLINE)
P/TRAIN7.5AECM, Main Relay
FUEL PUMP15AFuel Pump Relay

865
Maintenance
Fuse NameFuse ratingCircuit Protected
AT M15ATCM
A/SUSP15AAir Suspension Control Module
H/LP WASHER20AHead Lamp Washer Motor & Washer Level Sensor
B/A HORN10ARelay Block (B/A Horn Relay)
ABS 240AABS Control Module, ESC Control Module, Multipurpose Check Connector
ABS 140AABS Control Module, ESC Control Module
PDM20ASmart Key Control Module
FRT WIPER30AFront Wiper ON Relay
KEY SW 230AStart 1 Relay, Ignition Switch, PDM Relay Box(IG2 Relay)
RAM 150ARAM(CONSOL P/OUT 15A, RR P/OUT 15A, FUEL DR 15A, RR P/WIN-LH 20A,
RR P/WIN-RH 20A, LUGGAGE 7.5A)
RAM 250ARAM (RR DEFOG 25A, T/G POWER LATCH 30A, DOOR LOCK 15A,
RR WIPER 15A, MODULE 1 7.5A)
RAM 350ARAM(AMP 30A)
IPM 150AIPM (ILLUMI 7.5A, DDM 30A, SEAT WARMER 20A, OBD-II 7.5A, SUNROOF 25A,
K/LOCK 7.5A, TPMS 7.5A)
IPM 250AIPM (ADM 30A, S/TILT 20A)
IPM 350AIPM (MEMORY 7.5A, DRIVER P/SEAT 30A, PASS P/SEAT 20A, RR S/WARM 20A,
ROOM 7.5A, AUDIO 15A)
4WD30A4WD ECM
