2017 KIA BORREGO display

Features of your vehicle
86
4
ALS (Air Leveling
System) indicator (if equipped)
The rear height of the vehicle is con-
trolled by pressing the top or bottom
part of the switch. The corresponding
indicator will illuminate in LCD display. ❈ For more details, refer to “Air level-
ing system” in chapter 6.
Cruise
Indicator Light (if equipped)
This indicator light illuminates:
When the cruise control system is enabled.
For more details, refer to “Cruise
Control System” in chapter 6.
Cruise SET Indicator Light (if equipped)
This indicator light illuminates:
When the cruise control speed is set.
For more details, refer to “Cruise
Control System” in chapter 6.
+,CRUISESET

495
Features of your vehicle
Self-diagnosis
When you shift the gear to the R
(Reverse) position and if one or more
of the below occurs you may have a
malfunction in the rear parking assistsystem.
You don't hear an audible warningsound or if the buzzer sounds inter-
mittently.
If this occurs, we recommend that the
system be checked by an authorized
Kia dealer.WARNING
Pay close attention when the
vehicle is driven close to
objects on the road, particularly
pedestrians, and especially
children. Be aware that some
objects may not be detected by
the sensors, due to the objects
distance, size or material, all of
which can limit the effective-
ness of the sensor. Always per-
form a visual inspection to
make sure the vehicle is clear of
all obstructions before moving
the vehicle in any direction.WARNING
Your new vehicle warranty does
not cover any accidents or dam-
age to the vehicle or injuries toits occupants related to a park-
ing assist system. Always drive
safely and cautiously.
is displayed. (if equipped)
(blinks)

Features of your vehicle
96
4
The rearview camera will activate
when the back-up light is ON with the
ignition switch ON and the shift lever
in the R (Reverse) position. This system is a supplemental sys-
tem that shows behind the vehicle
through the rearview display mirror
while backing-up. ❈
If your vehicle is equipped with
AVN(Audio, Video and Navigation)
system, rearview display will show
behind the vehicle through the
AVN monitor while backing-up.
Refer to a separately supplied
manual for detailed information.
WARNING
This system is a supplemen- tary function only. It is the responsibility of the driver to
always check the inside/out-
side rearview mirror and the
area behind the vehicle before
and while backing up becausethere is a dead zone that can't
be seen by the camera.
Always keep the camera lens clean. If lens is covered with
foreign matter, the camera
may not operate normally.
OHM046062L
OHM046061L
REARVIEW CAMERA (IF EQUIPPED)

4117
Features of your vehicle
AUTOMATIC CLIMATE CONTROL SYSTEM (IF EQUIPPED)
OHM046310L/OHM046311L
1. Driver`s temperature control knob
2. Air conditioning button
3. Blower OFF button
4. Front windshield defroster button
5. Rear window defroster button
6. Fan speed control button
7. Mode selection button
8. Air intake control button
9. Passenger`s temperature control knob
10. Dual temperature control selection button
11. A/C display
12. 3
rd
row air conditioning ON/OFF button*
13. 3 rd
row air conditioning fan speed con-
trol knob*
14. AUTO (automatic control) button* if equipped
■■ Front climate control (Type B)
■■Front climate control (Type A)
CAUTION
Operating the blower when the
ignition switch is in the ON posi- tion could cause the battery todischarge. Operate the blowerwhen the engine is running.

Features of your vehicle
118
4
OHM046312L/OHM046313L/OHM046315L
1. Driver`s temperature control knob
2. Air conditioning button
3. Blower OFF button
4. Front windshield defroster button
5. Rear window defroster button
6. Fan speed control button
7. Mode selection button
8. Air intake control button
9. Passenger`s temperature control knob
10. Dual temperature control selection button
11. A/C display
12. 3
rd
row air conditioning ON/OFF button*
13. 3 rd
row air conditioning fan speed control
knob*
14. AUTO (automatic control) button
15. Climate information screen selection button
16. 3 rd
row air conditioning temperature con-
trol knob*
* if equipped
■■ Front climate control (Type C)
■■Front climate control (Type D)
■■3rd
row air conditioning control (if equipped)

4119
Features of your vehicle
Automatic heating and air con- ditioning
1. Press the AUTO button. Themodes, fan speeds, air intake and air-conditioning will be controlledautomatically according to the
temperature setting. 2. Turn the temperature control knob
to the desired temperature.✽✽ NOTICE
 To turn the automatic operation off, select any button or switch of
the following:
- Mode selection button
- Air conditioning button
- Front windshield defroster button(Press the button one more time
to deselect the front windshield
defroster function. The 'AUTO'
sign will illuminate on the infor-
mation display once again.)
- Air intake control button
- Fan speed control button
The selected function will be con-
trolled manually while other func-
tions operate automatically.
 For your convenience and to improve the effectiveness of the
climate control, use the AUTO
button and set the temperature to
22°C/71°F (23°C/73°F- Except
Europe).
OHM046584L
■Driver’s side■Passenger’s side
OHM046586L/OHM046587L

4127
Features of your vehicle
Air conditioning
Press the A/C button to turn the air conditioning system on (indicatorlight will illuminate).
Press the button again to turn the air
conditioning system off.
OFF mode
Press the front blower OFF button to
turn off the front air climate control
system. However, you can still oper-
ate the mode and air intake buttons
as long as the ignition switch is in theON position.
Climate information screen selec-tion (if equipped)
Press the climate information screen
selection button to display climate
information on the screen.
OHM046333L
OHM046334L
■
Type C
■Type DOHM046330LOHM046331L

4137
Features of your vehicle

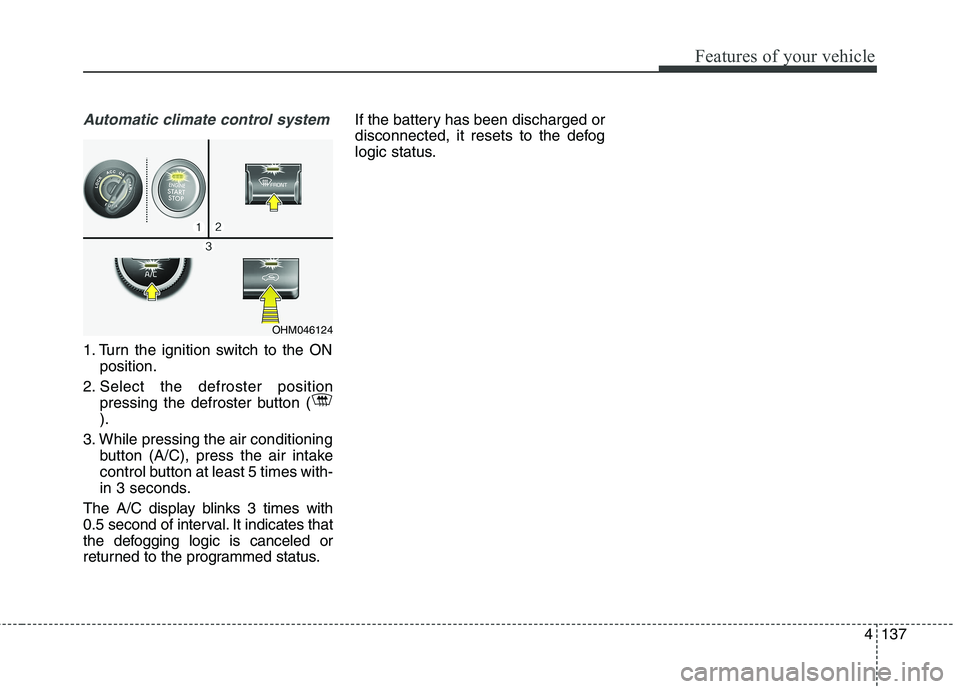

Automatic climate control system
1. Turn the ignition switch to the ONposition.
2. Select the defroster position pressing the defroster button ( ).
3. While pressing the air conditioning button (A/C), press the air intake
control button at least 5 times with-
in 3 seconds.
The A/C display blinks 3 times with
0.5 second of interval. It indicates that
the defogging logic is canceled or
returned to the programmed status. If the battery has been discharged or
disconnected, it resets to the defog
logic status.
OHM046124
