2017 JEEP WRANGLER RUBICON engine

WARNING!
Exhaust gases can injure or kill. They con-
tain carbon monoxide (CO), which is col-
orless and odorless. Breathing it can make
you unconscious and can eventually poi-
son you. To avoid breathing (CO), follow
these safety tips:
• Do not run the engine in a closed garageor in confined areas any longer than
needed to move your vehicle in or out of
the area.

Engine/TransmissionModelGCWR (Gross Combined
Wt. Rating) Frontal Area Max. GTW
(Gross Trailer Wt.) Max. Trailer Tongue Wt.
(See Note)
2.0L Two–Door 8,016 lbs (3 636 kg) 20 ft2 (1.86 m2) 2,000 lbs (907 kg) 200 lbs (91 kg)
Four–Door 8,117 lbs (3 682 kg) 30 ft2 (2.79 m2) 3,500 lbs (1 587 kg) 350 lbs (158 kg)
3.6L Two–Door 8,016 lbs (3 636 kg) 20 ft2 (1.86 m2) 2,000 lbs (907 kg) 200 lbs (91 kg)
Four–Door 8,117 lbs (3 682 kg) 30 ft2 (2.79 m2) 3,500 lbs (1 587 kg) 350 lbs (158 kg) Refer to local laws for maximum trailer towing speeds.
NOTE:
The trailer tongue weight must be considered
as part of the combined weight of occupants
and cargo (ie. the GVWR), and the GVWR
should never exceed the weight referenced on
the Tire and Loading Information placard.
Refer to “Tire Safety Information” in “Servic-
ing And Maintenance” in the Owner’s infor-
mation for further details.
173

WARNING!
Carefully follow these tire changing warn-
ings to help prevent personal injury or
damage to your vehicle:
• Always park on a firm, level surface asfar from the edge of the roadway as
possible before raising the vehicle.
• Turn on the Hazard Warning flashers.
• Block the wheel diagonally opposite the
wheel to be raised.
• Set the parking brake firmly and set an
automatic transmission in PARK; a
manual transmission in REVERSE.
• Never start or run the engine with the
vehicle on a jack.
• Do not let anyone sit in the vehicle when
it is on a jack.
• Do not get under the vehicle when it is
on a jack. If you need to get under a
raised vehicle, take it to a service center
where it can be raised on a lift.
• Only use the jack in the positions indi-
cated and for lifting this vehicle during a
tire change.

1 — Power Distribution Center (Fuses)8 — Power Pack Unit Pressure Cap — If Equipped
2 — Battery 9 — Power Pack Unit Pressure Reservoir — If Equipped
3 — Engine Oil Dipstick 10 — Washer Fluid Reservoir
4 — Engine Oil Fill 11 — Intercooler/Motor Generator Unit (If Equipped) Coolant Pressure Cap
5 — Engine Coolant Reservoir 12 — Intercooler/Motor Generator Unit (If Equipped) Coolant Reservoir
6 — Engine Coolant Pressure Cap 13 — Power Steering Fluid Reservoir
7 — Brake Fluid Reservoir 14 — Engine Air Cleaner
SERVICING AND MAINTENANCE
210

1 — Power Distribution Center (Fuses)8 — Power Pack Unit Pressure Cap — If Equipped
2 — Battery 9 — Power Pack Unit Pressure Reservoir — If Equipped
3 — Engine Oil Dipstick 10 — Washer Fluid Reservoir
4 — Engine Oil Fill 11 — Motor Generator Unit Coolant Pressure Cap — If Equipped
5 — Engine Coolant Reservoir 12 — Motor Generator Unit Coolant Reservoir — If Equipped
6 — Engine Coolant Pressure Cap 13 — Power Steering Fluid Reservoir
7 — Brake Fluid Reservoir 14 — Engine Air Cleaner
211

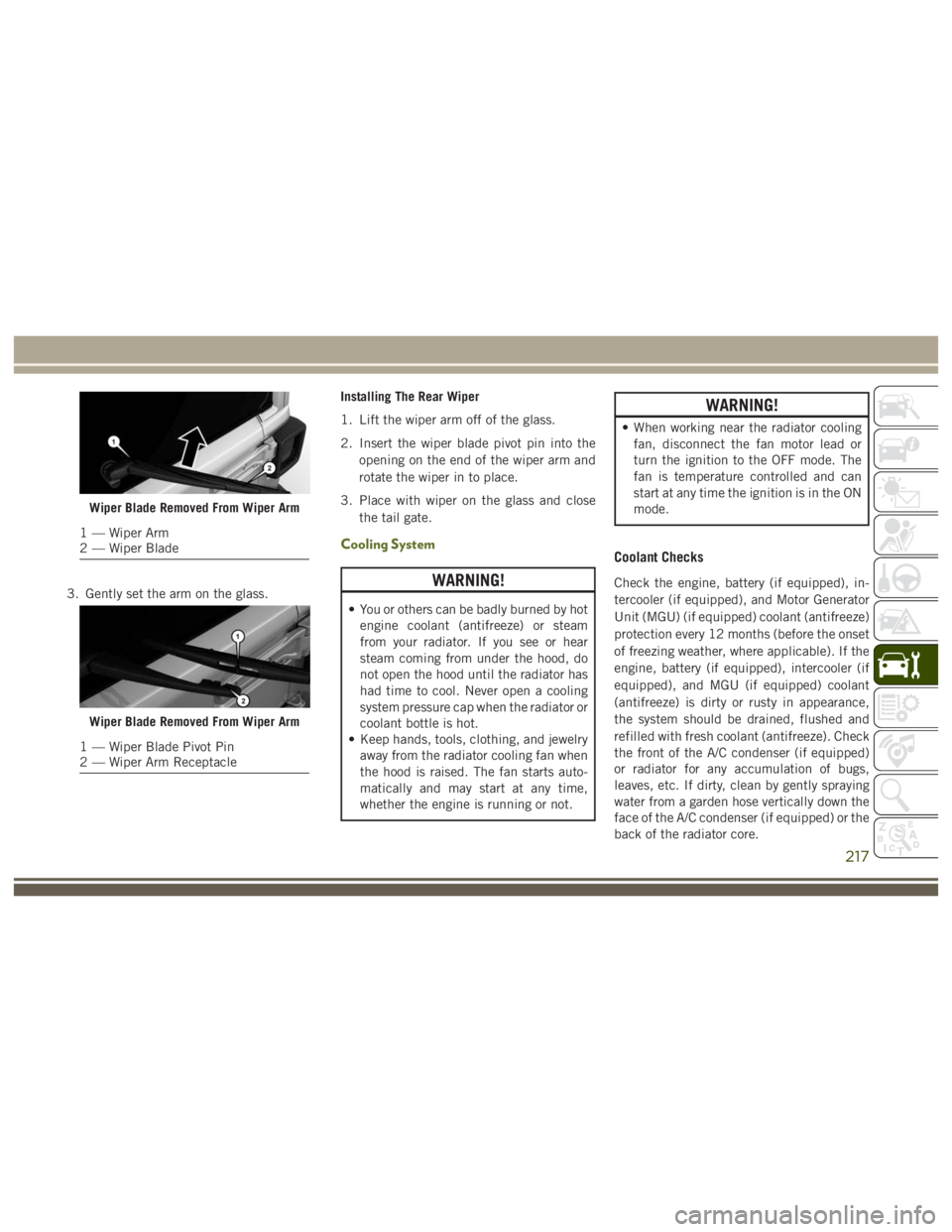

WARNING!
• You or others can be badly burned by hotengine coolant (antifreeze) or steam
from your radiator. If you see or hear
steam coming from under the hood, do
not open the hood until the radiator has
had time to cool. Never open a cooling
system pressure cap when the radiator or
coolant bottle is hot.
• Keep hands, tools, clothing, and jewelry
away from the radiator cooling fan when
the hood is raised. The fan starts auto-
matically and may start at any time,
whether the engine is running or not.

ComponentFluid, Lubricant, or Genuine Part
Engine Coolant We recommend you use Mopar Antifreeze/Coolant 10 Year/150,000 Mile
Formula OAT (Organic Additive Technology) or equivalent meeting the
requirements of FCA Material Standard MS.90032.
Intercooler/Motor Generator Unit (if equipped) We recommend you use Mopar Antifreeze/Coolant 10 Year/150,000 Mile
Formula OAT (Organic Additive Technology) or equivalent meeting the
requirements of FCA Material Standard MS.90032.
Battery Coolant (if equipped) We recommend you use Mopar Antifreeze/Coolant 10 Year/150,000 Mile
Formula OAT (Organic Additive Technology) or equivalent meeting the
requirements of FCA Material Standard MS.90032.
Engine Oil — 2.0L Engine We recommend you use API Certified SAE 5W-30 Fully Synthetic Engine
Oil, meeting the requirements of FCA Material Standard MS-13340 such
as Mopar, Pennzoil, and Shell Helix. Refer to your engine oil filler cap for
correct SAE grade.
Engine Oil — 3.6L Engine We recommend you use API Certified SAE 0W-20 Engine Oil, meeting the
requirements of FCA Material Standard MS-6395 such as Mopar, Penn-
zoil, and Shell Helix. Refer to your engine oil filler cap for correct SAE
grade.
Engine Oil Filter We recommend you use Mopar Engine Oil Filter or equivalent.
Spark Plugs We recommend you use Mopar Spark Plugs.
Fuel Selection — 2.0L Engine 87 Octane Minimum – 91 Octane Recommended, 0-15% Ethanol.
Fuel Selection — 3.6L Engine 87 Octane, 0-15% Ethanol.
TECHNICAL SPECIFICATIONS
248
