2017 JEEP WRANGLER Owners Manual

Raise the windshield and reinstall the side bars as soon as
the task that required their removal is completed and
before you return to on-road driving. Both you and your
passenger should wear seat belts at all times, on-road and
off-road, regardless of whether the windshield is raised or
folded down.
Outside rearview mirrors are mounted on the doors. If you
choose to remove the doors, see your authorized dealer for
a replacement cowl-mounted outside mirror. Federal law
requires outside mirrors on vehicles for on-road use.
WARNING!
Carefully follow these warnings to help protect against
personal injury:
•Do not drive your vehicle on-road with the wind-
shield down.
• Do not drive your vehicle unless the windshield is
securely fastened, either up or down.
• Eye protection, such as goggles, should be worn at all
times when the windshield is down.
(Continued)
WARNING! (Continued)
•Be sure that you carefully follow the instructions for
raising the windshield. Make sure that the folding
windshield, windshield wipers, side bars, and all
associated hardware and fasteners are correctly and
tightly assembled before driving your vehicle. Fail-
ure to follow these instructions may prevent your
vehicle from providing you and your passengers’
protection in some accidents.
• If you remove the doors, store them outside the
vehicle. In the event of an accident, a loose door may
cause personal injury.
Lowering The Windshield And Removing Side Bars
1. Lower the fabric top or remove the hard top following the instructions in this manual.
NOTE: To assist in properly reinstalling side bars, mark
the original locations prior to removing.
3
GETTING TO KNOW YOUR VEHICLE 167

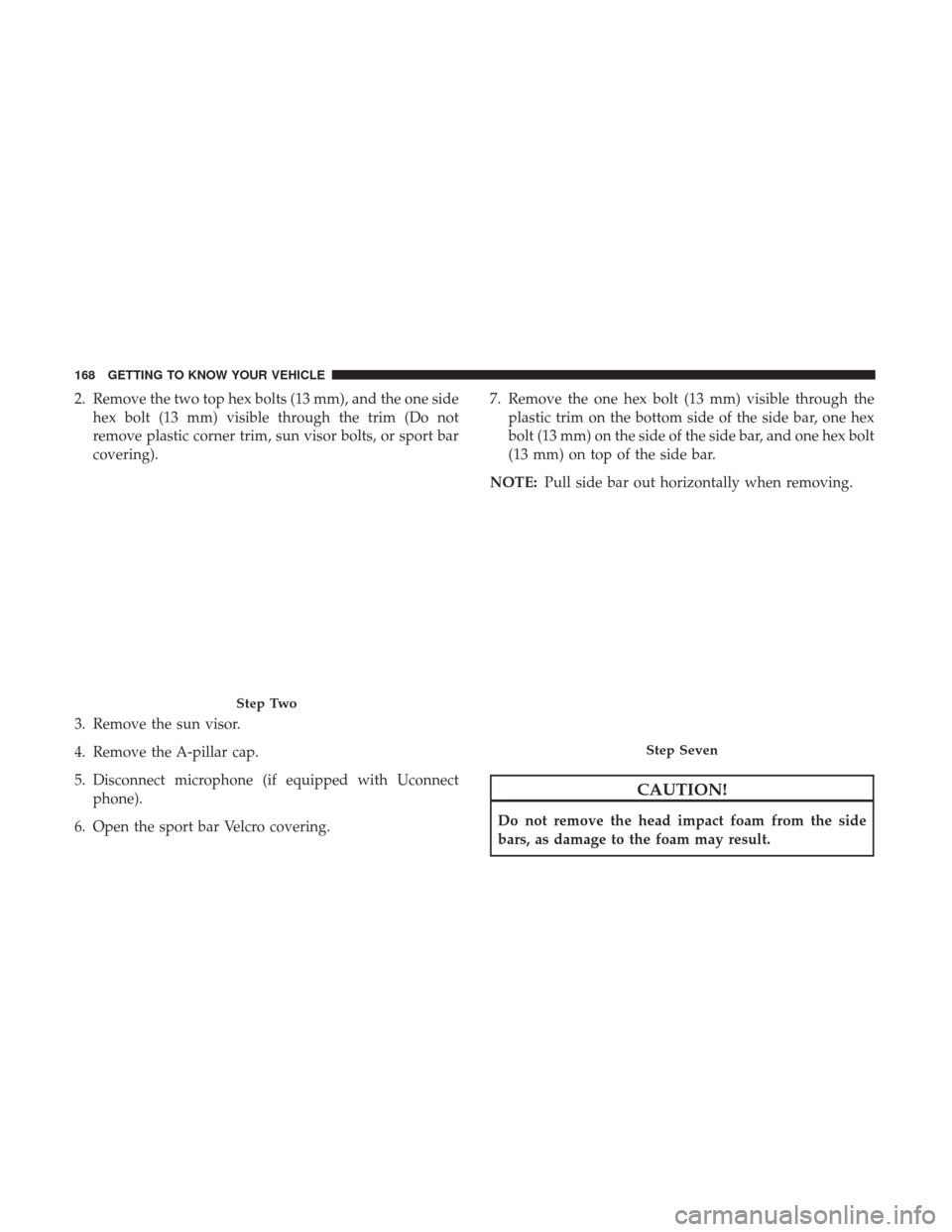

2. Remove the two top hex bolts (13 mm), and the one sidehex bolt (13 mm) visible through the trim (Do not
remove plastic corner trim, sun visor bolts, or sport bar
covering).
3. Remove the sun visor.
4. Remove the A-pillar cap.
5. Disconnect microphone (if equipped with Uconnect phone).
6. Open the sport bar Velcro covering. 7. Remove the one hex bolt (13 mm) visible through the
plastic trim on the bottom side of the side bar, one hex
bolt (13 mm) on the side of the side bar, and one hex bolt
(13 mm) on top of the side bar.
NOTE: Pull side bar out horizontally when removing.
CAUTION!
Do not remove the head impact foam from the side
bars, as damage to the foam may result.
Step Two
Step Seven
168 GETTING TO KNOW YOUR VEHICLE

NOTE:Store all of the mounting bolts in their original
threaded holes and tighten for safekeeping.
8. Remove the side bar assembly, and reattach the sport bar Velcro covering.
9. To safely store the side bars in your vehicle, use four cinch straps (available from your authorized dealer).
Attach the straps through the slots located on the floor
behind the folded rear seat at the front of the storage bin
cover.
WARNING!
You or others could be injured if you carry the side bars
loose in your vehicle. Remove the side bars from the
vehicle or securely store them as described or they may
cause personal injury if an accident occurs. See your
authorized dealer for the cinch straps.
10. Remove the windshield wiper arms by first pulling the wiper away from the windshield and out to the “lock”
position. Unsnap the wiper arm nut caps, and remove
the retaining nuts. Lift the wiper arms off and store
them in the center console or securely behind the rear
seat. NOTE:
It may be necessary to use a battery terminal puller
tool in order to separate the wiper arms from the shaft after
the nuts have been removed.
11. Remove the lower windshield plates by removing the six black round-headed Torx head screws (using a #40
Torx head driver) on each side of the base of the
windshield.
12. Lower the windshield gently until it contacts the rubber hood bumpers.
Step Eleven
3
GETTING TO KNOW YOUR VEHICLE 169

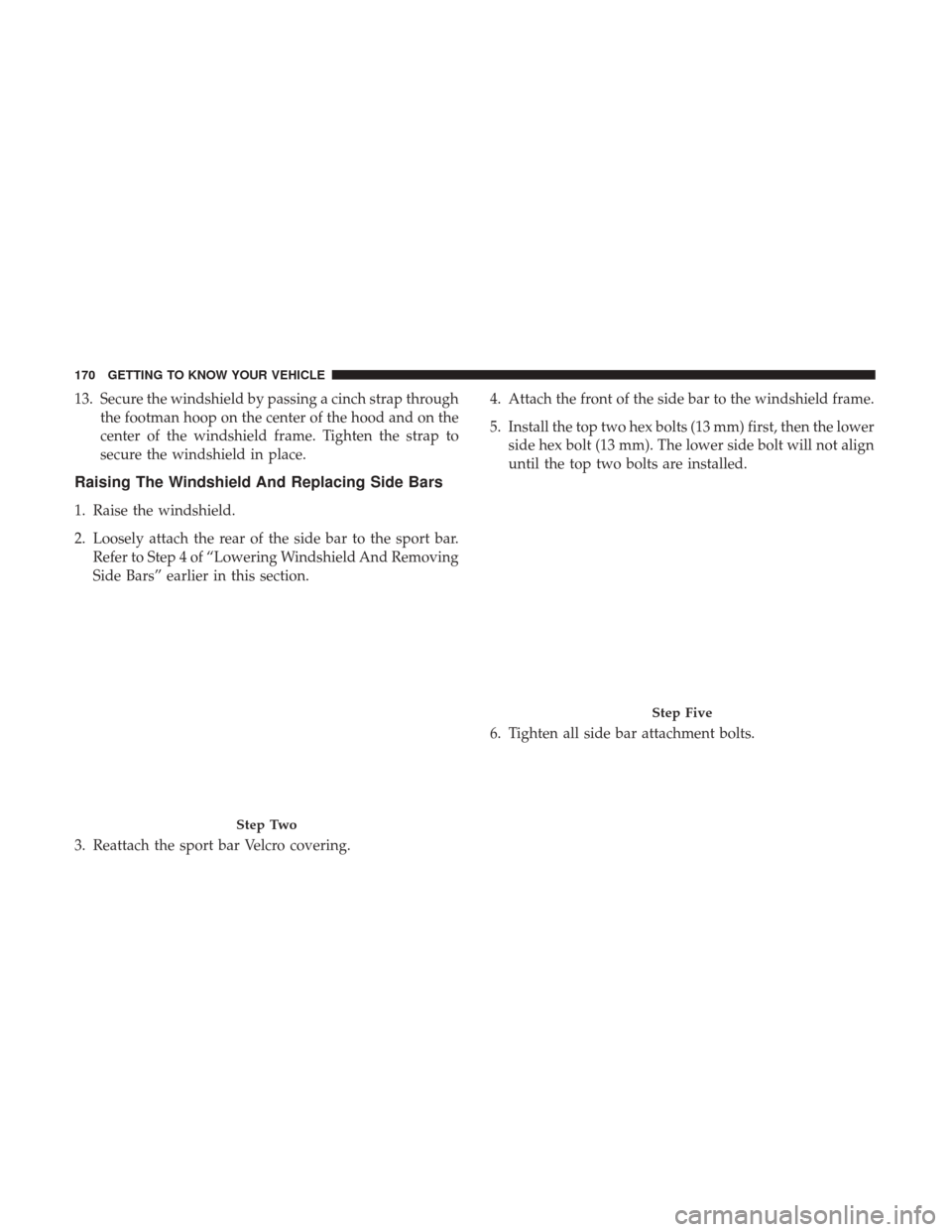

13. Secure the windshield by passing a cinch strap throughthe footman hoop on the center of the hood and on the
center of the windshield frame. Tighten the strap to
secure the windshield in place.
Raising The Windshield And Replacing Side Bars
1. Raise the windshield.
2. Loosely attach the rear of the side bar to the sport bar.Refer to Step 4 of “Lowering Windshield And Removing
Side Bars” earlier in this section.
3. Reattach the sport bar Velcro covering. 4. Attach the front of the side bar to the windshield frame.
5. Install the top two hex bolts (13 mm) first, then the lower
side hex bolt (13 mm). The lower side bolt will not align
until the top two bolts are installed.
6. Tighten all side bar attachment bolts.
Step Two
Step Five
170 GETTING TO KNOW YOUR VEHICLE

7. Install the lower windshield plates with the six blackround-headed Torx head screws (using a #40 Torx head
driver) on each side of the base of the windshield.
8. Reinstall the wiper arms.HOOD
Opening The Hood
Release both the hood latches.
Raise the hood and locate the safety latch, located in the
middle of the hood opening. Push the safety latch to the
left side of the vehicle, to open the hood. You may have to
push down slightly on the hood before pushing the safety
latch. Insert the support rod into the slot on the hood.
Step Seven
Hood Latch
3
GETTING TO KNOW YOUR VEHICLE 171

Closing The Hood
To close the hood, remove the support rod from the hood
panel and place it in the retaining clip. Lower the hood
slowly. Secure both of the hood latches.
WARNING!
Be sure the hood is fully latched before driving your
vehicle. If the hood is not fully latched, it could open
when the vehicle is in motion and block your vision.
Failure to follow this warning could result in serious
injury or death.
REAR SWING GATE
The rear swing gate can be unlocked by using the key,
Remote Keyless Entry key fob, or by activating the power
door lock switches located on the front doors.
To open the swing gate, push the button on the gate
handle.NOTE:
Close the rear flip-up window before attempting
to close the swing gate (hard top models only).
WARNING!
Driving with the flip-up window open can allow
poisonous exhaust gases into your vehicle. You and
your passengers could be injured by these fumes. Keep
the flip-up window closed when you are operating the
vehicle.
Gate Handle
172 GETTING TO KNOW YOUR VEHICLE

CAUTION!
Do not push on rear wiper blade when closing the rear
flip-up window, as damage to the blade will result.
INTERNAL EQUIPMENT
Storage
Glove Compartment
The lockable glove compartment is located on the passen-
ger side of the lower instrument panel. Pull outward on the
handle/latch to open the glove compartment.
Console Storage Compartment
To lock or unlock the storage compartment, insert the
ignition key and turn. To open the storage compartment,
push the latch and lift the cover.
Center Console
3
GETTING TO KNOW YOUR VEHICLE 173

There is an extra storage area underneath the console lid.
The console lid has an integrated paper clip feature that
can hold small items.
Rear Storage Compartment — If Equipped
The rear cargo area storage compartment cover is held by
a spring-loaded latch. In order to remove the rear storage
compartment cover, use the following procedure:
NOTE: The rear storage compartment latch should not
be used as cargo tie-down.1. Flip up the pull loop so it is perpendicular (straight up)
to the top surface of the tray.
2. Pull up on the loop and twist it 90 degrees, so it is parallel to the slotted hole in the tray.
3. Open the rear compartment cover.
Center Console Lid Storage
Rear Storage Cover
174 GETTING TO KNOW YOUR VEHICLE
