2017 INFINITI QX80 light

Additional information about your vehicle is also available in your Owne\
r’s Manual, Navigation System Owner’s Manual and at www.InfinitiUSA.com.
Table of Contents
• A cellular telephone should not
be used for any purpose while
driving so full attention may be
given to vehicle operation.
•
Always wear your seat belt.
• Supplemental air bags do not
replace proper seat belt usage. •
Children 12 and under

should always ride in the
rear seat properly secured
in child restraints or seat

belts according to their age
and weight.
• Do not drink and drive. For more information, refer to the “Safety — Seats, seat
belts and supplemental restraint system (section 1)”, the
“Monitor, climate, audio, phone and voice recognition
systems (section 4)” and the “Starting and driving
(section 5)” of your Owner’s Manual.
PLEASE SEE YOUR OWNER’S MANUAL FOR IMPORTANT SAFETY INFORMATION AND S\
YSTEM OPERATION LIMITATIONS.
Cockpit Overview ........................................................................\
......
1
Instrument Panel ........................................................................\
...... 3
Meters and Gauges ........................................................................\
... 5
Cruise Control (if so equipped) ......................................................... 7
Wiper and Washer Switch ................................................................. 8
Exterior Light Operation .................................................................... 9
Parking Brake ........................................................................\
........... 9
USB Connection Port........................................................................\
.9
Dual Head Restraint DVD System (if so equipped)
........................... 10
Navigation System ........................................................................\
.. 11Clock Set/Adjustment
....................................................................
12
Voice Recognition ........................................................................\
.. 12
Connecting your Cellular Phone or Device via Bluetooth® ............... 13
Bluetooth® Streaming Audio .......................................................... 13
Sun Visors ........................................................................\
............. 14
Head Restraint Adjustment ............................................................ 14
Seat Adjustments ........................................................................\
.. 15
Windows ........................................................................\
............... 15
Fuel-filler Door ........................................................................\
....... 16
Door Handle Lock/Unlock Features ................................................ 16

2
Cockpit Overview
1 Cruise control switch
2 Wiper and washer switch
3 Vehicle information display
4 Vehicle information display brightness switches and trip odometer switch
5 Headlight/Turn signal/High Beam/Fog Light Switch
6 Navigation/Touch screen/audio control switches
7 Bluetooth®/Voice Recognition system switches

7

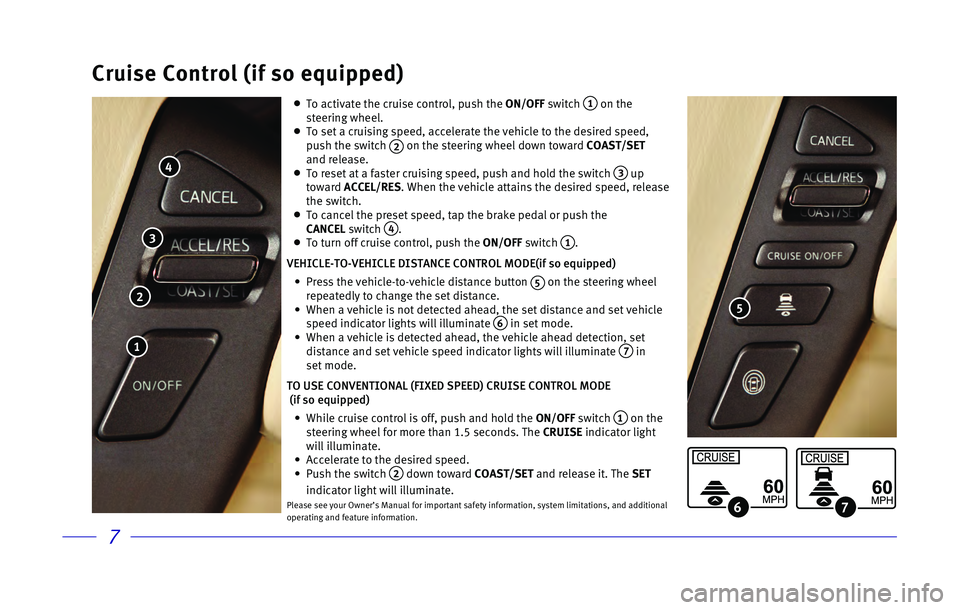

Cruise Control (if so equipped)
To activate the cruise control, push the ON/OFF switch 1 on the
steering wheel.
To set a cruising speed, accelerate the vehicle to the desired speed,
push the switch 2 on the steering wheel down toward COAST/SET
and release.
To reset at a faster cruising speed, push and hold the switch 3 up
toward ACCEL/RES. When the vehicle attains the desired speed, release
the switch.
To cancel the preset speed, tap the brake pedal or push the
CANCEL switch 4. To turn off cruise control, push the ON/OFF switch 1.
VEHICLE-TO-VEHICLE DISTANCE CONTROL MODE(if so equipped)
• Press the vehicle-to-vehicle distance button 5 on the steering wheel
repeatedly to change the set distance.
• When a vehicle is not detected ahead, the set distance and set vehicle
speed indicator lights will illuminate 6 in set mode. • When a vehicle is detected ahead, the vehicle ahead detection, set
distance and set vehicle speed indicator lights will illuminate 7 in
set mode.
TO USE CONVENTIONAL (FIXED SPEED) CRUISE CONTROL MODE
(if so equipped)
• While cruise control is off, push and hold the ON/OFF switch 1 on the
steering wheel for more than 1.5 seconds. The CRUISE indicator light
will illuminate.
• Accelerate to the desired speed. • Push the switch 2 down toward COAST/SET and release it. The SET
indicator light will illuminate.
Please see your Owner’s Manual for important safety information, syst\
em limitations, and additional
operating and feature information.
5
4
3
2
1
67

9
6
7
Exterior Light Operation
3
4 5
1
2
1 Side lights, license plate lights and combination meter lighting
ON position
2 Headlight ON position
3 Automatic (AUTO) headlight mode ON position (headlights
switch on/off automatically depending on ambient light
conditions/daytime light system)
4 OFF position
5 Front fog light switch
6 Push the headlight switch forward for the high beams. For High Beam Auto-Dimming (Auto position):
• When the vehicle speed is less than 17 mph
(27 km/h), the headlight returns to low beam.
• To disable high beam auto-dimming, turn headlight
switch to Headlight ON position 2.
7 Pull the headlight switch rearward to flash the high beams.
For normal headlight operation, leave the exterior light switch in the
AUTO position.
Please see your Owner’s Manual for important safety information, system limitations, and
additional operating and feature information.
To apply the parking brake, fully depress the parking brake pedal 1.
To release the parking brake:
Firmly apply the foot brake 2.
Depress the parking brake pedal 1 and the parking brake will be released.Please see your Owner’s Manual for important safety information, syst\
em limitations, and additional operating
and feature information.
Parking Brake
USB Connection Port
The USB port 1 is located in the center
console in front of the armrest. Compatible
audio and video files stored on a USB
device can be played through the vehicle’s
audio system and front display.
Please see your Owner’s Manual for important safety
information, system limitations, and additional operating and
feature information.
2
1
1

14
Head Restraint Adjustment
To raise the head restraint: Pull the head restraint up.
To lower the head restraint: Push and hold the lock knob
1 and push the head
restraint down.
Make sure the head restraint is fully engaged in position after any adju\
stment.
Please see your Owner’s Manual for important safety information, syst\
em limitations, and additional operating and
feature information.
Sun Visors
1 Pull down the sun visor to block glare from the front.
2 Remove the sun visor from the center mount by lifting it
slightly and swing it to the side to block glare from the
side window.
3 Draw out the extension sun visor from the main sun
visor to block further glare.
Please see your Owner’s Manual for important safety information, syst\
em
limitations, and additional operating and feature information.
2
1
1
3
