Incorrect ignition timing may result in spark
knock, after-run and/or overheating, which may
cause excessive fuel consumption or engine
damage. If any of the above symptoms are en-
countered, have your vehicle checked. It is rec-
ommended that you visit an INFINITI retailer.
However, now and then you may notice
light spark knock for a short time while
accelerating or driving up hills. This is not a
cause for concern, because you get the
greatest fuel benefit when there is light
spark knock for a short time under heavy
engine load.

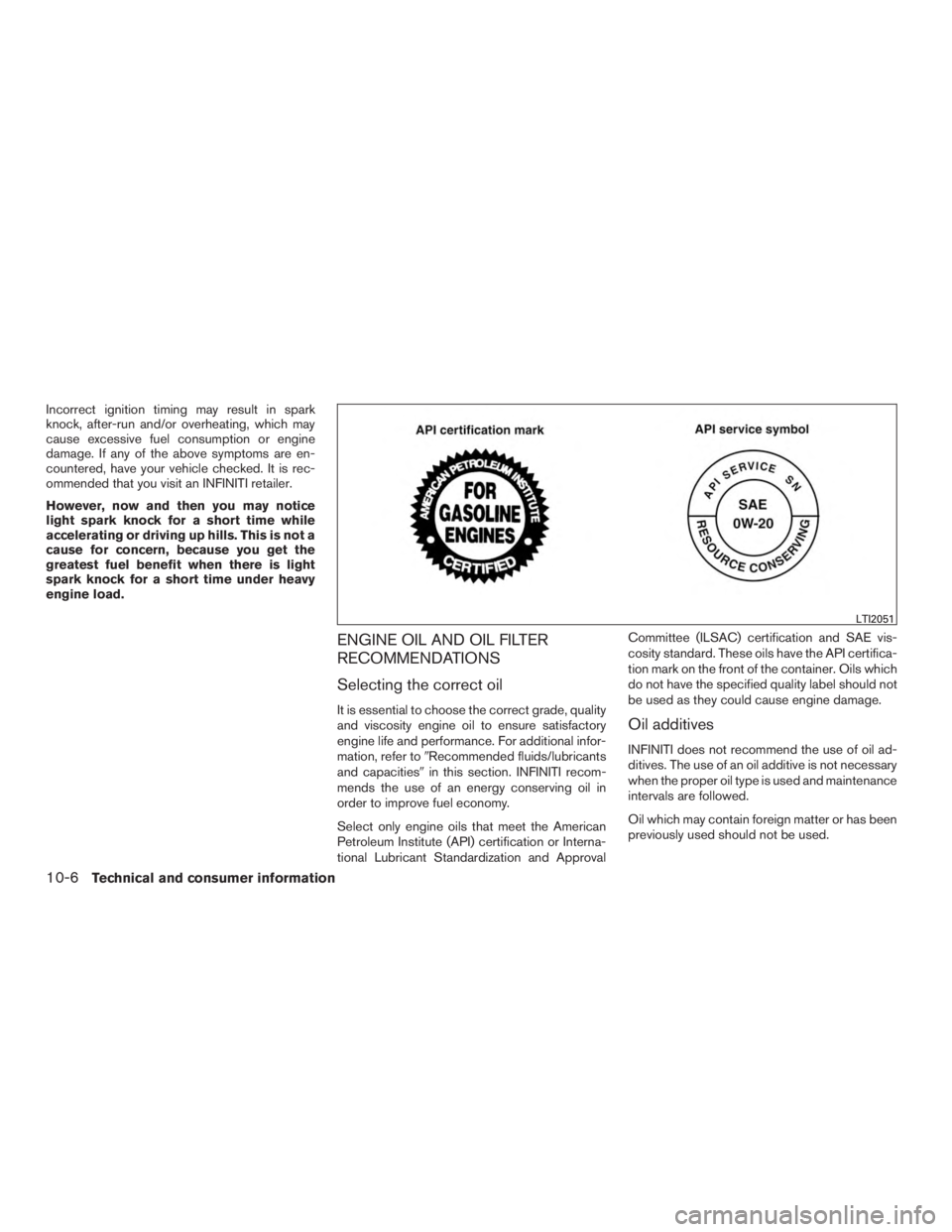

ENGINE OIL AND OIL FILTER
RECOMMENDATIONS
Selecting the correct oil
It is essential to choose the correct grade, quality
and viscosity engine oil to ensure satisfactory
engine life and performance. For additional infor-
mation, refer toRecommended fluids/lubricants
and capacities in this section. INFINITI recom-
mends the use of an energy conserving oil in
order to improve fuel economy.
Select only engine oils that meet the American
Petroleum Institute (API) certification or Interna-
tional Lubricant Standardization and Approval Committee (ILSAC) certification and SAE vis-
cosity standard. These oils have the API certifica-
tion mark on the front of the container. Oils which
do not have the specified quality label should not
be used as they could cause engine damage.Oil additives
INFINITI does not recommend the use of oil ad-
ditives. The use of an oil additive is not necessary
when the proper oil type is used and maintenance
intervals are followed.
Oil which may contain foreign matter or has been
previously used should not be used.
LTI2051
10-6Technical and consumer information

●Always secure items in the trailer to prevent
load shift while driving.
● Keep the cargo load as low as possible in
the trailer to keep the trailer center of gravity
low.
● Load the trailer so approximately 60% of the
trailer load is in the front half and 40% is in
the back half. Also make sure the load is
balanced side to side.
● Check your hitch, trailer tire pressure, ve-
hicle tire pressure, trailer light operation, and
trailer wheel lug nuts every time you attach a
trailer to the vehicle.
● Be certain your rearview mirrors conform to
all federal, state or local regulations. If not,
install any mirrors required for towing before
driving the vehicle.
● Determine the overall height of the vehicle
and trailer so the required clearance is
known.
Trailer towing tips
In order to gain skill and an understanding of the
vehicle’s behavior, you should practice turning,
stopping and backing up in an area which is free
from traffic. Steering stability and braking perfor-
mance will be somewhat different than under
normal driving conditions. ●
Always secure items in the trailer to prevent
load shift while driving.
● Lock the trailer hitch coupler with a pin or
lock to prevent the coupler from inadver-
tently becoming unlatched.
● Avoid abrupt starts, acceleration or stops.
● Avoid sharp turns or lane changes.
● Always drive your vehicle at a moderate
speed.
● When backing up, hold the bottom of the
steering wheel with one hand. Move your
hand in the direction in which you want the
trailer to go. Make small corrections and
back up slowly. If possible, have someone
guide you when you are backing up.
Always block the wheels on both vehicle and
trailer when parking. Parking on a slope is not
recommended; however, if you must do so:
CAUTION
If you move the shift selector to the P
(Park) position before blocking the
wheels and applying the parking brake,
transmission damage could occur.
1. Apply and hold the brake pedal. 2. Have someone place blocks on the downhill
side of the vehicle and trailer wheels.
3. After the wheel blocks are in place, slowly release the brake pedal until the blocks ab-
sorb the vehicle load.
4. Apply the parking brake.
5. Shift the transmission into P (Park) .
6. Turn off the engine.
To drive away: 1. Start the vehicle.
2. Apply and hold the brake pedal.
3. Shift the transmission into gear.
4. Release the parking brake.
5. Drive slowly until the vehicle and trailer are clear from the blocks.
6. Apply and hold the brake pedal.
7. Have someone retrieve and store the blocks.
10-26Technical and consumer information

●While going downhill, the weight of the
trailer pushing on the tow vehicle may de-
crease overall stability. Therefore, to main-
tain adequate control, reduce your speed
and shift to a lower gear. Avoid long or
repeated use of the brakes when descend-
ing a hill, as this reduces their effectiveness
and could cause overheating. Shifting to a
lower gear instead provides “engine brak-
ing” and reduces the need to brake as fre-
quently.
● If the engine coolant temperature rises to a
high temperature, refer to “If your vehicle
overheats” in the “In case of emergency”
section of this manual.
● Trailer towing requires more fuel than normal
circumstances.
● Avoid towing a trailer for your vehicle’s first
500 miles (805 km) .
● For the first 500 miles (805 km) that you do
tow, do not drive over 50 mph (80 km/h).
● Have your vehicle serviced more often than
at intervals specified in the recommended
Maintenance Schedule in the “Maintenance
and schedules” section of this manual. ●
When making a turn, your trailer wheels will
be closer to the inside of the turn than your
vehicle wheels. To compensate for this,
make a larger than normal turning radius
during the turn.
● Crosswinds and rough roads will adversely
affect vehicle/trailer handling, possibly caus-
ing vehicle sway. When being passed by
larger vehicles, be prepared for possible
changes in crosswinds that could affect ve-
hicle handling.
Do the following if the trailer begins to sway: 1. Take your foot off the accelerator pedal to allow the vehicle to coast and steer as
straight ahead as the road conditions allow.
This combination will help stabilize the ve-
hicle
– Do not correct trailer sway by steering or applying the brakes.
2. When the trailer sway stops, gently apply the brakes and pull to the side of the road in a
safe area.
3. Try to rearrange the trailer load so it is bal- anced as described in this section. ●
Be careful when passing other vehicles.
Passing while towing a trailer requires con-
siderably more distance than normal pass-
ing. Remember, the length of the trailer must
also pass the other vehicle before you can
safely change lanes.
● Downshift the transmission to a lower gear
for engine braking when driving down steep
or long hills. This will help slow the vehicle
without applying the brakes.
● Avoid holding the brake pedal down too long
or too frequently. This could cause the
brakes to overheat, resulting in reduced
braking efficiency.
● Increase your following distance to allow for
greater stopping distances while towing a
trailer. Anticipate stops and brake gradually.
● INFINITI recommends that the cruise control
not be used while towing a trailer.
● Some states or provinces have specific
regulations and speed limits for vehicles that
are towing trailers. Obey the local speed
limits.
● Check your hitch, trailer wiring harness con-
nections, and trailer wheel lug nuts after
50 miles (80 km) of travel and at every break.
Technical and consumer information10-27

If a powertrain system component is repaired or
the battery is disconnected, the vehicle may be
reset to a “not ready” condition. Before taking the
I/M test, check the vehicle’s
inspection/maintenance test readiness condi-
tion. Place the ignition switch in the ON position
without starting the engine. If the Malfunction
Indicator Light (MIL) comes on steady for 20 sec-
onds and then blinks for 10 seconds , the I/M test
condition is “not ready”. If the MIL does not blink
after 20 seconds, the I/M test condition is
“ready”. It is recommended that you visit an
INFINITI retailer to set the “ready condition” or to
prepare the vehicle for testing.This vehicle is equipped with an EDR. The main
purpose of an EDR is to record, in certain colli-
sion or near collision-like situations, such as an
air bag deployment or hitting a road obstacle,
data that will assist in understanding how a vehi-
cle’s systems performed. The EDR is designed to
record data related to vehicle dynamics and
safety systems for a short period of time, typically
30 seconds or less. The EDR in this vehicle is
designed to record such data as:
● How various systems in your vehicle were
operating;
● Whether or not the driver and passenger
safety belts were buckled/fastened;
● How far (if at all) the driver was depressing
the accelerator and/or brake pedal; and,
● How fast the vehicle was traveling.
● Sounds are not recorded. These data can help provide a better understand-
ing of the circumstances in which collisions and
injuries occur. NOTE: EDR data are recorded by
your vehicle only if a nontrivial collision situation
occurs; no data are recorded by the EDR under
normal driving conditions and no personal data
(e.g. name, gender, age and collision location)
are recorded. However, other parties, such as
law enforcement, could combine the EDR data
with the type of personally identifying data rou-
tinely acquired during a collision investigation.
To read data recorded by an EDR, special equip-
ment is required and access to the vehicle or the
EDR is needed. In addition to the vehicle manu-
facturer and INFINITI retailer, other parties, such
as law enforcement, that have the special equip-
ment, can read the information if they have ac-
cess to the vehicle or the EDR. EDR data will only
be accessed with the consent of the vehicle
owner or lessee or as otherwise required or per-
mitted by law.
EVENT DATA RECORDERS (EDR)
10-32Technical and consumer information

11 Index
2nd row bench seat adjustment......1-5,1-8
A
Air bag (See supplemental restraint
system) .....................1-50
Air bag system Front (See supplemental front impact
air bag system) ...............1-58
Airbagwarninglabels.............1-68
Airbagwarninglight...........1-69,2-12
Air bag warning light, supplemental . .1-69, 2-12
Aircleaner....................8-14
Air cleaner housing filter ............8-14
Air conditioner Air conditioner specification label ....10-12
Air conditioner system refrigerant and
oil recommendations ............10-7
Heater and air conditioner (automatic)
(if so equipped) ...............4-48
Heater and air conditioner controls ....4-49
Servicing air conditioner ..........4-56
Alarm system
(See vehicle security system) .........2-30
Anchor point locations .............1-33
Antenna .....................4-72
Antifreeze ...................5-142
Anti-lock brake warning light ..........2-9
Anti-lock Braking System (ABS) .......5-133
APPS button ...................4-5
Armrests .....................1-8
Around View® Monitor .............4-27 Audible reminders
...............2-15
Audio system ..................4-56
AMradioreception.............4-57
Bluetooth® streaming audio ........4-65
Compact disc (CD) player .........4-78
Digital Versatile Disc (DVD) Player
Operation ..................4-89
FM/AM radio with compact disc (CD)
player ....................4-70
FMradioreception.............4-57
iPod® Player .............4-62,4-82
iPod® player operation .......4-62,4-82
Radio ....................4-56
Steering wheel audio control
switch .................4-7,4-71
USB (Universal Serial Bus) Connection
Port..................4-62,4-79
Autolight switch .................2-38
Automatic Automatic drive positioner .....3-36,3-38
Automatic power window switch .....2-62
Automatic anti-glare inside mirror .......3-33
Automatic door locks ..............3-6
Automatic drive positioner .......3-36,3-38
AUXjack ....................4-90
B
Backbutton....................4-5
Backup Collision Intervention (BCI)
system ......................5-58
Backup Collision Warning (BCW) system . .5-58 Battery
.................5- 142, 8-11
Charge warning light ............2-10
Battery replacement ..............8-20
INFINITI Intelligent Key ...........8-20
Keyfob ...................8-20
Before starting the engine ...........5-16
Belt (See drive belt) ..............8-13
Blind Spot Intervention (BSI) system .....5-46
Blind Spot Warning (BSW) warning
system......................5-37
Block heater Engine ...................5-143
Boosterseats..................1-47
Brake Anti-lock Braking System (ABS) .....5-133
Brake fluid ..................8-10
Brakelight(Seestoplight).........8-22
Brake system ...............5-132
Brakewarninglight..............2-9
Brakewearindicators........2-15,8-17
Parking brake operation ..........5-22
Self-adjusting brakes ............8-17
Brake assist ..................
5
-134
Brake fluid ....................8-10
Brakes ......................8-17
Brake system .................5-132
Break-inschedule...............5-126
Brightness/contrast button ...........4-5
Brightness control Instrument panel ..............2-42
Bulb check/instrument panel ..........2-8
Bulbreplacement................8-22

C
Capacities and recommended
fuel/lubricants ..................10-2
Cargoareastoragebin.............2-58
Cargo (See vehicle loading information) . . .10-13
Car phone or CB radio .............4-115
CD care and cleaning ..............4-95
CD player (See audio system) .........4-78
Check tire pressure ...............2-27
Child restraints .......1-26,1-26,1-28,1-30
LATCH (Lower Anchors and Tethers for
CHildren) System ..............1-30
Precautions on child
restraints.........1-29,1-36,1-42,1-47
Top tether strap anchor point locations . .1-33
Child restraint with top tether strap .......1-33
Child safety rear door lock ............3-6
Chimes, audible reminders ...........2-15
Cleaningexteriorandinterior........7-2,7-4
Climatecontrolseatswitch...........2-44
Clock set/adjustment ..............4-15
C.M.V.S.S. certification label .........10-11
Cold weather driving ..............5-142
Compact disc (CD) player ...........4-78
Consolebox...................2-55
Continuously Variable Transmission (CVT) . . .5-17 Continuously Variable Transmission (CVT)
fluid .......................8-9
Driving with Continuously Variable
Transmission (CVT) .............5-17
Control panel buttons Backbutton..................4-5
Brightness/contrast button ..........4-5
Clockset...................4-15 Setting button
.................4-5
Controls Audio controls ................4-70
Audio controls (steering wheel) ....4-7,4-71
Heater and air conditioner controls .....4-49
Coolant Capacities and recommended
fuel/lubricants ................10-2
Changingenginecoolant...........8-5
Checking engine coolant level ........8-5
Engine coolant temperature gauge .....2-6
Corrosion protection ...............7-7
Cruisecontrol...............5-74,5-75
Cupholders...................2-56
D
Daytime Running Light System .........2-41
Defroster switch Rear window and outside mirror defroster
switch.....................2-36
Digital Versatile Disc (DVD) player .......4-89
Dimensionsandweights ............10-9
Dimmer switch for instrument panel ......2-42
Display......................2-17
Display controls (see control panel buttons) . .4-5, 4-8
Distance Control Assist (DCA) system .....5-96
Doors ........................3-4
Drive belt .....................8-13
Drive positioner, Automatic ........3-36,3-38
Driving Cold weather driving ............5-142
Driving with Continuously Variable
Transmission (CVT) .............5-17 Precautions when starting and driving
....5-4
Driving the vehicle ................5-17
Dual panel moonroof ..............2-64
Dual power moonroof ...........2-64,2-64
E
Economy-fuel.................5-128
Emergency engine shutoff .........5-15,6-3
Emission control information label ......10-11
Emission control system warranty .......10-30
Engine Before starting

the engine ..........5-16
Blockheater ................5-143
Capacities and recommended
fuel/lubricants ................10-2
Changing engine coolant ...........8-5
Changingengineoil..............8-7
Changing engine oil filter ...........8-8
Checking engine coolant level ........8-5
Checking engine oil level ...........8-6
Engine compartment check locations ....8-3
Engine coolant temperature gauge .....2-6
Engine cooling system ............8-4
Engineoil ...................8-6
Engine oil and oil filter recommendation . .10-6
Engine oil viscosity ..............10-7
Engine serial number ............10-11
Engine specifications ............10-8
Starting the engine .............5-16
Engine coolant temperature gauge .......2-6
Event Data recorders .............10-32
Exhaust gas (Carbon monoxide) .........5-4
Explanation of maintenance items ........9-2
Explanation of scheduled maintenance items . .9-5
11-2

Intelligent cruise control (ICC) systemBrake assist .................5-76
Intelligent Key system Key operating range ..............3-8
Key operation ................3-10
Mechanicalkey ................3-3
Remote keyless entry operation.......3-13
Troubleshooting guide ............3-17
Warning signals ...............3-17
Interiorlight....................2-67
iPod®Player ...............4-62,4-82
ISOFIX child restraints .............1-30
J
Jump starting ...............6-10,8-13
K
Key.........................3-2
Key fob battery replacement ..........8-20
Keyless entry With Intelligent Key system
(See Intelligent Key system) .........3-13
L
Label Tire and Loading Information label ....10-12
Labels Air conditioner specification label .....10-12
C.M.V.S.S. certification label .......10-11
Emissioncontrolinformationlabel ....10-11 Engine serial number
............10-11
F.M.V.S.S. certification label ........10-11
Tire and Loading Information label ....10-12
Vehicle identification number (VIN) ....10-10
Vehicle identification number (VIN)
plate.....................10-10
Warning labels (for SRS) ..........1-68
Lane Departure Prevention (LDP)
system ...............5-26,5-31,5-34
Lane Departure Warning (LDW)
system ...............5-26,5-31,5-34
Language setting ................4-16
LATCH (Lower Anchors and Tethers for CHildren)
System ......................1-30
License plate Installing the license plate .........10-12
Liftgate ......................3-22
Liftgate release ..................3-27
Light Air bag warning light .........1-69,2-12
Brake light (See stop light) .........8-22
Bulb check/instrument panel .........2-8
Bulbreplacement..............8-22
Charge warning light ............2-10
Exterior and Interior lights ..........8-22
Foglights...................8-22
Foglightswitch ...............2-43
Headlight and turn signal switch ......2-37
Headlight control switch ..........2-37
Headlights..................8-22
Interiorlight..................2-67
Lightbulbs..................8-22
Low tire pressure warning light .......2-10
Low windshield-washer fluid warning
light......................2-27
Passenger air bag and status light .....1-60Personal lights
................2-68
Security indicator light ............2-14
Warning/indicator lights and audible
reminders .............2-8,2-9,2-13
Lights.......................8-22 Maplights ..................2-68
Lock Child safety rear door lock ..........3-6
Gloveboxlock................2-54
Liftgate release ................3-27
Power door locks ............3-5,3-6
Loose fuel cap warning .............2-27
Low fuel warning light ..........2-12,2-27
Low tire pressure warning light .........2-10
Low windshield-washer

fluid warning light . . .2-27
Luggage hook ..................2-58
Luggage rack (see roof rack) ..........2-59
Luggage (See vehicle loading information) . .10-13
M
Maintenance General maintenance .............9-2
Insidethevehicle...............9-3
Maintenance precautions ...........8-2
Outside the vehicle ..............9-2
Seat belt maintenance ............1-25
Under the hood and vehicle .........9-4
Maintenancelog.................9-13
Maintenance requirements ............9-2
Maintenance schedules ..............9-7
Maintenance under severe operation
conditions ....................9-12
Malfunction indicator light ............2-14
Maplights ....................2-68
11-4

Map pocket....................2-53
Memory Seat ...............3-36,3-38
Meters and gauges ................2-4
Instrument brightness control ........2-42
Mirror Automatic anti-glare inside mirror ......3-33
Outside mirrors ...............3-34
Vanity mirror .................3-33
Mirrors ......................3-33
Mobile Entertainment System (MES) ......4-95
Moonroof ......................7-4
Moving Object Detection (MOD) ........4-43
O
Octanerating(Seefueloctanerating).....10-5
Odometer .....................2-5
Oil Capacities and recommended
fuel/lubricants ................10-2
Changing engine oil ..............8-7
Changing engine oil filter ...........8-8
Checking engine oil level ...........8-6
Engine oil ...................8-6
Engine oil and oil filter recommendation . .10-6
Engine oil viscosity ..............10-7
Outside mirrors .................3-34
Overheat Ifyourvehicleoverheats...........6-12
Owner’s manual order form ..........10-33
Owner’s manual/service manual order
information ...................10-33 P
Parking Parking brake operation ...........5-22
Parking/parking on hills ..........5-132
Parking brake ...................5-22
Personallights..................2-68
Power Power door locks ............3-5,3-6
Power outlet ..............2-50,2-51
Power rear windows .............2-61
Power steering fluid ..............8-9
Power steering system ...........5-132
Power windows ...............2-60
Rear power windows ............2-61
Power inverter switch ..............2-49
Power outlet ................2-50,2-51
Power steering .................5-132
Power steering fluid ................8-9
Precautions Maintenance precautions ...........8-2
On-pavement and off-road driving
precautions ..................5-8
Precautions on booster
seats...........1-29,1-36,1-42,1-47
Precautions on child
restraints .........1-29,1-36,1-42,1-47
Precautions on seat belt usage .......1-17
Precautions on supplemental restraint
system ....................1-50
Precautions when starting and driving ....5-4
Predictive Forward Collision Warning
(PFCW) .....................5-115
Push starting ...................6-12 R
Radio CarphoneorCBradio...........4-115
FM/AM radio with compact disc (CD)
player .....................4-70
Steering wheel audio control switch .4-7, 4-71
Rainsensor....................2-34
Readiness for

inspection maintenance (I/M)
test .......................10-31
Rear Cross Traffic Alert (RCTA) ........5-66
Rear power windows ..............2-61
RearView Monitor ................4-20
Rear window and outside mirror defroster
switch.......................2-36
Rear window wiper and washer switches . . .2-35
Recommended Fluids ..............10-2
Recorders EventData .................10-32
Refrigerant recommendation ..........10-7
Registering a vehicle in another country . . .10-10
Remote controller (See INFINITI mobile
entertainment system) .............4-105
Remote Start ...............3-19,5-17
Reporting safety defects (US only) ......10-30
Roadside assistance program ..........6-2
Roof rack .....................2-59
S
Safety Child safety rear door lock ..........3-6
Child seat belts .....1-29,1-36,1-42,1-47
Reporting safety defects (US only) ....10-30
11-5
