2017 INFINITI QX60-HYBRID navigation

1CAMERAbutton
Push the CAMERA
button to display
the Around View® Monitor.
For additional information, refer to “Around
View® Monitor” in this section. Push and hold the CAMERA
button
to switch the display brightness to the day-
time mode or the nighttime mode, and to
adjust the display brightness level using the
center dial.
2NAVI button
Push to display the navigation menu.
For additional information, refer to the Navi-
gation System Owner’s Manual.
3APPS button
For additional information, refer to “Infiniti
InTouch
TMApps” in this section.
4STATUS button
Push to display the current setting of the
vehicle information, air conditioner, audio
and navigation route information.
5AUDIO button
Push to operate the audio system.
For additional information, refer to “Audio
main operation” in this section.
6MAP button
For additional information, refer to the Navi-
gation System Owner’s Manual.
7BACK button
Push to return to the previous screen. In a
settings screen, this button is also used to
apply the setting.
Models with navigation system
JVH1410X
CENTER MULTI-FUNCTION CONTROL
PANEL
Monitor, climate, audio, phone and voice recognition systems4-5

8ENTER button/Center dial/Slide switchPush to select the highlighted item on the
screen. If this button is pushed while a map
is displayed, the map menu screen or short-
cut menu is displayed.
Turn to highlight an item on the screen or
adjust a setting. The center dial can also be
used to adjust the map scale.
Slide (push upward/ downward/ leftward/
rightward) to select an item on the screen or
to adjust a setting (volume, brightness, etc.) .
The map can be scrolled in 8 directions by
sliding this switch.
9VOICE button
For additional information, refer to the Navi-
gation System Owner’s Manual.
10INFO button
Push to display the information menu. For
additional information, refer to “Information
screen” in this section.
11SETTING button
Push to access the system settings.
1button
Push the
button to switch the display
brightness to the daytime mode or the night-
time mode, and to adjust the display bright-
ness level using the center dial. Push and hold the
button to turn the display on
and off.
Models without navigation system
JVH1411X
4-6Monitor, climate, audio, phone and voice recognition systems

4The symbol keys are displayed by touching
the “Symbols” key. The alphabet keys are
displayed by touching the “A-Z” keys.
5Touch the “Space” key to enter a space.
6Touch the “OK” key or “List” key to finalize
your input.
INFO:
● Touch the “CAPS” key to toggle uppercase
and lowercase characters on the keyboard
screen.
● Touch the “
” key or the “”
key to move the character input position. By pushing the STATUS button, the current sta-
tus of the system can be displayed.
INFO:
There are different status screens displayed de-
pending on various factors, such as the currently
active mode, whether a destination has been set
or not, etc.
When a route to the destination is set and the
audio system is on, a screen similar to the one
above appears.
Touching the “” keys can switch the display
among fuel economy information, navigation
route information (if so equipped) and air condi-
tioner status.
When no route is set, a compass and the direc-
tion of travel is displayed instead of the route
information.
JVH1429M
SYSTEM STATUS SCREEN
4-12Monitor, climate, audio, phone and voice recognition systems

INFORMATION SCREEN
The information screen sets or displays various
information that is helpful for using the vehicle.
Available items include the vehicle information,
traffic information, current location information
and navigation software version.
Push the INFO button to display the information
menu.
The displayed items vary depending on the ve-
hicle model.
Menu itemResult
“Energy Flow” key Energy information is displayed on the screen.
Touch the “Fuel Economy History” key to display the Energy Flow History screen.
“Fuel Economy History” key Fuel Economy History is displayed on the screen.
The Fuel Economy History screen can be scrolled. To go back to Energy Flow
screen, touch the “Energy Flow” key.
“Fuel Economy” key Displays the Fuel Economy screen.
The current and average fuel economy and the distance to empty range can be
confirmed.
“History” key The Fuel Economy history screen can be scrolled.
Displays the Fuel Economy history screen. Touch the “ ” keys to display an older
history or the newest history.
“Reset” key Resets the average Fuel Economy.
The average for the Reset-to-Reset period is stored as a fuel economy history.
When reset average Fuel Economy is on the screen, the average fuel consumption
on the trip computer is also reset at the same time.
“Eco Drive Report” key Displays the Eco Drive Report for “Start”/“Cruise”/“Deceleration”.
INFORMATION AND SETTINGS
Monitor, climate, audio, phone and voice recognition systems4-13

Menu itemResult
“History” key The Eco Drive Report History screen can be scrolled.
Displays the Eco Drive Report History screen. Touch the “ ” keys to display an
older history or the newest history.
“Reset” key Resets the Eco Drive Report screen.
The average for the Reset-to-Reset period is stored as an Eco Drive Report history.
“Traffic Information” key Allows traffic information setup.
For additional information, refer to the Navigation System Owner’s Manual.
“Map Information” key Displays the map version, software version and Navi ID.
“InTouch Services” key Displays the Infiniti InTouch
TMServices menu.
For additional information, refer to the Navigation System Owner’s Manual.
“SXM Info” key Displays the SiriusXM Travel Link Information menu.
For additional information, refer to the Navigation System Owner’s Manual.
INFO:
● A SiriusXM Travel Link or SiriusXM Traffic subscription is necessary to receive SiriusXM information services.
● Use of Infiniti InTouch
TMServices features is dependent upon a valid subscription and the telematics device being in operative condition, as well as
cellular connectivity, navigation map data and GPS satellite signal reception being available.
4-14Monitor, climate, audio, phone and voice recognition systems

SETTINGS SCREEN
The system can be customized to make it easier
for you to use.The displayed items vary depending on the
equipped options.
The order of the displayed items can be sorted.
Step
Menu Item Result
Push the SET-
TING button. “Bluetooth” key
Sets the Bluetooth® Audio and Phone.
For additional information, refer to “Bluetooth® settings” in this section.
“Phone/Mail” key Displays the Phone/Mail setting screen.
For additional information, refer to “Phone and text message settings” in this section.
“Navigation” key Displays the Navigation setting screen.
For additional information, refer to the Navigation System Owner’s Manual.
“Audio” key Displays the Audio setting screen.
For additional information, refer to “Audio settings” in this section.
“Screen” key Sets the Screen display to the preferred settings.
For additional information, refer to “Screen settings” in this section.
“Volume Adjustment” key Sets the Volume Adjustment.
For additional information, refer to “Volume settings” in this section.
“Clock” key Sets the Clock to your preferred settings.
For additional information, refer to “Clock settings” in this section.
“InTouch Services” key Sets Infiniti InTouch
TMServices to your preferred settings.
For additional information, refer to the Navigation System Owner’s Manual.
“Voice Recognition” key Sets Minimize Voice Feedback to on/off and the audio setting for voice recognition use.
“Camera/Sonar” key Sets the Camera/Sonar to your preferred settings.
For additional information, refer to “Camera/Sonar settings” in this section.
“Other” key “Language” keySets the language to your preferred settings.
For additional information, refer to “Language setting” in this section.
“Keyboard Type” key Sets the Keyboard Type to “ABC” key or “QWERTY” key.
“Low on Fuel Alert” key Sets the fuel low notification to on/off.
“Software Information” key Displays the Software Information.
Monitor, climate, audio, phone and voice recognition systems4-15

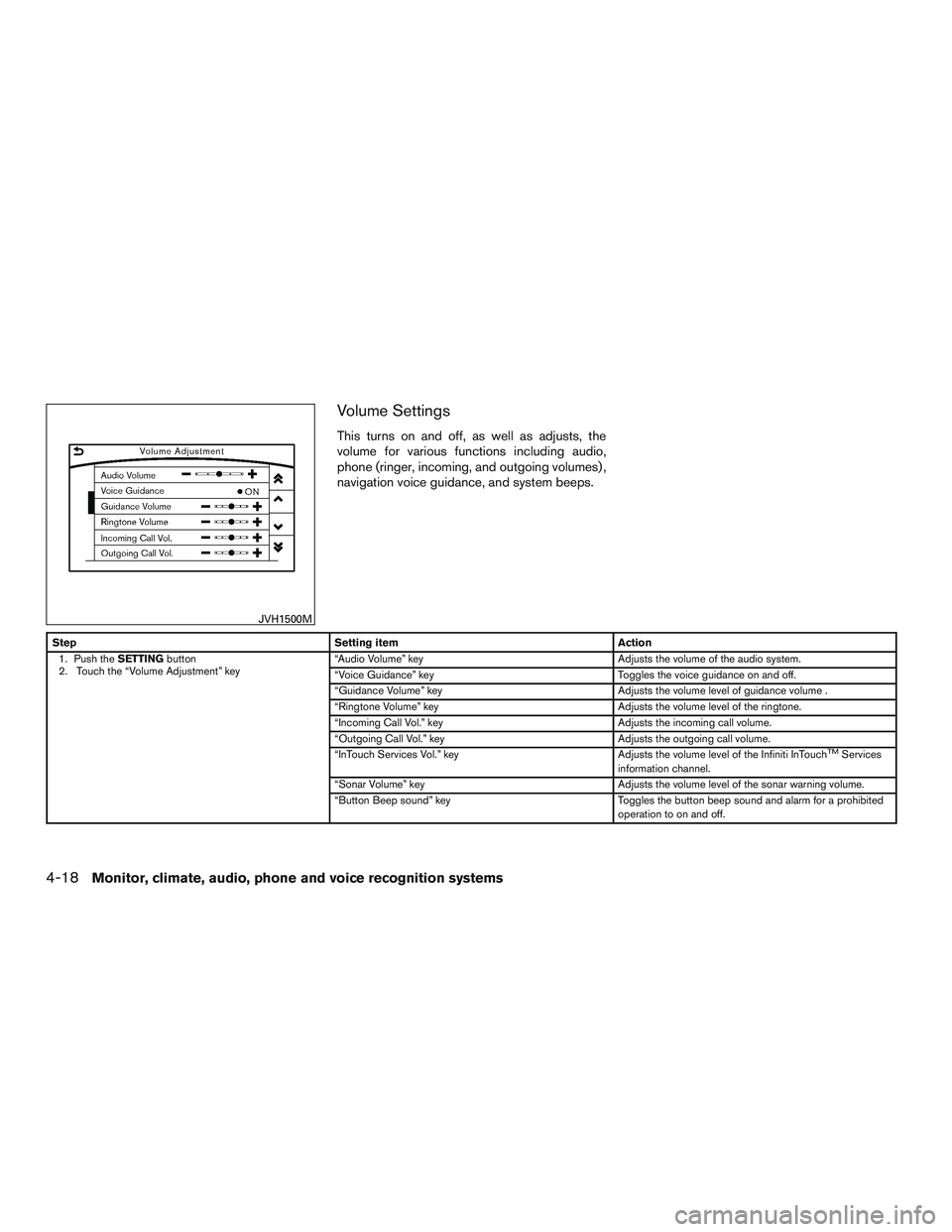

Volume Settings
This turns on and off, as well as adjusts, the
volume for various functions including audio,
phone (ringer, incoming, and outgoing volumes) ,
navigation voice guidance, and system beeps.
StepSetting item Action
1. Push the SETTINGbutton
2. Touch the “Volume Adjustment” key “Audio Volume” key
Adjusts the volume of the audio system.
“Voice Guidance” key Toggles the voice guidance on and off.
“Guidance Volume” key Adjusts the volume level of guidance volume .
“Ringtone Volume” key Adjusts the volume level of the ringtone.
“Incoming Call Vol.” key Adjusts the incoming call volume.
“Outgoing Call Vol.” key Adjusts the outgoing call volume.
“InTouch Services Vol.” key Adjusts the volume level of the Infiniti InTouch
TMServices
information channel.
“Sonar Volume” key Adjusts the volume level of the sonar warning volume.
“Button Beep sound” key Toggles the button beep sound and alarm for a prohibited
operation to on and off.
JVH1500M
4-18Monitor, climate, audio, phone and voice recognition systems

SHORTCUT MENU
Push the ENTER button on the steering wheel
while the status, audio, climate or current location
map (models with navigation system) screen is
displayed to display the shortcut menu screen.
The items on the shortcut menu can be custom-
ized to your preference
Available items:● Audio Source
● Audio List
● Call History
● Phonebook
● Cancel Route*
● Nearby Places*
● Store Location*
● View Settings*
● Select Add/Edit
● (Blank)
*: Models with navigation system.
Edit shortcut menu
The following procedure can edit or sort the
shortcut menu.
1. Touch the “Select Add/Edit” key to register a new item to the menu, or to change an
existing menu item.
2. Select a preferred setting. ●“Change Order” key
Change the order in which shortcut menu
items are shown. Touch and hold the “
”
key displayed next to the item you wish to
relocate. Drag the icon to the position in the
list where you wish to insert the item.
● “Edit Shortcut Items” key
Select items to be displayed in the shortcut
menu.
4-20Monitor, climate, audio, phone and voice recognition systems
