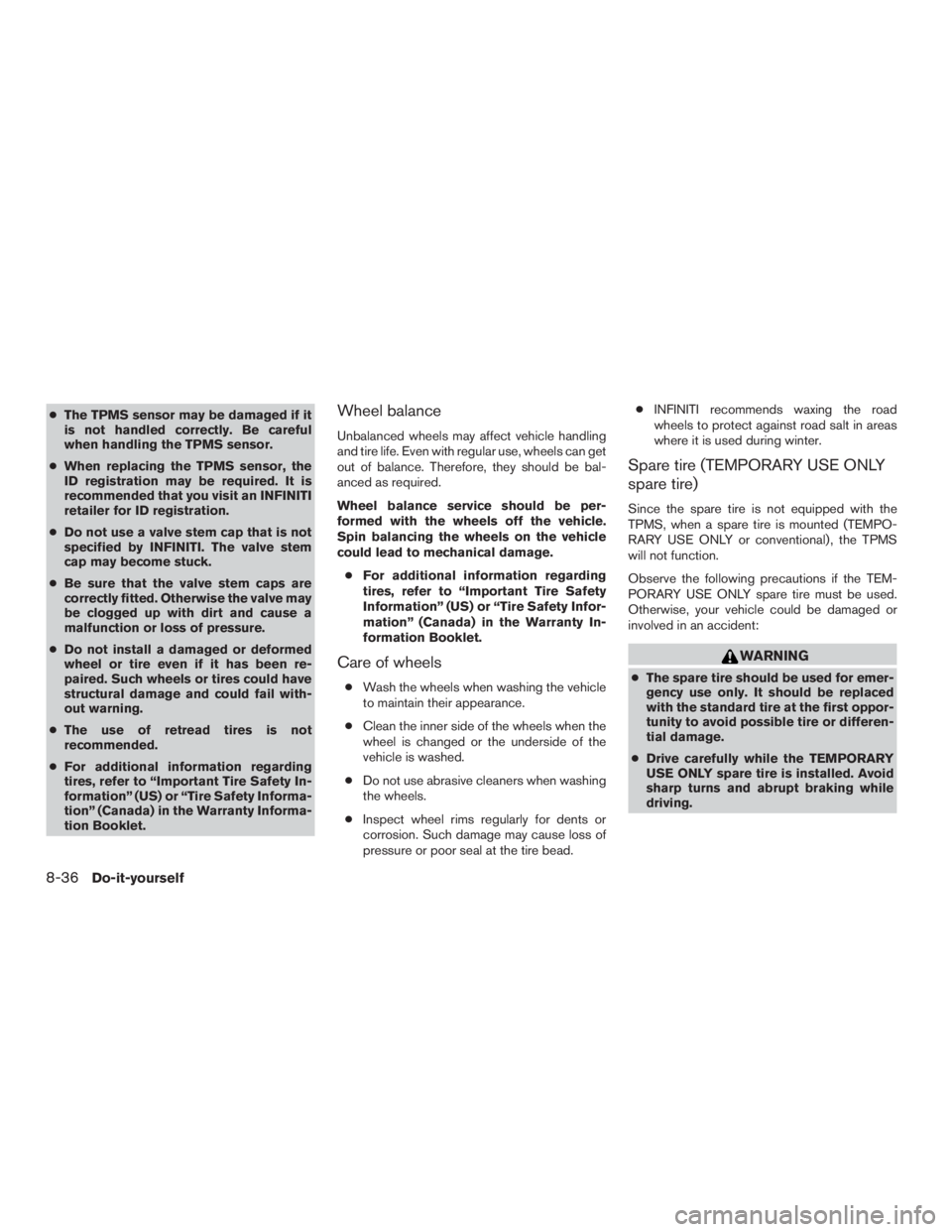

2017 INFINITI QX60 HYBRID TPMS

●The TPMS sensor may be damaged if it
is not handled correctly. Be careful
when handling the TPMS sensor.
● When replacing the TPMS sensor, the
ID registration may be required. It is
recommended that you visit an INFINITI
retailer for ID registration.
● Do not use a valve stem cap that is not
specified by INFINITI. The valve stem
cap may become stuck.
● Be sure that the valve stem caps are
correctly fitted. Otherwise the valve may
be clogged up with dirt and cause a
malfunction or loss of pressure.
● Do not install a damaged or deformed
wheel or tire even if it has been re-
paired. Such wheels or tires could have
structural damage and could fail with-
out warning.
● The use of retread tires is not
recommended.
● For additional information regarding
tires, refer to “Important Tire Safety In-
formation” (US) or “Tire Safety Informa-
tion” (Canada) in the Warranty Informa-
tion Booklet.Wheel balance
Unbalanced wheels may affect vehicle handling
and tire life. Even with regular use, wheels can get
out of balance. Therefore, they should be bal-
anced as required.
Wheel balance service should be per-
formed with the wheels off the vehicle.
Spin balancing the wheels on the vehicle
could lead to mechanical damage.
● For additional information regarding
tires, refer to “Important Tire Safety
Information” (US) or “Tire Safety Infor-
mation” (Canada) in the Warranty In-
formation Booklet.
Care of wheels
● Wash the wheels when washing the vehicle
to maintain their appearance.
● Clean the inner side of the wheels when the
wheel is changed or the underside of the
vehicle is washed.
● Do not use abrasive cleaners when washing
the wheels.
● Inspect wheel rims regularly for dents or
corrosion. Such damage may cause loss of
pressure or poor seal at the tire bead. ●
INFINITI recommends waxing the road
wheels to protect against road salt in areas
where it is used during winter.
Spare tire (TEMPORARY USE ONLY
spare tire)
Since the spare tire is not equipped with the
TPMS, when a spare tire is mounted (TEMPO-
RARY USE ONLY or conventional) , the TPMS
will not function.
Observe the following precautions if the TEM-
PORARY USE ONLY spare tire must be used.
Otherwise, your vehicle could be damaged or
involved in an accident:
WARNING
● The spare tire should be used for emer-
gency use only. It should be replaced
with the standard tire at the first oppor-
tunity to avoid possible tire or differen-
tial damage.
● Drive carefully while the TEMPORARY
USE ONLY spare tire is installed. Avoid
sharp turns and abrupt braking while
driving.
8-36Do-it-yourself

Make sure that the secondary latch keeps the
hood from opening when the primary latch is
released.
When driving in areas using road salt or other
corrosive materials, check lubrication frequently.
Lights*:Clean the headlights on a regular basis.
Make sure that the headlights, stop lights, tail
lights, turn signal lights, and other lights are all
operating properly and installed securely. Also
check headlight aim.
Road wheel nuts (lug nuts)*: When checking
the tires, make sure no wheel nuts are missing,
and check for any loose wheel nuts. Tighten if
necessary.
Tire rotation*: Tires should be rotated every
5,000 miles (8,000 km).
Tires*: Check the pressure with a gauge often
and always prior to long distance trips. If neces-
sary, adjust the pressure in all tires, including the
spare, to the pressure specified. Check carefully
for damage, cuts or excessive wear.
Tire Pressure Monitoring System (TPMS)
transmitter components: Replace the TPMS
transmitter grommet seal, valve core and cap
when the tires are replaced due to wear or age. Tire, wheel alignment and balance:
If the
vehicle should pull to either side while driving on
a straight and level road, or if you detect uneven
or abnormal tire wear, there may be a need for
wheel alignment. If the steering wheel or seat
vibrates at normal highway speeds, wheel bal-
ancing may be needed.
For additional information regarding tires, refer to
“Important Tire Safety Information” (US) or “Tire
Safety Information” (Canada) in the INFINITI
Warranty Information Booklet.
Windshield: Clean the windshield on a regular
basis. Check the windshield at least every six
months for cracks or other damage. Have a dam-
aged windshield repaired by a qualified repair
facility.
Windshield wiper blades*: Check for cracks
or wear if they do not wipe properly.
Inside the vehicle
The maintenance items listed here should be
checked on a regular basis, such as when per-
forming scheduled maintenance, cleaning the ve-
hicle, etc.
Accelerator pedal: Check the pedal for smooth
operation and make sure the pedal does not
catch or require uneven effort. Keep the floor mat
away from the pedal. Brake pedal:
Check the pedal for smooth op-
eration. If the brake pedal suddenly goes down
further than normal, the pedal feels spongy or the
vehicle seems to take longer to stop, have your
vehicle checked immediately. It is recommended
that you visit an INFINITI retailer for this service.
Keep the floor mat away from the pedal.
Brakes: Check that the brakes do not pull the
vehicle to one side when applied.
Continuously Variable Transmission (CVT)
P (Park) position mechanism: On a fairly
steep hill check that the vehicle is held securely
with the shift lever in the P (Park) position without
applying any brakes.
Parking brake: Check the parking brake opera-
tion regularly. The vehicle should be securely held
on a fairly steep hill with only the parking brake
applied. If the parking brake needs adjustment, it
is recommended that you visit an INFINITI retailer
for this service.
Seat belts: Check that all parts of the seat belt
system (for example, buckles, anchors, adjusters
and retractors) operate properly and smoothly,
and are installed securely. Check the belt web-
bing for cuts, fraying, wear or damage.
Maintenance and schedules9-3

Turnsignalswitch..............2-45
Vehicle dynamic control (VDC) off
switch.....................2-50T
Tachometer ....................2-5
Theft (INFINITI vehicle immobilizer system) ,
engine start ...........2-34,3-4,5-16
Three-way catalyst ................5-4
Tire Flat tire .....................6-3
Spare tire ................6-4,8-36
TireandLoadingInformationlabel ....10-13
Tire chains ..................8-33
Tirepressure .............8-26,8-26
Tire rotation..................8-34
Types of tires .................8-32
Uniform tire quality grading ........10-29
Wheels and tires ...............8-26
Wheel/tire size ...............10-10
Tire pressure Low tire pressure warning light .......2-10
Tire Pressure Monitoring System (TPMS) ....5-5
Top tether strap child restraint .........1-32
Towing Flattowing.............10-28,10-29
Towing load/specification .........10-22
Towtrucktowing...............6-15
Trailer towing ................10-18
Towing a trailer .................10-18 Transceiver
HomeLink® Universal
Transceiver .......2-72,2-73,2-74,2-75,
2-75, 2-76
Transmission Continuously Variable Transmission (CVT)
fluid......................8-10
Driving with Continuously Variable
Transmission (CVT) .............5-18
Travel (See registering a vehicle in another
country) .....................10-11
Trip odometer ...................2-5
Turn signal switch ................2-45
U
Uniform tire quality grading ..........10-29
USB interface ...............4-64,4-80
USB/iPod®ChargingPorts ..........4-86
V
Vanity mirror ...................3-33
Vehicle dimensions and weights .......10-10
Vehicle does not start ..............6-10
Vehicle dynamic control (VDC) off switch . . .2-50
Vehicle dynamic control (VDC) system ....5-136
Vehicle Dynamic Control (VDC) system . . .5-136
Vehicle identification ..............10-11
Vehicle identification number (VIN) ......10-11
Vehicle identification number (VIN)
(Chassis number) ...............10-11
Vehicle identification number (VIN) plate . . .10-11
Vehicle immobilizer system ...........5-16Vehicle Information Display
........2-16,2-17
Vehicle loading information ..........10-14
Vehicle recovery ..............6-17,6-18
Vehicle security system .............2-33
(INFINITI vehicle immobilizer system) , engine
start ................2-34,3-4,5-16
Vents.......................4-49
Visors.......................3-32
Voice Recognition System ...........4-140
W
Warning Airbagwarninglight.........1-67,2-13
Anti-lock brake warning light .........2-8
Battery charge warning light .........2-8
Blind Spot Intervention (BSI) warning
light......................5-46
Blind Spot Warning (BSW) warning
light......................5-37
Brake warning light ...........2-8,2-9
Distance Control Assist (DCA) .......5-97
Hazard warning flasher switch ........
6-2
Lane Departure Prevention . .5-26, 5-31, 5-34
Lane Departure Warning
light...............5-26,5-31,5-34
Loose fuel cap warning ...........2-29
Low fuel warning light ......2-9,2-12,2-29
Low tire pressure warning light .......2-10
Low windshield-washer fluid warning
light......................2-29
Passenger air bag and status light .....1-58
Seat belt warning light ........1-19,2-12
Supplemental air bag warning
light ..................1-67,2-13
11-7
