2017 INFINITI QX60 HYBRID remote control

●Do not use the recirculation mode for
long periods as it may cause the interior
air to become stale and the windows to
fog up.
Start the hybrid system and operate the controls
to activate the air conditioner.
NOTE: ● Odors from inside and outside the vehicle
can build up in the air conditioner unit. Odor
can enter the passenger compartment
through the vents.
● When parking, set the heater and air condi-
tioner controls to turn off air recirculation to
allow fresh air into the passenger compart-
ment. This should help reduce odors inside
the vehicle.
AUTOMATIC OPERATION
Cooling and/or dehumidified heating
(AUTO)
This mode may be used all year round as the
system automatically works to keep a constant
temperature. Air flow distribution, intake air con-
trol, and fan speed are also controlled automati-
cally. 1. Press the AUTO button on. (The indicator on
the button will illuminate and AUTO will be
displayed.)
2. Operate the driver’s side temperature con- trol buttons.
● Adjust the temperature display to about
75°F (24°C) for normal operation.
● The temperature of the passenger compart-
ment will be maintained automatically. Air
flow distribution, intake air control, and fan
speed are also controlled automatically.
● A visible mist may be seen coming from the
ventilators in hot, humid conditions as the air
is cooled rapidly. This does not indicate a
malfunction.
Dehumidified defrosting or defogging
1. Press thefront defroster button on.
(The indicator light on the button will come
on.)
2. Operate the temperature control buttons to set the desired temperature.
● To quickly remove ice from the outside of the
windows, use the
fan speed control
buttons to set the fan speed to maximum. ●
As soon as possible after the windshield is
clean, press the AUTO button to return to
the automatic mode.
● When the
front defroster button is
pressed, the air conditioner will automati-
cally be turned on at outside temperatures
above 36°F (2°C) . The air recirculate mode
automatically turns off, allowing outside air
to be drawn into the passenger compart-
ment to further improve the defogging per-
formance.
Remote hybrid start logic (if so
equipped)
Vehicles equipped with automatic climate con-
trols and remote start function may go into auto-
matic heating or cooling mode when remote start
is activated depending on outside and cabin tem-
peratures. During this period, the climate control
display and buttons will be inoperable until the
ignition switch is turned on. In remote start de-
frosting mode, the heated steering wheel (if so
equipped) may be activated automatically.
Monitor, climate, audio, phone and voice recognition systems4-51

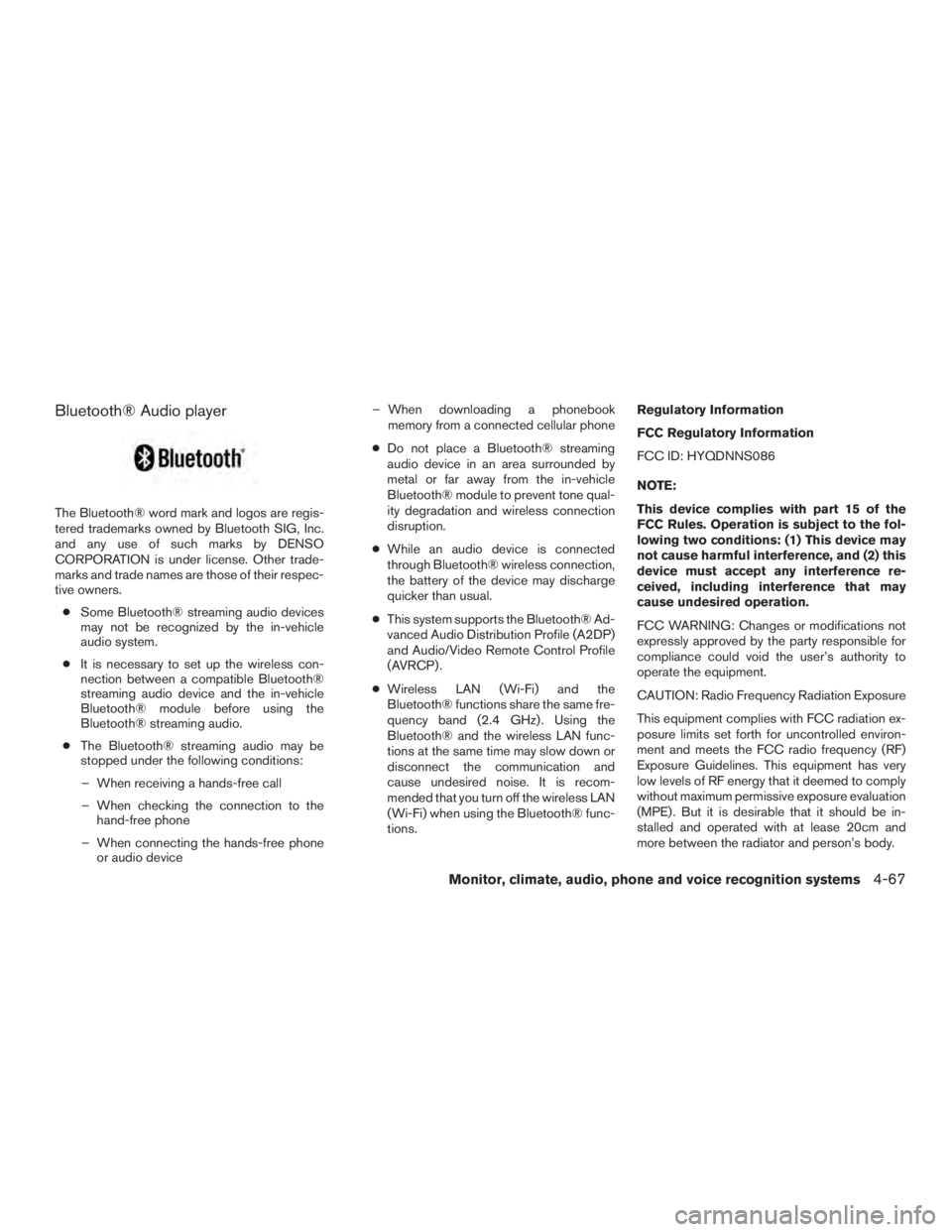

Bluetooth® Audio player
The Bluetooth® word mark and logos are regis-
tered trademarks owned by Bluetooth SIG, Inc.
and any use of such marks by DENSO
CORPORATION is under license. Other trade-
marks and trade names are those of their respec-
tive owners.● Some Bluetooth® streaming audio devices
may not be recognized by the in-vehicle
audio system.
● It is necessary to set up the wireless con-
nection between a compatible Bluetooth®
streaming audio device and the in-vehicle
Bluetooth® module before using the
Bluetooth® streaming audio.
● The Bluetooth® streaming audio may be
stopped under the following conditions:
– When receiving a hands-free call
– When checking the connection to the hand-free phone
– When connecting the hands-free phone or audio device – When downloading a phonebook
memory from a connected cellular phone
● Do not place a Bluetooth® streaming
audio device in an area surrounded by
metal or far away from the in-vehicle
Bluetooth® module to prevent tone qual-
ity degradation and wireless connection
disruption.
● While an audio device is connected
through Bluetooth® wireless connection,
the battery of the device may discharge
quicker than usual.
● This system supports the Bluetooth® Ad-
vanced Audio Distribution Profile (A2DP)
and Audio/Video Remote Control Profile
(AVRCP) .
● Wireless LAN (Wi-Fi) and the
Bluetooth® functions share the same fre-
quency band (2.4 GHz) . Using the
Bluetooth® and the wireless LAN func-
tions at the same time may slow down or
disconnect the communication and
cause undesired noise. It is recom-
mended that you turn off the wireless LAN
(Wi-Fi) when using the Bluetooth® func-
tions. Regulatory Information
FCC Regulatory Information
FCC ID: HYQDNNS086
NOTE:
This device complies with part 15 of the
FCC Rules. Operation is subject to the fol-
lowing two conditions: (1) This device may
not cause harmful interference, and (2) this
device must accept any interference re-
ceived, including interference that may
cause undesired operation.
FCC WARNING: Changes or modifications not
expressly approved by the party responsible for
compliance could void the user’s authority to
operate the equipment.
CAUTION: Radio Frequency Radiation Exposure
This equipment complies with FCC radiation ex-
posure limits set forth for uncontrolled environ-
ment and meets the FCC radio frequency (RF)
Exposure Guidelines. This equipment has very
low levels of RF energy that it deemed to comply
without maximum permissive exposure evaluation
(MPE) . But it is desirable that it should be in-
stalled and operated with at lease 20cm and
more between the radiator and person’s body.
Monitor, climate, audio, phone and voice recognition systems4-67

CONNECTING REAR MEDIA
INTERFACE
Ports for the USB1and HDMI2interface are
located at the rear of the center console box.
Compatible devices connected to the ports can
be played on the rear displays. Turn off the power
of the portable device before connecting to the
port.
REMOTE CONTROLLER AND
HEADPHONES
Remote controller
A remote controller is provided with the Mobile
Entertainment System. The remote controller is for the rear display op-
eration and cannot be used to control portable
devices.
The following buttons/switches are on the re-
mote controller.
LHA4288
JVH1388X
4-104Monitor, climate, audio, phone and voice recognition systems

1button
The rear displays can be activated or deac-
tivated individually.
2HOME button
Push to display the HOME screen. Select
the media from the DVD, AUX, USB and
HDMI interface device.
3buttons (select
buttons)
Push the select buttons to select the items
displayed on the rear screens.
4BACK button
Push to go back to the previous screen
5Keypad
Push the keys below for operations.
button Push play or pause the movie
button Push to stop playing the
movie
button Push to select the next chap-
ter. Push and hold to fast-forward the chap-
ter.
button Push once to return to the
beginning of the current chapter. Push again
to select the previous chapter. Push and
hold to rewind the current chapter.
button Push to fast forward skipping
a number of seconds (for DVD-VIDEO) .
button Push to rewind skipping a
number of seconds (for DVD-VIDEO) .
6SPEAKER button
Push to turn on all of the in-vehicle speakers.
7Volume control button +-
Push to adjust the speaker volume.
8DISPLAY SELECT button
Slide the switch to the side corresponding to
the screen you wish to operate (L or R) .
9MENU button
Push to display the operation screen for the
source that is being played. For additional
information, refer to “Menus” in this section.
10ENTER button
Push to execute the selected item.
11SET UP button
Push to display the rear seat display set-
tings. For additional information, refer to
“Settings and information” in this section.
12HEADPHONE button
Push to turn on the sound from the head-
phones and turn off the speakers
13button
Push to turn on the backlighting of the re-
mote controller buttons. Battery replacement:
CAUTION
●
An improperly disposed battery can
harm the environment. Always confirm
local regulations for battery disposal.
● When changing the batteries, do not let
dust or oil get on the components.
NOTE:
Change the batteries of the remote control-
ler when it does not function properly.
Monitor, climate, audio, phone and voice recognition systems4-105

To replace the battery:1. Open the lid as illustrated above.
2. Replace both batteries with new ones.● Recommended battery: Size AA x 2
● Be careful not to touch the battery terminal.
● Make sure that the
andends on
the batteries match the markings inside the
compartment. 3. Close the lid securely.
● If you will not be using the remote controller
for long periods of time, remove the batteries
● Replacement of the batteries is needed
when the remote controller only functions at
extremely close distances to the Mobile En-
tertainment System or when is does not
function at all.
JVH0246X
4-106Monitor, climate, audio, phone and voice recognition systems

2. Replace both batteries with new ones.● Recommended battery: Size AAA x 2
● Be careful not to touch the battery terminal
● Make sure that the
andends on
the batteries match the markings inside the
compartment.
3. Close the lid securely.
ACTIVATING REAR DISPLAYS
CAUTION
● The glass screen on the display screen
may break if hit with a hard or sharp
object. If the glass breaks, do not touch
the liquid crystalline material. In case of
contact with skin, wash immediately
with soap and water.
● Applying pressure to a display screen
may damage it. For additional informa-
tion, refer to “Care and maintenance” in
this section. The rear displays are located on the back of the
front head restraints.
Use the remote controller to operate the rear
display screens. For additional information, refer
to “Remote controller” in this section.
Select the left or right rear display using the
DISPLAY SELECT button on the remote control-
ler and push the
button to activate the
corresponding rear display. When the display is
turned on, a green indicator on the lower left
corner of the display will illuminate.
The lower part of the rear displays
1functions
as a signal receiver/transmitter for the remote
controller and wireless headphones, and should
not be blocked or covered.
Turning the rear displays on and off can also be
controlled on the front display. For additional
information, refer to “Controlling the rear system
on the front display” in this section.
NOTE:
● The rear displays may turn off auto-
matically when the temperature is high
to protect the display screens from be-
ing damaged.
5GA0119X
Monitor, climate, audio, phone and voice recognition systems4-109

●The movement of the images displayed
on the rear displays could slow down
when the temperature is below 32°F
(0°C) but this is not a malfunction. The
movement will return to normal when
the temperature rises between 32°F
(0°C) and 122°F (50°C) .
● The following conditions may occur but
these are characteristics of the crystal
display and are not malfunctions.
– Black spots, bright spots and after-
images appear on this display.
– The screen appears faint or dimmed
depending on the angle viewed.
OPERATIONS ON REAR DISPLAYS
Use the remote controller and take the following
steps to operate the rear displays in the rear
seats:
1. Turn on the rear displays using the
button on the remote controller.
2. Push the HOME button and select a source from the DVD, AUX, USB or HDMI interface
devices.
When USB is selected for the first time after
the USB device is connected, select a file
you with to play from the File Browser
screen.
Menus
Push the MENU button on the remote controller
to display the operation screen for the source that
is playing. Select and adjust the preferred items
using the Select buttons and the ENTER button
on the remote controller. The available menu
items differ depending on the selected source.
Available menu items:
● “Speaker Output” key
When this item is turned on, the audio of the
source playing on the corresponding rear
display will be output to the vehicle speak-
ers.
● “Top Menu” key (DVD only)
Select to display the top menu screen.
● “Title Menu” key (DVD only)
Menus specific to each disc will be shown.
For details, see the instructions attached to
the disc.
● “Title Search” key (DVD only)
A scene that belongs to a specified title will
be displayed each time the “+” key side or
the “—” key side is selected.
JVH1389X
4-110Monitor, climate, audio, phone and voice recognition systems

●“Use Keypad” key (DVD only)
Select the “Keypad” key and push the EN-
TER button to open the number entry
screen. Enter the number you want to search
for and select the “OK” key with the remote
controller. The selected Title/Chapter will be
played.
● “Audio” key (DVD, USB (DivX) only)
Select a preferred language for the audio
output.
● “Subtitle” key (DVD, USB (DivX) only)
Choose the preferred subtitle language set-
ting.
● “Angle” key (DVD only)
If the DVD contains data of different angles,
the angle of the image can be changed.
● “File Browser” key (USB only)
The data contained in the USB can be
browsed. The tracks are automatically cat-
egorized by playlists, songs, artists, com-
posers, genres, etc.
● “Play Mode” key (USB only)
Select a preferred play mode from the “Nor-
mal” key/”Repeat” key/”Shuffle” key.
● “Aspect Ratio” key
Aspect can be selected from Normal, Wide,
Cinema and Full. ●
“Select No.” key (DVD (Video-CD) only)
Select a section number you wish to play.
SETTINGS AND INFORMATION
Various settings for the MES such as aspect
ratio, language, etc. can be changed on the rear
displays.
Push the SET UP button on the remote controller
and select the preferred item using the Select
button and ENTER button to change the rear
display settings and to view the system informa-
tion.
Available items:
● “System Settings” key
● “Display Settings” key
● “Information” key
System settings
To change the settings of the Mobile Entertain-
ment System, push the SET UP button on the
remote controller and select the “System Set-
tings” key.
Select the preferred item and adjust the setting
using the remote controller. Available items:
● “Aspect Ratio” key
Select the image size from Normal, Wide,
Cinema and Full.
● “Language” key
The language displayed on the screen can
be changed. Select the “Manual” key and
then select a preferred language from the
list. To apply the same language that is ap-
plied to the front display, select the “Auto”
key.
The language of the rear menu screens can
be set independently from the front display.
The rear display language settings will be
applied to both the rear left and rear right
displays.
● “Operation Guide” key
When this item is turned on, an explanation
for the menu highlighted on the screen will
appear at the bottom of the screen.
● “DivX® VOD” key
DivX® VOD license information can be
viewed.
Display settings
To change the rear display settings, push the SET
UP button on the remote controller and select the
“Display Settings” key.
Monitor, climate, audio, phone and voice recognition systems4-111
