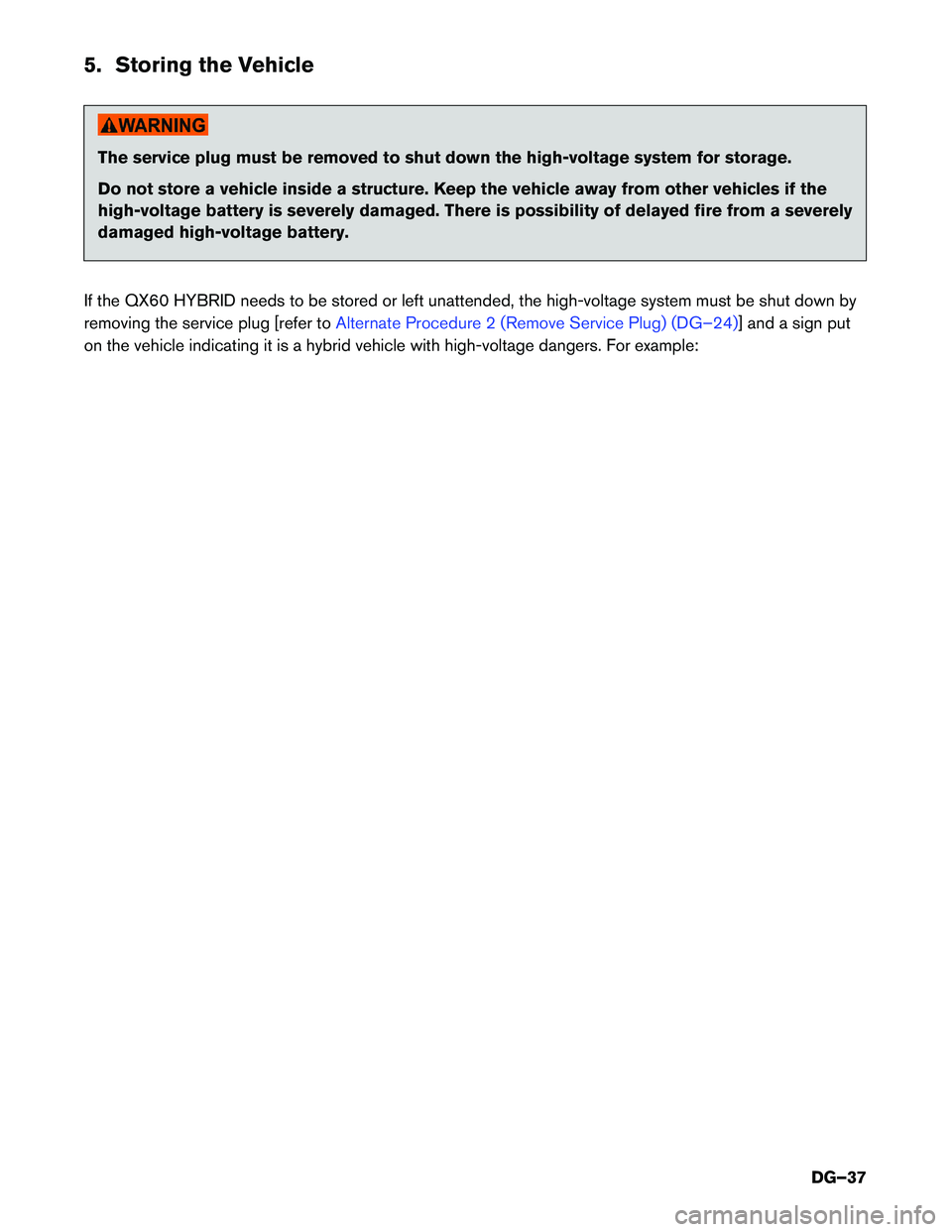

5. Storing the Vehicle
The service plug must be removed to shut down the high-voltage system for storage.
Do
not store a vehicle inside a structure. Keep the vehicle away from other vehicles if the
high-voltage battery is severely damaged. There is possibility of delayed fire from a severely
damaged high-voltage battery.
If the QX60 HYBRID needs to be stored or left unattended, the high-voltage system must be shut down by
removing the service plug [refer to Alternate Procedure 2 (Remove Service Plug) (DG–24)] and a sign put
on
the vehicle indicating it is a hybrid vehicle with high-voltage dangers. For example:
DG–37
6. Dismantling Information
Removal
or repair of the high-voltage battery requires special tools and specific training. Infiniti strongly
recommends that only certified INFINITI retailer technicians perform these operations.
6-1 Precautions for Handling High-Voltage Battery • Because QX60 HYBRID contains a high-voltage battery, there is the risk of electric
shock,
electric leakage, or similar accidents if the high-voltage components or vehicle
is handled incorrectly. Be sure to follow the correct work procedures when
performing inspection and dismantling.
• If it is necessary to touch any of the high-voltage harnesses or components you
must
always wear appropriate Personal Protective Equipment (PPE) and properly
shut down the high-voltage system by removing the service plug.
• Be sure to always wear appropriate PPE before beginning work on the high-
voltage
system.
•
Be sure to remove the service plug in order to shut down the high-voltage system
before performing inspection or dismantling of high-voltage system harnesses and parts.
•If the vehicle is heavily damaged, for example the high-voltage battery is
deformed, broken, or cracked; appropriate PPE must always be used at all times to avoid
electrical shock. • The colors of the high-voltage harnesses and connectors are all orange. Orange
high-
voltage labels
are applied to the high-voltage battery and other high-voltage devices.
Do not touch the high-voltage battery or other high-voltage devices without always
wearing appropriate PPE.
•
Clearly identify the persons responsible for high-voltage work and ensure that other
persons do not touch the vehicle. When not working, cover high-voltage parts with an
insulating cover sheet and sign or similar item to prevent other persons from contacting them.
• Be sure to put the removed service plug in your pocket and carry it with you so
another person does not accidentally reinstall it while work is in progress.
•
The high-voltage battery retains high-voltage at all times. Appropriate Personal
Protective Equipment (PPE) must always be worn when touching or working on high-voltage
components to avoid risk of electrical shock and severe personal injury or death.
• Immediately insulate disconnected high-voltage connectors and terminals with
insulated tape.
• The vehicle contains parts that contain powerful magnets. If a person who is wearing
a
pacemaker or other medical device is close to these parts, the medical device may be
affected by the magnets. Such persons must not perform work on the vehicle.
•
Because this vehicle uses components that contain high-voltage and powerful
magnetism, do not carry any metal products which may cause short circuits, or any magnetic
media (cash cards, credit cards, etc.) which may be damaged when working on the vehicle.
• Keep removed high-voltage battery packs away from rain to avoid electric shock.
•
Do not heat removed battery packs higher than 158° F (70° C) .
DG–39
6-2 High-Voltage Battery Pack Removal
6-2.1
Exploded Views
High-Voltage Battery Exploded View : Vehicle front
1.
Battery inlet duct 2. DC/DC converter inlet duct 3. 12-volt Battery positive terminal
4. High-voltage battery 5. DC/DC converter6. Battery inlet duct B
7. Battery outlet duct B 8. DC/DC converter bracket 9. Service plug
10. Battery outlet duct 11. DC/DC converter outlet duct AAYIA0395ZZ
DG–40
6-2.2 Removal Procedure
1. Discharge high-voltage battery. Refer to 3-3 Discharge Procedures (DG–18).
2.
Remove the service plug. Refer to Alternate Procedure 2 (Remove Service Plug) (DG–24).
3.
Release clips that retain the seat back board to the storage box lid.
4. Open the storage box lid.
5.
Remove the BOSE subwoofer (2) (if equipped) from the storage box (5) using the following steps.
a. Remove spare tire clamp (1) from bracket (4) .
b.
Lift subwoofer (2) to disconnect harness (3) then remove subwoofer (2) from storage box (5) .
6. Remove back door kicking plate by releasing the back door kicking plate clips and pawls using a suitable tool. : Pawl
: Clip
7.
Remove storage box screws and storage box.
8. Release the storage box side finisher clips using a suitable tool, then remove.
9. Remove the third row seat front bolts covers and bolts (2) .
10. Pull the third row seatback release lever (1) and fold down the seatbacks (LH/RH) . AAYIA0305ZZ
AAYIA0306ZZ
AAYIA0307ZZ
DG–42
