2017 INFINITI QX30 display

LDW SYSTEM OPERATION
1Steering wheel mounted controls
2Vehicle information display
ADisplay area
BMenu barThe LDW system operates at speeds of approxi-
mately 40 MPH (60 km/h) and above, when the
lane markings are clear.
If the system detects that the vehicle’s front
wheel has passed over the lane marking, a
warning will be provided. It will warn you by
means of intermittent vibration through the
steering wheel for up to 1.5 seconds and a
visual alert.
NOTE
The LDW system is designed not to warn when
you operate the lane change signal and change
traveling lanes in the direction of the signal.
No warning vibration occurs if you activate the
turn signals. In this event, the warnings are sup-
pressed for a certain period of time.
NSD626
5-30Starting and driving

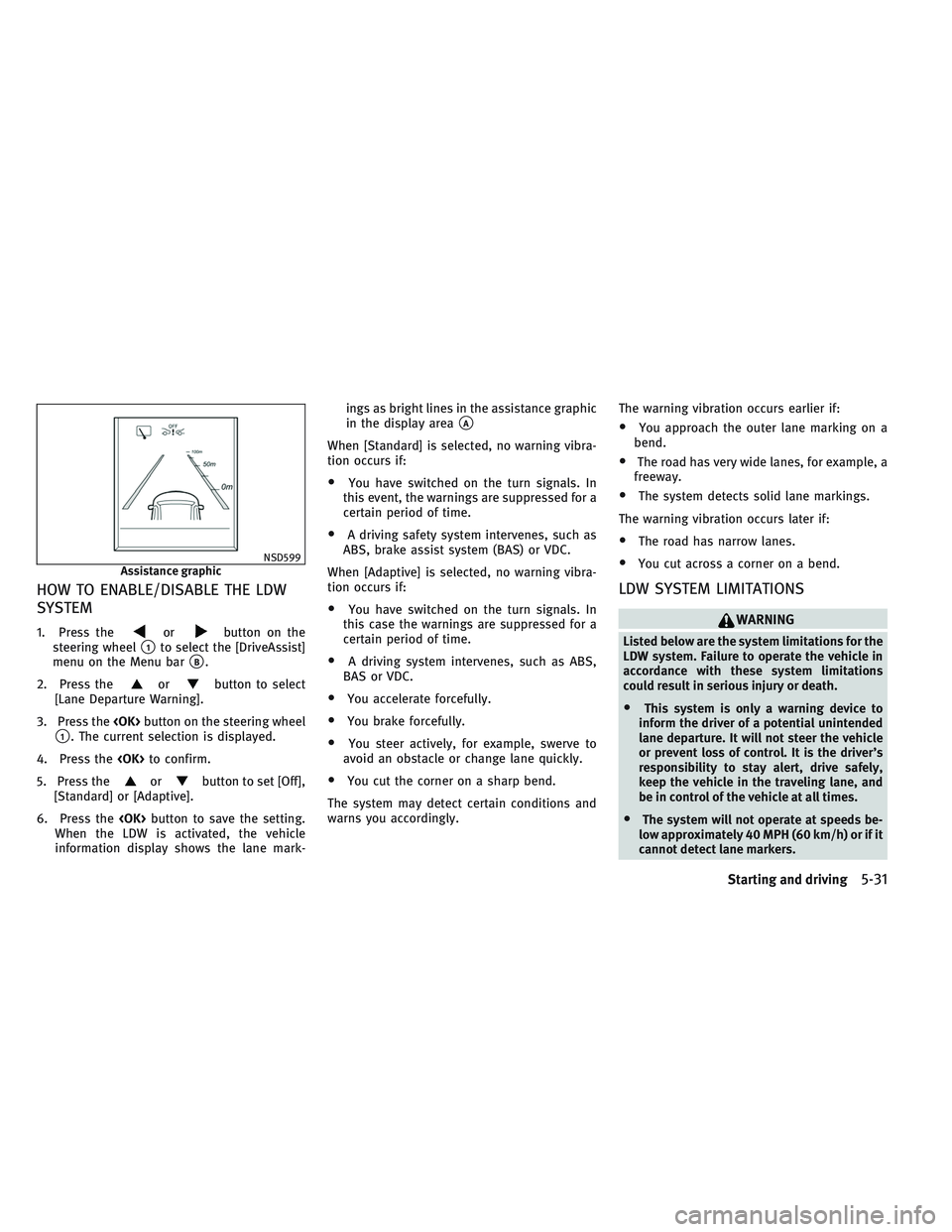

HOW TO ENABLE/DISABLE THE LDW
SYSTEM
1. Press theorbutton on the
steering wheel
1to select the [DriveAssist]
menu on the Menu bar
B.
2. Press the
orbutton to select
[Lane Departure Warning].
3. Press thebutton on the steering wheel
1. The current selection is displayed.
4. Press theto confirm.
5. Press the
orbutton to set [Off],
[Standard] or [Adaptive].
6. Press thebutton to save the setting.
When the LDW is activated, the vehicle
information display shows the lane mark-ings as bright lines in the assistance graphic
in the display area
A
When [Standard] is selected, no warning vibra-
tion occurs if:
•You have switched on the turn signals. In
this event, the warnings are suppressed for a
certain period of time.
•A driving safety system intervenes, such as
ABS, brake assist system (BAS) or VDC.
When [Adaptive] is selected, no warning vibra-
tion occurs if:
•You have switched on the turn signals. In
this case the warnings are suppressed for a
certain period of time.
•A driving system intervenes, such as ABS,
BAS or VDC.
•You accelerate forcefully.
•You brake forcefully.
•You steer actively, for example, swerve to
avoid an obstacle or change lane quickly.
•You cut the corner on a sharp bend.
The system may detect certain conditions and
warns you accordingly.The warning vibration occurs earlier if:
•You approach the outer lane marking on a
bend.
•The road has very wide lanes, for example, a
freeway.
•The system detects solid lane markings.
The warning vibration occurs later if:
•The road has narrow lanes.
•You cut across a corner on a bend.
LDW SYSTEM LIMITATIONS
WARNING
Listed below are the system limitations for the
LDW system. Failure to operate the vehicle in
accordance with these system limitations
could result in serious injury or death.
•This system is only a warning device to
inform the driver of a potential unintended
lane departure. It will not steer the vehicle
or prevent loss of control. It is the driver’s
responsibility to stay alert, drive safely,
keep the vehicle in the traveling lane, and
be in control of the vehicle at all times.
•The system will not operate at speeds be-
low approximately 40 MPH (60 km/h) or if it
cannot detect lane markers.
NSD599Assistance graphic
Starting and driving5-31

1Steering wheel mounted controls
2Vehicle information display
ADisplay area
BMenu bar
LDW SYSTEM TEMPORARILY
UNAVAILABLE
Under the following conditions, the LDW system
will be canceled automatically, and the mes-
sage [Lane Departure Warning Currently Un-
available See Operator’s Manual] is displayed
in the vehicle information display
2. The LDW
system is temporarily unavailable.
•The windshield is dirty in the camera’s field
of vision.
•Visibility is impaired due to heavy rain, snow
or fog.
•There have been no lane markings for an
extended period.
•The lane markings are worn, dark, or cov-
ered by dirt or snow, etc..
Action to take:When the above conditions no
longer exist, the message goes out and the LDW
system is operational again. If the message
continues to appear, stop the vehicle in a safe
location, press the P (Park) button , and clean
the windshield.
NSD626
Starting and driving5-33

BSW SYSTEM OPERATION
1Side indicator light
2Steering wheel mounted controls
3Vehicle information display
AMENU barThe BSW system operates above approximately
20 MPH (30 km/h). When the BSW is activated,
the side indicator light illuminates in yellow up
to a speed of 20 MPH (30 km/h). At speeds
above 20 MPH (30 km/h), the indicator light
goes out and the BSW system is operational.Illustration 1:If the radar sensors detect a
vehicle in the detection zone, the BSW indicator
light
1located by the outside mirrors illumi-
nates.
NSD623
SSD1026ZIllustration 1
5-36Starting and driving

HOW TO ENABLE/DISABLE THE BSW
SYSTEM
1Steering wheel mounted controls (left
side)
2Vehicle information display
ADisplay area
BMENU barTo enable/disable the BSW system, use the
following procedure:
1. Press the
button on the
steering wheel
1to select the [DriveAssist ]
menu on the Menu bar
B.
2. Press the
orbutton1to
select Blind Spot Warning.
3. Press thebutton on the steering wheel
1. The current selection is displayed.
4. To activate/deactivate BSW: press the
button
1again
BSW SYSTEM LIMITATIONS
WARNING
Listed below are the system limitations for the
BSW system. Failure to operate the vehicle in
accordance with these system limitations
could result in serious injury or death.
•The BSW system cannot detect all vehicles
under all conditions.
•The radar sensors may not be able to detect
and activate BSW when certain objects are
present such as:
–Pedestrians, bicycles, or animals.
NSD626
5-38Starting and driving

SYSTEM TEMPORARILY UNAVAILABLE
1Vehicle information display
If radar blockage is detected, the system will be
turned off automatically, and the [Blind Spot
Warning Currently Unavailable See Operator’sManual] message appears in the vehicle infor-
mation display1. The system is not available
until the conditions no longer exist.
The radar sensors may be blocked by temporary
ambient conditions such as splashing water,
mist or fog. The blocked condition may also becaused by objects such as ice, frost or dirt
obstructing the radar sensors.
Action to take:When the above conditions no
longer exist, the system will resume automati-
cally. If the message still appears, have the
system checked. It is recommended you visit an
INFINITI retailer for this service.
System malfunction
If the system malfunctions, it will be turned off
automatically, and the [Blind Spot Warning
Inoperative] message appears in the vehicle
information display
1.
Action to take:Stop the vehicle in a safe loca-
tion, place the vehicle in the P (Park) position,
turn the engine off and restart the engine.
If the message still appears, have the system
checked. It is recommended you visit an
INFINITI retailer for this service.
NSD631
Starting and driving5-43

Storing the current speed or calling up the last
stored speed:
WARNING
If you call up a stored speed and this is differ-
ent from the current speed, the vehicle accel-
erates or brakes. If you do not know what the
stored speed is, the vehicle may accelerate or
brake unexpectedly. There is a risk of an acci-
dent.
Take the traffic conditions into account before
calling up the stored speed. If you do not know
what the stored speed is, store the desired
speed again.
1. Briefly pull the cruise control lever towards
you
2.
2. Remove your foot from the accelerator
pedal. The first time cruise control is acti-
vated, it stores the current speed or if a
speed has previously been stored, it regu-
lates the speed of the vehicle to the previ-
ously stored speed.
Setting a speed
Bear in mind that it may take a brief moment
until the vehicle has accelerated or braked to
the set speed.
1. Press the cruise control lever up
1for a
higher speed or down
3for a lower speed.
2. Keep the cruise control lever pressed until
the desired speed is reached.
3. Release the cruise control lever, The new
speed is stored.
4. To adjust the set speed in 1 MPH (1 km/h)
increments: briefly press the cruise control
lever up
1or down3to the pressure
point. The last stored speed increases or
decreases in 1 MPH (1 km/h) increments.
5. To adjust the set speed in 10 MPH (10 km/h)
increments: briefly press the cruise control
lever up
1or down3beyond the pressure
point. The last stored speed increases or
decreases in 10 MPH (10 km/h) increments.
NOTE
Cruise control is not deactivated if you depress
the accelerator pedal. For example, if you accel-
erate briefly to overtake, cruise control adjusts
the vehicle’s speed to the last speed stored after
you have finished overtaking.
Deactivating cruise control
There are several ways to deactivate cruise
control:
•Briefly press the cruise control lever forward
4.
or
•Brake.
Cruise control is automatically deactivated if:
•The vehicle is secured with the electric
parking brake.
•You are driving at less than 20 MPH (30
km/h).
•VDC intervenes or you deactivate VDC.
If cruise control is deactivated, you will hear a
warning tone. You will see the [Cruise Control
Off] message in the vehicle information display
for approximately five seconds.
NOTE
The last speed stored is cleared when you switch
off the engine.
5-46Starting and driving

ICC SYSTEM OPERATION
1Speedometer
2Distance warning light
3Vehicle information display
4Cruise control leverThe ICC system is intended to enhance the
operation of the vehicle when following a ve-
hicle traveling in the same lane and direction.
If the distance sensorAdetects a slower
moving vehicle ahead, the system will reducethe vehicle speed so that your vehicle follows
the vehicle in front at the selected distance.
The ICC system maintains a selected distance
from the vehicle in front of you within the speed
range of 0 to 125 MPH (0 to 200 km/h) up to the
set speed. The set speed can be selected by the
driver between 20 to 125 MPH (30 to 200 km/h).
The vehicle travels at a set speed when the road
ahead is clear.
The ICC system is designed to maintain a
selected distance from the vehicle in front of
you and reduce the speed to match a slower
vehicle ahead. The system will decelerate the
vehicle as necessary and if the vehicle ahead
comes to a stop, the vehicle decelerates to a
standstill. However, the ICC system can only
apply up to 50% of the vehicle’s total braking
power. This system should only be used when
traffic conditions allow vehicle speeds to re-
main fairly constant or when vehicle speeds
change gradually. If a vehicle moves into the
traveling lane ahead or if a vehicle traveling
ahead rapidly decelerates, the distance be-
tween vehicles may become closer because the
ICC system cannot decelerate the vehicle
quickly enough. If this occurs, the ICC system
will sound a warning chime and illuminate the
distance warning light to notify the driver to
take necessary action.
NSD625
5-48Starting and driving
