2017 INFINITI QX30 engine

Model 2.0L Gasoline
Type Gasoline, 4-cycle
Cylinder arrangement 4-cylinder in-line
Bore x Stroke in (mm) 3.268 x 3.622
(83.0 x 92.0)
Displacement cu in (cm
3) 121.55 (1,991)
Idling speed rpm
DCT in N position 700
Ignition timing (BTDC) degrees
DCT in N position -10°CA to +35°CA BTDC at 700rpm
Spark plug Standard Platinum tipped
Spark plug gap in (mm) 0.028 (0.7)
Camshaft operation Timing chain
This spark ignition system complies with the Canadian standard ICES-002.
ENGINE SPECIFICATIONS
Technical information10-7

When planning to drive your INFINITI VEHICLE in
another country, you should first find out if the
fuel available is suitable for your vehicle’s
engine.
Using fuel with an octane rating that is too low
may cause engine damage. All gasoline ve-
hicles must be operated with unleaded gaso-
line. Therefore, avoid taking your vehicle to
areas where appropriate fuel is not available.
When transferring the registration of your ve-
hicle to another country, state, province or dis-
trict,it may be necessary to modify the vehicle
to meet local laws and regulations.
The laws and regulations for motor vehicle
emission control and safety standards vary
according to the country, state, province or
district; therefore, the vehicle specification may
differ.
When any vehicles are to be taken into another
country, state, province or district, its modifica-
tion, transportation, registration, and any other
expenses which may result, are the responsibil-
ity of the user. INFINITI is not responsible for any
inconveniences that may result.It is prohibited to cover, paint, weld, cut, drill,
alter or remove the Vehicle Identification Num-
ber (VIN).
VEHICLE IDENTIFICATION NUMBER
(VIN) PLATE
The vehicle identification number plate is at-
tached as shown. This number is the identifica-
tion for your vehicle and is used in the vehicle
registration.
JVT0352XZ
WHEN TRAVELING OR REGISTERING IN
ANOTHER COUNTRYVEHICLE IDENTIFICATION
10-10Technical information

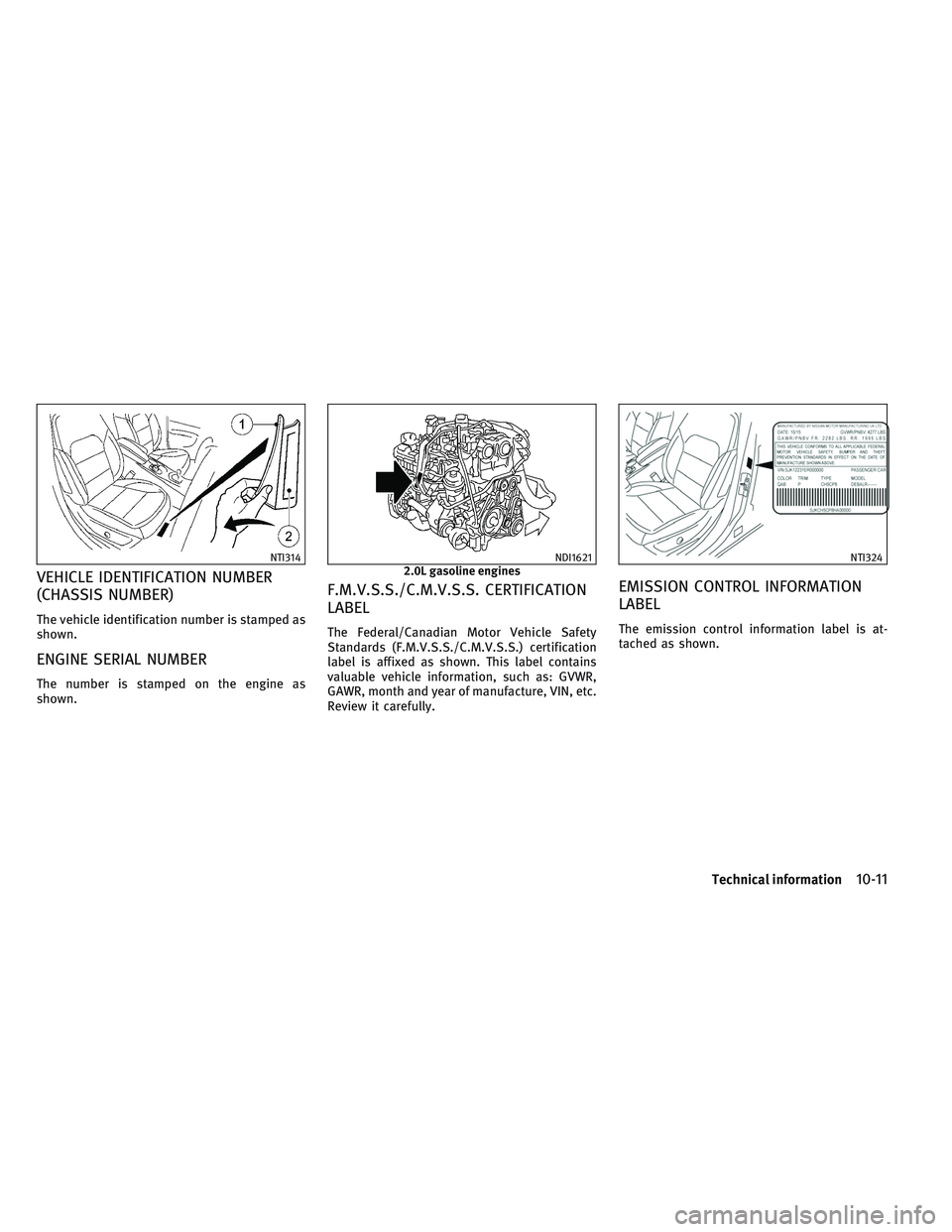

VEHICLE IDENTIFICATION NUMBER
(CHASSIS NUMBER)
The vehicle identification number is stamped as
shown.
ENGINE SERIAL NUMBER
The number is stamped on the engine as
shown.
F.M.V.S.S./C.M.V.S.S. CERTIFICATION
LABEL
The Federal/Canadian Motor Vehicle Safety
Standards (F.M.V.S.S./C.M.V.S.S.) certification
label is affixed as shown. This label contains
valuable vehicle information, such as: GVWR,
GAWR, month and year of manufacture, VIN, etc.
Review it carefully.
EMISSION CONTROL INFORMATION
LABEL
The emission control information label is at-
tached as shown.
NTI314NDI16212.0L gasoline enginesNTI324
Technical information10-11

For Canada:
If you believe that your vehicle has a defect
which could cause a crash or could cause injury
or death, you should immediately inform Trans-
port Canada in addition to notifying INFINITI.
If Transport Canada receives complaints, it may
open an investigation, and if it finds that a
safety defect exists in a group of vehicles, it
may request that INFINITI conduct a recall cam-
paign. However, Transport Canada cannot be-
come involved in individual problems between
you, your retailer, or INFINITI.
You may contact Transport Canada’s Defect
Investigations and Recalls Division toll free at
1-800-333- 0510. You may also report safety
defects online at:
https://wwwapps.tc.gc.ca/Saf-Sec- Sur/7/
PCDB-BDPP/Index.aspx.
Additional information concerning motor ve-
hicle safety may be obtained from Transport
Canada’s Road Safety Information Center at
1-800-333- 0371 or online at www.tc.gc.ca/
roadsafety (English speakers) or www.tc.gc.ca/
securiteroutiere (French speakers).
To notify INFINITI of any safety concerns please
contact our Consumer Information Center toll
free at 1-800- 361-4792.WARNING
A vehicle equipped with All-Wheel Drive (AWD)
should never be tested using a two wheel dy-
namometer (such as the dynamometers used
by some states for emissions testing), or simi-
lar equipment. Make sure you inform test facil-
ity personnel that your vehicle is equipped
with AWD before it is placed on a dynamom-
eter. Using the wrong test equipment may re-
sult in transmission damage or unexpected ve-
hicle movement which could result in serious
vehicle damage or personal injury.
Due to legal requirements in some states and
Canadian Provinces, your vehicle may be re-
quired to be in what is called the “ready
condition” for an Inspection/Maintenance (I/M)
test of the emission control system.
The vehicle is set to the “ready condition” when
it is driven through certain driving patterns.
Usually, the “ready condition” can be obtained
by ordinary usage of the vehicle.
If a powertrain system component is repaired or
the battery is disconnected, the vehicle may be
reset to a “not ready condition”. Before taking
the I/M test, check the vehicle’s inspection/
maintenance test readiness condition. Place the
ignition switch in the ON position without start-ing the engine. If the Malfunction Indicator Light
(MIL) comes on steady for 20 seconds and then
blinks for 10 seconds, the I/M test condition is
“not ready”. If the MIL does not blink after 20
seconds, the I/M test condition is “ready”.
It is recommended you contact an INFINITI re-
tailer to set the “ready condition” or to prepare
the vehicle for testing.
READINESS FOR INSPECTION/
MAINTENANCE (I/M) TEST
Technical information10-19
