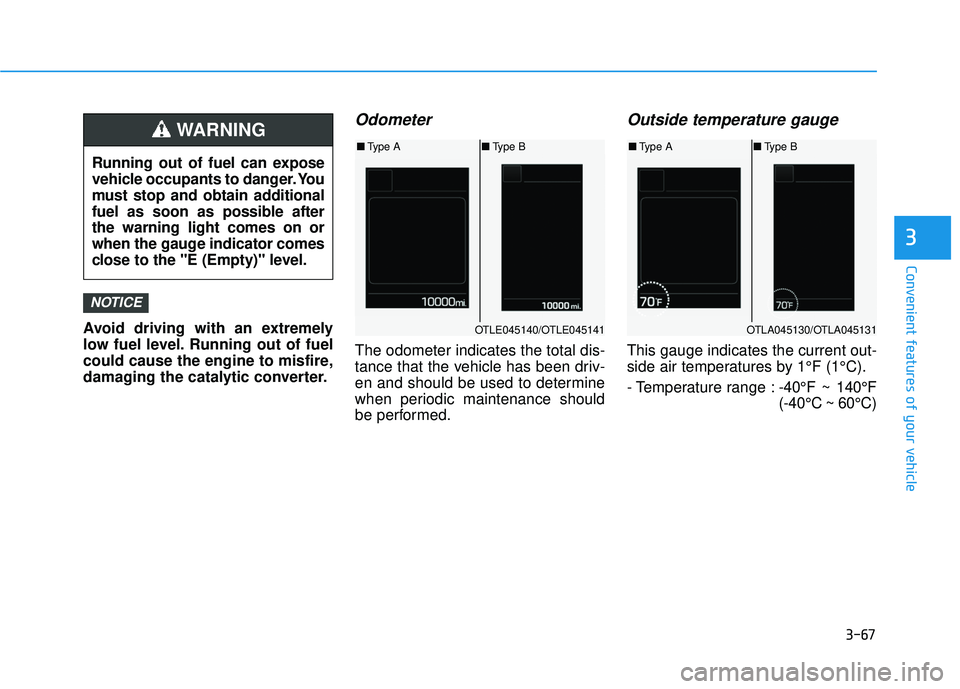

3-67
Convenient features of your vehicle
3
Avoid driving with an extremely
low fuel level. Running out of fuel
could cause the engine to misfire,
damaging the catalytic converter.
Odometer
The odometer indicates the total dis-
tance that the vehicle has been driv-
en and should be used to determine
when periodic maintenance should
be performed.
Outside temperature gauge
This gauge indicates the current out-
side air temperatures by 1°F (1°C).
- Temperature range :-40°F ~ 140°F (-40°C ~ 60°C)
NOTICE
Running out of fuel can expose
vehicle occupants to danger. You
must stop and obtain additional
fuel as soon as possible afterthe warning light comes on or
when the gauge indicator comes
close to the "E (Empty)" level.
WARNING
OTLE045140/OTLE045141
■Type A ■Type B
OTLA045130/OTLA045131
■Type A ■Type B

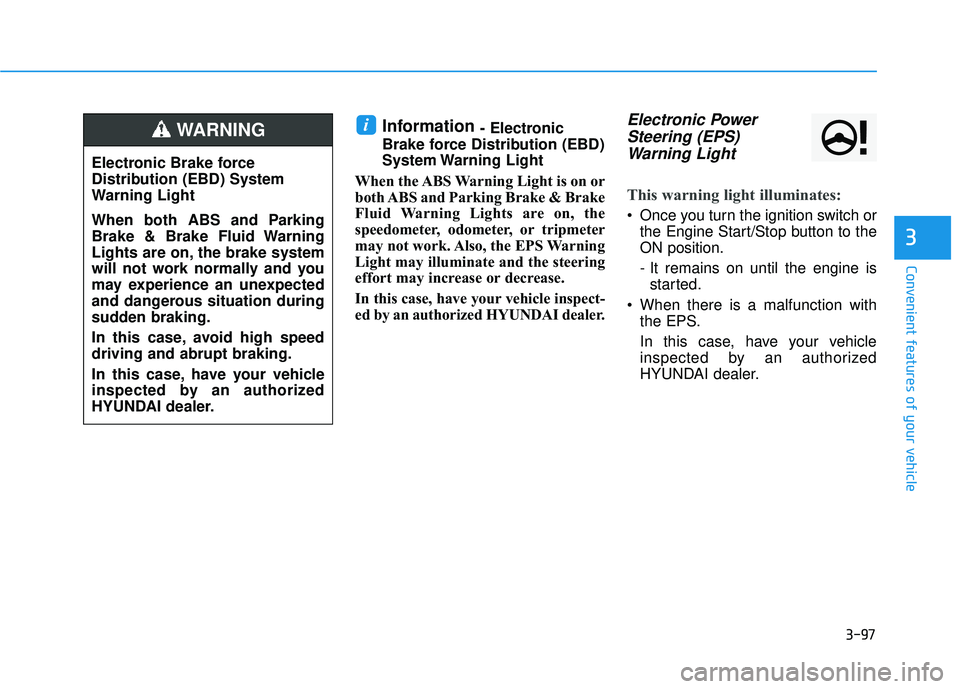

3-97
Convenient features of your vehicle
3
Information - Electronic
Brake force Distribution (EBD)
System Warning Light
When the ABS Warning Light is on or
both ABS and Parking Brake & Brake
Fluid Warning Lights are on, the
speedometer, odometer, or tripmeter
may not work. Also, the EPS Warning
Light may illuminate and the steering
effort may increase or decrease.
In this case, have your vehicle inspect-
ed by an authorized HYUNDAI dealer.Electronic Power Steering (EPS)Warning Light
This warning light illuminates:
Once you turn the ignition switch or the Engine Start/Stop button to the ON position.
- It remains on until the engine isstarted.
When there is a malfunction with the EPS.
In this case, have your vehicle
inspected by an authorized
HYUNDAI dealer.
i
Electronic Brake force
Distribution (EBD) System
Warning Light
When both ABS and Parking
Brake & Brake Fluid Warning
Lights are on, the brake system
will not work normally and you
may experience an unexpected
and dangerous situation during
sudden braking.
In this case, avoid high speed driving and abrupt braking.
In this case, have your vehicle
inspected by an authorized
HYUNDAI dealer.
WARNING

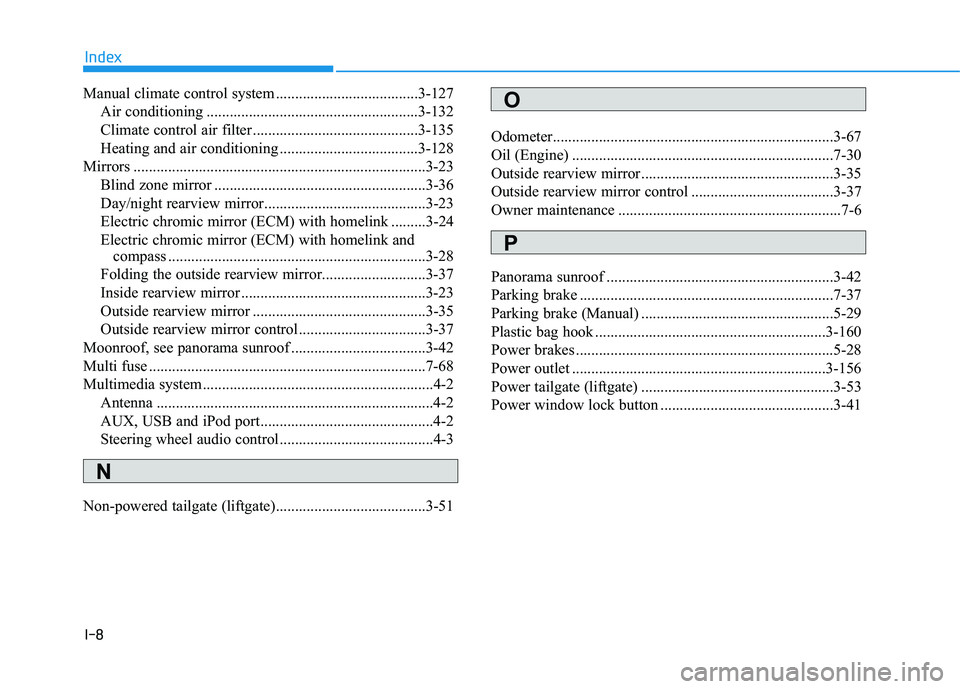

I-8
Manual climate control system .....................................3-127Air conditioning .......................................................3-132
Climate control air filter ...........................................3-135
Heating and air conditioning ....................................3-128
Mirrors ............................................................................3-23 Blind zone mirror .......................................................3-36
Day/night rearview mirror..........................................3-23
Electric chromic mirror (ECM) with homelink .........3-24
Electric chromic mirror (ECM) with homelink and compass ...................................................................3-28
Folding the outside rearview mirror...........................3-37
Inside rearview mirror ................................................3-23
Outside rearview mirror .............................................3-35
Outside rearview mirror control .................................3-37
Moonroof, see panorama sunroof ...................................3-42
Multi fuse ........................................................................7-68
Multimedia system............................................................4-2 Antenna ........................................................................4-2
AUX, USB and iPod port.............................................4-2
Steering wheel audio control........................................4-3
Non-powered tailgate (liftgate).......................................3-51 Odometer.........................................................................3-67
Oil (Engine) ....................................................................7-30
Outside rearview mirror..................................................3-35
Outside rearview mirror control .....................................3-37
Owner maintenance ..........................................................7-6
Panorama sunroof ...........................................................3-42
Parking brake ..................................................................7-37
Parking brake (Manual) ..................................................5-29
Plastic bag hook ............................................................3-160
Power brakes ...................................................................5-28
Power outlet ..................................................................3-156
Power tailgate (liftgate) ..................................................3-53
Power window lock button .............................................3-41
Index
O
P
N
