2017 Hyundai Sonata TPMS

6-13
What to do in an emergency
6
The TPMS Malfunction Indicator
may illuminate after blinking for
one minute if the vehicle is near
electric power supply cables or
radio transmitters such as police
stations, government and public
offices, broadcasting stations,
military installations, airports,
transmitting towers, etc.
Additionally, the TPMS Malfunction
Indicator may illuminate if snow
chains are used or electronic
devices such as computers, charg-
ers, remote starters, navigation,
etc. This may interfere with normal
operation of the TPMS.
Changing a Tire with TPMS
If you have a flat tire, the Low Tire
Pressure and Position telltales will
come on. Have the flat tire repaired
by an authorized HYUNDAI dealer
as soon as possible or replace the
flat tire with the spare tire.
The spare tire (if equipped) does not
come with a tire pressure monitoring
sensor. When the low pressure tire or
the flat tire is replaced with the spare
tire, the Low Tire Pressure Telltale
will remain on. Also, the TPMS
Malfunction Indicator will illuminate
after blinking for one minute if the
vehicle is driven at speed above 15.5
mph (25 km/h) for approximately 20
minutes.Once the original tire equipped with
a tire pressure monitoring sensor is
reinflated to the recommended pres-
sure and reinstalled on the vehicle,
the Low Tire Pressure Telltale and
TPMS Malfunction Indicator will go
off within a few minutes of driving.
If the indicators do not extinguish
after a few minutes, please visit an
authorized HYUNDAI dealer.
Each wheel is equipped with a tire
pressure sensor mounted inside the
tire behind the valve stem (except for
the spare tire). You must use TPMS
specific wheels. It is recommended
that you always have your tires serv-
iced by an authorized HYUNDAI
dealer.
You may not be able to identify a tire
with low pressure by simply looking
at it. Always use a good quality tire
pressure gauge to measure. Please
note that a tire that is hot (from being
driven) will have a higher pressure
measurement than a tire that is cold.
NOTICE
Never use a puncture-repairing
agent not approved by HYUNDAI
dealer to repair and/or inflate a
low pressure tire. Tire sealant
not approved by HYUNDAI deal-
er may damage the tire pressure
sensor.
CAUTION

6-14
What to do in an emergency
A cold tire means the vehicle has
been sitting for 3 hours and driven for
less than 1 mile (1.6 km) in that 3
hour period.
Allow the tire to cool before measur-
ing the inflation pressure. Always be
sure the tire is cold before inflating to
the recommended pressure.
Information
This device complies with Part 15 of
the FCC rules.
Operation is subject to the following
three conditions:
1. This device may not cause harmful interference, and
2. This device must accept any inter- ference received, including interfer-
ence that may cause undesired
operation.
3. Changes or modifications not expressly approved by the party
responsible for compliance could
void the user’s authority to operate
the equipment.
i
The TPMS cannot alert you to
severe and sudden tire dam-
age caused by external fac-
tors such as nails or road
debris.
If you feel any vehicle instabil-
ity, immediately take your foot
off the accelerator, apply the
brakes gradually with light
force, and slowly move to a
safe position off the road.
WARNING
Tampering with, modifying, or
disabling the Tire Pressure
Monitoring System (TPMS)
components may interfere with
the system’s ability to warn the
driver of low tire pressure con-
ditions and/or TPMS malfunc-
tions. Tampering with, modify-
ing, or disabling the Tire
Pressure Monitoring System
(TPMS) components may void
the warranty for that portion of
the vehicle.
WARNING

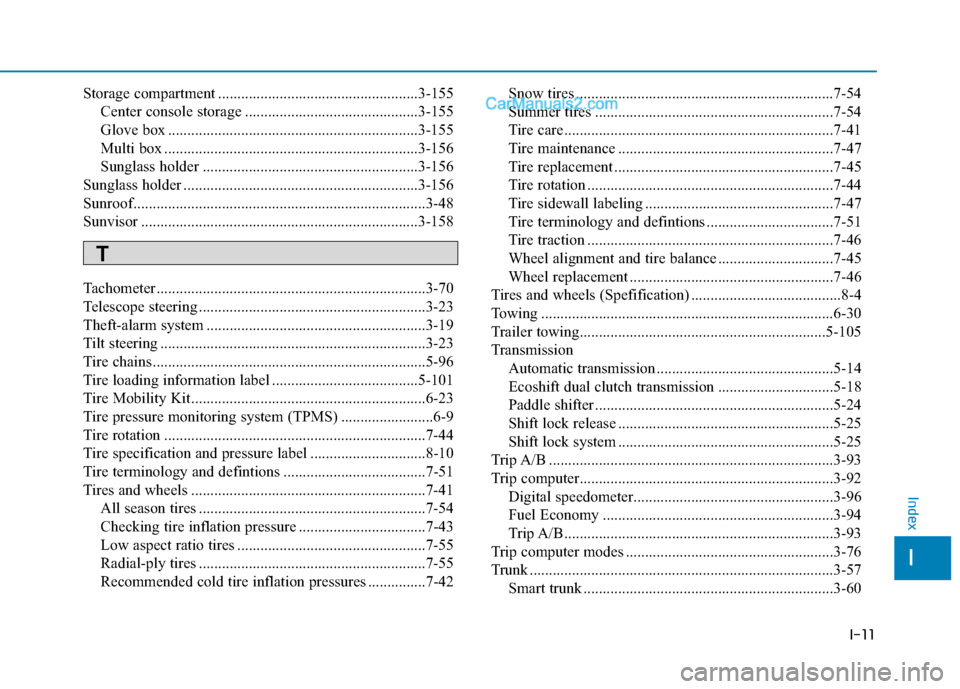

I-11
Storage compartment ....................................................3-155Center console storage .............................................3-155
Glove box .................................................................3-155
Multi box ..................................................................3-156
Sunglass holder ........................................................3-156
Sunglass holder .............................................................3-156
Sunroof........................................................................\
....3-48
Sunvisor ........................................................................\
3-158
Tachometer ......................................................................3-\
70
Telescope steering ...........................................................3-23
Theft-alarm system .........................................................3-19
Tilt steering .....................................................................3-2\
3
Tire chains .......................................................................5\
-96
Tire loading information label ......................................5-101
Tire Mobility Kit .............................................................6-23
Tire pressure monitoring system (TPMS) ........................6-9
Tire rotation ....................................................................7-44\
Tire specification and pressure label ..............................8-10
Tire terminology and defintions .....................................7-51
Tires and wheels .............................................................7-41 All season tires ...........................................................7-54
Checking tire inflation pressure .................................7-43
Low aspect ratio tires .................................................7-55
Radial-ply tires ...........................................................7-55
Recommended cold tire inflation pressures ...............7-42 Snow tires ...................................................................7-54
Summer tires ..............................................................7-54
Tire care ......................................................................7-\
41
Tire maintenance ........................................................7-47
Tire replacement .........................................................7-45
Tire rotation ................................................................7-44
Tire sidewall labeling .................................................7-47
Tire terminology and defintions .................................7-51
Tire traction ................................................................7-46
Wheel alignment and tire balance ..............................7-45
Wheel replacement .....................................................7-46
Tires and wheels (Spefification) .......................................8-4
Towing ........................................................................\
....6-30
Trailer towing................................................................5-105
Transmission Automatic transmission ..............................................5-14
Ecoshift dual clutch transmission ..............................5-18
Paddle shifter ..............................................................5-24
Shift lock release ........................................................5-25
Shift lock system ........................................................5-25
Trip A/B ........................................................................\
..3-93
Trip computer..................................................................3-92 Digital speedometer....................................................3-96
Fuel Economy ............................................................3-94
Trip A/B ......................................................................3-\
93
Trip computer modes ......................................................3-76
Trunk ........................................................................\
.......3-57 Smart trunk .................................................................3-60
I
Index
T
