2017 Hyundai Santa Fe Sport cruise control

583
Driving your vehicle

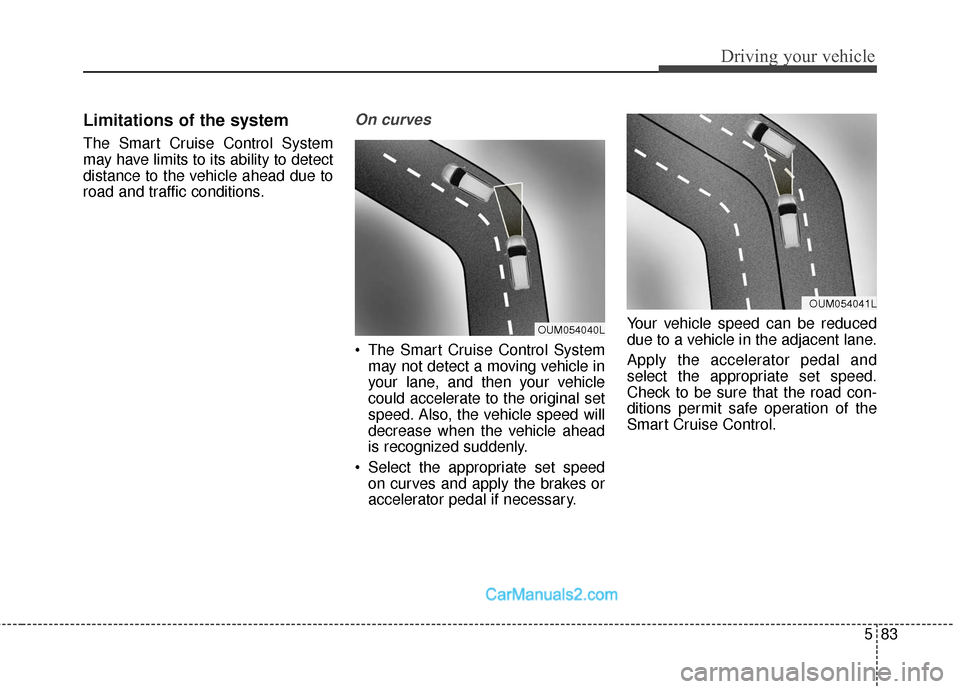

Limitations of the system
The Smart Cruise Control System
may have limits to its ability to detect
distance to the vehicle ahead due to
road and traffic conditions.
On curves
The Smart Cruise Control Systemmay not detect a moving vehicle in
your lane, and then your vehicle
could accelerate to the original set
speed. Also, the vehicle speed will
decrease when the vehicle ahead
is recognized suddenly.
Select the appropriate set speed on curves and apply the brakes or
accelerator pedal if necessary. Your vehicle speed can be reduced
due to a vehicle in the adjacent lane.
Apply the accelerator pedal and
select the appropriate set speed.
Check to be sure that the road con-
ditions permit safe operation of the
Smart Cruise Control.
OUM054040L
OUM054041L

Driving your vehicle
84
5

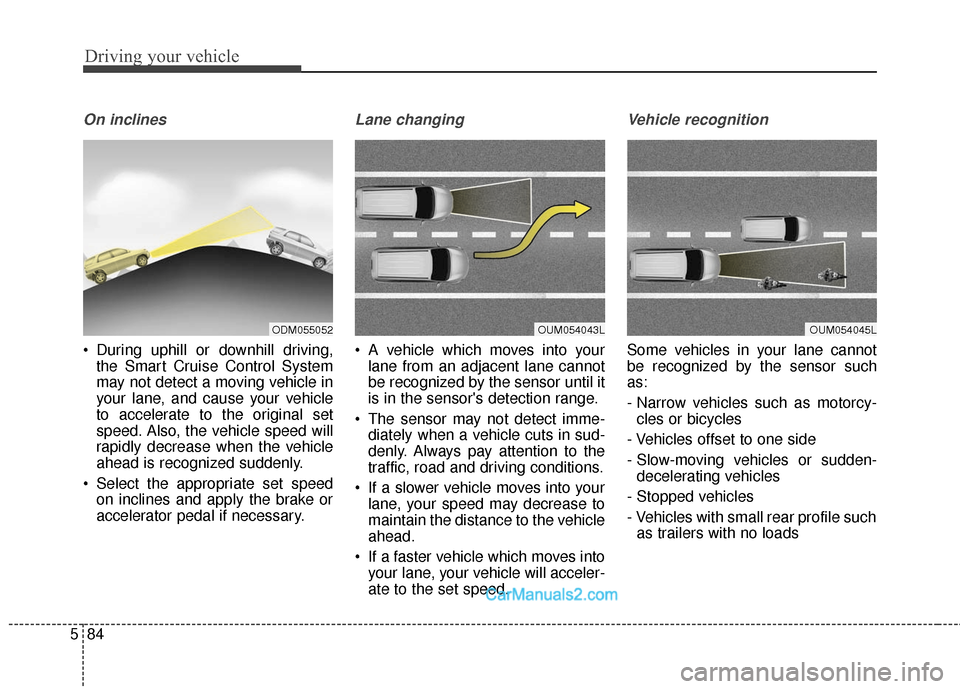

On inclines
During uphill or downhill driving,
the Smart Cruise Control System
may not detect a moving vehicle in
your lane, and cause your vehicle
to accelerate to the original set
speed. Also, the vehicle speed will
rapidly decrease when the vehicle
ahead is recognized suddenly.
Select the appropriate set speed on inclines and apply the brake or
accelerator pedal if necessary.
Lane changing
A vehicle which moves into yourlane from an adjacent lane cannot
be recognized by the sensor until it
is in the sensor's detection range.
The sensor may not detect imme- diately when a vehicle cuts in sud-
denly. Always pay attention to the
traffic, road and driving conditions.
If a slower vehicle moves into your lane, your speed may decrease to
maintain the distance to the vehicle
ahead.
If a faster vehicle which moves into your lane, your vehicle will acceler-
ate to the set speed.
Vehicle recognition
Some vehicles in your lane cannot
be recognized by the sensor such
as:
- Narrow vehicles such as motorcy-cles or bicycles
- Vehicles offset to one side
- Slow-moving vehicles or sudden- decelerating vehicles
- Stopped vehicles
- Vehicles with small rear profile such as trailers with no loads
OUM054043LOUM054045LODM055052

Driving your vehicle
86
5

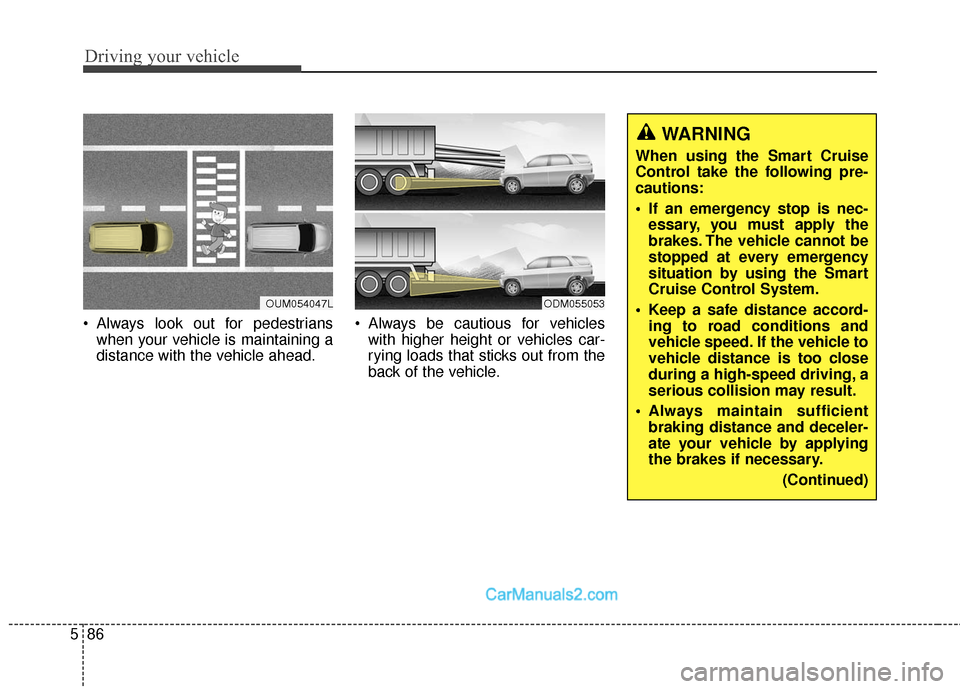

Always look out for pedestrians
when your vehicle is maintaining a
distance with the vehicle ahead. Always be cautious for vehicles
with higher height or vehicles car-
rying loads that sticks out from the
back of the vehicle.
ODM055053
WARNING
When using the Smart Cruise
Control take the following pre-
cautions:
If an emergency stop is nec-essary, you must apply the
brakes. The vehicle cannot be
stopped at every emergency
situation by using the Smart
Cruise Control System.
Keep a safe distance accord- ing to road conditions and
vehicle speed. If the vehicle to
vehicle distance is too close
during a high-speed driving, a
serious collision may result.
Always maintain sufficient braking distance and deceler-
ate your vehicle by applying
the brakes if necessary.
(Continued)
OUM054047L

587
Driving your vehicle

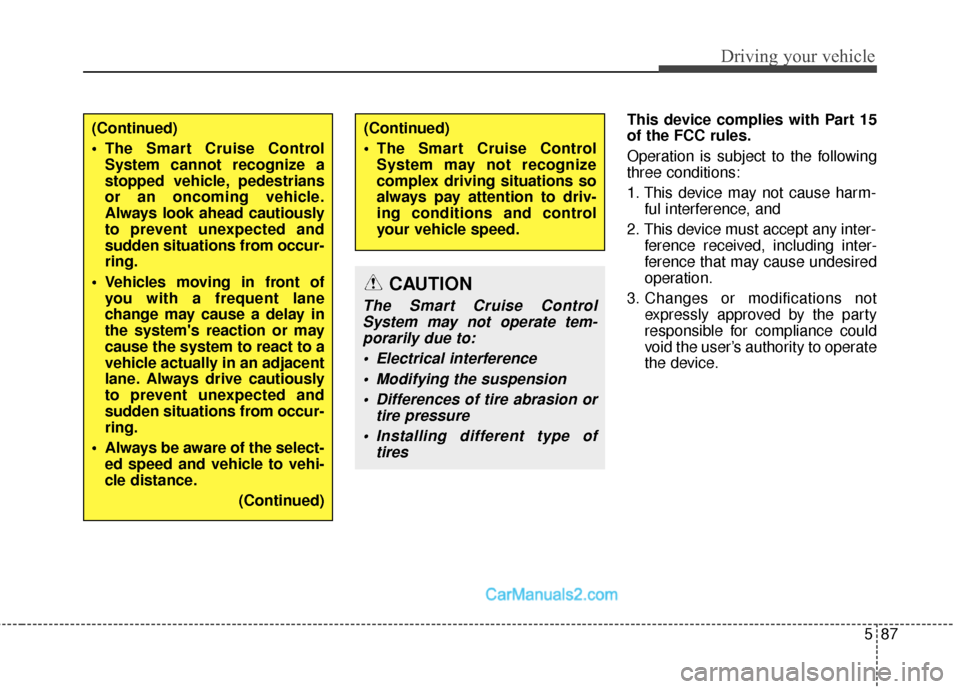

This device complies with Part 15
of the FCC rules.
Operation is subject to the following
three conditions:
1. This device may not cause harm-ful interference, and
2. This device must accept any inter- ference received, including inter-
ference that may cause undesired
operation.
3. Changes or modifications not expressly approved by the party
responsible for compliance could
void the user’s authority to operate
the device.(Continued)
The Smart Cruise ControlSystem may not recognize
complex driving situations so
always pay attention to driv-
ing conditions and control
your vehicle speed.(Continued)
The Smart Cruise ControlSystem cannot recognize a
stopped vehicle, pedestrians
or an oncoming vehicle.
Always look ahead cautiously
to prevent unexpected and
sudden situations from occur-
ring.
Vehicles moving in front of you with a frequent lane
change may cause a delay in
the system's reaction or may
cause the system to react to a
vehicle actually in an adjacent
lane. Always drive cautiously
to prevent unexpected and
sudden situations from occur-
ring.
Always be aware of the select- ed speed and vehicle to vehi-
cle distance.
(Continued)
CAUTION
The Smart Cruise ControlSystem may not operate tem-porarily due to:
Electrical interference Modifying the suspension Differences of tire abrasion or tire pressure
Installing different type of tires

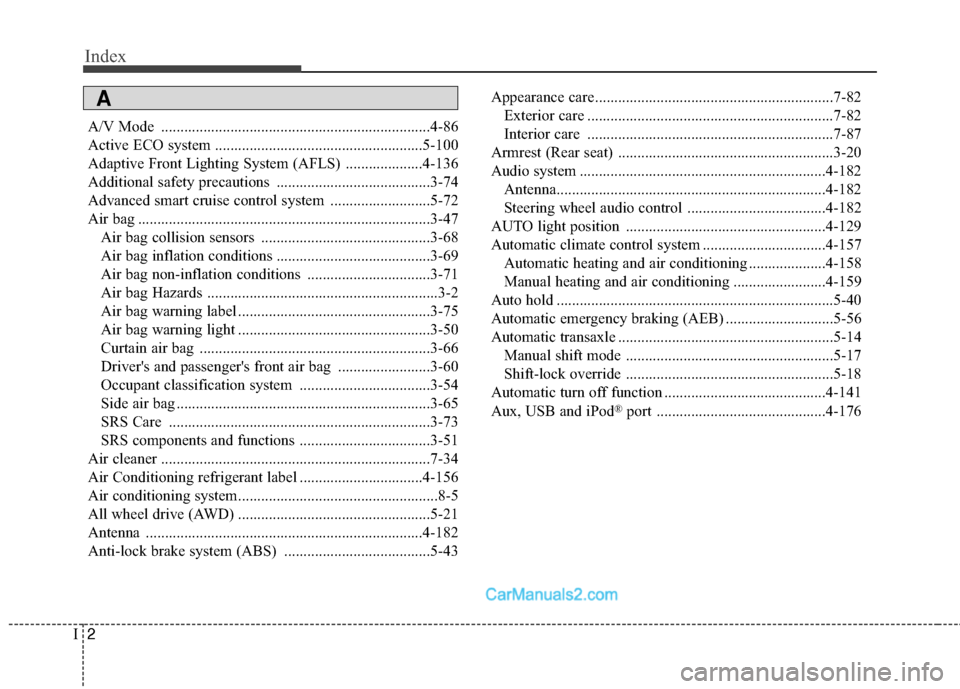

Index
2I
A/V Mode ......................................................................4-\
86
Active ECO system ......................................................5-100
Adaptive Front Lighting System (AFLS) ....................4-136
Additional safety precautions ........................................3-74
Advanced smart cruise control system ..........................5-72
Air bag ........................................................................\
....3-47Air bag collision sensors ............................................3-68
Air bag inflation conditions ........................................3-69
Air bag non-inflation conditions ................................3-71
Air bag Hazards ............................................................3-2
Air bag warning label ..................................................3-75
Air bag warning light ..................................................3-50
Curtain air bag ............................................................3-66
Driver's and passenger's front air bag ........................3-60
Occupant classification system ..................................3-54
Side air bag ..................................................................3-65
SRS Care ....................................................................3-73\
SRS components and functions ..................................3-51
Air cleaner ......................................................................7-\
34
Air Conditioning refrigerant label ................................4-156
Air conditioning system....................................................8-5
All wheel drive (AWD) ..................................................5-21
Antenna ........................................................................\
4-182
Anti-lock brake system (ABS) ......................................5-43 Appearance care..............................................................7-82
Exterior care ................................................................7-82
Interior care ................................................................7-87
Armrest (Rear seat) ........................................................3-20
Audio system ................................................................4-182 Antenna......................................................................4-\
182
Steering wheel audio control ....................................4-182
AUTO light position ....................................................4-129
Automatic climate control system ................................4-157 Automatic heating and air conditioning ....................4-158
Manual heating and air conditioning ........................4-159
Auto hold ........................................................................\
5-40
Automatic emergency braking (AEB) ............................5-56
Automatic transaxle ........................................................5-14 Manual shift mode ......................................................5-17
Shift-lock override ......................................................5-18
Automatic turn off function ..........................................4-141
Aux, USB and iPod
®port ............................................4-176
A

Index
4I
Cruise control system ....................................................5-67
Cup holder ....................................................................4-17\
2
Curtain air bag ................................................................3-66
Dashboard illumination, see Instrument cluster illumination..................................................................4-79
Dashboard, see Instrument cluster ..................................4-79
Day/night rearview mirror ..............................................4-60
Daytime running light ..................................................4-128
Defogging (Windshield) ..............................................4-165
Defroster (Rear window) ..............................................4-145
Defrosting (Windshield) ..............................................4-165
Dimensions ......................................................................8-\
2
Display illumination, see Instrument cluster illumination..................................................................4-79
Door locks ......................................................................4-\
21 Central door lock switch ............................................4-23
Child-protector rear door lock ....................................4-25
Downhill brake control (DBC) ......................................5-51
Drink holder, see Cup holder ........................................4-172
Drive assist system ......................................................4-120
Drive mode integrated control system ............................5-28
Driver Distraction ............................................................3-2
Driver position memory system (for power seat) ..........3-15 Driver's and passenger's front air bag ............................3-60
Driving at night ............................................................5-105
Driving in flooded areas ..............................................5-107
Driving in the rain ........................................................5-106
Driving off-road ............................................................5-107
Economical operation ..................................................5-101
Electric Chromic Mirror (ECM) ....................................4-61
Electric Chromic Mirror (ECM) with compass ..............4-61
Electric power steering (EPS) ........................................4-56
Electronic parking brake (EPB) ......................................5-34
Electronic stability control (ESC) ..................................5-46
Emergency braking ........................................................5-39
Emergency liftgate (tailgate) safety release....................4-38
Emergency starting ..........................................................6-5
Jump starting ................................................................6-5
Emergency towing ..........................................................6-26
Emergency towing precautions ......................................6-28
Emission control system ................................................7-89 Crankcase emission control system ............................7-89
Evaporative emission control system ..........................7-90
Exhaust emission control system ................................7-90
Engine ........................................................................\
......8-2
Engine compartment ........................................................2-7
Engine coolant ................................................................7-28
D
E
