2017 Hyundai Ioniq Electric windshield wipers

Light .......................................................................3-77Exterior lights ..................................................................3-77
Welcome system ............................................................3-83
Interior lights ....................................................................3-84
Wipers and washers ............................................3-87 Windshield wipers ..........................................................3-87
Windshield washers .......................................................3-89
Driver assist system ............................................3-90 Rear view camera ..........................................................3-90
Rear parking assist system ..........................................3-91
Parking assist system ...................................................3-94
Defroster ...............................................................3-97 Rear window defroster..................................................3-97
Automatic climate control system .....................3-98 Automatic heating and air conditioning ....................3-99
Manual heating and air conditioning .......................3-100
System operation ..........................................................3-108
System maintenance ....................................................3-110
Windshield defrosting and defogging ............3-112 Automatic climate control system ............................3-112
Defogging logic ............................................................3-113
Auto defogging system ..............................................3-114
Climate control additional features.................3-115 Sunroof inside air recirculation ...............................3-115 Storage compartment ........................................3-116
Center console storage ...............................................3-116
Glove box ........................................................................3-117
Sunglass holder ............................................................3-117
Multi box ........................................................................3-118
Interior features ...............................................3-119 Ashtray ...........................................................................3-119
Cup holder.......................................................................3-119
Sunvisor ...........................................................................3-120
Power outlet .................................................................3-121
Wireless cellular phone charging system ..............3-122
Cigarette lighter ...........................................................3-123
Clock .................................................................................3-123
Clothes hanger .............................................................3-123
Floor mat anchor(s) ....................................................3-123
Luggage net (holder) ..................................................3-125
Cargo security screen ......................................3-126 To use the cargo security screen .............................3-126
3

3-87
Convenient features of your vehicle
3
A : Wiper speed control· MIST /
V– Single wipe
· OFF / O – Off
· AUTO – Auto control wipe INT / --- – Intermittent wipe
· LO / 1 – Low wiper speed
· HI / 2 – High wiper speed
* : if equipped
B : Auto control wipe time adjust- ment
C : Wash with brief wipes
Windshield wipers
Operates as follows when the
POWER button is in the ON position. MIST (
V) : For a single wiping cycle, push the lever upward (or
downward) and release.
The wipers will operate
continuously if the lever isheld in this position.
OFF (O) : Wiper is not in operation. INT (---) : Wiper operates intermit-
tently at the same wiping
intervals.To vary the speed
setting, turn the speedcontrol knob (B).
AUTO : The rain sensor located on the upper end of the wind-shield glass senses the
amount of rainfall and con-
trols the wiping cycle for the
proper interval. The more it
rains, the faster the wiper
operates. When the rain
stops, the wiper stops.To
vary the speed setting, turnthe speed control knob (B).
WWIIPP EERR SS AA NN DD WW AASSHH EERR SS
OAD045437L
OAD045438L
■ Left-hand drive

OAD045437R
■
Right-hand drive

3-88
Convenient features of your vehicle
LO (1) : The wiper runs at a lowerspeed.
HI (2) : The wiper runs at a higher
speed.
Information
If there is heavy accumulation of snow
or ice on the windshield, defrost the
windshield for about 10 minutes, or
until the snow and/or ice is removed
before using the windshield wipers to
ensure proper operation.
If you do not remove the snow and/or
ice before using the wiper and washer,
it may damage the wiper and washer
system.AUTO (Automatic) control
The rain sensor located on the upperend of the windshield glass senses
the amount of rainfall and controls
the wiping cycle for the proper inter-
val. The more it rains, the faster the
wiper operates.
When the rain stops, the wiper stops.
To vary the speed setting, turn thespeed control knob (1).
If the wiper switch is set in AUTO
mode when the POWER button is inthe ON position, the wiper will oper-
ate once to perform a self-check of
the system. Set the wiper to OFF
position when the wiper is not in use. When washing the vehicle, set
the wiper switch in the OFF (O)position to stop the auto wiper
operation. The wiper may oper-
ate and be damaged if the switch
is set in the AUTO mode while
washing the vehicle.
Do not remove the sensor cover located on the upper end of the
passenger side windshield
glass. Damage to system parts
could occur and may not be cov-
ered by your vehicle warranty.
NOTICE
i
OAD045441L
Sensor To avoid personal injury from the
windshield wipers, when the
vehicle is in the ready ( ) mode
and the windshield wiper switch
is placed in the AUTO mode:
Do not touch the upper end of the windshield glass facing
the rain sensor.
Do not wipe the upper end of the windshield glass with a
damp or wet cloth.
Do not put pressure on the windshield glass.
WARNING

3-89
Convenient features of your vehicle
3

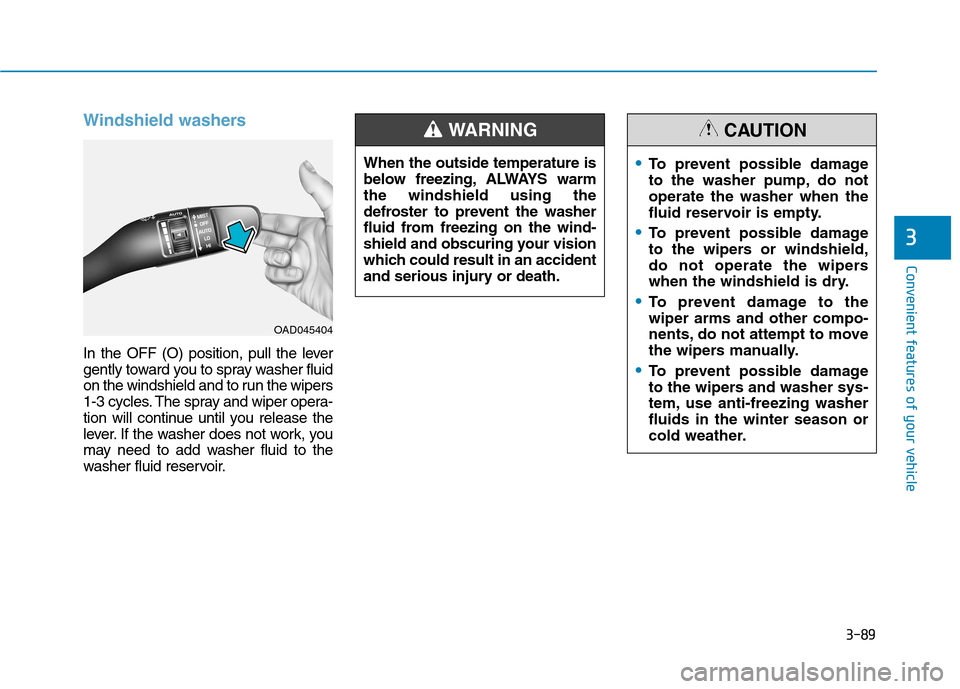

Windshield washers
In the OFF (O) position, pull the lever
gently toward you to spray washer fluid
on the windshield and to run the wipers
1-3 cycles. The spray and wiper opera-
tion will continue until you release the
lever. If the washer does not work, you
may need to add washer fluid to the
washer fluid reservoir.
OAD045404When the outside temperature is
below freezing, ALWAYS warmthe windshield using the
defroster to prevent the washer
fluid from freezing on the wind-
shield and obscuring your vision
which could result in an accident
and serious injury or death.
WARNING
To prevent possible damage
to the washer pump, do notoperate the washer when the
fluid reservoir is empty.
To prevent possible damage
to the wipers or windshield,
do not operate the wipers
when the windshield is dry.
To prevent damage to the wiper arms and other compo-
nents, do not attempt to move
the wipers manually.
To prevent possible damage
to the wipers and washer sys-
tem, use anti-freezing washerfluids in the winter season or
cold weather.
CAUTION

7-25
7
Maintenance
WWIIPP EERR BB LLAA DDEESS
Blade inspection
Contamination of either the wind-
shield or the wiper blades with for-
eign matter can reduce the effective-
ness of the windshield wipers. Common sources of contamination
are insects, tree sap, and hot wax
treatments used by some commer-
cial car washes. If the blades are not
wiping properly, clean both the win-
dow and the blades with a clean
cloth dampened with washer fluid.
To prevent damage to the wiper
blades, arms or other compo-
nents, do not:
Use gasoline, kerosene, paint
thinner, or other solvents on or near them.
Attempt to move the wipers manually.
Use non-specified wiper blades.
Information
Commercial hot waxes applied by auto-
matic car washes have been known to
make the windshield difficult to clean.
Blade replacement
When the wipers no longer clean
adequately, the blades may be worn
or cracked, and require replacement.
To prevent damage to the wiper
arms or other components, do not
attempt to move the wipers manu-
ally. The use of a non-specified wiper
blade could result in wiper mal-
function and failure. 1. Raise the wiper arm.
NOTICE
NOTICE
i
NOTICE
OLF074017

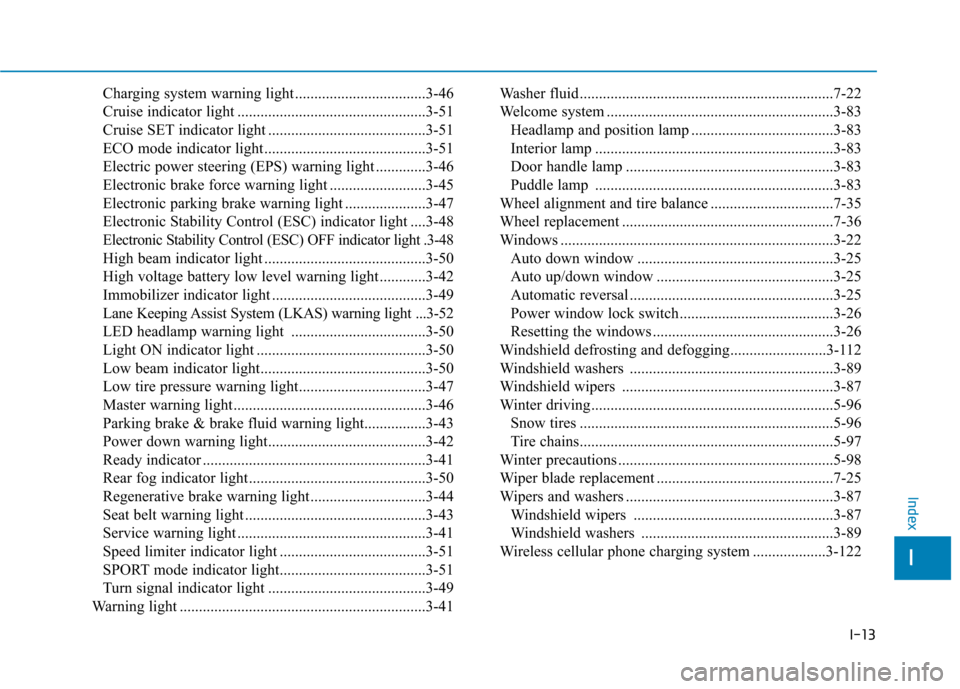

I-13
Charging system warning light ..................................3-46
Cruise indicator light .................................................3-51
Cruise SET indicator light .........................................3-51
ECO mode indicator light ..........................................3-51
Electric power steering (EPS) warning light .............3-46
Electronic brake force warning light .........................3-45
Electronic parking brake warning light .....................3-47
Electronic Stability Control (ESC) indicator light ....3-48
Electronic Stability Control (ESC) OFF indicator light .3-48
High beam indicator light ..........................................3-50
High voltage battery low level warning light ............3-42
Immobilizer indicator light ........................................3-49
Lane Keeping Assist System (LKAS) warning light ...3-52
LED headlamp warning light ...................................3-50
Light ON indicator light ............................................3-50
Low beam indicator light...........................................3-50
Low tire pressure warning light.................................3-47
Master warning light..................................................3-46
Parking brake & brake fluid warning light................3-43
Power down warning light.........................................3-42
Ready indicator ..........................................................3-41
Rear fog indicator light ..............................................3-50
Regenerative brake warning light ..............................3-44
Seat belt warning light ...............................................3-43
Service warning light .................................................3-41
Speed limiter indicator light ......................................3-51
SPORT mode indicator light......................................3-51
Turn signal indicator light .........................................3-49
Warning light ................................................................3-41 Washer fluid ..................................................................7-22
Welcome system ...........................................................3-83
Headlamp and position lamp .....................................3-83
Interior lamp ..............................................................3-83
Door handle lamp ......................................................3-83
Puddle lamp ..............................................................3-83
Wheel alignment and tire balance ................................7-35
Wheel replacement .......................................................7-36
Windows .......................................................................3-22
Auto down window ...................................................3-25
Auto up/down window ..............................................3-25
Automatic reversal .....................................................3-25
Power window lock switch ........................................3-26
Resetting the windows ...............................................3-26
Windshield defrosting and defogging.........................3-112
Windshield washers .....................................................3-89
Windshield wipers .......................................................3-87
Winter driving...............................................................5-96 Snow tires ..................................................................5-96
Tire chains..................................................................5-97
Winter precautions ........................................................5-98
Wiper blade replacement ..............................................7-25
Wipers and washers ......................................................3-87
Windshield wipers ....................................................3-87
Windshield washers ..................................................3-89
Wireless cellular phone charging system ...................3-122
I
Index
