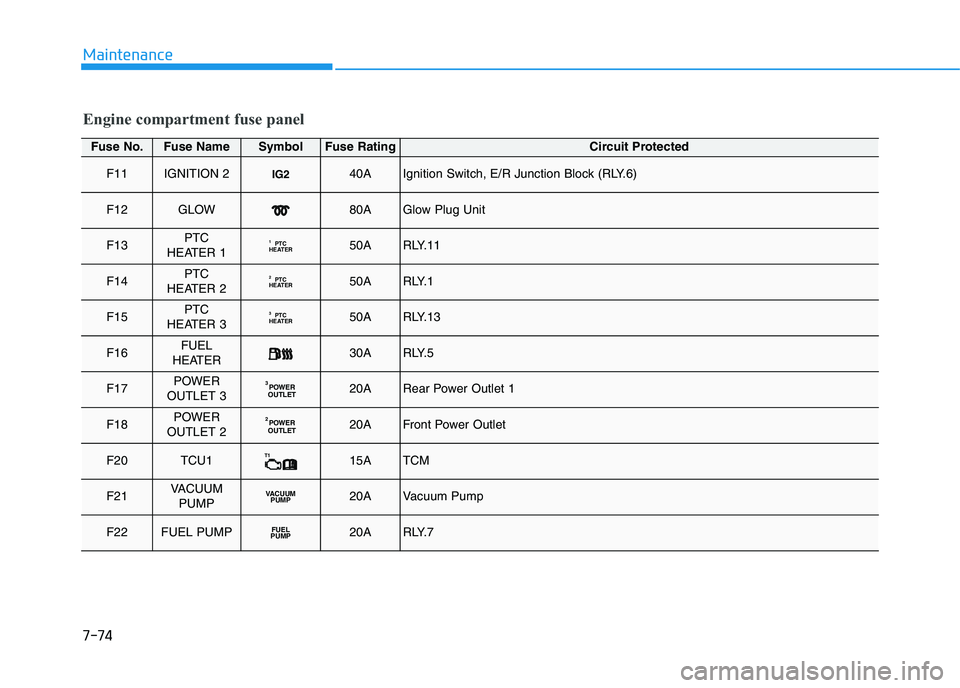

Engine compartment fuse panel
Fuse No.Fuse NameSymbolFuse RatingCircuit Protected
F11IGNITION 2IG240AIgnition Switch, E/R Junction Block (RLY.6)
F12GLOW80AGlow Plug Unit
F13PTC
HEATER 1PTC
HEATER150ARLY.11
F14PTC
HEATER 2PTC
HEATER250AR LY. 1
F15PTC
HEATER 3PTC
HEATER350ARLY.13
F16FUEL
HEATER30AR LY. 5
F17POWER
OUTLET 3POWER
OUTLET320ARear Power Outlet 1
F18POWER
OUTLET 2POWER
OUTLET220AFront Power Outlet
F20TCU1T115ATCM
F21VACUUM
PUMPVACUUM PUMP20AVacuum Pump
F22FUEL PUMPFUEL
PUMP20AR LY. 7

7-75
7
Maintenance
Engine compartment fuse panel
Fuse No.Fuse NameSymbolFuse RatingCircuit Protected
F23COOLINGFAN 2240ARLY.9, RLY.2 (Gasoline)
F24B+1140AIGPM (Leak Current Autocut Device, Fuse : F21, F24, F27, F33)
F25DCT 1DCT140ATCM
F26DCT 2DCT240ATCM
F27BURGLAR
ALARM HORN10AICM Relay Box (Burglar Alarm Horn Relay)
F29ABS 1140AABS Control Module, ESP Control Module, Multipurpose Check Connector
F30ABS 2230AABS Control Module, ESP Control Module, Multipurpose Check Connector
F33POWER OUT- LET 1POWER
OUTLET140ARLY.14
F34BACK UP
LAMPB/UP
LAMP10ABack-Up Lamp Switch

7-76
Maintenance
Fuse No.Fuse NameSymbolFuse RatingCircuit Protected
F37SENSOR 2S210ARCV Control Solenoid Valve , Purge Control Solenoid Valve, Oil Control Valve #1/#2,
A/Con Relay, E/R Junction Block (RLY.9)
F38ECU 2E210AECM
F39ECU 1E120AECM
F40INJECTORINJECTOR15A-
F41SENSOR 1S115AOxygen Sensor (Up), Oxygen Sensor (Down)
F42IGNITION
COILIGN
COIL20AIgnition Coil #1/#2/#3
F43ECU 3E 315AECM
F44A/CON10AA/Con Relay
F45ECU 5E510AECM
F46SENSOR 4S415A-
F47ABS 3310AABS/ESP Control Module, Multipurpose Check Connector
Engine compartment fuse panel
■ Kappa 1.0 T-GDI

7-77
7
Maintenance
Fuse No.Fuse NameSymbolFuse RatingCircuit Protected
F48TCU 2T215AE/R Junction Block (Fuse : F34)
F49SENSOR 3S310AE/R Junction Block (RLY.7)
F50ECU 4E415AECM
F51WIPER25AWiper Relay
F52HORN15AHorn Relay
Engine compartment fuse panel
■ Kappa 1.0 T-GDI
Fuse No.Fuse NameSymbolFuse RatingCircuit Protected
F37SENSOR 2S210ARCV Control Solenoid Valve , Purge Control Solenoid Valve, Oil Control Valve #1/#2,
A/Con Relay, E/R Junction Block (RLY.9)
F38ECU 2E210AECM
F39ECU 1E120AECM
F40INJECTORINJECTOR15A-
F41SENSOR 1S115AOxygen Sensor (Up), Oxygen Sensor (Down)
■ Kappa 1.4 T-GDI

7-78
Maintenance
Fuse No.Fuse NameSymbolFuse RatingCircuit Protected
F42IGNITIONCOILIGN
COIL20AIgnition Coil #1/#2/#3/#4
F43ECU 3E 315AECM
F44A/CON10AA/Con Relay
F45ECU 5E510AECM
F46SENSOR 4S415AVacuum Pump
F47ABS 3310AABS/ESP Control Module, Multipurpose Check Connector
F48TCU 2T215ATCM, Transaxle Range Switch, E/R Junction Block (Fuse : F34)
F49SENSOR 3S310AE/R Junction Block (RLY.7)
F50ECU 4E415AECM
F51WIPER25AWiper Relay
F52HORN15AHorn Relay
Engine compartment fuse panel
■ Kappa 1.4 T-GDI

7-79
7
Maintenance
Engine compartment fuse panel
Fuse No.Fuse NameSymbolFuse RatingCircuit Protected
F37SENSOR 2S210ACamshaft Position Sensor #1/#2, Purge Control Solenoid Valve,
Oil Control Valve #1/#2, Variable Intake Solenoid Valve,
E/R Junction Block (RLY.1, RLY.2)
F38ECU 2E210AECM
F39ECU 1E120AECM
F40INJECTORINJECTOR15AInjector #1/#2/#3/#4
F41SENSOR 1S115AOxygen Sensor (Up), Oxygen Sensor (Down)
F42IGNITION
COILIGN
COIL20AIgnition Coil #1/#2/#3/#4, Condenser
F43ECU 3E 315AECM
F44A/CON10A-
F45ECU 5E510AECM
F46SENSOR 4S415A-
F47ABS 3310AABS/ESP Control Module, Multipurpose Check Connector
■ Kappa 1.4 MPI

7-80
Maintenance
Engine compartment fuse panel
Fuse No.Fuse NameSymbolFuse RatingCircuit Protected
F48TCU 2T215AE/R Junction Block (Fuse : F34)
F49SENSOR 3S310AE/R Junction Block (RLY.7)
F50ECU 4E415A-
F51WIPER25AWiper Relay
F52HORN15AHorn Relay
■ Kappa 1.4 MPI
■ Gamma 1.6 MPI
Fuse No.Fuse NameSymbolFuse RatingCircuit Protected
F37SENSOR 2S210ACamshaft Position Sensor #1/#2, Purge Control Solenoid Valve, Oil Control Valve
#1/#2, Variable Intake Solenoid Valve, E/R Junction Block (RLY.1, RLY.2)
F38ECU 2E210AECM/PCM
F39ECU 1E120AECM/PCM
F40INJECTORINJECTOR15AInjector #1/#2/#3/#4
F41SENSOR 1S115AOxygen Sensor (Up), Oxygen Sensor (Down)

7-81
7
Maintenance
Engine compartment fuse panel
■ Gamma 1.6 MPI
Fuse No.Fuse NameSymbolFuse RatingCircuit Protected
F42IGNITION
COILIGN
COIL20AIgnition Coil #1/#2/#3/#4, Condenser
F43ECU 3E 315AECM/PCM
F44A/CON10A-
F45ECU 5E510AECM/PCM
F46SENSOR 4S415A-
F47ABS 3310AABS/ESP Control Module, Multipurpose Check Connector
F48TCU 2T215ATransaxle Range Switch, E/R Junction Block (Fuse : F34)
F49SENSOR 3S310AE/R Junction Block (RLY.7)
F50ECU 4E415AECM/PCM
F51WIPER25AWiper Relay
F52HORN15AHorn Relay
