Page 605 of 659
7-92
Maintenance
4. With the headlamp and battery in normal condition, aim the head-
lamps so the brightest portion falls
on the horizontal and vertical
lines.
5. To aim the low beam left or right, turn the driver clockwise or coun-
terclockwise. To aim the low beam
up or down, turn the driver clock-
wise or counterclockwise.
To aim the high beam up or down,turn the driver clockwise or coun-
terclockwise.
Front fog lamp aiming
The front fog lamp can be aimed as
the same manner of the headlamps
aiming. With the front fog lamps and
battery in normal condition, aim the
front fog lamps. To aim the front fog
lamp up or down, turn the driver
clockwise or counterclockwise.
OPDE076087
Page 606 of 659
7-93
7
Maintenance
Unit: mm (in)
Aiming point
H1 : Height between the head lamp bulb center and ground (Low beam)
H2 : Height between the head lamp bulb center and ground (High beam)
H3 : Height between the fog lamp bulb center and ground
W1 : Distance between the two head lamp bulbs centers (Low beam)
W2 : Distance between the two head lamp bulbs centers (High beam)
W3 : Distance between the two fog lamp bulbs centers
OPDE076081
Vehicle
condition Lamp type H1 H2 H3 W1 W2 W3
Without driver Halogen 681 (26.81) 645 (25.39)
344 (13.54)1,440 (56.69) 1,218 (47.95)
1,484 (58.42)
LED 677 (26.65) 631 (24.84) 1,385 (54.52) 1,114 (43.85)
With driver Halogen 676 (26.61) 640 (25.19)
339 (13.34)1,440 (56.69) 1,218 (47.95)
LED 672 (26.45) 626 (24.64) 1,385 (54.52) 1,114 (43.85)
Page 607 of 659
7-94
Maintenance
Headlamp low beam (LHD side)
1. Turn the low beam on without driver aboard.
2. The cut-off line should be projected in the cut-off line shown in the picture.
3. When aiming the low beam, vertical aiming should be adjusted after adjusting the horizontal aiming.
4. If headlamp leveling device is equipped, adjust the head lamp leveling device switch with 0 positions.
: & D U D [ L V
9 H U W L F D O O L Q H R I O H I W
K H D G O D P S E X O E F H Q W H U
& X W R I I O L Q H
9 H U W L F D O O L Q H R I U L J K W
K H D G O D P S E X O E F H Q W H U + R U L ] R Q W D O O L Q H R I
K H D G O D P S E X O E F H Q W H U
* 5 2 8 1 '
+
/ R Z E H D P
/ R Z E H D P
OPDE076082
■ Based on 10m screen
Page 608 of 659
7-95
7
Maintenance
Headlamp low beam (RHD side)
1. Turn the low beam on without driver aboard.
2. The cut-off line should be projected in the cut-off line shown in the picture.
3. When aiming the low beam, vertical aiming should be adjusted after adjusting the horizontal aiming.
4. If headlamp leveling device is equipped, adjust the head lamp leveling device switch with 0 positions.
: & D U D [ L V
9 H U W L F D O O L Q H R I O H I W
K H D G O D P S E X O E F H Q W H U
& X W R I I O L Q H
9 H U W L F D O O L Q H R I U L J K W
K H D G O D P S E X O E F H Q W H U + R U L ] R Q W D O O L Q H R I
K H D G O D P S E X O E F H Q W H U
* 5 2 8 1 '
+
/ R Z E H D P
/ R Z E H D P
OPDE076083
■ Based on 10m screen
Page 609 of 659
7-96
Maintenance

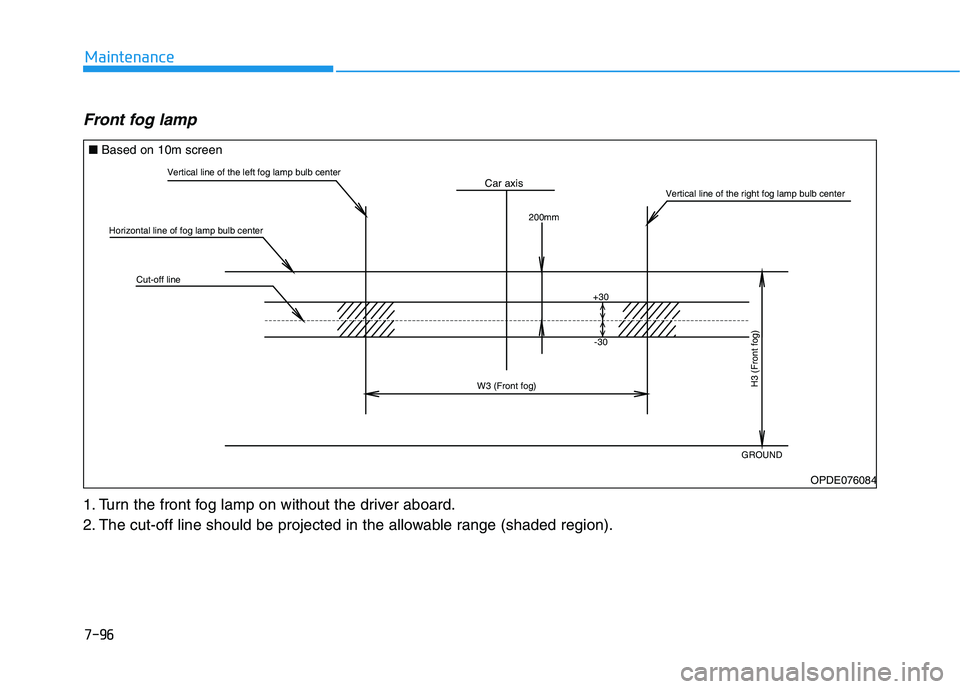

Front fog lamp
1. Turn the front fog lamp on without the driver aboard.
2. The cut-off line should be projected in the allowable range (shaded region).
Vertical line of the left fog lamp bulb centerVertical line of the right fog lamp bulb center
H3 (Front fog)
Car axis
200mm
+30-30Horizontal line of fog lamp bulb center
Cut-off line
W3 (Front fog)GROUND
OPDE076084
■Based on 10m screen
Page 610 of 659
7-97
7
Maintenance
Side repeater lamp replace-
ment
Type A
If the light bulb does not operate, we
recommend you to have the vehicle
checked by an authorized HYUNDAI
dealer.
Type B
1.Remove the lamp assembly fromthe vehicle by prying the lens and
pulling the assembly out.
2.Disconnect the bulb electrical con- nector.
3.Separate the socket and the lens parts by turning the socket coun-
terclockwise until the tabs on the
socket align with the slots on the
lens part.
4.Remove the bulb by pulling it straight out.
5.Insert a new bulb in the socket. 6.Reassemble the socket and the
lens part.
7.Connect the bulb electrical con- nector.
8.Reinstall the lamp assembly to the body of the vehicle.
OPDE076079
OPD076044
Page 611 of 659
7-98
Maintenance
Rear combination lamp bulb
replacement
Type A
(1) Stop/Tail lamp
(2) Turn signal lamp
(3) Tail lamp
(4) Backup lamp
Stop/Tail lamp and turn signal lamp
1. Turn off the engine.
2. Open the tailgate.
3. Open the lamp assembly retainingscrew covers.
4. Loosen the lamp assembly retain- ing screws with a cross-tip screw-
driver. 5. Remove the rear combination
lamp assembly from the body of
the vehicle.
OPD076048
OPD076045
OPD076047
Page 612 of 659
7-99
7
Maintenance
6. Remove the socket from theassembly by turning the socket
counterclockwise until the tabs on
the socket align with the slots on
the assembly.
7. Remove the bulb from the socket by pressing it in and rotating it
counterclockwise until the tabs on
the bulb align with the slots in the
socket. Pull the bulb out of the
socket.
8. Insert a new bulb by inserting it into the socket and rotating it until
it locks into place. 9. Install the socket in the assembly
by aligning the tabs on the socket
with the slots in the assembly.
Push the socket into the assembly
and turn the socket clockwise.
10. Reinstall the lamp assembly to the body of the vehicle.Tail lamp and backup lamp
1. Turn off the engine.
2. Open the tailgate.
3. Remove the service cover using aflat-blade screwdriver.
OPD076049
Stop/tail lamp
Turn signal lamp
OPDE076072
