2017 HYUNDAI I20 check engine

The indicator in the instrument clus
ter displays the shift lever position
when the ignition switch is in the ON
position.
P (Park)
Always come to a complete stop
before shifting into P (Park).
The shift lever must be in P (Park)
before turning the engine off.
Information
The RPM (revolutions per minute)
may increase or decrease when per
forming the CVT selfdiagnosis\b
i
+)
!-0,0*&."'$-.,/#0%(/
To reduce the risk of serious injury
or death:
•ALWAYS check the surrounding
areas near your vehicle for peo
ple\b especially children\b before
shifting a vehicle into D (Drive)
or R (Reverse).
•Before leaving the driver’s seat\b
always make sure the shift lever
is in the P (Park) position\b then
set the parking brake\b and place
the ignition switch in the
LOCK/OFF position.
Unexpected and sudden vehicle
movement can oc
cur if these
precautions are not followed.
•Do not use engine braking (shift
ing from a high gear to lower
gear) rapidly on slippery roads.
The vehicle may slip causing an
accident.
WARNING
•Shifting into P (Park) while the
vehicle is in motion may cause
you to lose control of the vehi
cle.
•After the vehicle has stopped\b
always make sure the shift lever
is in P (Park)\b apply the parking
brake\b and turn the engine off.
•Do not use the P (Park) position
in place of the parking brake.
WARNING

+)
!-0,0*&."'$-.,/#0%(/

The indicator in the instrument clus
ter displays the shift lever position
when the ignition switch is in the ON
position.
P (Park)
Always come to a complete stop
before shifting into P (Park).
The shift lever must be in P (Park)
before turning the engine off.
To reduce the risk of serious injury
or death:
•ALWAYS check the surrounding
areas near your vehicle for peo
ple\b especially children\b before
shifting a vehicle into D (Drive)
or R (Reverse).
•Before leaving the driver’s seat\b
always make sure the shift lever
is in the P (Park) position\b then
set the parking brake\b and place
the ignition switch in the
LOCK/OFF position.
Unexpected and sudden vehicle
movement can oc
cur if these
precautions are not followed.
•Do not use engine braking (shift
ing from a high gear to lower
gear) rapidly on slippery roads.
The vehicle may slip causing an
accident.
WARNING
•Shifting into P (Park) while the
vehicle is in motion may cause
you to lose control of the vehi
cle.
•After the vehicle has stopped\b
always make sure the shift lever
is in P (Park)\b apply the parking
brake\b and turn the engine off.
•Do not use the P (Park) position
in place of the parking brake.
WARNING

+)
!-0,0*&."'$-.,/#0%(/Check the Parking
Brake Warning Light by
placing the ignition
switch to the ON posi
tion (do not start the
engine).
This light will be illuminated when the
parking brake is applied with the igni
tion switch in the START or ON posi
tion.
Before driving\b be sure the parking
brake is released and the Brake
Warning Light is OFF. If the Parking Brake Warning Light
remains on after the parking brake is
released while engine is running\b
there may be a malfunction in the
brake system. Immediate attention is
necessary.
If at all possible\b cease driving the
vehicle immediately. If that is not pos
sible\b use extreme caution while
operating the vehicle and only con
tinue to drive the vehicle until you
can reach a safe location.
Antilock Brake System (ABS) (if
equipped)
WK23
<
 )
E7::
<=B
>@3D3 2C3
B=
7;>@=>3@
=@
2/<53@=CA
2@7D7<5
;/<3CD3@A

D3<
B6=C56
D3671:3
1=@=D32
2C@7<5
3;3@53<1G
0@/97<5\b
/:E/GA
;/7<
B/7<
/
A/43
27AB/<13
03BE33<
G=C
/<2
=0831BA
/63/2
=4
G=C

,3671:3
A>332A
A6=C:2
/:E/GA
03
@32C132
2C@7<5
3FB@3;3
@=/2
1=<27B7=
*63
0@/97<5
27AB/<13
4=@
1/@A
3?C7>>32
E7B6
)
;/G
03
:=<53@
B6/<
4=@
B6=A3
E7B6=CB
B63A3
AGA
B3;A


7<
B63
4=::=E7<5
@=/2
1=<27
B7=
= (% %

Snow or icy conditions
You need to keep sufficient distance
between your vehicle and the vehicle
in front of you.
Apply the brakes gently. Speeding\b
rapid acceleration\b sudden brake
applications\b and sharp turns are
potentially very hazardous practices.
During deceleration\b use engine
braking to the fullest extent. Sudden
brake applications on snowy or icy
roads may cause skids to occur.
To drive your vehicle in deep snow\b it
may be necessary to use snow tires
or to install tire chains on your tires.
Always carry emergency equipment.
Some of the items you may want to
carry include tire chains\b tow straps
or chains\b a flashlight\b emergency
flares\b sand\b a shovel\b jumper cables\b
a window scraper\b gloves\b ground
cloth\b coveralls\b a blanket\b etc.
Snow tires
If you mount snow tires on your vehi
cle\b make sure to use radial tires of
the same size and load range as the
original tires. Mount snow tires on all
four wheels to balance your vehicle’s
handling in all weather conditions.
The traction provided by snow tires
on dry roads may not be as high as
your vehicle's original equipmenttires. Check with the tire dealer for
maximum speed recommendations.
Information
Do not install studded tires without
first checking local and municipal reg
ulations for possible restrictions
against their use\b
i
W(&$'#

#(V(&
Snow tires should be equivalent in
size and type to the vehicle's stan
dard tires. Otherwise\b the safety
and handling of your vehicle may
be adversely affected.
WARNING

!-0,0*&."'$-.,/#0%(/
+)+

Tire chains
Since the sidewalls of radial tires are
thinner than other types of tires\b they
may be damaged by mounting some
types of tire chains on them.
Therefore\b the use of snow tires is
recommended instead of tire chains.
Do not mount tire chains on vehicles
equipped with aluminum wheels; if
unavoidable use a wire type chain. If
tire chains must be used\b use gen
uine HYUNDAI parts and install the
tire chain after reviewing the instruc
tions provided with the tire chains.
Damage to your vehicle caused by
improper tire chain use is not cov
ered by your vehicle manufacturer’s
warranty.
Information
• Install tire chains on the front tires\bIt should be noted that installing tire
chains on the tires will provide a
greater driving force, but will not
prevent side skids\b
• Do not install tire chains without first checking local and municipal
regulations for possible restrictions
against their use\b
Chain Installation
When installing tire chains\b follow the
manufacturer's instructions and
mount them as tightly possible. Drive
slowly (less than 3\f km/h (2\f mph))
with chains installed. If you hear the
chains contacting the body or chas
sis\b stop and tighten them. If they still
make contact\b slow down until the
noise stops. Remove the tire chains
as soon as you begin driving on
cleared roads.
When mounting snow chains\b park
the vehicle on level ground away
from traffic. Turn on the vehicle
Hazard Warning Flasher and place a
triangular emergency warning device
behind the vehicle (if available).
Always place the shift lever in neu
tral\b apply the parking brake and turn
off the engine before installing snow
chains.
i
OIB\f57\f11
The use of tire chains may
adversely affect vehicle handling:
•Drive less than 3\f km/h (2\f
mph) or the chain manufactur
er’s recommended speed limit\b
whichever is lower.
•Drive carefully and avoid
bumps\b holes\b sharp turns\b and
other road hazards\b which may
cause the vehicle to bounce.
•Avoid sharp turns or locked
wheel braking.
WARNING
!-0,0*&."'$-.,/#0%(/
+)

To keep locks from freezing
To keep the locks from freezing\b
squirt an approved deicer fluid or
glycerine into the key opening. If a
lock is covered with ice\b squirt it with
an approved deicing fluid to remove
the ice. If the lock is frozen internally\b
you may be able to thaw it out by
using a heated key. Handle the heat
ed key with care to avoid injury.
Use approved window washerantifreeze in system
To keep the water in the window
washer system from freezing\b add an
approved window washer antifreeze
solution in accordance with instruc
tions on the container. Window wash
er antifreeze is available from an
authorized HYUNDAI dealer and
most auto parts outlets. Do not use
engine coolant or other types of anti
freeze as these may damage the
paint finish.
Don't let your parking brake freeze
Under some conditions your parking
brake can freeze in the engaged
position. This is most likely to hap
pen when there is an accumulation
of snow or ice around or near the
rear brakes or if the brakes are wet.
If there is a risk the parking brake
may freeze\b apply it only temporarily
while you put the shift lever in P (for
Automatic Transaxle/Continuously
Variable Transaxle) or in first or
reverse gear (for Manual Transaxle)
and block the rear wheels so the
vehicle cannot roll. Then release the
parking brake.
Don't let ice and snow accumulate underneath
Under some conditions\b snow and
ice can build up under the fenders
and interfere with the steering. When
driving in severe winter conditions
where this may happen\b you should
periodically check underneath the
car to be sure the movement of the
front wheels and the steering com
ponents is not obstructed.
Carry emergency equipment
Depending on the severity of the
weather\b you should carry appropri
ate emergency equipment. Some of
the items you may want to carry
include tire chains\b tow straps or
chains\b flashlight\b emergency flares\b
sand\b shovel\b jumper cables\b window
scraper\b gloves\b ground cloth\b cover
alls\b blanket\b etc.
Don't place foreign objects or materials in the engine compartment
Placement of foreign objects or
materials which prevent cooling of
the engine\b in the engine compart
ment\b may cause a failure or com
bustion. The manufacturer is not
responsible for the damage caused
by such placement.
!-0,0*&."'$-.,/#0%(/
+)

$$!%%#$#%

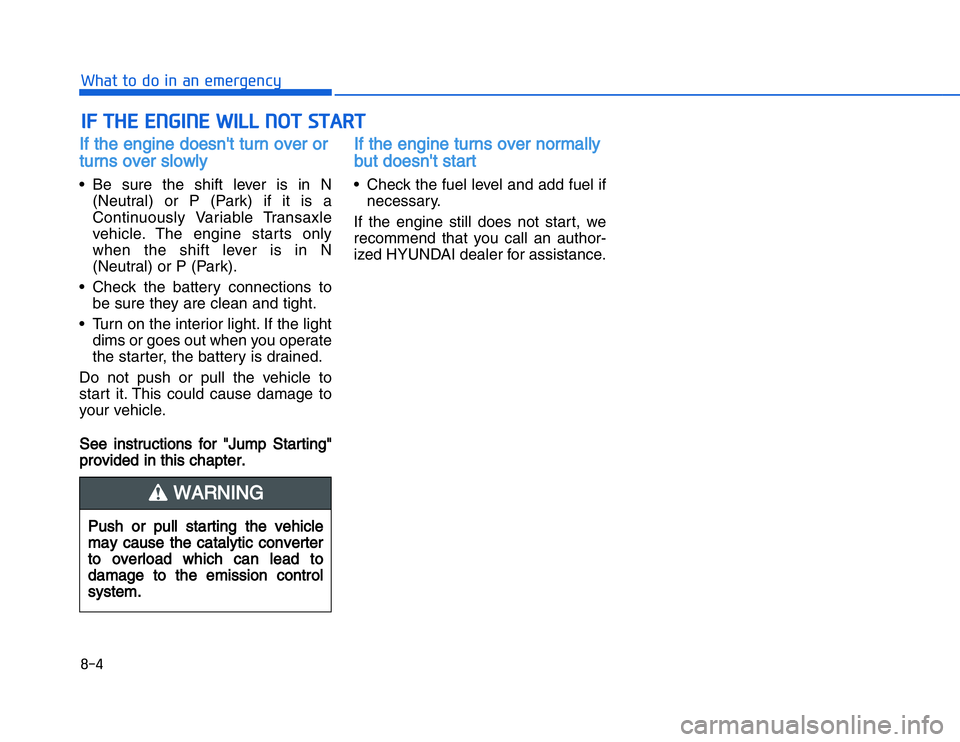

$#!!" !If the engine doesn't turn over or
turns over slowly • Be sure the shift lever is in N
(Neutral) or P (Park) if it is a
Continuously Variable Transaxle
vehicle. The engine starts only
when the shift lever is in N
(Neutral) or P (Park).
• Check the battery connections to be sure they are clean and tight.
• Turn on the interior light. If the light dims or goes out when you operate
the starter, the battery is drained.
Do not push or pull the vehicle to
start it. This could cause damage to
your vehicle. See instructions for "Jump Starting"
provided in this chapter.
If the engine turns over normally but doesn't start • Check the fuel level and add fuel if
necessary.
If the engine still does not start, we
recommend that you call an author-
ized HYUNDAI dealer for assistance.
!$#'#"'"' %'$%'&&&%Push or pull starting the vehicle
may cause the catalytic converter
to overload which can lead to
damage to the emission control
system.
WARNING

4.Connect the jumper cables in theexact sequence shown in the illus-
tration. First connect one jumper
cable to the red, positive (+)
jumper terminal of your vehicle (1).
5.Connect the other end of the jumper cable to the red, positive
(+) battery/jumper terminal of the
assisting vehicle (2).
6.Connect the second jumper cable to the black, negative (-)
battery/chassis ground of the
assisting vehicle (3). 7.Connect the other end of the sec-
ond jumper cable to the black, neg-
ative (-) chassis ground of your
vehicle (4).
Do not allow the jumper cables to
contact anything except the correct
battery or jumper terminals or the
correct ground. Do not lean over
the battery when making connec-
tions.
8.Start the engine of the assisting vehicle and let it run at approxi-
mately 2,000 rpm for a few min-
utes. Then start your vehicle.
If your vehicle will not start after a
few attempts, it probably requires
servicing. In this event please seek
qualified assistance. If the cause of
your battery discharging is not
apparent, we recommend that your
vehicle be checked by an authorized
HYUNDAI dealer. Disconnect the jumper cables in the
exact reverse order you connected
them:
1.Disconnect the jumper cable from
the black, negative (-) chassis
ground of your vehicle (4).
2.Disconnect the other end of the jumper cable from the black, nega-
tive (-) battery/chassis ground of
the assisting vehicle (3).
3.Disconnect the second jumper cable from the red, positive (+) bat-
tery/jumper terminal of the assist-
ing vehicle (2).
4.Disconnect the other end of the jumper cable from the red, positive
(+) jumper terminal of your vehicle
(1).
!
$#'#"'"' %'$%'&&&%
OLMB063002/Q
Jumper Terminal
Jumper Cables
Booster Battery
(-)
(+) (+)
(-)
Never connect Jumper Cable
directly to the negative (-) terminal
of discharged Battery (Your
Vehicle Bat tery), or an Explosion
may occur.
WARNING
