Page 58 of 343
Safety system of your vehicle
42 3
Front air bags are not designed to inflate
in rear collisions, because occupants are
moved backward by the force of the
impact. In this case, inflated air bags
would not provide any additional benefit.Front air bags may not inflate in side
impact collisions, because occupants
move in the direction of the collision, and
thus in side impacts, front air bag deploy-
ment would not provide additional occu-
pant protection.In an angled collision, the force of impact
may direct the occupants in a direction
where the air bags would not be able to
provide any additional benefit, and thus
the sensors may not deploy any air bags.
1VQA2089OSA038121OPA037042
Page 59 of 343

343
Safety system of your vehicle
Just before impact, drivers often brake
heavily. Such heavy braking lowers the
front portion of the vehicle causing it to
“ride” under a vehicle with a higher
ground clearance. Air bags may not
inflate in this "under-ride" situation
because deceleration forces that are
detected by sensors may be significantly
reduced by such “underride” collisions.Air bags may not inflate in rollover acci-
dents because air bag deployment could
not provide protection to the occupants.
However, side impact and curtain air
bags may inflate when the vehicle is
rolled over by a side impact collision, if
the vehicle is equipped with side impact
air bags and curtain air bags
Also, if the vehicle is equipped with a
rollover sensor, side impact and curtain
air bags may inflate in a rollover.Air bags may not inflate if the vehicle col-
lides with objects such as utility poles or
trees, where the point of impact is con-
centrated and the collision energy is
absorbed by the vehicle structure.
OPA037043OED036104OSA038122
Page 225 of 343

Driving your vehicle
32 5
REAR PARKING ASSIST SYSTEM (IF EQUIPPED)
The Rear Parking Assist System aids the
driver during backward movement of the
vehicle by chiming if any object is sensed
within the distance of about 120 cm
(47 inches) behind the vehicle. This is a
supplemental system that senses objects
within the range and location of the sen-
sors, it can not detect objects in other
areas where sensors are not installed.
✽NOTICE
The system may not recognize objects
less than 40 cm (15 inches) from the sen-
sor, or it may sense an incorrect dis-
tance.
Operation of the rear parking assist
system
Operation condition
• Sensing distance when backing up is
approximately 120 cm (47 inches)
when you are driving less than 10 km/h
(6 mph).
• When more than two objects are
sensed at the same time, the closest
one will be recognized first.
Types of warning sounds
• When an object is 120 to 81 cm (47 to
32 inches) from the rear bumper:
Buzzer beeps intermittently.
• When an object is 80 to 41 cm (31 to 16
inches) from the rear bumper: Buzzer
sounds two beeps intermittently.
• When an object is within 40 cm (15
inches) of the rear bumper: Buzzer
sounds continuously.
If the audible warning does not sound or
if the buzzer sounds intermittently when
shifting into R (Reverse) position, this
may indicate a malfunction with the
Parking Assist System. If this occurs, we
recommend that your vehicle be checked
by an authorized HYUNDAI dealer as
soon as possible.
OBA043033
OBA044257
WARNING
• ALWAYS look around your vehi-
cle to make sure there are not any
objects or obstacles before mov-
ing the vehicle in any direction to
prevent a collision.
• Always pay close attention when
the vehicle is driven close to
objects, particularly pedestrians,
and especially children.
• Be aware that some objects may
not be visible on the screen or be
detected by the sensors, due to
the objects distance, size or
material, all of which can limit the
effectiveness of the sensor.
CAUTION
Do not push, scratch or strike the
sensor with any hard objects that
could damage the surface of the
sensor. Sensor damage could
occur.
■5 Door
■4 Door
Sensor
Sensor
Page 226 of 343

533
Driving your vehicle
Non-operational conditions of rear
parking assist system
Rear parking assist system OFF button
Push the button to turn off the rear park-
ing assist system (the indicator light will
illuminate).The rear parking assist system may
not operate normally when:
• Moisture is frozen to the sensor.
• The sensor is covered or stained with
foreign matter, such as snow or water,
or the sensor cover is blocked.
There is a possibility of a parking
assist system malfunction when:
• Driving on uneven road surfaces such
as unpaved roads, gravel, bumps, or
gradient.
• Objects generating excessive noise
such as vehicle horns, loud motorcycle
engines, or truck air brakes can inter-
fere with the sensor.
• Heavy rain or water spray is present.
• Wireless transmitters or mobile phones
are present near the sensor.
• The sensor is covered with snow.
• Any non-factory equipment or acces-
sories have been installed, or if the
vehicle bumper height or sensor instal-
lation has been modified.Detecting range may decrease when:
• Outside air temperature is extremely
hot or cold.
• Undetectable objects smaller than about
1 m (40 inches) and narrower than about
14 cm (6 inches) in diameter.
The following objects may not be rec-
ognized by the sensor:
• Sharp or slim objects such as ropes,
chains or small poles.
• Objects, which tend to absorb sensor
frequency such as clothes, spongy
material or snow.
WARNING
Your new vehicle warranty does not
cover any accidents or damage to
the vehicle or injuries to its occu-
pants do to a rear parking assist
system malfunction. Always drive
safely and cautiously.
OBA043032
OBA043032R
■Left-hand drive
■Right-hand drive
Page 283 of 343
731
Maintenance

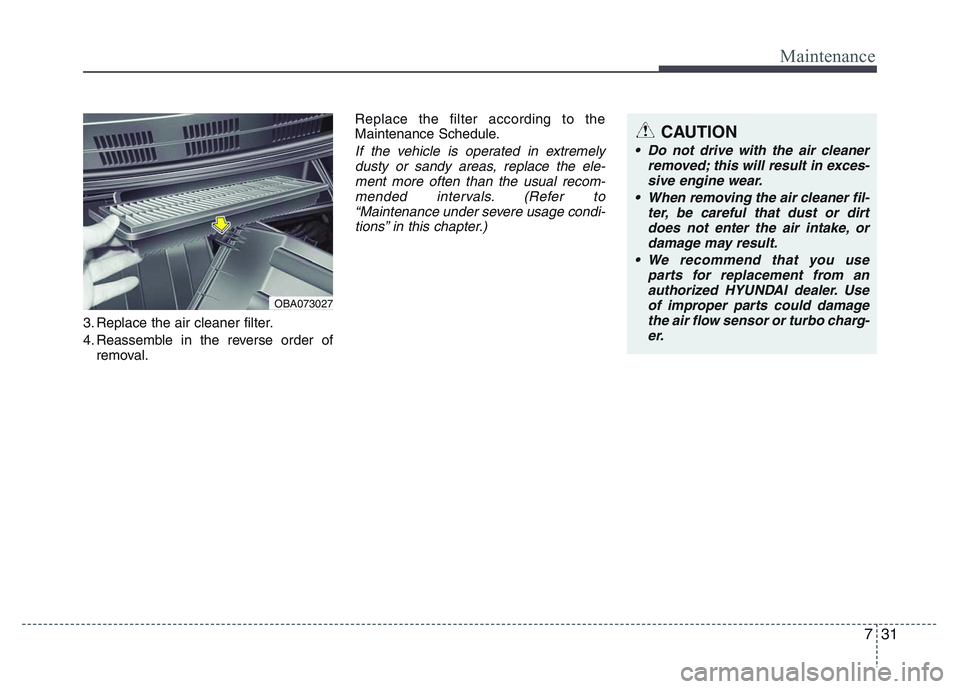

3. Replace the air cleaner filter.
4. Reassemble in the reverse order of
removal.Replace the filter according to the
Maintenance Schedule.
If the vehicle is operated in extremely
dusty or sandy areas, replace the ele-
ment more often than the usual recom-
mended intervals. (Refer to
“Maintenance under severe usage condi-
tions” in this chapter.)
CAUTION
• Do not drive with the air cleaner
removed; this will result in exces-
sive engine wear.
• When removing the air cleaner fil-
ter, be careful that dust or dirt
does not enter the air intake, or
damage may result.
• We recommend that you use
parts for replacement from an
authorized HYUNDAI dealer. Use
of improper parts could damage
the air flow sensor or turbo charg-
er.
OBA073027
Page 310 of 343
Maintenance
58 7

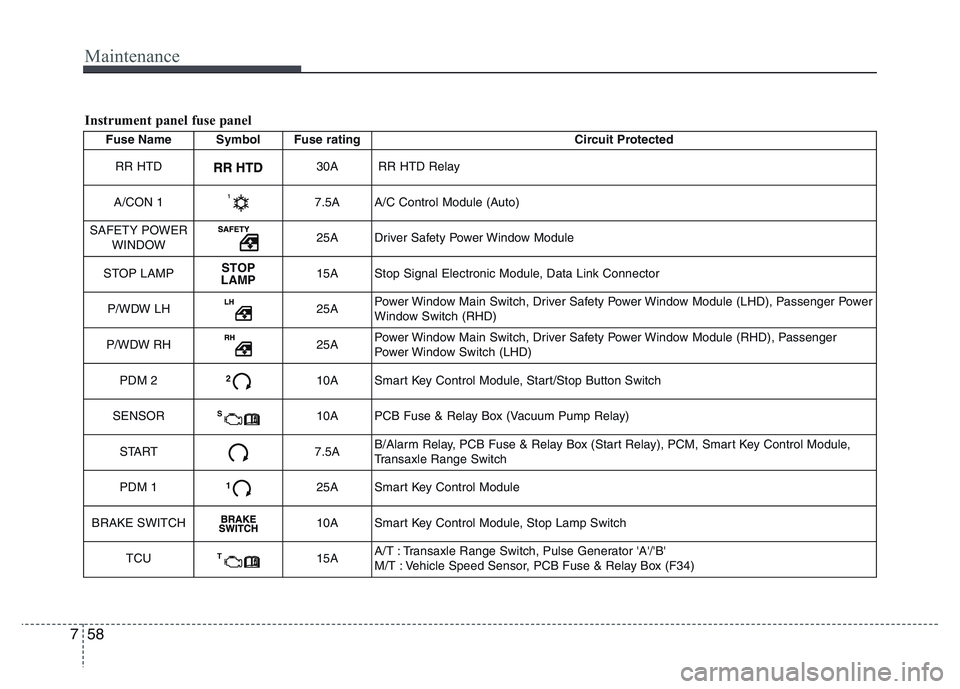

Fuse Name Symbol Fuse rating Circuit Protected
RR HTD
30A RR HTD Relay
A/CON 1
7.5A A/C Control Module (Auto)
SAFETY POWER
WINDOW
25A Driver Safety Power Window Module
STOP LAMP
STOP
LAMP15A Stop Signal Electronic Module, Data Link Connector
P/WDW LH
25APower Window Main Switch, Driver Safety Power Window Module (LHD), Passenger Power
Window Switch (RHD)
P/WDW RH
25APower Window Main Switch, Driver Safety Power Window Module (RHD), Passenger
Power Window Switch (LHD)
PDM 2
210A Smart Key Control Module, Start/Stop Button Switch
SENSOR
S10A PCB Fuse & Relay Box (Vacuum Pump Relay)
START
7.5AB/Alarm Relay, PCB Fuse & Relay Box (Start Relay), PCM, Smart Key Control Module,
Transaxle Range Switch
PDM 1
125A Smart Key Control Module
BRAKE SWITCH
10A Smart Key Control Module, Stop Lamp Switch
TCU
T15AA/T : Transaxle Range Switch, Pulse Generator 'A'/'B'
M/T : Vehicle Speed Sensor, PCB Fuse & Relay Box (F34)
Instrument panel fuse panel
Page 311 of 343

759
Maintenance
Fuse Name Symbol Fuse rating Circuit Protected
BLOWER
7.5A PCM, A/C Control Module, Electronic A/C Compressor, Blower Switch, Blower Resistor
DR LOCK
20A Door Lock/Unlock Relay, T/Gate Unlock Relay, Crash Door Unlock Unit
HTD MIRR
10A PCM, A/C Control Module, Driver/Passenger Power Outside Mirror
MODULE 2
2 MODULE10AStop Lamp Switch, Crash Pad Switch, Rear Parking Assist, Rear Parking Assist Sensor
(Center) LH/RHSensor LH/RH
WIPER
25A Front Wiper Motor, Multifunction Switch
MEMORY
MEMORY10AData Link Connector, Digital Clock, Instrument Cluster, BCM, Tire Pressure Motoring
Module, A/C Control Module, Crash Door Unlock Unit, Audio
INTERIOR LAMP
10A Luggage Lamp, Room Lamp
MODULE 3
3 MODULE10A E/R Junction Box (Multipurpose Check Connector), A/C Control Module
ECU
E10A PCM, Smart Key Control Module, Alternator (G3LA/G4LA)
A/CON 2
10A PCB Fuse & Relay Box (Blower Relay), A/C Control Module
MULTI MEDIA
MULTI
MEDIA20A Auido
POWER
OUTLET 2
2 POWER
OUTLET20A Rear Power Outlet
Page 314 of 343
Maintenance
62 7
Fuse Name Symbol Fuse rating Circuit Protected
ROOM LAMP
10A Luggage Lamp, Room Lamp
AUDIO
20A Auido
RR HTD
30A RR HTD Relay
A/CON 1
7.5A A/C Control Module (Auto)
SAFETY POWER
WINDOW
25A Driver Safety Power Window Module
STOP LAMP
STOP
LAMP15A Stop Signal Electronic Module, Data Link Connector
P/WDW LH
25APower Window Main Switch, Driver Safety Power Window Module (LHD), Passenger Power
Window Switch (RHD)
P/WDW RH
25APower Window Main Switch, Driver Safety Power Window Module (RHD), Passenger
Power Window Switch (LHD)
SENSOR
S10A PCB Fuse & Relay Box (Vacuum Pump Relay)
START
7.5AB/Alarm Relay, PCB Fuse & Relay Box (Start Relay), PCM, Smart Key Control Module,
Transaxle Range Switch
BRAKE SWITCH
10A Smart Key Control Module, Stop Lamp Switch
TCU
T15AA/T : Transaxle Range Switch, Pulse Generator 'A'/'B'
M/T : Vehicle Speed Sensor, PCB Fuse & Relay Box (F34)
Instrument panel fuse panel
