2017 Hyundai Elantra fuse box

1-4
Your vehicle at a glance
INTERIOR OVERVIEW (I)
1. Door lock/unlock button ....................3-16
2. Driver position memory system ........3-21
3. Outside rearview mirror folding
switch ................................................3-29
4. Outside rearview mirror control
switch ................................................3-28
5. Central door lock switch ....................3-17
6. Power window switches ....................3-31
7. Power window lock switch ................3-35
8. Headlight leveling device ................3-105
9. Instrument panel illumination
control switch ......................................3-53
10. Blind spot detection system button ..5-63
11. ESC OFF button ..............................5-47
12. Fuel filler door opener ....................3-48
13. Trunk release lever ..........................3-43
14. Fuse box ..........................................7-66
15. Steering wheel ................................3-23
16. Steering wheel tilt/telescope lever ......3-24
17. Seat ..................................................2-4
18. Hood release lever ..........................3-41
19. Brake pedal ....................................5-41
20. Accelerator pedal
OAD015003LThe actual shape may differ from the illustration.
■Left-hand drive

1-5
Your vehicle at a glance
INTERIOR OVERVIEW (II)
1
1. Door lock/unlock button ....................3-16
2. Driver position memory system ........3-21
3. Outside rearview mirror folding
switch ................................................3-29
4. Outside rearview mirror control
switch ................................................3-28
5. Central door lock switch ....................3-17
6. Power window switches ....................3-31
7. Power window lock switch ................3-35
8. Headlight leveling device ................3-105
9. Instrument panel illumination
control switch ......................................3-53
10. Blind spot detection system button ..5-63
11. ESC OFF button ..............................5-47
12. Fuel filler door opener ....................3-48
13. Trunk release lever ..........................3-43
14. Fuse box ..........................................7-66
15. Steering wheel ................................3-23
16. Steering wheel tilt/telescope lever ......3-24
17. Seat ..................................................2-4
18. Hood release lever ..........................3-41
19. Brake pedal ....................................5-41
20. Accelerator pedal
OAD015003RE
■ Right-hand drive
The actual shape may differ from the illustration.

ENGINE COMPARTMENT
1-8
Your vehicle at a glance
OAD075100L/OAD075101L
■Gasoline Engine (Nu 2.0 MPI)
1. Engine coolant reservoir....................7-36
2. Radiator cap ......................................7-35
3. Brake
/clutchfluid reservoir ..............7-38
4. Air cleaner ........................................7-42
5. Engine oil dipstick..............................7-32
6. Engine oil filler cap ............................7-33
7. Windshield washer fluid reservoir......7-40
8. Fuse box ............................................7-66
9. Battery ..............................................7-48
The actual engine room in the vehicle may differ from the illustration.
■Gasoline Engine (Gamma 1.6 MPI)

1-9
Your vehicle at a glance
1

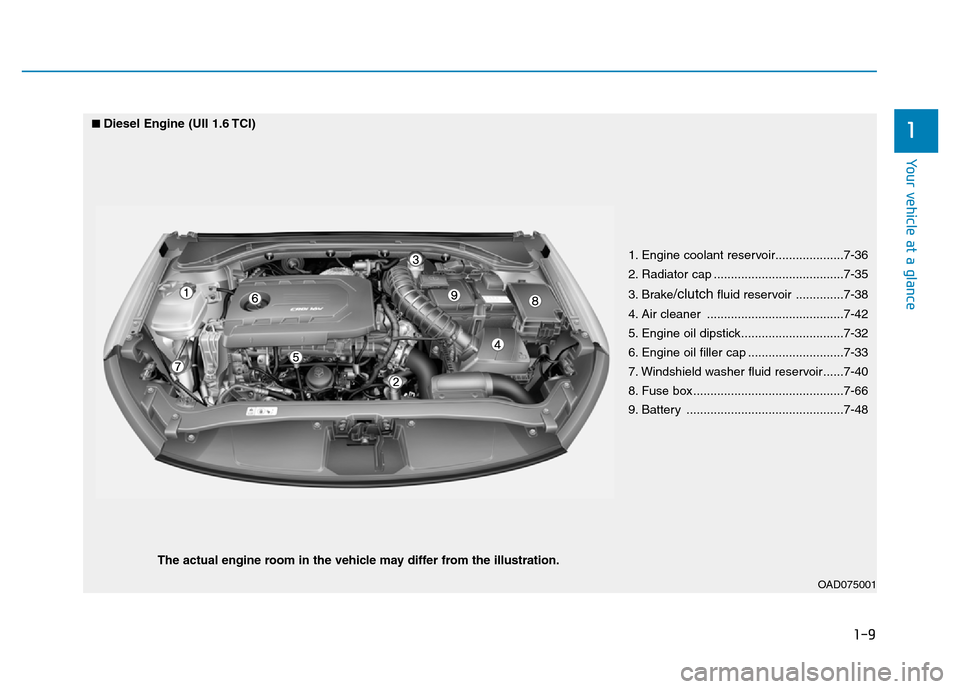

OAD075001
■Diesel Engine (UII 1.6 TCI)
The actual engine room in the vehicle may differ from the illustration.
1. Engine coolant reservoir....................7-36
2. Radiator cap ......................................7-35
3. Brake
/clutchfluid reservoir ..............7-38
4. Air cleaner ........................................7-42
5. Engine oil dipstick..............................7-32
6. Engine oil filler cap ............................7-33
7. Windshield washer fluid reservoir......7-40
8. Fuse box ............................................7-66
9. Battery ..............................................7-48

3-79
Convenient features of your vehicle
3
Turn on "FUSE SWITCH"
This warning message is displayed if
the fuse switch located on the fuse
box under the steering wheel is OFF.
You should turn the fuse switch on.
For more details, refer to “Fuses”
in chapter 7.
Align steering wheel (if equipped)
This warning message is displayed if
you start the engine when the steer-
ing wheel is turned to more than 90
degrees to the left or right.
In order to align the steering wheel,
turn the wheel in the direction shown
while the engine is running to
straighten the steering wheel.
Steering wheel aligning is com-
pleted (if equipped)
If the steering wheel aligning is com-
pleted after "Align steering wheel"
warning message is displayed, this
message is displayed for 2 seconds.
OTL045156L/OTL045157L
■Supervision cluster
OAD045144/OTL045155L
■Conventional cluster ■Supervision cluster
OTL045158L
■Supervision cluster

7-3
7
Maintenance

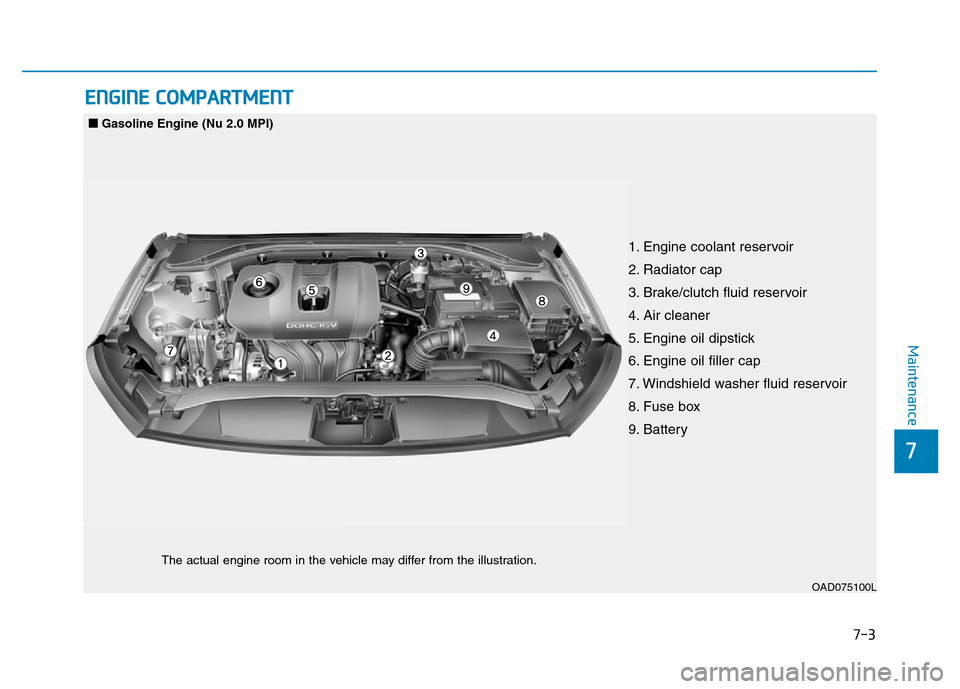

ENGINE COMPARTMENT
OAD075100L
■Gasoline Engine (Nu 2.0 MPI)
The actual engine room in the vehicle may differ from the illustration.
1. Engine coolant reservoir
2. Radiator cap
3. Brake/clutch fluid reservoir
4. Air cleaner
5. Engine oil dipstick
6. Engine oil filler cap
7. Windshield washer fluid reservoir
8. Fuse box
9. Battery

7-4
Maintenance
1. Engine coolant reservoir
2. Radiator cap
3. Brake/clutch fluid reservoir
4. Air cleaner
5. Engine oil dipstick
6. Engine oil filler cap
7. Windshield washer fluid reservoir
8. Fuse box
9. Battery
OAD075101L
■Gasoline Engine (Gamma 1.6 MPI)
The actual engine room in the vehicle may differ from the illustration.

7-5
7
Maintenance
1. Engine coolant reservoir
2. Radiator cap
3. Brake/clutch fluid reservoir
4. Air cleaner
5. Engine oil dipstick
6. Engine oil filler cap
7. Windshield washer fluid reservoir
8. Fuse box
9. Battery
OAD075001
■Diesel Engine (UII 1.6 TCI)
The actual engine room in the vehicle may differ from the illustration.
