4-91
Multimedia System
4
• Device : Name of device as shown
when searching from your
Bluetooth®Wireless Technology
device
• Passkey : Passkey used to pair the
device
➂From your
Bluetooth®Wireless
Technology device (i.e. Mobile
Phone), search and select your
car audio system.
❈SSP : Secure Simple Pairing
Non SSP supported device :
➃After a few moments, a screen is
displayed where the passkey is
entered.
Enter the passkey “0000” to pair
your
Bluetooth®Wireless Technology
device with the car audio system.SSP supported device :
➃After a few moments, a screen is dis-
played 6 digits passkey.
Check the passkey on your
Bluetooth®Wireless Technology
device and confirm.
➄Once pairing is complete, the fol-
lowing screen is displayed.
Some phones (i.e., iPhone
®, Android
and Blackberry phones) may offer an
option to allow acceptance of all
future Bluetooth
®connection requests
by default.” and “Visit http://www.
Hyundai.com/#/bluetooth for addition-
al information on pairing your
Bluetooth
®-enabled mobile phone,
and to view a phone compatibility list.
Information
If Bluetooth®Wireless Technology
devices are paired but none are cur-
rently connected, pressing the
[PHONE]button or the [CALL]but-
ton on the steering wheel controls dis-
plays the following screen. Press the
[Pair] button to pair a new device or
press the [Connect] to connect a previ-
ously paired device.
i

4-92
Multimedia System
Pairing through [PHONE] Setup
Press the [SETUP]button

Select [Phone]
Pair Phone
The following steps are the same as
those described in the section “When
No Devices have been Paired” on the
previous page.
Information
• The waiting period during phone
pairing will last for one minute. The
pairing process will fail if the device
is not paired within the given time.
If the pairing process fails, you must
start the process from the begin-
ning.
• Generally, most Bluetooth
®
Wireless Technology devices will
automatically connect once pairing
is complete. However, some devices
may require a separate verification
process to connect. Check to see
whetherBluetooth
®Wireless
Technology has been properly con-
nected within your mobile phone.
• List of paired Bluetooth
®Wireless
Technology devices can be viewed at
[SETUP][Phone]
[Paired
Phone List].
Paired Phone List
Press the [SETUP]button
Select
[Phone]
Select [Paired Phone List]
• Connected Phone : Device that is
currently connected.
• Paired Phone : Device that is
paired but not connected.
Connecting a Device
From the paired phone list, select the
device you want to connect and
press the [Connect](1) button.
i

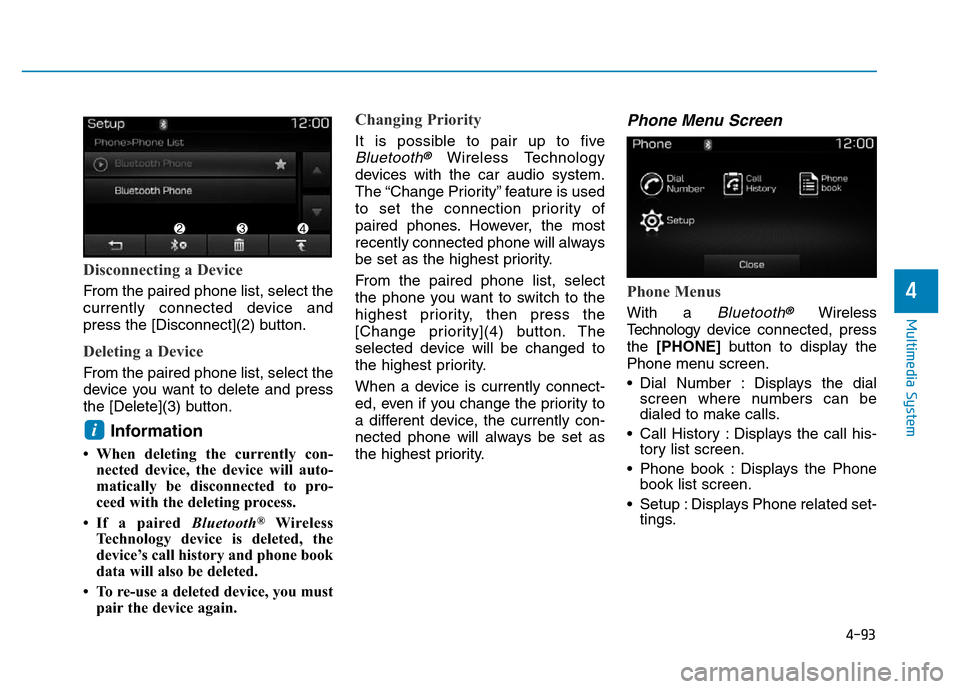

4-93
Multimedia System
4
Disconnecting a Device
From the paired phone list, select the
currently connected device and
press the [Disconnect](2) button.
Deleting a Device
From the paired phone list, select the
device you want to delete and press
the [Delete](3) button.
Information
• When deleting the currently con-
nected device, the device will auto-
matically be disconnected to pro-
ceed with the deleting process.
• If a paired Bluetooth
®Wireless
Technology device is deleted, the
device’s call history and phone book
data will also be deleted.
• To re-use a deleted device, you must
pair the device again.
Changing Priority
It is possible to pair up to five
Bluetooth®Wireless Technology
devices with the car audio system.
The “Change Priority” feature is used
to set the connection priority of
paired phones. However, the most
recently connected phone will always
be set as the highest priority.
From the paired phone list, select
the phone you want to switch to the
highest priority, then press the
[Change priority](4) button. The
selected device will be changed to
the highest priority.
When a device is currently connect-
ed, even if you change the priority to
a different device, the currently con-
nected phone will always be set as
the highest priority.
Phone Menu Screen
Phone Menus
With a Bluetooth®Wireless
Technology device connected, press
the [PHONE]button to display the
Phone menu screen.
• Dial Number : Displays the dial
screen where numbers can be
dialed to make calls.
• Call History : Displays the call his-
tory list screen.
• Phone book : Displays the Phone
book list screen.
• Setup : Displays Phone related set-
tings.
i

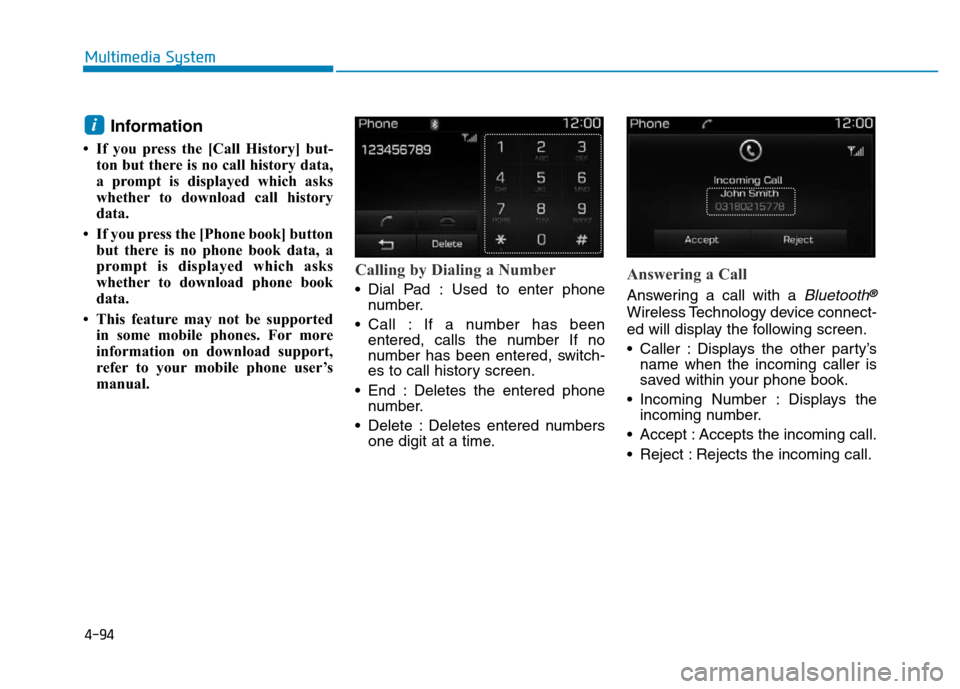

4-94
Multimedia System
Information
• If you press the [Call History] but-
ton but there is no call history data,
a prompt is displayed which asks
whether to download call history
data.
• If you press the [Phone book] button
but there is no phone book data, a
prompt is displayed which asks
whether to download phone book
data.
• This feature may not be supported
in some mobile phones. For more
information on download support,
refer to your mobile phone user’s
manual.
Calling by Dialing a Number
• Dial Pad : Used to enter phone
number.
• Call : If a number has been
entered, calls the number If no
number has been entered, switch-
es to call history screen.
• End : Deletes the entered phone
number.
• Delete : Deletes entered numbers
one digit at a time.Answering a Call
Answering a call with a Bluetooth®
Wireless Technology device connect-
ed will display the following screen.
• Caller : Displays the other party’s
name when the incoming caller is
saved within your phone book.
• Incoming Number : Displays the
incoming number.
• Accept : Accepts the incoming call.
• Reject : Rejects the incoming call.
i

4-96
Multimedia System
Information
• The call history list will display up
to 50 outgoing, incoming, and
missed calls.
• Upon downloading call histories,
previously saved histories are delet-
ed.
• Incoming calls with hidden caller
IDs will not be saved in the call his-
tory list.
• Previously saved phone book entries
are stored even if a device is discon-
nected and re-connected.
• The download feature may not be
supported in some mobile phones.
Check to see that the Bluetooth
®
Wireless Technology device sup-
ports the download feature.
Phone Book
The list of saved phone book entries
is displayed. Press the [Download]
button to download the call history.
• Contact List :
- Displays downloaded phone
book entries.
- Connects call upon selection.
• Download : Download phone book
entries.
Information
• Up to 1,000 phone book entries can
be copied into car phone book.
• Upon downloading phone book
data, previously saved phone book
data will be deleted.
• Downloading is not possible if the
phone book download feature is
turned off within the Bluetooth
®
Wireless Technology device. Also,
some devices may require device
authorization upon attempting to
download. If downloading cannot be
normally conducted, check the
Bluetooth
®Wireless Technology
device setting or the screen state.
• Caller ID information will not be
displayed for unsaved callers.
• The download feature may not be
supported in some mobile phones.
Check to see that the Bluetooth
®
Wireless Technology device sup-
ports the download feature.
ii

4-97
Multimedia System
4
Bluetooth®Wireless Technology
(Type B-5, Type B-6)
When No Devices have been
Paired
➀Press the [PHONE]button or the
[CALL] button on the steering
wheel controls. The following
screen is displayed.
➁Press the
[OK] button to enter the
Pair Phone screen.• Car Name : Name of device as
shown when searching from your
Bluetooth®Wireless Technology
device
• Passkey : Passkey used to pair the
device
➂From your
Bluetooth®Wireless
Technology device (i.e. Mobile
Phone), search and select your
car audio system.
❈SSP : Secure Simple Pairing
Non SSP supported device :
➃After a few moments, a screen is
displayed where the passkey is
entered.
Enter the passkey “0000” to pair
your
Bluetooth®Wireless Technology
device with the car audio system.SSP supported device :
➃After a few moments, a screen is dis-
played 6 digits passkey.
Check the passkey on your
Bluetooth®Wireless Technology
device and confirm.
➄Once pairing is complete, the fol-
lowing screen is displayed.
Some phones (i.e., iPhone
®, Android
and Blackberry phones) may offer an
option to allow acceptance of all
future Bluetooth
®connection requests
by default." and "Visit http://www.
Hyundai.com/#/bluetooth for addi-
tional information on pairing your
Bluetooth
®-enabled mobile phone,
and to view a phone compatibility list.

4-98
Multimedia System
Information
If Bluetooth®Wireless Technology
devices are paired but none are cur-
rently connected, pressing the
[PHONE]button or the [CALL]but-
ton on the steering wheel controls dis-
plays the following screen. Press the
[Pair] button to pair a new device or
press the [Connect] to connect a previ-
ously paired device.
Pairing through [PHONE] Setup
Press the [SETUP]button
Select
[Phone]
Pair Phone
The following steps are the same as
those described in the section “When
No Devices have been Paired” on the
previous page.
Information
• The waiting period during phone
pairing will last for one minute. The
pairing process will fail if the device
is not paired within the given time.
If the pairing process fails, you must
start the process from the begin-
ning.
• Generally, most Bluetooth
®Wireless
Technology devices will automati-
cally connect once pairing is com-
plete. However, some devices may
require a separate verification
process to connect. Check to see
whetherBluetooth
®Wireless Technology
has been properly connected within
your mobile phone.
• List of paired Bluetooth
®Wireless
Technology devices can be viewed at
[SETUP]
[Phone] [Paired
Phone List].
ii

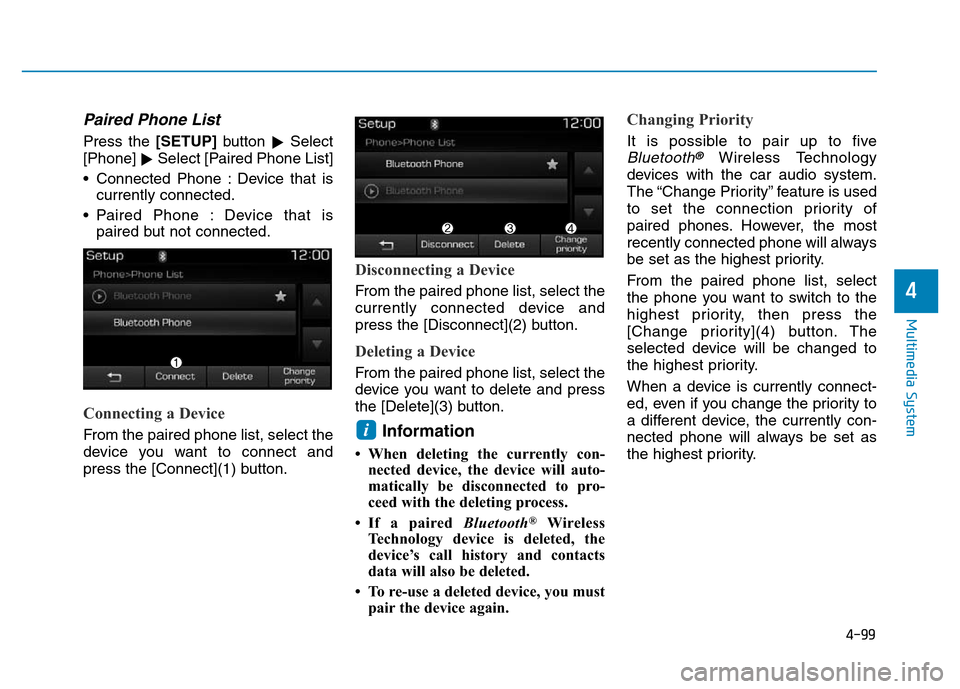

4-99
Multimedia System
4
Paired Phone List
Press the [SETUP]button
Select
[Phone]
Select [Paired Phone List]
• Connected Phone : Device that is
currently connected.
• Paired Phone : Device that is
paired but not connected.
Connecting a Device
From the paired phone list, select the
device you want to connect and
press the [Connect](1) button.
Disconnecting a Device
From the paired phone list, select the
currently connected device and
press the [Disconnect](2) button.
Deleting a Device
From the paired phone list, select the
device you want to delete and press
the [Delete](3) button.
Information
• When deleting the currently con-
nected device, the device will auto-
matically be disconnected to pro-
ceed with the deleting process.
• If a paired Bluetooth
®Wireless
Technology device is deleted, the
device’s call history and contacts
data will also be deleted.
• To re-use a deleted device, you must
pair the device again.
Changing Priority
It is possible to pair up to five
Bluetooth®Wireless Technology
devices with the car audio system.
The “Change Priority” feature is used
to set the connection priority of
paired phones. However, the most
recently connected phone will always
be set as the highest priority.
From the paired phone list, select
the phone you want to switch to the
highest priority, then press the
[Change priority](4) button. The
selected device will be changed to
the highest priority.
When a device is currently connect-
ed, even if you change the priority to
a different device, the currently con-
nected phone will always be set as
the highest priority.
i
