Features of your vehicle
ItemsExplanation
Welcome Sound(if equipped) If this item checked, the welcome sound function will be activated.
ECO Driving (if equipped) If this item is checked, the ECO Driving function will be activated.
Shift Indicator (if equipped) If this item is checked, the shift indicator function will be activated.
Fuel Economy UnitChoose the fuel economy unit. (US galllon, UK gallon)
Steering Position
If this item is checked, the warning function regarding the steering wheel alignment will be
activated.
For more details, refer to "Warning Messages" in this chapter.
Fuel Economy Auto Reset
Off (Disable): The average fuel economy will reset when the RESET button presses for more than 1 second.
After ignition: The average fuel economy will reset automatically when the engine start/stop button is in the OFF position during 4 hours.
After refueling: The average fuel economy will rest automatically when the vehicle speed exceeds 1km/h after refueling 6L or more.
Temperature UnitChoose the temperature unit. (°C,°F)
Settings

Driving your vehicle
42
5
Your vehicle's fuel economy depends
mainly on your style of driving, where
you drive and when you drive.
Each of these factors affects how
many miles (kilometers) you can get
from a gallon (liter) of fuel. To operate
your vehicle as economically as pos-
sible, use the following driving sug-
gestions to help save money in both
fuel and repairs:
Drive smoothly. Accelerate at a
moderate rate. Don't make "jack-
rabbit" starts or full-throttle shifts
and maintain a steady cruising
speed. Don't race between stop-
lights. Try to adjust your speed to
that of the other traffic so you don't
have to change speeds unneces-
sarily. Avoid heavy traffic whenever
possible. Always maintain a safe
distance from other vehicles so
you can avoid unnecessary brak-
ing. This also reduces brake wear.
Drive at a moderate speed. The faster you drive, the more fuel your
car uses. Driving at a moderate
speed, especially on the highway,
is one of the most effective ways to
reduce fuel consumption. Don't "ride" the brake pedal. This
can increase fuel consumption and
also increase wear on these com-
ponents. In addition, driving with
your foot resting on the brake pedal
may cause the brakes to overheat,
which reduces their effectiveness
and may lead to more serious con-
sequences.
Take care of your tires. Keep them inflated to the recommended pres-
sure. Incorrect inflation, either too
much or too little, results in unnec-
essary tire wear. Check the tire
pressures at least once a month.
Be sure that the wheels are aligned correctly. Improper align-
ment can result from hitting curbs
or driving too fast over irregular
surfaces. Poor alignment causes
faster tire wear and may also result
in other problems as well as
greater fuel consumption. Keep your car in good condition. For
better fuel economy and reduced
maintenance costs, maintain your
car in accordance with the mainte-
nance schedule in section 7. If you
drive your car in severe conditions,
more frequent maintenance is
required (see section 7 for details).
Keep your car clean. For maximum service, your vehicle should be kept
clean and free of corrosive materi-
als. It is especially important that
mud, dirt, ice, etc. not be allowed to
accumulate on the underside of the
car. This extra weight can result in
increased fuel consumption and
also contribute to corrosion.
Travel lightly. Don't carry unneces- sary weight in your car. Weight
reduces fuel economy.
Don't let the engine idle longer than necessary. If you are waiting
(and not in traffic), turn off your
engine and restart only when
you're ready to go.
ECONOMICAL OPERATION

77
Maintenance
At least monthly:
Check coolant level in the enginecoolant reservoir.
Check the operation of all exterior lights, including the stoplights, turn
signals and hazard warning flash-
ers.
Check the cold inflation pressures of all tires including the spare.
At least twice a year
(i.e., every Spring and Fall):
Check radiator, heater and air con- ditioning hoses for leaks or dam-
age.
Check windshield washer spray and wiper operation. Clean wiper
blades with clean cloth dampened
with washer fluid.
Check headlight alignment.
Check muffler, exhaust pipes, shields and clamps.
Check the lap/shoulder belts for wear and function.
Check for worn tires and loose wheel lug nuts.
At least once a year:
Clean body and door drain holes.
Lubricate door hinges and checks,and hood hinges.
Lubricate door and hood locks and latches.
Lubricate door rubber weather- strips.
Check the air conditioning system.
Inspect and lubricate automatic transaxle linkage and controls.
Clean battery and terminals.
Check the brake fluid level.

Maintenance
46
7
Remove the valve cap from the tire
valve stem. Press the tire gage firm-
ly onto the valve to get a pressure
measurement. If the cold tire inflation
pressure matches the recommended
pressure on the tire and loading
information label, no further adjust-
ment is necessary. If the pressure is
low, add air until you reach the rec-
ommended amount.
If you overfill the tire, release air by
pushing on the metal stem in the
center of the tire valve. Recheck the
tire pressure with the tire gage. Be
sure to put the valve caps back on
the valve stems. They help prevent
leaks by keeping out dirt and mois-
ture.Tire rotation
To equalize tread wear, it is recom-
mended that the tires be rotated
every 7,500 miles (12,000 km) or
sooner if irregular wear develops.
During rotation, check the tires for
correct balance.
When rotating tires, check for uneven
wear and damage. Abnormal wear is
usually caused by incorrect tire pres-
sure, improper wheel alignment, out-
of-balance wheels, severe braking or
severe cornering. Look for bumps or
bulges in the tread or side of tire.
Replace the tire if you find either of
these conditions. Replace the tire if
fabric or cord is visible. After rotation,
be sure to bring the front and rear tire
pressures to specification and check
lug nut tightness.WARNING
Inspect your tires frequently
for proper inflation as well as
wear and damage. Always use
a tire pressure gauge.
Tires with too much or too little pressure wear unevenly caus-
ing poor handling, loss of vehi-
cle control, and sudden tire
failure leading to accidents,
injuries, and even death. The
recommended cold tire pres-
sure for your vehicle can be
found in this manual and on
the tire label located on the dri-
ver's side center pillar.
Worn tires can cause acci- dents. Replace tires that are
worn, show uneven wear, or
are damaged.
Remember to check the pres- sure of your spare tire.
HYUNDAI recommends that
you check the spare every time
you check the pressure of the
other tires on your vehicle.

747
Maintenance
Disc brake pads should be inspectedfor wear whenever tires are rotated.
✽
✽ NOTICE
Rotate radial tires that have an
directional tread pattern only from
front to rear and not from right to
left.

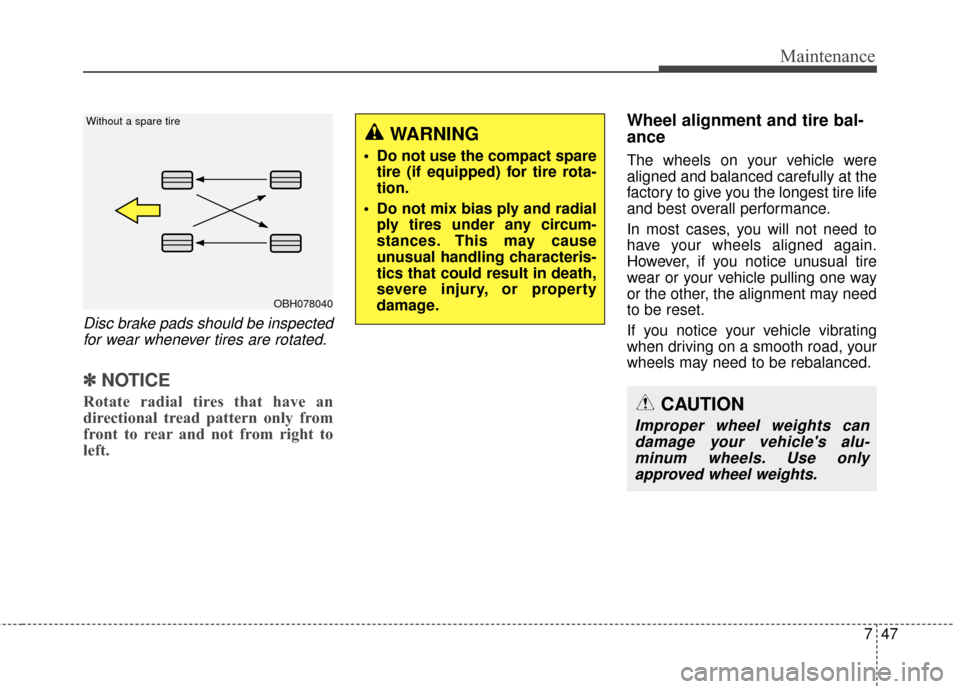

Wheel alignment and tire bal-
ance
The wheels on your vehicle were
aligned and balanced carefully at the
factory to give you the longest tire life
and best overall performance.
In most cases, you will not need to
have your wheels aligned again.
However, if you notice unusual tire
wear or your vehicle pulling one way
or the other, the alignment may need
to be reset.
If you notice your vehicle vibrating
when driving on a smooth road, your
wheels may need to be rebalanced.
OBH078040
Without a spare tire
WARNING
Do not use the compact spare
tire (if equipped) for tire rota-
tion.
Do not mix bias ply and radial ply tires under any circum-
stances. This may cause
unusual handling characteris-
tics that could result in death,
severe injury, or property
damage.
CAUTION
Improper wheel weights candamage your vehicle's alu-minum wheels. Use onlyapproved wheel weights.

749
Maintenance
Compact spare tire replacement
A compact spare tire has a shorter
tread life than a regular size tire.
Replace it when you can see the
tread wear indicator bars on the tire.
The replacement compact spare tire
should be the same size and design
as the one provided with your new
vehicle and should be mounted on
the same compact spare tire wheel.
The compact spare tire is not
designed to be mounted on a regular
size wheel, and the compact spare
tire wheel is not designed for mount-
ing a regular size tire.
Wheel replacement
When replacing the metal wheels for
any reason, make sure the new
wheels are equivalent to the original
factory units in diameter, rim width
and offset.
Tire traction
Tire traction can be reduced if you
drive on worn tires, tires that are
improperly inflated or on slippery
road surfaces. Tires should be
replaced when tread wear indicators
appear. To reduce the possibility of
losing control, slow down whenever
there is rain, snow or ice on the road.
Tire maintenance
In addition to proper inflation, correct
wheel alignment helps to decrease
tire wear. If you find a tire is worn
unevenly, have your dealer check the
wheel alignment.
When you have new tires installed,
make sure they are balanced. This
will increase vehicle ride comfort and
tire life. Additionally, a tire should
always be rebalanced if it is removed
from the wheel.
WARNING
A wheel that is not the correct
size may adversely affect wheel
and bearing life, braking and
stopping abilities, handling
characteristics, ground clear-
ance, body-to-tire clearance,
snow chain clearance,
speedometer and odometer cal-
ibration, headlight aim and
bumper height.

I9
Index
Tachometer ....................................................................4-57\
Tailgate ........................................................................\
..4-25
Tether anchor system ....................................................3-36
Theft-alarm system........................................................4-17
Tilt steering ..................................................................4-44
Tire and loading information label ..............................5-53
Tire chains ....................................................................5-50\
Tire pressure monitoring system (TPMS) ......................6-9
Tire specification and pressure label ..............................8-9
Tires and wheels............................................................7-44Checking tire inflation pressure ................................7-45
Compact spare tire replacement ................................7-49
Low aspect ratio tire ..................................................7-58
Recommended cold tire inflation pressures ..............7-44
Tire care ......................................................................7-\
44
Tire maintenance ........................................................7-49
Tire replacement ........................................................7-48
Tire rotation ................................................................7-46
Tire sidewall labeling ................................................7-50
Tire traction ................................................................7-49
Wheel alignment and tire balance ..............................7-47
Wheel replacement ....................................................7-49
Tires and wheels..............................................................8-3
Towing ........................................................................\
..6-22
Towing capacity ............................................................5-54
Trailer towing ................................................................5-59 Transaxle
Automatic transaxle....................................................5-17
Manual transaxle ........................................................5-14
Trip computer ................................................................4-61 Automatic transaxle shift position indicator ..............4-60
Manual transaxle shift indicator ................................4-60
Outside temperature ..................................................4-60
Vehicle break-in process ................................................1-5
Vehicle capacity weight ................................................5-53
Vehicle certification label................................................8-8
Vehicle curb weight ......................................................5-58
Vehicle data collection and event data recorders ............1-6
Vehicle identification number (VIN) ..............................8-8
Vehicle load limit ..........................................................5-53 Cargo capacity ............................................................5-54
Certification label ......................................................5-56
Seating capacity..........................................................5-53
Steps For Determining Correct Load Limit ..............5-54
Tire and loading information label ............................5-53
Towing capacity..........................................................5-54
Vehicle capacity weight..............................................5-53
Vehicle stability management ......................................5-33
Vehicle weight ..............................................................5-58 Base curb weight ........................................................5-58
Cargo weight ..............................................................5-58
T
V

Index
10I
GAW (Gross axle weight) ..........................................5-58
GAWR (Gross axle weight rating) ............................5-58
GVW (Gross vehicle weight) ....................................5-58
GVWR (Gross vehicle weight rating)........................5-58
Vehicle curb weight ....................................................5-58
Volume/weight ................................................................8-4
Warning and indicators ................................................4-71
Washer fluid ..................................................................7-33
Weight/volume ................................................................8-4
Welcome system............................................................4-99
Wheel alignment and tire balance ................................7-47
Wheel replacement ........................................................7-49
Windows ........................................................................\
4-27 Auto down window ....................................................4-29
Auto up/down window ..............................................4-30
Power window lock button ........................................4-31
Windshield defrosting and defogging ........................4-118 Auto defogging system ............................................4-120
Winter driving ..............................................................5-49 Snow tires ..................................................................5-49
Tire chains ..................................................................5-50
Wiper blades..................................................................7-38
Wipers and washers ......................................................4-94
W
