Safety features of your vehicle
48
3
Main components of occupant
classification system
A detection device located within
the front passenger seat frame.
Electronic system to determine whether the front passenger air
bag system should be activated or
deactivated.
An indicator light located on the instrument panel which illuminates
the words PASS AIR BAG "OFF"
indicating the front passenger air
bag system is deactivated.
The instrument panel air bag indi- cator light is interconnected with
the occupant classification system.
The purpose is to help reduce the
risk of injury or death from an inflat-
ing air bag to certain front passenger
seat occupants, such as children, by
requiring the air bag to be automati-
cally turned OFF.
For example, if a child restraint of the
type specified in the regulations is on
the seat, the occupant classification
sensor can detect it and cause the
air bag to turn OFF. Front passenger seat adult occu-
pants who are properly seated and
wearing the seat belt properly,
should not cause the passenger air
bag to be automatically turned OFF.
For small adults it may be turned
OFF, however, if the occupant does
not sit in the seat properly (for exam-
ple, by not sitting upright, by sitting
on the edge of the seat, or by other-
wise being out of position), this could
cause the sensor to turn the air bag
OFF.
You will find the PASS AIR BAG
"OFF" indicator on the center facia
panel. This system detects the condi-
tions 1~4 in the following table and
activates or deactivates the front
passenger air bag based on these
conditions.
Always be sure that you and all vehi-
cle occupants are seated and
restrained properly (sitting upright
with the seat in an upright position,
centered on the seat cushion, with
the person's legs comfortably
extended, feet on the floor, and wear-
ing the safety belt properly) for the
most effective protection by the air
bag and the safety belt. The OCS may not function proper-
ly if the passenger takes actions
which can affect the classification
system. These include:
(1) Failing to sit in an upright posi- tion.
(2) Leaning against the door or center console.
(3) Sitting towards the sides or the front of the seat.
(4) Putting legs on the dashboard or resting them on other loca-
tions which reduce the passen-
ger weight on the front seat.
(5) Improperly wearing the safety belt.
(6) Reclining the seat back.

4143
Features of your vehicle
(Continued) Turn on the car ignition before using this device. Do not oper-ate the audio system for longperiods of time with the igni-tion turned off as such opera-tions may lead to battery dis-charge.
Do not subject the device to severe shock or impact. Directpressure onto the front side ofthe monitor may cause dam-age to the LCD or touchscreen.
When cleaning the device, make sure to turn off thedevice and use a dry andsmooth cloth. Never usetough materials, chemicalcloths, or solvents (alcohol,benzene, thinners, etc.) assuch materials may damagethe device panel or causecolor/quality deterioration.
(Continued)(Continued) Do not place beverages close to the audio system. Spillingbeverages may lead to systemmalfunction.
In case of product malfunc- tion, please contact your placeof purchase or After Servicecenter.
Placing the audio system within an electromagneticenvironment may result innoise interference.
Prevent caustic solutions such as perfume and cosmet-ic oil from contacting thedashboard because they maycause damage or discol-oration.

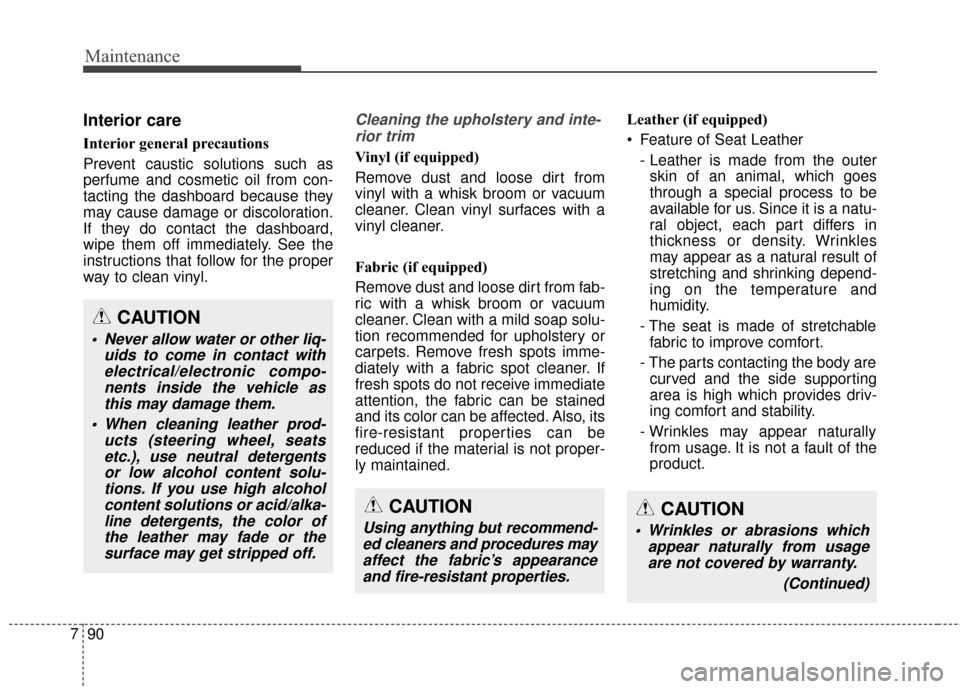

Maintenance
90
7
Interior care
Interior general precautions
Prevent caustic solutions such as
perfume and cosmetic oil from con-
tacting the dashboard because they
may cause damage or discoloration.
If they do contact the dashboard,
wipe them off immediately. See the
instructions that follow for the proper
way to clean vinyl.
Cleaning the upholstery and inte-
rior trim
Vinyl (if equipped)
Remove dust and loose dirt from
vinyl with a whisk broom or vacuum
cleaner. Clean vinyl surfaces with a
vinyl cleaner.
Fabric (if equipped)
Remove dust and loose dirt from fab-
ric with a whisk broom or vacuum
cleaner. Clean with a mild soap solu-
tion recommended for upholstery or
carpets. Remove fresh spots imme-
diately with a fabric spot cleaner. If
fresh spots do not receive immediate
attention, the fabric can be stained
and its color can be affected. Also, its
fire-resistant properties can be
reduced if the material is not proper-
ly maintained. Leather (if equipped)
Feature of Seat Leather
- Leather is made from the outerskin of an animal, which goes
through a special process to be
available for us. Since it is a natu-
ral object, each part differs in
thickness or density. Wrinkles
may appear as a natural result of
stretching and shrinking depend-
ing on the temperature and
humidity.
- The seat is made of stretchable fabric to improve comfort.
- The parts contacting the body are curved and the side supporting
area is high which provides driv-
ing comfort and stability.
- Wrinkles may appear naturally from usage. It is not a fault of the
product.
CAUTION
Never allow water or other liq- uids to come in contact withelectrical/electronic compo-nents inside the vehicle asthis may damage them.
When cleaning leather prod- ucts (steering wheel, seatsetc.), use neutral detergentsor low alcohol content solu-tions. If you use high alcoholcontent solutions or acid/alka-line detergents, the color ofthe leather may fade or thesurface may get stripped off.
CAUTION
Using anything but recommend-ed cleaners and procedures mayaffect the fabric’s appearanceand fire-resistant properties.
CAUTION
Wrinkles or abrasions which appear naturally from usageare not covered by warranty.
(Continued)

Specifications, Consumer information, Reporting safety defects
88
The vehicle certification label
attached on the driver’s side center
pillar contains the vehicle identifica-
tion number (VIN).The vehicle identi-
fication number (VIN) is the number
used in registering your car and in all
legal matters pertaining to its owner-
ship, etc.
The number is punched on the floor
under the front passenger’s seat. To
check the number, open the cover.The vehicle certification label
attached on the driver’s side center
pillar contains the vehicle identifica-
tion number (VIN).The VIN is also on
a plate attached to the top of the
dashboard. The number on the plate
can easily be seen through the wind-
shield from outside.
The vehicle certification label
attached on the driver’s side center
pillar contains the vehicle identifica-
tion number (VIN).
VEHICLE IDENTIFICATION NUMBER (VIN)
OBH088005N
■VIN label
OMD080001OMD080002
OMDS080002
■Type A
■Type B
VEHICLE CERTIFICATION
LABEL

I3
Index
California perchlorate notice ........................................7-95
Capacities (Lubricants) ..................................................8-5
CareExterior care ..............................................................7-85
Interior care ................................................................7-90
Tire care ......................................................................7-\
44
Cargo area cover..........................................................4-131
Cargo capacity ..............................................................5-54
Cargo weight ................................................................5-58
Center console storage ................................................4-122
Central door lock switch ..............................................4-22
Certification label ..........................................................5-56
Certification label ............................................................8-8
Chains Tire chains ..................................................................5-50
Changing tires ..............................................................6-15
Checking tire inflation pressure ....................................7-45
Child restraint system....................................................3-30 Lower anchor..............................................................3-38
Seat belt ......................................................................3-\
33
Tether anchor system..................................................3-36
Child-protector rear door lock ......................................4-24
Climate control air filter................................................7-36
Climate control system ....................................4-101, 4-111
Clothes hanger ............................................................4-129
Combined instrument, see instrument cluster ..............4-56 Compact spare tire ........................................................6-20
Compact spare tire replacement ....................................7-49
Consumer information ..................................................8-10
Cool box ......................................................................4-\
123
Coolant ........................................................................\
..7-29
Cooling fluid, see engine coolant ................................7-29
Crankcase emission control system ..............................7-92
Crankcase emission control system ..............................7-92
Cruise control system ....................................................5-36
Cup holder ..................................................................4-126
Curtain air bag ..............................................................3-59
Dashboard illumination,
see instrument panel illumination ..............................4-57
Dashboard, see instrument cluster ................................4-56
Daytime running light ..................................................4-89
Defogging (Windshield)..............................................4-118
Defroster (Rear window) ............................................4-100
Defrosting (Windshield)..............................................4-118
Dimensions ......................................................................8-\
2
Display illumination, see instrument panel illumination ..............................4-57
Displays, see instrument cluster....................................4-56
Door locks ....................................................................4-21\
Central door lock switch ............................................4-22
Child-protector rear door lock....................................4-24
