2017 HONDA PILOT sensor

606
Maintenance
Battery
Checking the Battery
The battery condition is being monitored by the sensor on the negative terminal.
If there is a problem with the sensor, the warning message on MID will let you know.
Have your vehicle checked by a dealer.
If your vehicle’s battery is disconnected or goes dead:
• The audio system is disabled.
2 Audio System Theft Protection P. 221
•The clock resets.
2 Clock P. 120
Charging the Battery
Disconnect both battery cables to prevent da maging your vehicle’s electrical system.
Always disconnect the negative (–) cable first, and reconnect it last.
1 Battery
WARNING: Battery post, terminals,
and related accessories contain lead
and lead compounds.
Wash your hands after handling.
When you find corrosion, cl ean the battery terminals
by applying a baking powder and water solution.
Clean the terminals with a damp towel. Cloth/towel
dry the battery. Coat the terminals with grease to
help prevent future corrosion.
When replacing the battery, the replacement must be
of the same specifications.
Please consult a dealer for more information.
3WARNING
The battery gives off explosive hydrogen
gas during normal operation.
A spark or flame can cause the battery to
explode with enough force to kill or
seriously hurt you.
When conducting any battery
maintenance, wear prot ective clothing and
a face shield, or have a skilled technician do
it.
17 PILOT-31TG76100.book 606 ページ ２０１６年９月２０日　火曜日　午後４時９分

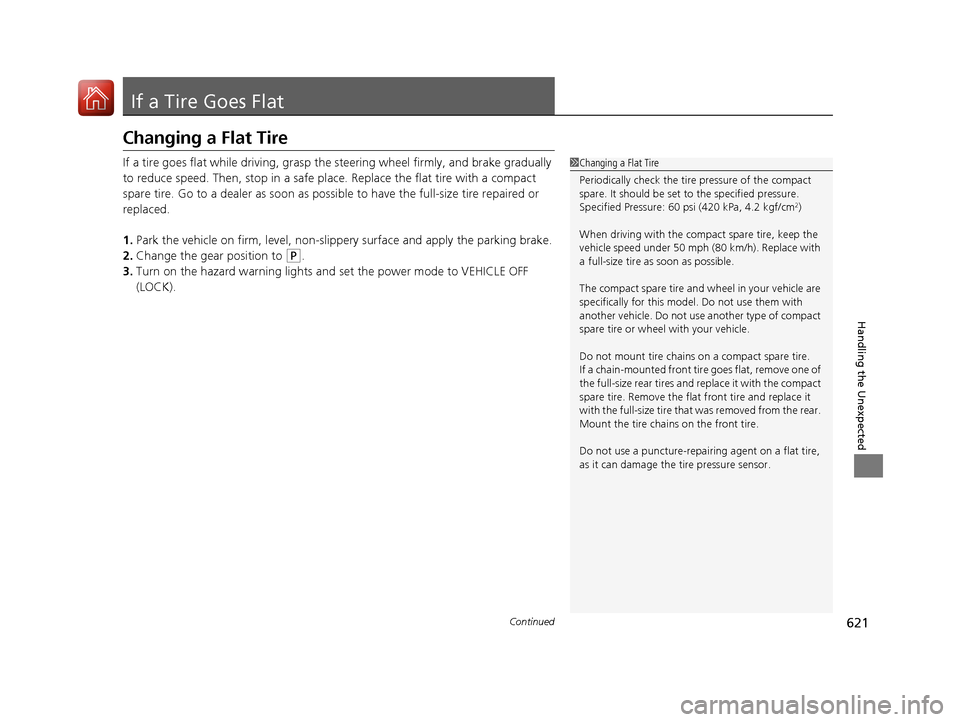

621Continued
Handling the Unexpected
If a Tire Goes Flat
Changing a Flat Tire
If a tire goes flat while driving, grasp the steering wheel firmly, and brake gradually
to reduce speed. Then, stop in a safe plac e. Replace the flat tire with a compact
spare tire. Go to a dealer as soon as possib le to have the full-size tire repaired or
replaced.
1. Park the vehicle on firm, level, non-slip pery surface and apply the parking brake.
2. Change the gear position to
(P.
3. Turn on the hazard warning lights an d set the power mode to VEHICLE OFF
(LOCK).
1 Changing a Flat Tire
Periodically check the tire pressure of the compact
spare. It should be set to the specified pressure.
Specified Pressure: 60 psi (420 kPa, 4.2 kgf/cm
2)
When driving with the compact spare tire, keep the
vehicle speed under 50 mph (80 km/h). Replace with
a full-size tire as soon as possible.
The compact spare tire and wheel in your vehicle are
specifically for this model. Do not use them with
another vehicle. Do not us e another type of compact
spare tire or wheel with your vehicle.
Do not mount tire chains on a compact spare tire.
If a chain-mounted front tire goes flat, remove one of
the full-size rear tires and replace it with the compact
spare tire. Remove the flat front tire and replace it
with the full-size tire that was removed from the rear.
Mount the tire chains on the front tire.
Do not use a puncture-repairi ng agent on a flat tire,
as it can damage the tire pressure sensor.
17 PILOT-31TG76100.book 621 ページ ２０１６年９月２０日　火曜日　午後４時９分

uuIf a Tire Goes Flat uChanging a Flat Tire
628
Handling the Unexpected
If you replace a flat tire with the spare tire, the low tire pressure/TPMS indicator
comes on while you are driving. After driving for a few miles (kilometers), the
indicator will start blinking for a short time and then stay on. Tire Pressure
Monitor Problem appears on the multi-informat ion display (MID), but this is
normal.
If you replace the tire with a specified regular tire, the warning message on the MID
and the low tire pressure/TPMS indicator will go off after a few miles (kilometers).
■TPMS with Tire Fill Assist and the Spare Tire1 TPMS with Tire Fill Assist and the Spare Tire
The system cannot monitor th e pressure of the spare
tire. Manually check the spare tire pressure to be sure
that it is correct.
Use the TPMS specific whee ls. Each is equipped with
a tire pressure sensor mount ed inside the tire behind
the valve stem.
17 PILOT-31TG76100.book 628 ページ ２０１６年９月２０日　火曜日　午後４時９分

Index
663
Index
Index
A
ABS (Anti-lock Brake System).................. 541
AC Power Outlet ...................................... 197
Accessories and Modifications ................ 618
Accessory Power Sockets ......................... 196
Adaptive Cruise Control (ACC) ................ 502
Indicator ................................................... 92
Adaptive Cruise Control (ACC) with Low
Speed Follow (LSF) Indicator ................................................... 92
Additives
Coolant .................................................. 583
Engine Oil ............................................... 578
Washer ................................................... 586
Additives, Engine Oil ............................... 578
Adjusting Armrest .................................................. 186
Front Seats.............................................. 174
Head Restraints ....................... 179, 180, 181
Mirrors.................................................... 172
Rear Seats ............................................... 183
Second Row Seat .................................... 176
Steering Wheel ....................................... 171
Temperature ........................................... 116
Agile Handling Assist System .................. 529
Air Conditioning System (Climate Control System) ...................................... 210
Changing the Mode................................ 211
Defrosting the Windshield and Windows .............................................. 211
Dust and Pollen Filter .............................. 612 Recirculation/Fresh Air Mode ................... 211
Sensor ..................................................... 216
Synchronized Mode ................................. 213
Using Automatic Climate Control ............ 210
Air Conditioning System (Heating and
Cooling System) ...................................... 205
Cooling ................................................... 207
Defrosting the Windshield and
Windows ............................................... 208
Heating ................................................... 206
Air Pressure ....................................... 598, 653
Airbags ........................................................ 45
Advanced Airbags ..................................... 51
After a Collision ......................................... 49
Airbag Care ............................................... 57
Event Data Recorder .................................... 0
Front Airbags (SRS) .................................... 48
Indicator .............................................. 55, 83
Passenger Airbag Off Indicator .................. 56
Sensors ...................................................... 45
Side Airbags .............................................. 52
Side Curtain Airbags .................................. 54
All-wheel drive (AWD) Indicator ............... 89
AM/FM Radio .................................... 231, 267
Android Auto
TM........................................ 306
Anti-lock Brake System (ABS) .................. 541
Indicator .................................................... 83
Apple CarPlay
TM........................................ 303
Armrest ..................................................... 186
Audio Remote Controls ............................ 222
Audio System ............................ 218, 224, 242 Adjusting the Sound........................ 229, 260
AM/FM Radio .................................. 231, 267
Android Auto
TM....................................... 306
Apple CarPlayTM....................................... 303
Audio/Information Screen................ 225, 243
Auxiliary Input Jack.................................. 220
Changing the Home Screen Icon Layout .. 247
Closing Apps ........................................... 257
Display Setup .................................. 230, 261
Error Messages ........................................ 310
General Information ................................ 314
Home Screen........................................... 250
HondaLink ®............................................. 295
How to use Siri ® Eyes Free ....................... 302
iPod ................................................ 233, 281
Limitations for Manual Operation ............ 262
MP3/WMA/AAC ...................... 236, 278, 290
Pandora ®................................................. 288
Playing a CD............................................ 278
Playing Bluetooth ® Audio ................ 239, 293
Playing SiriusXM ® Radio .......................... 271
Reactivating ............................................ 221
Recommended CDs ................................. 315
Remote Controls ..................................... 222
Security Code .......................................... 221
Selecting an Audio Source ....................... 262
Song By Voice
TM (SBV) ............................. 284
Status Area ............................................. 256
Theft Protection ...................................... 221
Updating Apps ........................................ 258
USB Flash Drives ...................... 236, 290, 317
17 PILOT-31TG76100.book 663 ページ ２０１６年９月２０日　火曜日　午後４時９分

665
Index
Daytime Running Light............................ 589
Headlights .............................................. 587
High-Mount Brake Light.......................... 592
Rear License Plate Light ........................... 592
Side Turn Signal/Emergency Indicator Light ..................................................... 590
Taillight and Rear Side Marker Light ........ 591
Bulb Specifications ................................... 652
C
Car Wash Mode........................................ 485
Carbon Monoxide Gas ............................... 74
Carrying Cargo ................................. 453, 455
CD Player .................................................. 278
Certification Label ................................... 654
Changing Bulbs ........................................ 587
Charging System Indicator ................ 79, 638
Child Safety ................................................ 58
Childproof Door Locks ............................ 133
Child Seat ................................................... 58
Booster Seats ............................................ 73
Child Seat for Infants ................................ 60
Child Seat for Small Children .................... 61
Installing a Child Seat with a Lap/Shoulder
Seat Belt ................................................. 67
Larger Children ......................................... 72
Rear-facing Child Seat............................... 60
Selecting a Child Seat ............................... 62
Childproof Door Locks ............................. 133
Cleaning the Exterior ............................... 615 Cleaning the Interior
................................ 613
Client Service Information ....................... 662
Climate Control System ............................ 210
Changing the Mode ................................ 210
Defrosting the Windshield and
Windows ............................................... 211
Dust and Pollen Filter ............................... 612
Recirculation and Fresh Air Mode ............ 211
Sensors .................................................... 216
Synchronized Mode ................................. 213
Using Automatic Climate Control ............ 210
Clock .......................................................... 120
Coat Hook ................................................. 198
Collision Mitigation Braking System
TM
(CMBSTM) .................................................. 543
Collision Mitigation Braking SystemTM
(CMBSTM)
Indicator .............................................. 95, 96
Compact Spare Tire .......................... 621, 653
Compass .................................................... 448
Console Compartment ............................. 191
Controls ..................................................... 119
Coolant (Engine) ....................................... 583
Adding to the Radiator ............................ 584
Adding to the Reserve Tank ..................... 583
Overheating ............................................ 636
Creeping (Automatic Transmission) ........ 478
Cross Traffic Monitor ................................ 557
Cruise Control ........................................... 497
CRUISE CONTROL Indicator ....................... 88
CRUISE MAIN Indicator .............................. 88 Indicator.................................................... 88
Cup Holders .............................................. 194
Customized Features ................................ 351
D
Daytime Running Lights .......................... 163
Dead Battery ............................................. 633
Defaulting All the Settings ...................... 386
Defrosting the Windshield and
Windows ......................................... 208, 211
Detachable Anchor .................................... 42
Devices that Emit Radio Waves ............... 655
Dimming Headlights ............................................... 156
Rearview Mirror....................................... 172
Dipstick (Engine Oil) ................................. 579
Directional Signals (Turn Signal) ............. 155
Display Button .......................................... 243
Door Mirrors ............................................. 173
Doors ......................................................... 121
Auto Door Locking .................................. 134
Auto Door Unlocking .............................. 134
Door Open Message.................................. 36
Keys ........................................................ 121
Locking/Unlocking the Doors from the Inside .............................................. 15, 131
Locking/Unlocking the Doors from the Outside ................................................. 124
Lockout Prevention System ...................... 130
DOT Tire Quality Grading ........................ 600
17 PILOT-31TG76100.book 665 ページ ２０１６年９月２０日　火曜日　午後４時９分

666
Index
Driving....................................................... 451
Adaptive Cruise Control (ACC) ................ 502
Automatic Transmission ........................... 478
Braking .................................................... 539
Cruise Control ......................................... 497
Off-Highway Driving Guidelines ............... 469
Shifting Gear ........................................... 481
Starting the Engine .................................. 471
Driving Position Memory System ............. 169
Dust and Pollen Filter ............................... 612
E
ECON Button............................................. 494
ECON Mode Indicator ................................. 94
Electric Power Steering (EPS) System
Indicator ............................................ 86, 640
Electronic Stability Control (ESC) ............. 527
Emergency ................................................. 647
Emissions Testing (Readiness Codes) ....... 657
Engine ....................................................... 654
Coolant ................................................... 583
Jump Starting .......................................... 633
Oil ........................................................... 578
Remote Engine Start ................................ 473
Starting ................................................... 471
Engine Compartment Cover .................... 577
Engine Coolant ......................................... 583
Adding to the Radiator ............................ 584
Adding to the Reserve Tank ..................... 583
Overheating............................................. 636 Temperature Gauge ................................ 113
Engine Oil ................................................. 578
Adding .................................................... 580
Checking................................................. 579
Displaying Oil Life .................................... 571
Engine Oil Life ......................................... 117
Low Oil Pressure Indicator ................. 79, 638
Recommended Engine Oil ....................... 578
ENGINE START/STOP Button .................... 152
EPS (Electric Power Steering) System ............................................... 86, 640
Exhaust Gas Hazard (Carbon Monoxide) .. 74
Exterior Care (Cleaning) ........................... 615
Exterior Mirrors ........................................ 173
F
Features.................................................... 217
Filters Dust and Pollen ....................................... 612
Oil ........................................................... 581
Flat Tire ..................................................... 621
Floor Mats ................................................. 614
Fluids
Automatic Transmission .......................... 585
Brake ...................................................... 586
Engine Coolant ....................................... 583
Windshield Washer ................................. 586
FM/AM Radio .................................... 231, 267
Fog Lights ................................................. 159
Indicator.................................................... 87 Folding Down the Second Row Seat
...... 184
Folding Down the Third Row Seat .......... 185
Foot Brake ................................................ 540
Front Airbags (SRS) .................................... 48
Front Seats ................................................ 174
Adjusting ................................................ 174
Front Sensor Camera ............................... 500
Fuel ..................................................... 24, 562
Economy................................................. 565
Gauge .................................................... 113
Instant Fuel Economy .............................. 117
Low Fuel Indicator..................................... 82
Range ..................................................... 117
Recommendation.................................... 562
Refueling ................................................ 562
Fuel Economy ........................................... 565
Fuel Fill Cap ........................................ 24, 564
Fuel Fill Door ...................................... 24, 563
Unable to Unlock .................................... 648
Fuses ......................................................... 642
Inspecting and Changing ........................ 646
Locations ........................ 642, 643, 644, 645
G
Gasoline (Fuel) Economy................................................. 565
Gauge .................................................... 113
Information............................................. 562
Low Fuel Indicator..................................... 82
Refueling ................................................ 562
17 PILOT-31TG76100.book 666 ページ ２０１６年９月２０日　火曜日　午後４時９分

669
Index
Radiator .................................................. 584
Remote Control ...................................... 609
Remote Transmitter ................................ 608
Replacing Light Bulbs .............................. 587
Safety ..................................................... 569
Service Items ........................................... 573
Tires........................................................ 597
Transmission Fluid ................................... 585
Under the Hood ...................................... 575
Wireless Headphone ............................... 610
Malfunction Indicator Lamp ............. 79, 639
Map Lights ................................................ 189
Maximum Load Limit ............................... 455
Meters, Gauges ........................................ 113
MID (Multi-information Display) ............ 114
Mirrors ...................................................... 172
Adjusting ................................................ 172
Door ....................................................... 173
Exterior ................................................... 173
Interior Rearview ..................................... 172
Modifications (and Accessories) .............. 618
Moonroof ................................................. 148
MP3 ........................................... 236, 278, 290
MP3/WMA/AAC ........................ 236, 278, 290
Multi-Information Display (MID) ............ 114
Multi-View Rear Camera ......................... 561
N
Numbers (Identification)......................... 654
O
Odometer.................................................. 115
Off-Highway Driving Guidelines ............. 469
Oil (Engine) ............................................... 578
Adding .................................................... 580
Checking ................................................. 579
Displaying Oil Life .................................... 571
Low Oil Pressure Indicator .................. 79, 638
Recommended Engine Oil ........................ 578
Viscosity .................................................. 578
Open Source Licences ............................... 320
Opening/Closing Hood ....................................................... 576
Moonroof................................................ 148
Power Windows ...................................... 146
Tailgate ................................................... 135
Operating the Switches Around the
Steering Wheel ....................................... 152
Outside Temperature Display .................. 116
Overheating .............................................. 636
P
Paddle Shifters (Sequential Mode) .......... 488
Pandora® ................................................... 288
Panic Mode ............................................... 145
Panoramic Roof ........................................ 149
Parking ...................................................... 552
Parking Brake ........................................... 539
Parking Brake and Brake System
Indicator ............................................ 78, 640 Parking Sensor System
............................. 553
Passenger Airbag Off Indicator ................. 56
Passing Indicators ..................................... 156
Playing Bluetooth ® Audio ................ 239, 293
Power Tailgate ......................................... 138
Power Windows ....................................... 146
Precautions While Driving ....................... 477
Driving Guidelines for Your Utility
Vehicle .................................................. 477
Rain ........................................................ 477
Pregnant Women ....................................... 43
Puncture (Tire) .......................................... 621
R
Radiator.................................................... 584
Radio (FM/AM) ................................. 231, 267
Radio (SiriusXM ®) ..................................... 271
Radio Data System (RDS) ................. 232, 269
Range ........................................................ 117
RDS (Radio Data System) ................. 232, 269
Readiness Codes (Emissions Testing) ....... 657
Rear Climate Control System From the Rear Panel ................................ 215
Rear Defogger/Heated Door Mirror Button ..................................................... 168
Rear Entertainment System ..................... 322
Rear Seats ................................................. 183
Second Row Seat ............................ 183, 184
Third Row Seat ........................................ 185
Rearview Mirror ....................................... 172
17 PILOT-31TG76100.book 669 ページ ２０１６年９月２０日　火曜日　午後４時９分

671
Index
Sunglasses Holder.................................... 199
Supplemental Restraint System (SRS) ....... 48
Indicator ................................................... 83
Switches (Around the Steering Wheel) ............................................ 4, 5, 152
SYNC Mode .............................................. 213
System Message Indicator ......................... 88
T
Tachometer.............................................. 113
Tailgate ..................................................... 135
Unable to Open ...................................... 650
Temperature Gauge .................................................... 113
Outside Temperature Display .................. 116
Temperature Gauge ................................ 113
Temperature Sensor ........................ 116, 216
Third Row Seat (Folding Down) .............. 185
Third Row Seat Access ............................. 183
Tie-down Anchors .................................... 198
Time (Setting) ........................................... 120
Tire Fill Assist ............................................ 641
Tires .......................................................... 597
Air Pressure..................................... 598, 653
Checking and Maintaining ...................... 597
Inspection ............................................... 597
Labeling .................................................. 598
Puncture (Flat Tire) .................................. 621
Regulations ............................................. 600
Rotation.................................................. 604 Spare Tire ........................................ 621, 653
Summer .................................................. 605
Tire Chains .............................................. 605
Wear Indicators ....................................... 602
Winter ..................................................... 605
Tools .......................................................... 620
Towing a Trailer ....................................... 458
Equipment and Accessories ..................... 462
Load Limits .............................................. 458
Towing Your Vehicle ................................ 468
Emergency .............................................. 647
TPMS with Tire Fill Assist .......................... 535
Indicator ............................................ 86, 641
Tire Fill Assist ........................................... 641
Trailer Stability Assist ............................... 466
Transmission ......................... 21, 23, 479, 481
Automatic ........................... 21, 23, 479, 481
Fluid ........................................................ 585
Gear Position Indicator ...................... 80, 483
Number ................................................... 654
Operating the Shift Lever ........................... 23
Sequential Mode ..................................... 487
Transmission Indicator ............................... 80
Trip Meter ................................................. 116
Troubleshooting ....................................... 619
Blown Fuse ...................... 642, 643, 644, 645
Brake Pedal Vibrates .................................. 28
Buzzer Sounds When Opening Door .......... 29
Emergency Towing .................................. 647
Engine Won’t Start .................................. 629
Noise When Braking .................................. 30 Overheating ............................................ 636
Puncture/Flat Tire .................................... 621
Rear Door Won’t Open...................... 29, 133
Shift Lever Does Not Move ...................... 632
Warning Indicators .................................... 78
Turn Signals .............................................. 155
Indicators (Instrument Panel) ..................... 86
Turn-by-Turn Directions ........................... 117U
Under-floor Storage Area ........................ 192
Unlocking the Doors ................................ 124
Unlocking the Fron t Doors from the
Inside ................................................. 15, 131
USB Flash Drives ....................... 236, 290, 317
USB Port ............................................ 219, 324
V
Vanity Mirrors ............................................... 7
Vehicle Identification Number ................ 654
Vehicle Stability Assist (VSA ®).................. 527
Off Button............................................... 528
System Indicator ................................ 84, 527
Ventilation .............................................. 211
Ventilation ................................................ 205
Viscosity (Oil) .................................... 578, 653
Voice Control Operation .......................... 263
Audio Commands ................................... 265
Climate Control Commands .................... 266
17 PILOT-31TG76100.book 671 ページ ２０１６年９月２０日　火曜日　午後４時９分
