2017 HONDA ODYSSEY tether

uuChild Safety uSafety of Infants and Small Children
56

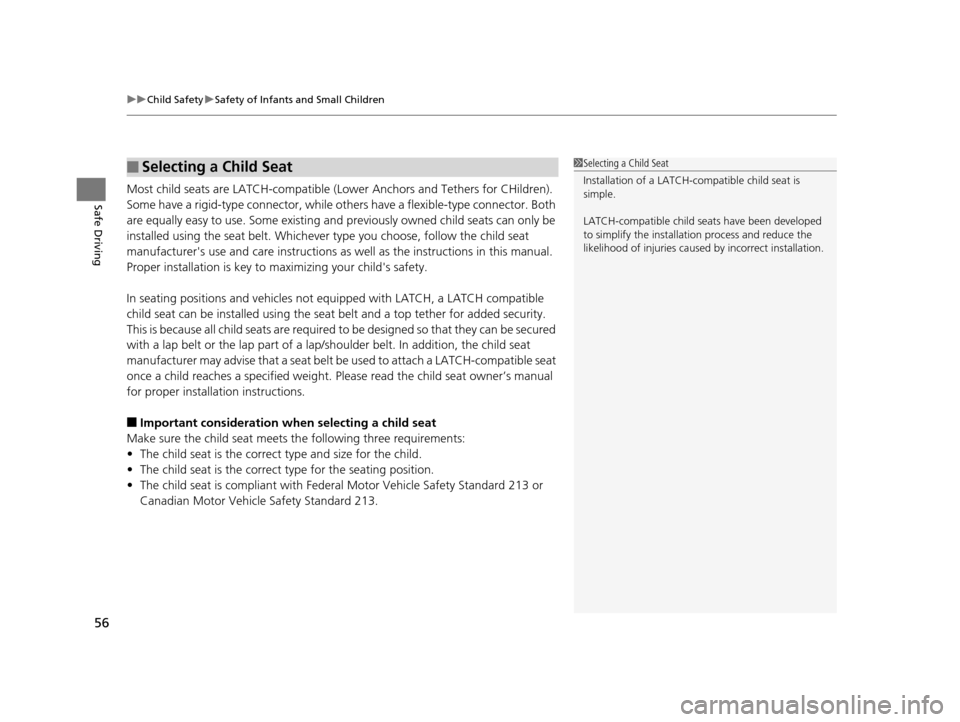

Safe DrivingMost child seats are LATCH-compatible (L ower Anchors and Tethers for CHildren).
Some have a rigid-type connector, while ot hers have a flexible-type connector. Both
are equally easy to use. Some existing and previously owned child seats can only be
installed using the seat belt. Whichever type you choose, follow the child seat
manufacturer's use and care instructions as well as the instructions in this manual.
Proper installation is key to ma ximizing your child's safety.
In seating positions and vehicles not equipped with LATCH, a LATCH compatible
child seat can be installed using the seat belt and a top tether for added security.
This is because all child seats are required to be designed so that they can be secured
with a lap belt or the lap part of a lap/sh oulder belt. In addition, the child seat
manufacturer may advise that a seat belt be used to attach a LATCH-compatible seat
once a child reaches a specified weight. Please read the child seat owner’s manual
for proper installation instructions.
■Important consideration when selecting a child seat
Make sure the child seat meets th e following three requirements:
• The child seat is the correct type and size for the child.
• The child seat is the correct type for the seating position.
• The child seat is compliant with Federal Motor Vehicle Safety Standard 213 or
Canadian Motor Vehicle Safety Standard 213.
■Selecting a Child Seat1Selecting a Child Seat
Installation of a LATCH-co mpatible child seat is
simple.
LATCH-compatible child s eats have been developed
to simplify the installati on process and reduce the
likelihood of injuries caused by incorrect installation.
17 US ODYSSEY (KA KC)-31TK86600.book 56 ページ ２０１６年１０月２４日　月曜日　午後４時２分

59
uuChild Safety uSafety of Infants and Small Children
Continued
Safe Driving

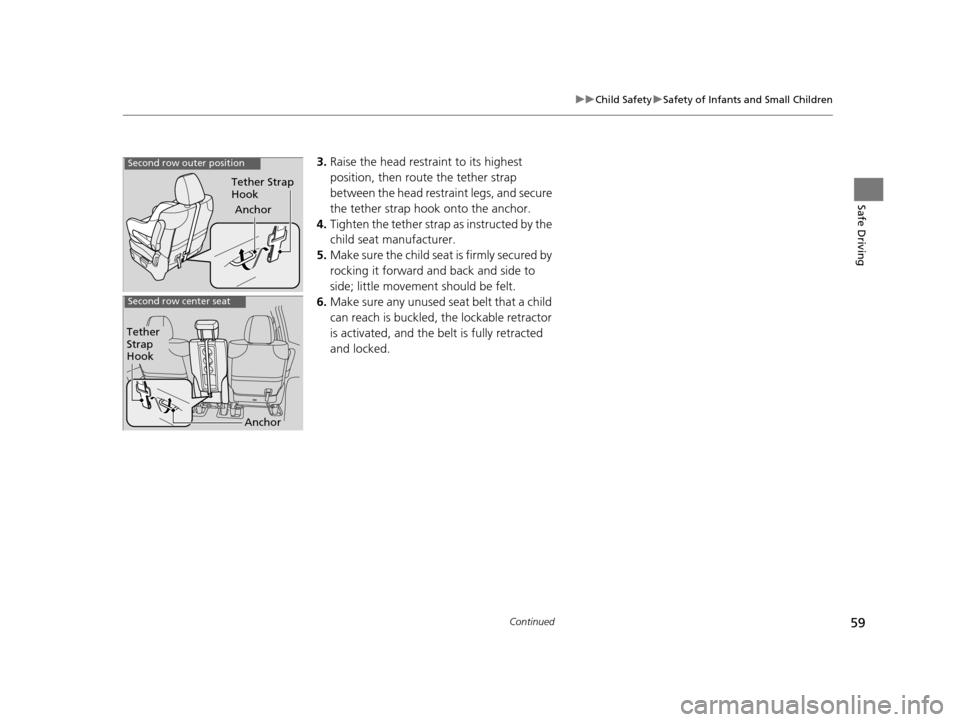

3. Raise the head restraint to its highest
position, then route the tether strap
between the head restraint legs, and secure
the tether strap hook onto the anchor.
4. Tighten the tether strap as instructed by the
child seat manufacturer.
5. Make sure the child seat is firmly secured by
rocking it forward and back and side to
side; little movement should be felt.
6. Make sure any unused seat belt that a child
can reach is buckled, the lockable retractor
is activated, and the be lt is fully retracted
and locked.
Anchor
Tether Strap
Hook
Anchor
Tether
Strap
Hook
Second row center seat
Second row outer position
17 US ODYSSEY (KA KC)-31TK86600.book 59 ページ ２０１６年１０月２４日　月曜日　午後４時２分

uuChild Safety uSafety of Infants and Small Children
62

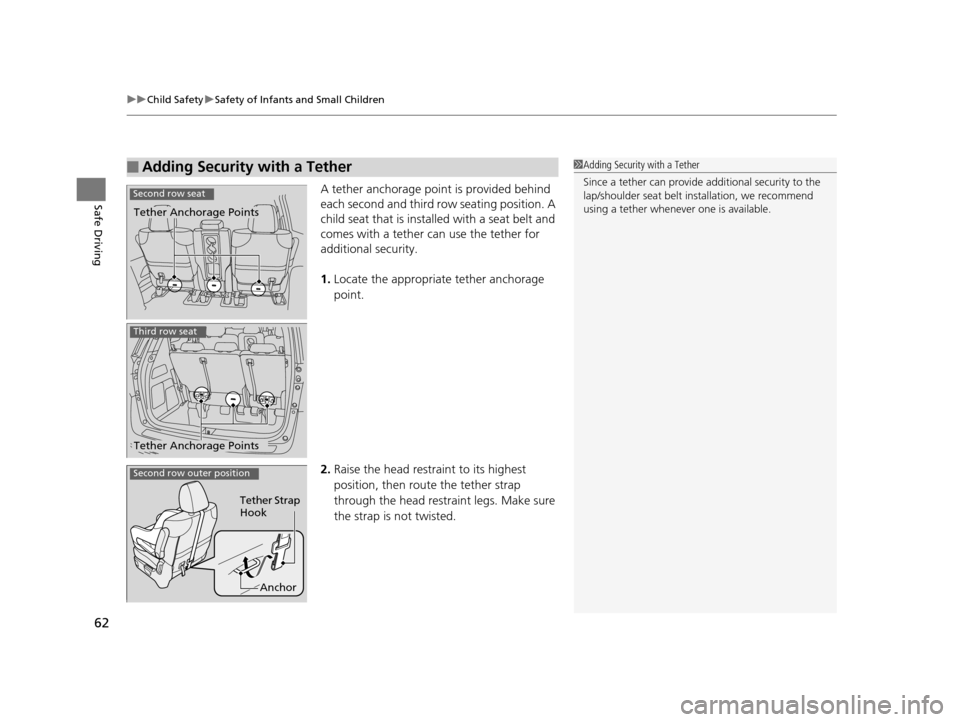

Safe DrivingA tether anchorage point is provided behind
each second and third row seating position. A
child seat that is installed with a seat belt and
comes with a tether can use the tether for
additional security.
1. Locate the appropriate tether anchorage
point.
2. Raise the head restraint to its highest
position, then rout e the tether strap
through the head restraint legs. Make sure
the strap is not twisted.
■Adding Security with a Tether1 Adding Security with a Tether
Since a tether can provide additional security to the
lap/shoulder seat belt in stallation, we recommend
using a tether whenever one is available.
Second row seat
Third row seat
Tether Anchorage Points
Tether Anchorage Points
Second row outer position
Tether Strap
Hook
Anchor
17 US ODYSSEY (KA KC)-31TK86600.book 62 ページ ２０１６年１０月２４日　月曜日　午後４時２分

63
uuChild Safety uSafety of Infants and Small Children
Safe Driving

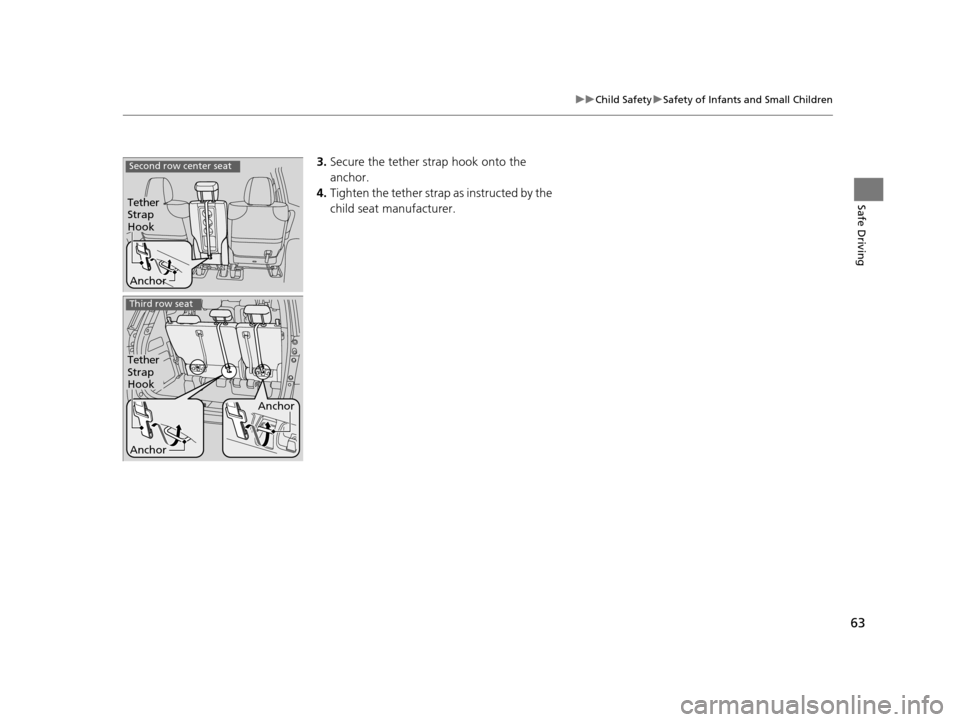

3. Secure the tether strap hook onto the
anchor.
4. Tighten the tether strap as instructed by the
child seat manufacturer.Second row center seat
Third row seat
Anchor
Tether
Strap
Hook
Tether
Strap
Hook
Anchor
Anchor
17 US ODYSSEY (KA KC)-31TK86600.book 63 ページ ２０１６年１０月２４日　月曜日　午後４時２分

554
Index
Maintenance (Checking the Battery) ........ 499
Maintenance (Replacing).................. 500, 502
Belts (Seat) .................................................. 30
Beverage Holders ...................................... 181
Blind Spot Information (BSI) System ........ 432
Bluetooth ® Audio ............................. 232, 265
Bluetooth ® HandsFreeLink ®............. 327, 360
Booster Seats (For Children) ....................... 65
Brake System ............................................. 436
Anti-lock Brake System (ABS) ................... 438
Brake Assist System ................................. 439
Fluid ........................................................ 473
Foot Brake ............................................... 437
Indicator ............................................ 70, 530
Parking Brake .......................................... 436
Brightness Control (Instrument Panel) .... 153
BSI (Blind Spot Information) System ........ 432
Bulb Replacement ..................................... 475
Back-Up Light/Taillights............................ 483
Brake Light, Rear Turn Signal Light, and Rear
Side Marker/Taill ights ............................. 481
Fog Lights ................................................ 479
Front Turn Signal/Par king/Side Marker
Lights..................................................... 480
Headlights ............................................... 475
High-Mount Brake Light .......................... 485
Rear License Plate Lights .......................... 484
Side Turn Signal/Emergency Indicator
Lights..................................................... 480
Bulb Specifications .................................... 542C
Carbon Monoxide Gas ............................... 66
Cargo Hooks ............................................. 186
Carrying Cargo ................................. 397, 399
CD Player ........................................... 221, 252
Center Pocket ........................................... 180
Certification Label .................................... 544
Changing Bulbs ........................................ 475
Charging System Indicator ................. 72, 528
Child Safety ................................................. 52
Childproof Door Locks............................. 119
Child Seat .................................................... 52
Booster Seats ............................................ 65
Child Seat for Infants................................. 54
Child Seat for Small Children ..................... 55
Installing a Child Seat with a Lap/Shoulder Seat Belt .................................................. 60
Larger Children ......................................... 64
Rear-facing Child Seat ............................... 54
Selecting a Child Seat ................................ 56
Using a Tether ........................................... 62
Childproof Door Locks ............................. 119
Cleaning the Exterior ............................... 507
Cleaning the Interior ................................ 505
Climate Control System ............................ 198
Changing the Mode ................................ 198
Defrosting the Windshield and Windows ............................................... 199
Dust and Pollen Filter............................... 504
Recirculation/Fresh Air Mode ................... 198
Sensors ................................................... 203 Using Automatic Climate Control............ 198
Clock ......................................................... 108
Coat Hooks ............................................... 186
Compact Spare Tire .......................... 511, 543
Compass .................................................... 392
Controls .................................................... 107
Coolant (Engine) ...................................... 470
Adding to the Radiator ........................... 471
Adding to the Reserve Tank .................... 470
Overheating ............................................ 526
Temperature Gauge .................................. 92
Creeping (Automatic Transmission) ........ 412
Cruise Control .......................................... 415
Indicator ................................................... 82
Cup Holders .............................................. 181
Customer Service Information ................ 552
Customized Features ......................... 99, 295
D
Daytime Running Lights .......................... 150
Dead Battery ............................................ 523
Defrosting the Windshield and Windows ......................................... 196, 199
Detachable Anchor .................................... 35
Devices that Emit Radio Waves ............... 545
Dimming
Headlights .............................................. 147
Rearview Mirror ...................................... 158
Dipstick (Engine Oil) ................................ 466
Directional Signals (Turn Signal) ............. 147
