2017 HONDA ODYSSEY headlight bulb

77
uuIndicators u
Continued
Instrument Panel
*1:Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.

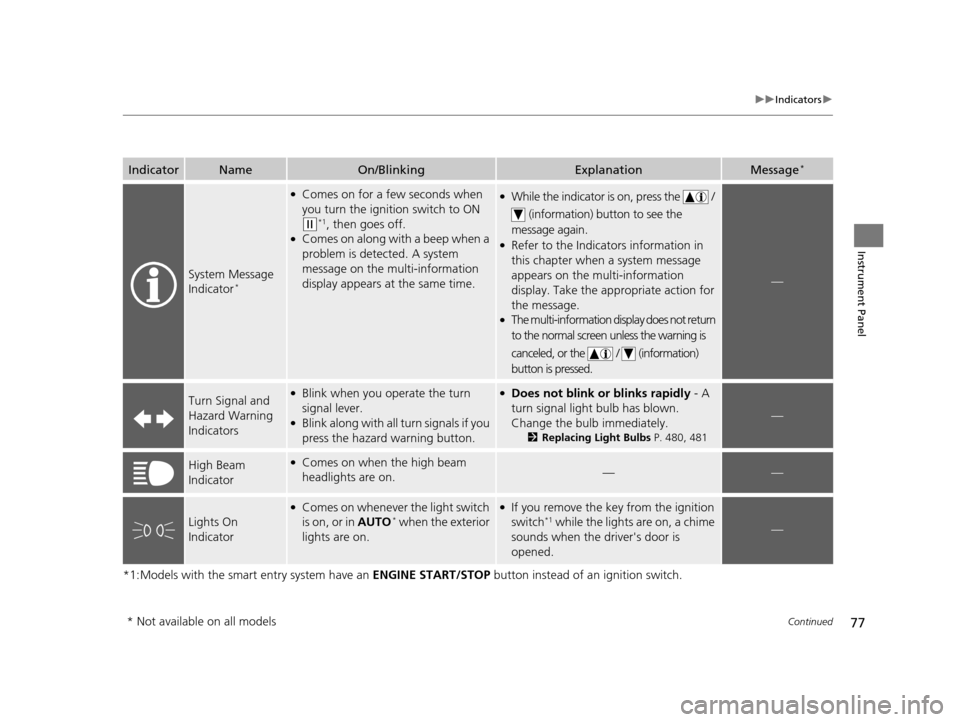

IndicatorNameOn/BlinkingExplanationMessage*
System Message
Indicator*
●Comes on for a few seconds when
you turn the ignition switch to ON
(w*1, then goes off.●Comes on along with a beep when a
problem is detected. A system
message on the multi-information
display appears at the same time.
●While the indicator is on, press the /
(information) button to see the
message again.
●Refer to the Indicators information in
this chapter when a system message
appears on the multi-information
display. Take the ap propriate action for
the message.
●The multi-information display does not return
to the normal screen unless the warning is
canceled, or the / (information)
button is pressed.
—
Turn Signal and
Hazard Warning
Indicators●Blink when you operate the turn
signal lever.
●Blink along with all turn signals if you
press the hazard warning button.
●Does not blink or blinks rapidly - A
turn signal light bulb has blown.
Change the bulb immediately.
2 Replacing Light Bulbs P. 480, 481
—
High Beam
Indicator●Comes on when the high beam
headlights are on.——
Lights On
Indicator
●Comes on whenever the light switch
is on, or in AUTO* when the exterior
lights are on.
●If you remove the key from the ignition
switch*1 while the lights are on, a chime
sounds when the driver's door is
opened.—
* Not available on all models
17 US ODYSSEY (KA KC)-31TK86600.book 77 ページ ２０１６年１０月２４日　月曜日　午後４時２分

147
uuOperating the Switches Around the Steering Wheel uTurn Signals
Continued
Controls
Turn Signals
The turn signals can be used when the ignition
switch is in ON
(w*1.
■One-touch turn signal
When you lightly push up or down and release
the turn signal lever, th e exterior turn signals
and turn signal indicator blink three times.
The feature can be used when signaling for a
lane change.
Light Switches
Rotating the light switch turns the lights on
and off, regardless of the position of the
ignition switch
*1.
■High beams
Push the lever forward until you hear a click.
■Low beams
When in high beams, pull the lever back to
return to low beams.
■Flashing the high beams
Pull the lever back, and release it.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
Right Turn
Left Turn
■Manual Operation
1 Light Switches
If you leave the power mode in VEHICLE OFF (LOCK)
with the lights on, a light on reminder chime sounds
when you open the driver’s door.
If you remove the key from the ignition switch while
the lights are on, a chime sounds when the driver’s
door is opened.
When the lights are on, the lights on indicator in the
instrument pane l will be on.
2 Lights On Indicator P. 77
Repeatedly turning the he adlights on and off reduces
the life of the HID headlight bulbs. If you sense that
the level of the headlight s is abnormal, have the
vehicle inspected by a dealer.
Do not leave the lights on when the engine is off
because it will cause the battery to discharge.
Models with smart entry system
Models without smart entry system
Models with high voltage discharge tube bulb
High Beams
Flashing the high beams Low Beams
Turns on parking, side marker,
tail, and rear license plate lights
Turns on headlights, parking, side
marker, tail, and rear license plate
lights
17 US ODYSSEY (KA KC)-31TK86600.book 147 ページ ２０１６年１０月２４日　月曜日　
午後４時２分

475Continued
Maintenance
Replacing Light Bulbs
Headlight Bulbs
When replacing, use the following bulbs.1.Remove the clips using a flat-tip
screwdriver, then remo ve the upper part of
the air intake duct.
High beam headlight: 60 W (HB3 for halogen bulb type)
Low beam headlight: 55 W (H11 for halogen bulb type)*
Low beam headlight: 35 W (D2S for high voltage discharge type)*
■High Beam Headlight
1 Headlight Bulbs
NOTICE
Halogen bulbs get very hot when lit.
Oil, perspiration, or a scratch on the glass can cause
the bulb to overhe at and shatter.
The headlight aim is set by the factory, and does not
need to be adjusted. Howeve r, if you regularly carry
heavy items in the cargo area or tow a trailer, have
the aiming readjusted at a dealer or by a qualified
technician.
When replacing a halogen bulb, handle it by its base,
and protect the glass from c ontact with your skin or
hard objects. If you touch the glass, clean it with
denatured alcohol and a clean cloth.
Clip
Driver side
* Not available on all models
17 US ODYSSEY (KA KC)-31TK86600.book 475 ページ ２０１６年１０月２４日　月曜日　 午後４時２分

uuReplacing Light Bulbs uHeadlight Bulbs
476
Maintenance
1. Remove the clips using a flat-tip
screwdriver, then remove the engine
coolant reservoir out of its stay.
Remove the power steering reservoir from
the stay bracket.
1 High Beam Headlight
Insert a flat-tip screwdriver, lift and remove the
central pin to remove the clip.
Insert the clip with the central pin raised, and push
until it is flat.
Holding clip
Central pin
Push until the
pin is flat.
Clip
Stay Bracket
Passenger side
17 US ODYSSEY (KA KC)-31TK86600.book 476 ページ ２０１６年１０月２４日　月曜日　 午後４時２分

477
uuReplacing Light Bulbs uHeadlight Bulbs
Continued
Maintenance

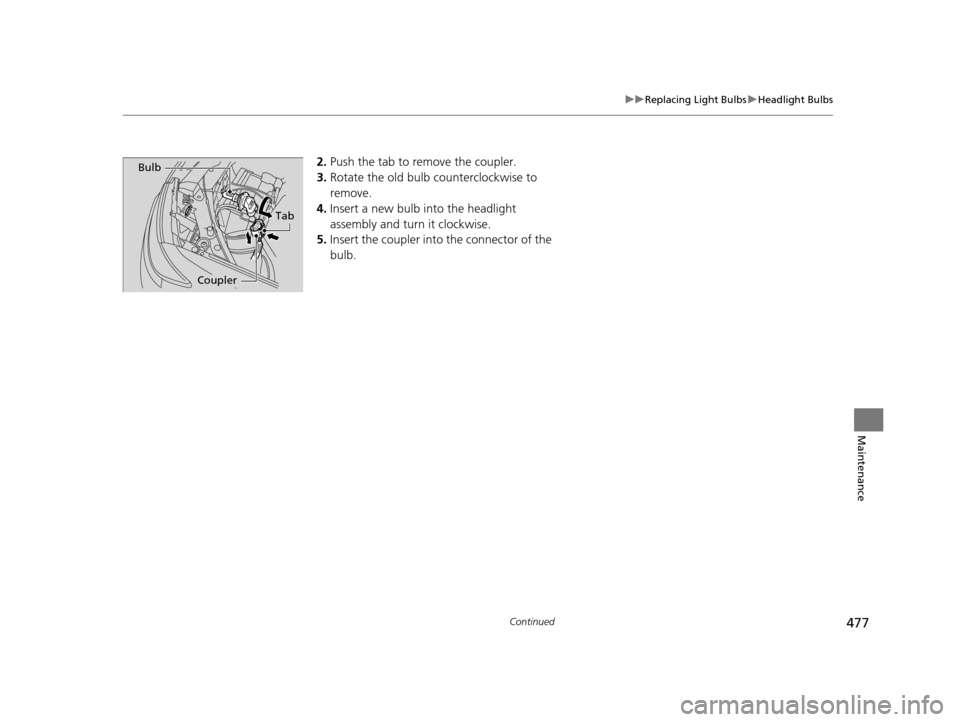

2. Push the tab to remove the coupler.
3. Rotate the old bulb counterclockwise to
remove.
4. Insert a new bulb into the headlight
assembly and turn it clockwise.
5. Insert the coupler into the connector of the
bulb.
Tab
Coupler
Bulb
17 US ODYSSEY (KA KC)-31TK86600.book 477 ページ ２０１６年１０月２４日　月曜日　
午後４時２分

uuReplacing Light Bulbs uHeadlight Bulbs
478
Maintenance
High voltage can remain in the circuit for a long period of time after the light is
switched off. Do not attemp t to inspect or replace the high voltage discharge type
bulbs yourself. Ask a dealer to insp ect and replace low beam headlights.
1. Push the tab to remove the coupler.
2. Rotate the old bulb counterclockwise to
remove.
3. Insert a new bulb into the headlight
assembly and turn it clockwise.
4. Insert the coupler into the connector of the
bulb.

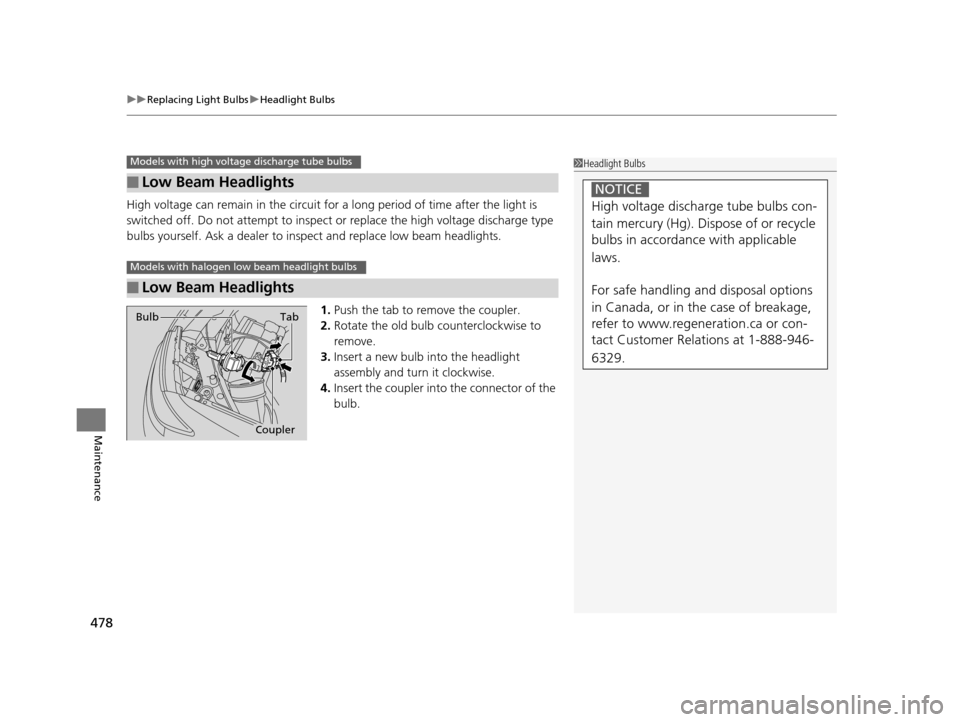

■Low Beam Headlights
■Low Beam Headlights
Models with high voltage discharge tube bulbs1Headlight Bulbs
High voltage discharge tube bulbs con-
tain mercury (Hg). Dispose of or recycle
bulbs in accordance with applicable
laws.
For safe handling and disposal options
in Canada, or in the case of breakage,
refer to www.regeneration.ca or con-
tact Customer Relations at 1-888-946-
6329.
NOTICE
Models with halogen low beam headlight bulbs
Tab
Coupler
Bulb
17 US ODYSSEY (KA KC)-31TK86600.book 478 ページ ２０１６年１０月２４日　月曜日　
午後４時２分

542
Information
Specifications
■Vehicle Specifications
*1: LX model
ModelHonda Odyssey
No. of Passengers:
Front 2
Rear 2nd Row 3 (2
*1)
3rd Row 3
Total 8 (7
*1)Weights:Gross Vehicle
Weight Rating U.S.: 6,019 lbs (2,730 kg)
Canada: 2,730 kg
Gross Axle Weight
Rating (Front)U.S.: 2,910 lbs (1,320 kg)
Canada: 1,320 kg
Gross Axle Weight
Rating (Rear)U.S.: 3,340 lbs (1,515 kg)
Canada: 1,515 kg
Gross Combined
Weight Rating U.S.: 8,565 lbs (3,885 kg)
Canada: 3,885 kg
Air Conditioning:Refrigerant Type HFC-134a (R-134a)Charge Quantity24.9 – 26.6 oz (705 – 755 g)Lubricant TypeND-OIL8
■Engine Specifications
■ Fuel
■ Washer Fluid
Displacement212 cu-in (3,471 cm3)
Spark Plugs NGK DILZKR7A11G
Fuel:
TypeUnleaded gasoline, Pump octane number
of 87 or higher
Fuel Tank Capacity 21 US gal (79.5 ℓ)
Tank CapacityU.S.: 2.6 US qt (2.5 ℓ)
Canada: 4.5 US qt (4.3 ℓ)
■ Light Bulbs
Headlights (Low Beam)35W (D2S)*
55W (H11)*
Headlights (High Beam) 60W (HB3)Fog Lights*55W (H11)
Front Turn Signal/Parking/Side
Marker Lights 28/8W
Side Turn Signal Lights
(on Door Mirrors)*LED
Brake Lights 21W
Rear Side Marker/TaillightsLED
Rear Turn Signal Lights 21W (Amber)
Back-Up Lights21W
Taillights LED
High-Mount Brake Light16W
Rear License Plate Lights 5W
Map Lights (Front)5W
Map Lights (Rear) 5W
Cargo Area Light8W
Vanity Mirror Lights 1.4W
Door Courtesy Lights3.8W (2CP)
Glove Box Light 1.4W
Foot Light*LED
* Not available on all models
17 US ODYSSEY (KA KC)-31TK86600.book 542 ページ ２０１６年１０月２４日　月曜日　 午後４時２分

554
Index
Maintenance (Checking the Battery) ........ 499
Maintenance (Replacing).................. 500, 502
Belts (Seat) .................................................. 30
Beverage Holders ...................................... 181
Blind Spot Information (BSI) System ........ 432
Bluetooth ® Audio ............................. 232, 265
Bluetooth ® HandsFreeLink ®............. 327, 360
Booster Seats (For Children) ....................... 65
Brake System ............................................. 436
Anti-lock Brake System (ABS) ................... 438
Brake Assist System ................................. 439
Fluid ........................................................ 473
Foot Brake ............................................... 437
Indicator ............................................ 70, 530
Parking Brake .......................................... 436
Brightness Control (Instrument Panel) .... 153
BSI (Blind Spot Information) System ........ 432
Bulb Replacement ..................................... 475
Back-Up Light/Taillights............................ 483
Brake Light, Rear Turn Signal Light, and Rear
Side Marker/Taill ights ............................. 481
Fog Lights ................................................ 479
Front Turn Signal/Par king/Side Marker
Lights..................................................... 480
Headlights ............................................... 475
High-Mount Brake Light .......................... 485
Rear License Plate Lights .......................... 484
Side Turn Signal/Emergency Indicator
Lights..................................................... 480
Bulb Specifications .................................... 542C
Carbon Monoxide Gas ............................... 66
Cargo Hooks ............................................. 186
Carrying Cargo ................................. 397, 399
CD Player ........................................... 221, 252
Center Pocket ........................................... 180
Certification Label .................................... 544
Changing Bulbs ........................................ 475
Charging System Indicator ................. 72, 528
Child Safety ................................................. 52
Childproof Door Locks............................. 119
Child Seat .................................................... 52
Booster Seats ............................................ 65
Child Seat for Infants................................. 54
Child Seat for Small Children ..................... 55
Installing a Child Seat with a Lap/Shoulder Seat Belt .................................................. 60
Larger Children ......................................... 64
Rear-facing Child Seat ............................... 54
Selecting a Child Seat ................................ 56
Using a Tether ........................................... 62
Childproof Door Locks ............................. 119
Cleaning the Exterior ............................... 507
Cleaning the Interior ................................ 505
Climate Control System ............................ 198
Changing the Mode ................................ 198
Defrosting the Windshield and Windows ............................................... 199
Dust and Pollen Filter............................... 504
Recirculation/Fresh Air Mode ................... 198
Sensors ................................................... 203 Using Automatic Climate Control............ 198
Clock ......................................................... 108
Coat Hooks ............................................... 186
Compact Spare Tire .......................... 511, 543
Compass .................................................... 392
Controls .................................................... 107
Coolant (Engine) ...................................... 470
Adding to the Radiator ........................... 471
Adding to the Reserve Tank .................... 470
Overheating ............................................ 526
Temperature Gauge .................................. 92
Creeping (Automatic Transmission) ........ 412
Cruise Control .......................................... 415
Indicator ................................................... 82
Cup Holders .............................................. 181
Customer Service Information ................ 552
Customized Features ......................... 99, 295
D
Daytime Running Lights .......................... 150
Dead Battery ............................................ 523
Defrosting the Windshield and Windows ......................................... 196, 199
Detachable Anchor .................................... 35
Devices that Emit Radio Waves ............... 545
Dimming
Headlights .............................................. 147
Rearview Mirror ...................................... 158
Dipstick (Engine Oil) ................................ 466
Directional Signals (Turn Signal) ............. 147
17 US ODYSSEY (KA KC)-31TK86600.book 554 ページ ２０１６年１０月２４日　月曜日　 午後４時２分
