uuWhen Driving uForward Collision Warning (FCW)*
420
Driving

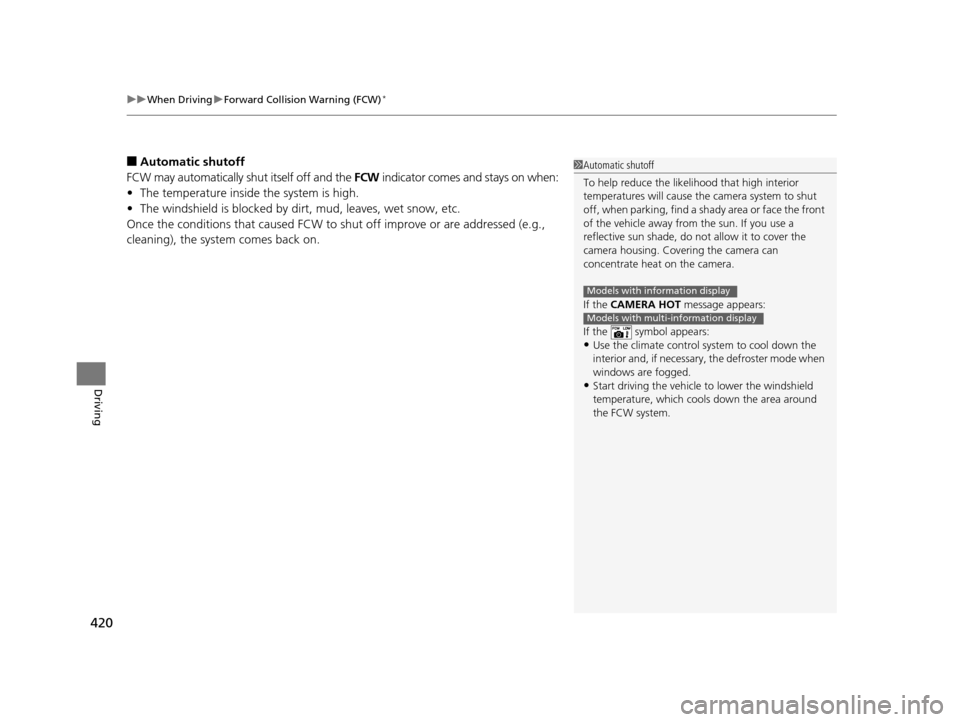

■Automatic shutoff
FCW may automatically shut itself off and the FCW indicator comes and stays on when:
• The temperature inside the system is high.
• The windshield is blocked by di rt, mud, leaves, wet snow, etc.
Once the conditions that caused FCW to shut off improve or are addressed (e.g.,
cleaning), the system comes back on.1 Automatic shutoff
To help reduce the likel ihood that high interior
temperatures will cause the camera system to shut
off, when parking, find a sh ady area or face the front
of the vehicle away from the sun. If you use a
reflective sun shade, do not allow it to cover the
camera housing. Covering the camera can
concentrate heat on the camera.
If the CAMERA HOT message appears:
If the symbol appears:
•Use the climate control system to cool down the
interior and, if necessary , the defroster mode when
windows are fogged.
•Start driving the vehicle to lower the windshield
temperature, which cool s down the area around
the FCW system.
Models with information display
Models with multi-information display
17 US ODYSSEY (KA KC)-31TK86600.book 420 ページ ２０１６年１０月２４日　月曜日　 午後４時２分

427
uuWhen Driving uVehicle Stability Assist (VSA ®), aka Electronic Stability Control (ESC), System
Driving
This button is on the driver side control panel.
To turn the VSA® system on and off, press and
hold it until you hear a beep.
VSA ® will stop and the indicator will come on.
To turn it on again, press the (VSA ® OFF)
button until you hear a beep.
VSA ® is turned on every time you start the
engine, even if you turned it off the last time
you drove the vehicle.
■VSA ® On and Off1 Vehicle Stability Assist (VSA ®), aka Electronic Stability Control
(ESC), System
Without VSA ®, your vehicle will have normal braking
and cornering ability, bu t it will not have VSA®
traction and stability enhancement.
In certain unusual conditions when your vehicle gets
stuck in shallow mud or fr esh snow, it may be easier
to free it with the VSA ® temporarily switched off.
When the VSA ® system is off, the traction control
system is also off. You should only atte mpt to free
your vehicle with the VSA ® off if you ar e not able to
free it when the VSA ® is on.
Immediately after freeing your vehicle, be sure to
switch VSA ® on again. We do not recommend driving
your vehicle with the VSA ® and traction control
systems switched off.
If the low tire pressure/TPMS, low tire pressure, or
TPMS indicator comes on or blinks, the VSA ® system
comes on automatically. In this case, you cannot turn
the system off by pressing the button.
You may hear a motor sound coming from the
engine compartment while system checks are being
performed immediately after starting the engine or
while driving. This is normal.
VSA ® OFF
Indicator
Models
with
LDWModels
without
LDW
17 US ODYSSEY (KA KC)-31TK86600.book 427 ページ ２０１６年１０月２４日　月曜日　 午後４時２分

523Continued
Handling the Unexpected

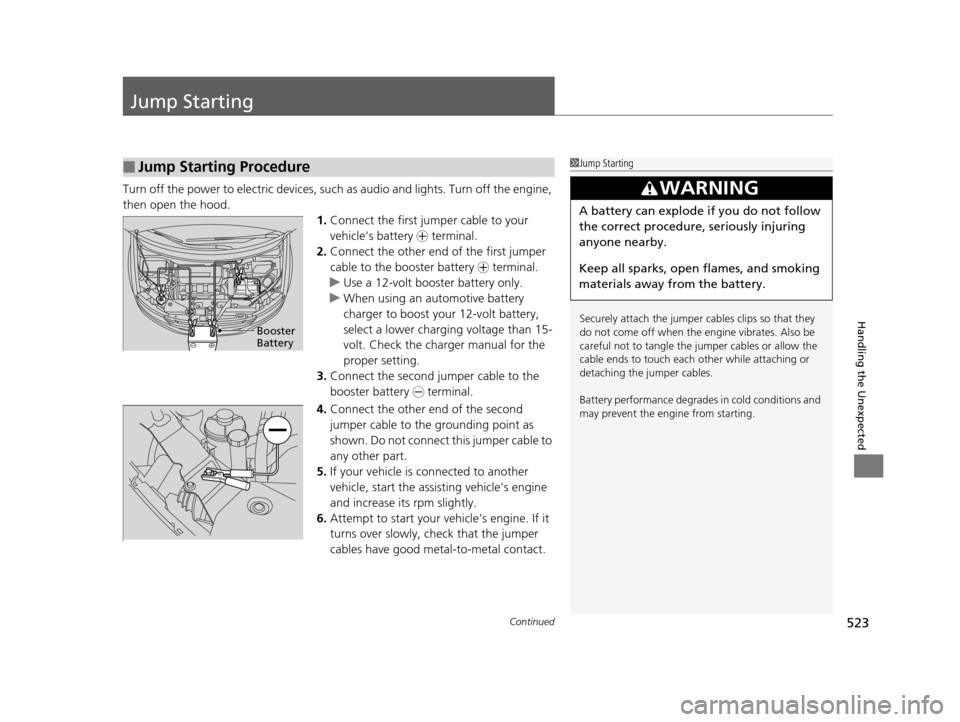

Jump Starting
Turn off the power to electric devices, such as audio and lights. Turn off the engine,
then open the hood. 1.Connect the first jumper cable to your
vehicle's battery + terminal.
2. Connect the other end of the first jumper
cable to the booster battery + terminal.
u Use a 12-volt booster battery only.
u When using an automotive battery
charger to boost your 12-volt battery,
select a lower charging voltage than 15-
volt. Check the charger manual for the
proper setting.
3. Connect the second jumper cable to the
booster battery - terminal.
4. Connect the other end of the second
jumper cable to the grounding point as
shown. Do not connect this jumper cable to
any other part.
5. If your vehicle is connected to another
vehicle, start the assisting vehicle's engine
and increase its rpm slightly.
6. Attempt to start your ve hicle's engine. If it
turns over slowly, check that the jumper
cables have good metal-to-metal contact.
■Jump Starting Procedure1 Jump Starting
Securely attach the jumper cables clips so that they
do not come off when the e ngine vibrates. Also be
careful not to tangle the ju mper cables or allow the
cable ends to touch each other while attaching or
detaching the jumper cables.
Battery performance degrades in cold conditions and
may prevent the engi ne from starting.
3WARNING
A battery can explode if you do not follow
the correct procedure, seriously injuring
anyone nearby.
Keep all sparks, open flames, and smoking
materials away from the battery.
Booster
Battery
17 US ODYSSEY (KA KC)-31TK86600.book 523 ページ ２０１６年１０月２４日　月曜日　 午後４時２分

Index
553
Index
Index
A
AAC................................... 221, 229, 252, 262
ABS (Anti-lock Brake System) .................. 438
AC Power Outlet ...................................... 185
Accessories and Modifications ................ 450
Accessory Power Sockets ......................... 183
Additives Coolant .................................................. 470
Engine Oil ............................................... 465
Washer ................................................... 474
Additives, Engine Oil ............................... 465
Adjusting Armrest .................................................. 175
Front Seats.............................................. 161
Head Restraints ....................................... 164
Mirrors.................................................... 158
Rear Seats ....................................... 162, 169
Steering Wheel ....................................... 157
Temperature ....................................... 95, 98
Aha
TM Menu ............................................. 261
AhaTM Radio .............................................. 271
Air Conditioning System (Climate Control
System) .................................................... 198
Changing the Mode................................ 198
Defrosting the Windshield and
Windows .............................................. 199
Dust and Pollen Filter .............................. 504
Recirculation/Fresh Air Mode................... 198
Sensors ................................................... 203
Using Automatic Climate Control............ 198 Air Conditioning System (Heating and
Cooling System) ...................................... 194
Cooling ................................................... 196
Defrosting the Windshield and Windows ............................................... 196
Dust and Pollen Filter ............................... 504
Heating ................................................... 195
Air Pressure ....................................... 491, 543
Airbags ........................................................ 39
Advanced Airbags ..................................... 45
Airbag Care ............................................... 51
Event Data Recorder .................................... 0
Front Airbags (SRS) .................................... 42
Indicator .............................................. 49, 74
Passenger Airbag Off Indicator .................. 50
Sensors ...................................................... 39
Side Airbags .............................................. 46
Side Curtain Airbags .................................. 48
AM/FM Radio .................................... 218, 245
Anti-lock Brake System (ABS) .................. 438
Indicator .................................................... 73
Armrest ..................................................... 175
Audio Remote Controls ............................ 210
Audio System ............................................ 206
Adjusting the Sound ................ 216, 237, 243
Auxiliary Input Jack .................................. 207
Error Messages ........................................ 267
General Information ................................ 272
Internet Radio .................................. 227, 259
iPod ................................................. 224, 255
MP3/WMA/AAC .............. 221, 229, 252, 262 Reactivating ............................................ 208
Recommended CDs ................................. 273
Recommended Devices............................ 275
Remote Controls ..................................... 210
Security Code .......................................... 208
Shortcuts................................................. 236
Theft Protection ...................................... 208
Touch Screen .......................................... 235
USB Flash Drives ...................................... 275
USB Port.................................................. 207
Audio with Touch Screen ......................... 235
Authorized Manuals ................................ 551
Auto Door Locking/Unlocking ................. 120
Customize ............................... 103, 302, 317
Automatic Lighting .................................. 148
Automatic Transmission ........................... 412
Creeping ................................................. 412
Fluid ........................................................ 472
Kickdown ................................................ 412
Operating the Shift Lever................... 18, 414
Shift Lever Does Not Move ...................... 525
Shifting ................................................... 413
Auxiliary Input Jack .................................. 207
Average Fuel Economy ........................ 94, 97
Average Speed ........................................... 98
B
Battery...................................................... 499
Charging System Indicator................. 72, 528
Jump Starting .......................................... 523
17 US ODYSSEY (KA KC)-31TK86600.book 553 ページ ２０１６年１０月２４日　月曜日　 午後４時２分

555
Index
Display Button.................................. 212, 238
Door Mirrors ............................................. 159
Doors ........................................................ 110
Auto Door Locking.................................. 120
Auto Door Unlocking .............................. 120
Door and Tailgate Open Indicator ....... 29, 75
Keys........................................................ 110
Locking/Unlocking the Doors from the
Inside .................................................... 118
Locking/Unlocking the Doors from the Outside ................................................. 113
Lockout Prevention System ..................... 117
DOT Tire Quality Grading ........................ 493
Driving ...................................................... 395
Automatic Transmission .......................... 412
Braking ................................................... 436
Cruise Control ........................................ 415
Shifting Gear .......................................... 413
Starting the Engine ......................... 407, 409
Driving Position Memory System ............ 155
Dust and Pollen Filter .............................. 504
E
Elapsed Time.............................................. 97
Electronic Stability Control (ESC) ............ 426
Emergency ................................................ 539
Emergency Engine Stop ........................... 522
Emissions Testing (Readiness Codes) ...... 547
Engine ....................................................... 544
Coolant .................................................. 470 Jump Starting .......................................... 523
Oil ........................................................... 465
Starting ........................................... 407, 409
Switch Buzzer .......................................... 142
Engine Coolant ......................................... 470
Adding to the Radiator ............................ 471
Adding to the Reserve Tank ..................... 470
Overheating ............................................ 526
Temperature Gauge .................................. 92
Engine Oil ................................................. 465
Adding .................................................... 467
Checking ................................................. 466
Displaying Oil Life ............................ 455, 459
Low Oil Pressure Indicator .................. 71, 528
Recommended Engine Oil ........................ 465
ENGINE START/STOP Button .................... 143
Exhaust Gas Hazard (Carbon Monoxide) .. 66
Expanded View Driver’s Mirror ............... 160
Exterior Care (Cleaning) ........................... 507
Exterior Mirrors ........................................ 159
F
Features..................................................... 205
Filters Dust and Pollen ....................................... 504
Oil ........................................................... 468
Flat Tire ..................................................... 511
Flip-up Trash Bag Ring ............................. 179
Floor Mats ................................................. 506 Fluids
Automatic Transmission .......................... 472
Brake ...................................................... 473
Engine Coolant ....................................... 470
Power Steering ........................................ 474
Windshield Washer ................................. 474
Fog Light Indicator ..................................... 78
Folding Down the Rear Seats .......... 162, 173
Foot Brake ................................................ 437
Forward Collision Warning (FCW) ........... 418
Front Airbags (SRS) ..................................... 42
Front Seats ................................................ 161
Adjusting ................................................ 161
Fuel ...................................................... 19, 446
Economy ................................................. 449
Gauge ....................................................... 92
Instant Fuel Economy .......................... 94, 97
Low Fuel Indicator ..................................... 73
Range ................................................. 94, 97
Recommendation .................................... 446
Refueling................................................. 446
Fuel Economy ........................................... 449
Fuel Fill Cap ........................................ 19, 448
Message.................................................. 529
Fuel Fill Door ...................................... 19, 447
Fuses .......................................................... 533
Inspecting and Changing......................... 538
Locations................. 533, 534, 535, 536, 537
17 US ODYSSEY (KA KC)-31TK86600.book 555 ページ ２０１６年１０月２４日　月曜日　 午後４時２分

557
Index
Malfunction Indicator Lamp .............. 71, 529
Parking Brake and Brake System (Red) ............................................... 70, 530
Parking Sensor .......................................... 75
Power Sliding Door ................................... 83
Power Tailgate .......................................... 82
Seat Belt Reminder.............................. 31, 73
Security System Alarm............................... 79
Shift Lever Position.................................... 72
Smart Entry System ................................... 79
Starter System........................................... 79
Supplemental Restraint System ........... 49, 74
System Message ....................................... 77
TPMS ................................................ 76, 430
Transmission ............................................. 72
Turn Signal ............................................... 77
Vehicle Stability Assist (VSA® ) System ........ 74
VSA ® (Vehicle Stability Assist) System ...... 426
VSA ® OFF.......................................... 74, 427
Washer Level ............................................ 82
Information .............................................. 541
Information Button ................................... 96
Information Display ................................... 93
Instant Fuel Economy .......................... 94, 97
Instrument Panel ........................................ 69
Brightness Control .................................. 153
Integrated Sunshades .............................. 190
Interface Dial ............................................ 234
Interior Lights ........................................... 176
Interior Rearview Mirror ......................... 158J
Jack (Wheel Nut Wrench) ........................ 514
Jump Starting ........................................... 523
K
Key Number Tag ....................................... 111
Keyless Lockout Prevention ..................... 117
Keys ........................................................... 110
Lockout Prevention .................................. 117
Master Keys ............................................. 110
Number Tag ............................................ 111
Rear Door Won’t Open ............................ 119
Remote Transmitter ................................. 115
Types and Functions ................................ 110
Valet Key ................................................. 111
Won’t Turn ................................................ 22
Kickdown (Automatic Transmission) ....... 412
L
Lane Departure Warning (LDW).............. 422
LaneWatchTM............................................. 434
Language (HFL) ................................. 328, 361
LATCH (Child Seats) .................................... 57
Lights ................................................. 147, 475
Automatic ............................................... 148
Bulb Replacement .................................... 475
Daytime Running Lights ........................... 150
Fog Lights ................................................ 150
High Beam Indicator .................................. 77 Interior .................................................... 176
Light Switches ......................................... 147
Lights On Indicator .................................... 77
Turn Signals ............................................ 147
Load Limits ................................................ 399
Locking/Unlocking .................................... 110
Auto Door Locking/Unlocking.................. 120
Childproof Door Locks............................. 119
From Inside ............................................. 118
From Outside .......................................... 113
Keys ........................................................ 110
Using a Key ............................................. 116
Lockout Prevention System ..................... 117
Low Battery Charge ................................. 528
Low Fuel Indicator ...................................... 73
Low Oil Pressure Indicator ................. 71, 528
Low Smart Entry Remote Signal
Strength .................................................. 112
Lower Anchors ............................................ 57
Luggage (Maximum Load Limit) ............. 399M
Maintenance............................................. 451
Battery .................................................... 499
Brake Fluid .............................................. 473
Cleaning ................................................. 505
Climate Control System ........................... 504
Coolant ................................................... 470
Heating and Cooling System ................... 504
Maintenance Minder
TM............................ 455
17 US ODYSSEY (KA KC)-31TK86600.book 557 ページ ２０１６年１０月２４日　月曜日　 午後４時２分

559
Index
ReplacementBattery ............................................ 500, 502
Bulbs ...................................................... 475
Fuses ...................... 533, 534, 535, 536, 537
Tires........................................................ 496
Wiper Blade Rubber ................................ 486
Reporting Safety Defects ......................... 546
Resetting a Trip Meter ......................... 94, 97
S
Safe Driving................................................ 25
Safety Check ............................................... 29
Safety Labels .............................................. 67
Safety Message ............................................ 1
Seat Belts .................................................... 30
Adjusting the Shoulder Anchor ................. 34
Automatic Seat Belt Tensioners ................. 32
Checking .................................................. 38
Detachable Anchor ................................... 35
Fastening .................................................. 33
Installing a Child Seat with a Lap/Shoulder
Seat Belt ................................................. 60
Pregnant Women...................................... 37
Reminder .................................................. 31
Warning Indicator ............................... 31, 73
Seat Heaters ............................................. 189
Seats .......................................................... 161
Adjusting ................................................ 161
Front Seats.............................................. 161
Rear Seats ............................................... 169 Seat Heaters ............................................ 189
Security System ......................................... 135
Immobilizer System Indicator ..................... 78
Security System Alarm Indicator ................. 79
SEL/RESET Button ........................................ 96
Select Lever ......................................... 18, 413
Operation .......................................... 18, 414
Releasing ................................................. 525
Won’t Move ............................................ 525
Select/Reset Knob ....................................... 93
Selecting a Child Seat ................................. 56
Selector Knob (Audio) .............................. 211
Shift Lever ........................................... 18, 413
Shift Lever Position Indicator ............. 72, 414
Shifting (Transmission) ............................. 413
Shoulder Anchor ......................................... 34
Side Airbags ................................................ 46
Side Curtain Airbags ................................... 48
Sliding Doors ............................................. 127
Power Sliding Doors ................................ 129
Sliding the Second Row Outer Seats
Outward .................................................. 171
Smart Entry with Push Button Start
System ..................................................... 113
Snow Tires ................................................. 498
Spare Tire .......................................... 511, 543
Spark Plugs ................................................ 542
Specifications ............................................ 542
Specified Fuel .................................... 446, 542
Speedometer .............................................. 92
SRS Airbags (Airbags) ................................. 42 Starting the Engine
.......................... 407, 409
Does Not Start......................................... 520
Engine Switch Buzzer .............................. 142
Jump Starting .......................................... 523
Steering Wheel ......................................... 157
Adjusting ................................................ 157
Stopping ................................................... 440
Summer Tires ............................................ 498
Sunglasses Holder ..................................... 188
Supplemental Restraint System (SRS) ........ 42
Switches (Around the Steering
Wheel) ............................................. 4, 5, 142
System Message Indicator .......................... 77
T
Tachometer................................................. 92
Tailgate ..................................................... 121
Unable to Open....................................... 540
Temperature Gauge ....................................................... 92
Outside Temperature Display ............... 95, 98
Temperature Gauge ................................... 92
Temperature Sensor ..................... 95, 98, 203
Third Row Seat Access .............................. 169
Time (Adjusting) ....................................... 108
Tire Pressure Monitoring System
(TPMS) ..................................................... 428
Indicator.................................... 76, 531, 532
Tires ........................................................... 490
Air Pressure ..................................... 491, 543
17 US ODYSSEY (KA KC)-31TK86600.book 559 ページ ２０１６年１０月２４日　月曜日　 午後４時２分

560
Index
Checking and Maintaining ....................... 490
Inspection ................................................ 490
Labeling................................................... 491
Puncture (Flat Tire) ................................... 511
Regulations.............................................. 493
Rotation .................................................. 497
Spare Tire ........................................ 511, 543
Summer................................................... 498
Tire Chains .............................................. 498
Wear Indicators ....................................... 495
Winter ..................................................... 498
Tools .......................................................... 510
Towing a Trailer ........................................ 401
Equipment and Accessories...................... 402
Load Limits .............................................. 401
Towing Your Vehicle ................................ 406
Emergency............................................... 539
TPMS (Tire Pressure Monitoring System) .................................................... 428
Indicator .................................... 76, 531, 532
Transmission .............................................. 413
Automatic ............................................... 412
Fluid ........................................................ 472
Number ................................................... 544
Shift Lever Position Indicator .............. 72, 414
Trip Meter ............................................. 94, 97
Troubleshooting ....................................... 509
Blown Fuse .............. 533, 534, 535, 536, 537
Brake Pedal Vibrates .................................. 22
Buzzer Sounds When Opening Door .......... 23
Emergency Towing .................................. 539 Engine Won’t Start .................................. 520
Noise When Braking .................................. 23
Overheating ............................................ 526
Puncture/Flat Tire .................................... 511
Select Lever Won’t Move ......................... 525
Sliding Door Won’t Open .................. 23, 119
Warning Indicators .................................... 70
Tucking away the One-Motion Third
row magic Seat ....................................... 173
Turn Signals .............................................. 147
Indicators (Instrument Panel) ..................... 77
U
Unlocking the Doors ................................ 113
Unlocking the Front Doors from the
Inside ....................................................... 118
USB Flash Drives ....................................... 275
USB Port .................................................... 207
Using the Smart Entry with Push Button Start System ............................................ 113
V
Vacuum..................................................... 191
Valet Key ................................................... 111
Vanity Mirrors ............................................... 7
Vehicle Identification Number ................ 544
Vehicle Stability Assist (VSA ®).................. 426
Off Button............................................... 427
Off Indicator.............................................. 74 System Indicator ....................................... 74
Ventilation ....................................... 194, 198
Viscosity (Oil) .................................... 465, 543
VSA ® (Vehicle Stability Assist) ................. 426
W
Warning and Information Messages .. 84, 86
Warning Indicator On/Blinking ............... 528
Warning Labels .......................................... 67
Warranties (Warranty Manual provided separately) .............................................. 549
Watts ........................................................ 542
Wear Indicators (Tire) .............................. 495
Wheel Cover ............................................. 515
Wheel Nut Wrench (Jack Handle) ........... 514
Window Washers ..................................... 151
Adding/Refilling Fluid .............................. 474
Switch .................................................... 151
Windows (Opening and Closing) ............ 138
Windshield ............................................... 151
Cleaning ......................................... 505, 508
Defrosting....................................... 196, 199
Washer Fluid ........................................... 474
Wiper Blades........................................... 486
Wipers and Washers ............................... 151
Winter Tires .............................................. 498
Snow Tires .............................................. 498
Tire Chains.............................................. 498
17 US ODYSSEY (KA KC)-31TK86600.book 560 ページ ２０１６年１０月２４日　月曜日　 午後４時２分
