uuIndicator, Coming On/Blinking uIf the Malfunction Indicator Lamp Comes On or Blinks
Handling the Unexpected
If the Malfunction Indica tor Lamp Comes On or
Blinks
■Reasons for indicator lamp to come on or blink
• Comes on when there is a problem with the engine emissions control
system, or the fuel fill cap is missing, or loose.
• Blinks when engine misfiring is detected.
■What to do when the indicator lamp comes on
Avoid high speeds and immediately get your vehicle inspected at a
dealer.
■What to do when the indicator lamp blinks
Park the vehicle in a safe place with no flammable items and wait at least
10 minutes or more with the engine stopped until it cools.
■The message appears on when:
An evaporative system leak is detected. This may be caused by the fuel fill cap being
loose or not being installed.
■What to do when the message appears:
1. Stop the engine.
2. Check if the fuel fill cap is fully installed.
u If not, loosen the cap, and then retight en it until it clicks at least once.
3. Drive for several days of normal driving.
u The message should go off.
■When the malfunction indicator lamp comes on
The malfunction indicator lamp comes on if the system continues to detect a leak of
gasoline vapor. If this happens, follow th e procedures described earlier to check the
fuel fill cap.
■Check/Tighten Fuel Cap Message
1 If the Malfunction Indicato r Lamp Comes On or Blinks
NOTICE
If you drive with the malf unction indicator lamp on,
the emissions control system and the engine could be
damaged.
If the malfunction indicator lamp blinks again when
restarting the engine, drive to the nearest dealer at
31 mph (50 km/h) or less. Have your vehicle
inspected.
17 US ODYSSEY (KA KC)-31TK86600.book 529 ページ ２０１６年１０月２４日　月曜日　 午後４時２分

530
uuIndicator, Coming On/Blinking uIf the Brake System Indicator (Red) Comes On
Handling the Unexpected
If the Brake System Indicator (Red) Comes On
■Reasons for the indicator to come on
• The brake fluid is low.
• There is a malfunction in the brake system.
■What to do when the indicator comes on while driving
Press the brake pedal lightly to check pedal pressure.
• If normal, check the brake fluid level the next time you stop.
• If abnormal, take immediate action . If necessary, downshift the
transmission to slow the vehicle using engine braking.
1 If the Brake System Indicator (Red) Comes On
Have your vehicle re paired immediately.
It is dangerous to drive with low brake fluid. If there
is no resistance from the brake pedal, stop
immediately in a safe plac e. If necessary downshift
the gears.
If the brake system indicator and ABS indicator come
on simultaneously, the elec tronic brake distribution
system is not working. Th is can result in vehicle
instability under sudden braking.
Have your vehicle inspecte d by a dealer immediately.U.S.
Canada
17 US ODYSSEY (KA KC)-31TK86600.book 530 ページ ２０１６年１０月２４日　月曜日　 午後４時２分

533Continued
Handling the Unexpected
Fuses
Fuse Locations
If any electrical devices are not working,
turn the ignition switch to LOCK
(0*1 and
check to see if any appl icable fuse is blown.
Located near the windshield washer
reservoir. Push the tabs to open the box.
Fuse locations are shown on the fuse box
cover. Locate the fuse in question by the
fuse number and box cover number.
*1: Models with the smart entry system have an
ENGINE START/STOP button instead of an
ignition switch.
■Engine Compartment Fuse Box
(Passenger Side)
■Circuit protected and fuse rating
Circuit ProtectedAmps
1−−
2− −
3ACG FR15 A
4Washer 15 A
5VB SOL7.5 A
6 ECU FR 7.5 A
7−−
8FI Sub 15A
9DBW15 A
10 FI Main 15 A
11Ignition Coil15 A
12− −
13−−
14− −
15Radio20 A
16 Back Up 10 A
17MG Clutch7.5 A
18 Front Fog Lights*(20 A)
19−−
20 Right Headlight High Beam 10 A
21−−
22 Small Lights 10 A
23−−
24 Left Headlight High Beam 10 A
25−−
26 Right Headlight Low Beam 15 A
27Left Headlight Low Beam15 A
28 Oil Level 7.5 A
29Main Fan30 A
30 Sub Fan 30 A
31Wiper Main30 A
Circuit ProtectedAmps
* Not available on all models
17 US ODYSSEY (KA KC)-31TK86600.book 533 ページ ２０１６年１０月２４日　月曜日　 午後４時２分

534
uuFuses uFuse Locations
Handling the Unexpected
Located near the battery. Push the tabs to
open the box.
Fuse locations are shown on the fuse box
cover. Locate the fuse in question by the
fuse number and box cover number.
■Engine Compartment Fuse Box
(Driver Side)■Circuit protected and fuse rating
Circuit ProtectedAmps
1Main Fuse125 A
2-1Fan Main 60 A
2-2Passenger Side Fuse Box 2 50 A
2-3HondaVACTM*(60 A)
2-4Interior Light, FI Main 30 A
2-5Stop & Horn, Hazard 30 A
2-6Rear Blower, Battery
Management System 30 A
2-7VSA FSR
30 A
2-8VSA Motor 40 A
3-1Driver Side Fuse Box 250 A
3-2IG1 Main*150 A
3-2Starter Motor*240 A
3-3Rear Fuse Box 160 A
3-4Passenger Side Fuse Box 150 A
3-5Driver Side Fuse Box 150 A
3-6Engine Compartment Fuse
Box (Passenger Side) Main60 A
3-7Passenger’s Side Power Sliding Door Motor*(40 A)
3-8Front Blower40 A
4Rear Defroster 40 A
5−−
6 IG Main 2*30 A
7IG Main 1*30 A
*1:Models without smart entry system
*2:Models with smart entry system 8
Battery Management
System 7.5 A
9Stop & Horn20 A
10 Hazard 15 A
11Interior Lights7.5 A
Circuit ProtectedAmps
* Not available on all models
17 US ODYSSEY (KA KC)-31TK86600.book 534 ページ ２０１６年１０月２４日　月曜日　 午後４時２分

535
uuFuses uFuse Locations
Continued
Handling the Unexpected
Located under the dashboard.
Fuse locations are shown on the label on
the side panel.
Locate the fuse in question by the fuse
number and label number.
■Driver Side Fuse Box
Fuse Label
■Circuit protected and fuse rating
Circuit ProtectedAmps
1Front Passenger's Door
Lock7.5 A
2Rear Passenger's Door Lock7.5 A
3Driver’s Door Lock7.5 A
4Front Passenger's Door Unlock7.5 A
5Rear Passenger's Door Unlock7.5 A
6Driver’s Door Unlock7.5 A
7Door Lock Main20 A
8HAC Option*10 A
9Driver’s Side Power Sliding
Door Closer*(20 A)
10 Rear Fuse Box 15 A
11Meter7.5 A
12 Engine Compartment Fuse
Box (Passenger Side) 20 A
13Accessory7.5 A
14 STS*7.5 A
15Driver’s Power Seat Sliding20 A
16 Moonroof*(20 A)
17Rear Driver’s Side Power Window20 A
18 Smart Entry System
*(10 A)
19Driver’s Power Window20 A
20 − −
21Fuel Pump20 A
22 Passenger Side Fuse Box 15 A
23VSA7.5 A
24 ACG AS 7.5 A
25STRLD7.5 A
26 HAC 7.5 A
27DRL(7.5 A)
28 ACC Key Lock 7.5 A
29Driver’s Power Seat Lumbar Support*(7.5 A)
30 TPMS 7.5 A
31−−
32 Driver’s Power Seat
Reclining 20 A
33Driver’s Side Power Sliding
Door Motor*(40 A)
34 − −
Circuit ProtectedAmps
* Not available on all models
17 US ODYSSEY (KA KC)-31TK86600.book 535 ページ ２０１６年１０月２４日　月曜日　 午後４時２分

538
uuFuses uInspecting and Changing Fuses
Handling the Unexpected
Inspecting and Changing Fuses
1. Turn the ignition switch to LOCK (0*1. Turn
headlights and all accessories off.
2. Remove the fuse box cover.
3. Check the large fuse in the engine
compartment.
u If the fuse is blown, use a Phillips-head
screwdriver to remo ve the screw and
replace it with a new one.
4. Inspect the small fuses in the engine
compartment and the vehicle interior.
u If there is a blown fuse, remove it with
the fuse puller and replace it with a new
one.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
1 Inspecting and Changing Fuses
NOTICE
Replacing a fuse with on e that has a higher rating
greatly increases the chances of damaging the
electrical system.
Replace fuse with a spare fuse of the same specified
amperage.
Confirm the specified amperage using the charts on
P. 533 to 537.
There is a fuse puller in the engine compartment fuse
box (passenger side).
Blown Fuse
Blown
Fuse
Fuse Puller
17 US ODYSSEY (KA KC)-31TK86600.book 538 ページ ２０１６年１０月２４日　月曜日　 午後４時２分

541

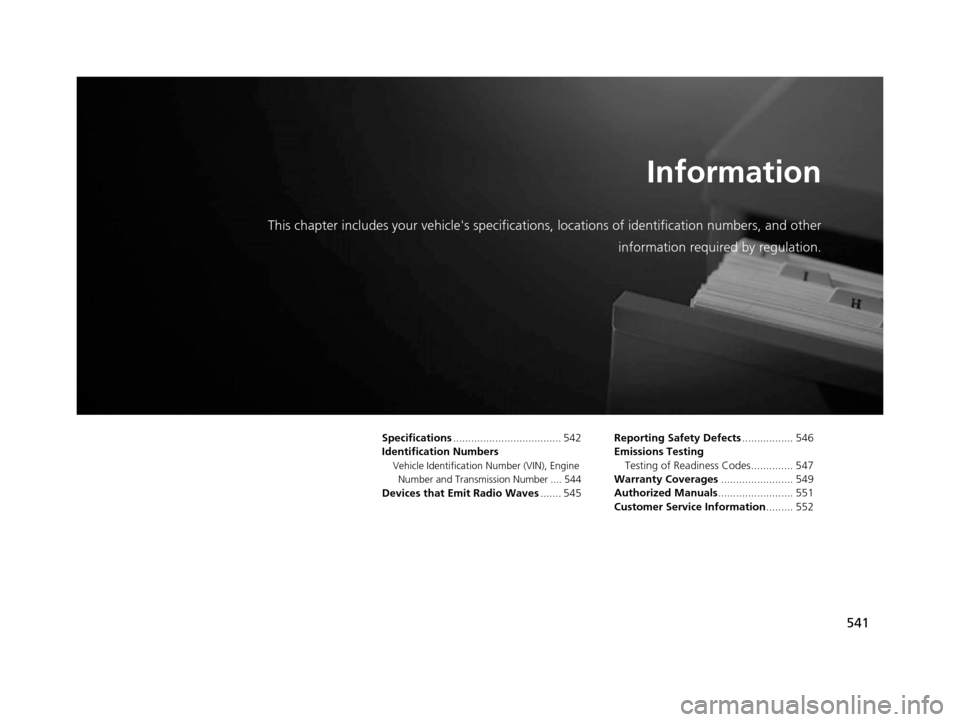

Information
This chapter includes your vehicle's specifications, locations of identification numbers, and other
information required by regulation.
Specifications.................................... 542
Identification Numbers
Vehicle Identification Number (VIN), Engine
Number and Transmission Number .... 544
Devices that Emit Radio Waves ....... 545Reporting Safety Defects
................. 546
Emissions Testing Testing of Readiness Codes.............. 547
Warranty Coverages ........................ 549
Authorized Manuals ......................... 551
Customer Service Information ......... 552
17 US ODYSSEY (KA KC)-31TK86600.book 541 ページ ２０１６年１０月２４日　月曜日　 午後４時２分

542
Information
Specifications
■Vehicle Specifications
*1: LX model
ModelHonda Odyssey
No. of Passengers:
Front 2
Rear 2nd Row 3 (2
*1)
3rd Row 3
Total 8 (7
*1)Weights:Gross Vehicle
Weight Rating U.S.: 6,019 lbs (2,730 kg)
Canada: 2,730 kg
Gross Axle Weight
Rating (Front)U.S.: 2,910 lbs (1,320 kg)
Canada: 1,320 kg
Gross Axle Weight
Rating (Rear)U.S.: 3,340 lbs (1,515 kg)
Canada: 1,515 kg
Gross Combined
Weight Rating U.S.: 8,565 lbs (3,885 kg)
Canada: 3,885 kg
Air Conditioning:Refrigerant Type HFC-134a (R-134a)Charge Quantity24.9 – 26.6 oz (705 – 755 g)Lubricant TypeND-OIL8
■Engine Specifications
■ Fuel
■ Washer Fluid
Displacement212 cu-in (3,471 cm3)
Spark Plugs NGK DILZKR7A11G
Fuel:
TypeUnleaded gasoline, Pump octane number
of 87 or higher
Fuel Tank Capacity 21 US gal (79.5 ℓ)
Tank CapacityU.S.: 2.6 US qt (2.5 ℓ)
Canada: 4.5 US qt (4.3 ℓ)
■ Light Bulbs
Headlights (Low Beam)35W (D2S)*
55W (H11)*
Headlights (High Beam) 60W (HB3)Fog Lights*55W (H11)
Front Turn Signal/Parking/Side
Marker Lights 28/8W
Side Turn Signal Lights
(on Door Mirrors)*LED
Brake Lights 21W
Rear Side Marker/TaillightsLED
Rear Turn Signal Lights 21W (Amber)
Back-Up Lights21W
Taillights LED
High-Mount Brake Light16W
Rear License Plate Lights 5W
Map Lights (Front)5W
Map Lights (Rear) 5W
Cargo Area Light8W
Vanity Mirror Lights 1.4W
Door Courtesy Lights3.8W (2CP)
Glove Box Light 1.4W
Foot Light*LED
* Not available on all models
17 US ODYSSEY (KA KC)-31TK86600.book 542 ページ ２０１６年１０月２４日　月曜日　 午後４時２分
