2017 HONDA HR-V check engine

Contents
Child Safety P. 57Exhaust Gas Hazard P. 69Safety Labels P. 70
Opening and Closing the Tailgate P. 113 Security System P. 116
Opening and Closing the Moonroof* P. 121
Adjusting the Mirrors P. 138 Adjusting the Seats P. 140
Heating and Cooling System
* P. 161 Climate Control System* P. 165
Audio Error Messages P. 231General Information on the Audio System P. 235
Off-Highway Driving Guidelines P. 323 When Driving P. 325 Braking P. 363
Refueling P. 374 Fuel Economy and CO
2 Emissions P. 376
Maintenance Under the Hood P. 385 Replacing Light Bulbs P. 397
Checking and Maintaining Tires P. 409 Battery P. 419 Remote Transmitter Care P. 421
Cleaning P. 424 Accessories and Modifications P. 429
Engine Does Not Start P. 443Jump Starting P. 446 Shift Lever Does Not Move P. 448
Emergency Towing P. 461 When You Cannot Open the Tailgate P. 462
Devices that Emit Radio Waves P. 469 Reporting Safety Defects P. 470
Authorized Manuals P. 475 Customer Service Information P. 476
Quick Reference GuideP. 4
Safe DrivingP. 29
Instrument PanelP. 71
ControlsP. 93
FeaturesP. 175
DrivingP. 313
MaintenanceP. 377
Handling the UnexpectedP. 431
InformationP. 465
IndexP. 478
17 HR-V HDMC-31T7A6100.book 3 ページ ２０１６年７月２０日　水曜日　午前９時５０分

10
Quick Reference Guide
Safe Driving (P 29)
Airbags (P44)
● Your vehicle is fitted with ai rbags to help protect you and
your passengers during a moderate-to-severe collision.
Child Safety (P57)
● All children 12 and younger should be seated in the rear seat.
● Smaller children should be properly restrained in a forward-facing child seat.
● Infants must be properly restrained in a rear-facing child seat.
Exhaust Gas Hazard (P69)
● Your vehicle emits dangerous exhaust gases that contain
carbon monoxide. Do not run the engine in confined spaces
where carbon monoxide gas can accumulate.
Before Driving Checklist (P34)
● Before driving, check that the front seats, head restraints,
steering wheel, and mirrors have been properly adjusted.
Seat Belts (P35)
● Fasten your seat belt and sit upright well
back in the seat.
● Check that your passengers are wearing
their seat belts correctly.
Fasten your lap belt as
low as possible.
17 HR-V HDMC-31T7A6100.book 10 ページ ２０１６年７月２０日　水曜日　午前９時５０分

23
Quick Reference Guide

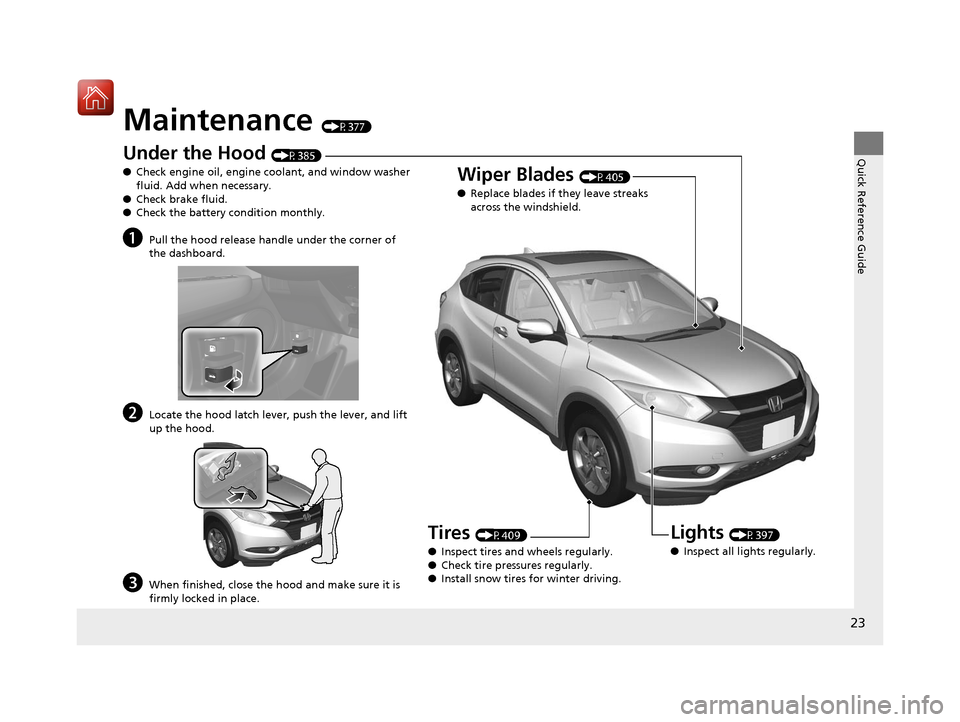

Maintenance (P377)
Under the Hood (P385)
● Check engine oil, engine coolant, and window washer
fluid. Add when necessary.
● Check brake fluid.
● Check the battery condition monthly.
aPull the hood release handle under the corner of
the dashboard.
bLocate the hood latch lever, push the lever, and lift
up the hood.
cWhen finished, close the hood and make sure it is
firmly locked in place.
Lights (P397)
● Inspect all lights regularly.
Wiper Blades (P405)
● Replace blades if they leave streaks
across the windshield.
Tires (P409)
● Inspect tires and wheels regularly.
● Check tire pressures regularly.
● Install snow tires for winter driving.
17 HR-V HDMC-31T7A6100.book 23 ページ ２０１６年７月２０日　水曜日　午前９時５０分

24
Quick Reference Guide
Handling the Unexpected (P431)
Flat Tire (P434)
● Park in a safe location and replace the
flat tire with the compact spare tire in the
cargo area.
Indicators Come On
(P451)
●Identify the indicator and consult the
owner’s manual.
Engine Won’t Start (P443)
● If the battery is dead, jump start using a
booster battery.
Blown Fuse (P456)
● Check for a blown fuse if an electrical
device does not operate.
Overheating (P449)
● Park in a safe location. If you do not see
steam under the hood, open the hood,
and let the engine cool down.
Emergency Towing (P461)
● Call a professional towing service if you
need to tow your vehicle.
17 HR-V HDMC-31T7A6100.book 24 ページ ２０１６年７月２０日　水曜日　午前９時５０分

uuAirbags uAirbag System Indicators
54
Safe Driving
■When side curtain airbags deploy in a frontal collision
One or both side curtain airbags may also inflate in a moderate-to-severe angled
frontal collision.
Airbag System Indicators
If a problem occurs in the airbag sy stem, the SRS indicator will come on.
■When the ignition switch is turned to
ON
(w*1
The indicator comes on for a few seconds,
then goes off. This tells you the system is
working properly.
If the indicator comes on at any other time, or does not come on at all, have the
system checked by a dealer as soon as po ssible. If you don’t, your airbags and seat
belt tensioners may not work properly when they are needed.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
■Supplemental Restraint System (SRS) Indicator1 Supplemental Restraint System (SRS) Indicator
3WARNING
Ignoring the SRS indi cator can result in
serious injury or death if the airbag systems
or tensioners do not work properly.
Have your vehicle checked by a dealer as
soon as possible if the SRS indicator alerts
you to a possible problem.
17 HR-V HDMC-31T7A6100.book 54 ページ ２０１６年７月２０日　水曜日　午前９時５０分

72
Instrument Panel
Indicators
*1:Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.
IndicatorNameOn/BlinkingExplanation
Brake System
Indicator
(Red)
●Comes on for a few seconds when you
turn the ignition switch to ON
(w*1, then
goes off.
●Comes on when the brake fluid level is
low.
●Comes on if there is a problem with the
brake system.
●Comes on while driving - Check the brake fluid
level.
2 What to do when the indicator comes on while
driving P. 453
●Comes on along with the ABS indicator - Have
your vehicle checked by a dealer.
2 If the Brake System Indicator (Red) Comes On
P. 453
Brake System
Indicator
(Amber)
●Comes on for a few seconds when you
turn the ignition switch to ON
(w*1, then
goes off.
●Comes on if there is a problem with a
system related to braking other than the
conventional brake system.
●Comes on if there is a problem with an
automatic brake hold system.
●Stays on constantly - Have your vehicle checked
by a dealer.
U.S.
Canada
(Red)
U.S.
Canada
(Amber)
17 HR-V HDMC-31T7A6100.book 72 ページ ２０１６年７月２０日　水曜日　午前９時５０分

73
uuIndicators u
Continued
Instrument Panel
*1:Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.
IndicatorNameOn/BlinkingExplanation
Electric Parking
Brake Indicator
●Comes on for a few seconds when you
turn the ignition switch to ON
(w*1, then
goes off if the parking brake has been
released.
●Comes on when the parking brake is
applied, and goes off when it is released.
●Comes on for about 15 seconds when
you pull the electric parking brake switch
while the ignition switch is in LOCK
(0*1.●Stays on for about 15 seconds when you
turn the ignition switch to LOCK
(0*1
while the electric parking brake is set.
●Blinks and the electric parking brake system
indicator comes on at the same time - There is a
problem with the electric parking brake system. The
parking brake may not be set.
Electric Parking
Brake System
Indicator
●Comes on for a few seconds when you
turn the ignition switch to ON
(w*1, then
goes off.
●Comes on if there is a problem with the
electric parking brake system.
●Comes on while driving - Avoid using the parking
brake and have your vehicl e checked by a dealer
immediately.
2 If the Electric Parking Brake System Indicator
Comes On P. 454
Automatic Brake
Hold System
Indicator
●Comes on for a few seconds when you
turn the ignition switch to ON
(w*1, then
goes off.
●Comes on when the automatic brake
hold system is on.
2 Automatic Brake Hold P. 366
U.S.
Canada
17 HR-V HDMC-31T7A6100.book 73 ページ ２０１６年７月２０日　水曜日　午前９時５０分

75
uuIndicators u
Continued
Instrument Panel
*1:Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.
IndicatorNameOn/BlinkingExplanation
Low Oil Pressure
Indicator
●Comes on when you turn the ignition
switch to ON (w*1, and goes off when
the engine starts.
●Comes on when the engine oil pressure
is low.
●Comes on while driving - Immediately stop in a
safe place.
2 If the Low Oil Pressure Indicator Comes On
P. 451
Malfunction
Indicator Lamp
●Comes on when you turn the ignition
switch to ON
(w*1, and goes off either
when the engine starts or after several
seconds if the engine did not start. If
“readiness codes” have not been set, it
blinks five times before it goes off.
●Comes on if there is a problem with the
emissions control system.
●Blinks when a misfire in the engine’s
cylinders is detected.
●Readiness codes are part of the on board diagnostics
for the emissions control systems.
2 Testing of Readiness Codes P. 471●Comes on while driving - Have your vehicle
checked by a dealer.
●Blinks while driving - Stop in a safe place where
there are no flammable objects. Stop the engine for
10 minutes or more, and wait for it to cool down.
Then, take your vehicle to a dealer.
2 If the Malfunction Indicator Lamp Comes On or
Blinks P. 452
Charging System
Indicator
●Comes on when you turn the ignition
switch to ON
(w*1, and goes off when
the engine starts.
●Comes on when the battery is not
charging.
●Comes on while driving - Turn off the heating
and cooling system*/climate control system* and
rear defogger in order to reduce electricity
consumption.
2 If the Charging System Indicator Comes On
P. 451
Shift Lever Position
Indicator*
●Indicates the current shift lever position.
2 Shifting P. 334, 336
* Not available on all models
17 HR-V HDMC-31T7A6100.book 75 ページ ２０１６年７月２０日　水曜日　午前９時５０分
