2017 HONDA FIT sensor

uuAdjusting the Seats uRear Seats
140
Controls
The rear seats can be folded down separate ly to allow for additional storage space.
■To fold down the seat
1. Store the center seat belt first. Insert the
latch plate into the slot on the side of the
anchor buckle.
2. Retract the seat belt into the holder on the
ceiling.
2 Seat Belt with Detachable Anchor P. 38
3.Lower the head restra int to its lowest
position.
4. Pull the release lever and fold down the
seat-back.
To return the seat to th e original position, pull
up the seat-back in the upright position.
■Folding Down the Rear Seats1 Folding Down the Rear Seats
Make sure all items in the cargo area or items
extending to the rear seats are properly
secured. Loose items can fly forward if you have
to brake hard.
Remove any items from th e rear seat cushion and
floor before you fold down the rear seat.
To lock the seat-back upri ght, push it backwards until
it locks.
Make sure the seat-back, head restraints and seat
cushion are securely latche d back into place before
driving. Also, make sure all rear shoulder belts are
positioned in front of the seat-back, and the center
shoulder belt is re-posit ioned in the holding slot.
Make sure that the folded seat-back does not press
against the front passenger seat, as this can cause the
weight sensors in the front passenger seat to work
improperly.
2 Passenger Airbag Off Indicator P. 52
Anchor
Buckle
Latch Plate
Release Lever
17 FIT -31T5A6200.book 140 ページ ２０１６年５月２７日　金曜日　午後６時３３分

163
uuClimate Control System*uAutomatic Climate Control Sensors
Controls
Automatic Climate Control Sensors
The automatic climate control system is
equipped with sensors. Do not cover or spill
any liquid on them.Sensor
Sensor
17 FIT -31T5A6200.book 163 ページ ２０１６年５月２７日　金曜日　午後６時３３分

308
uuBefore Driving uDriving Preparation
Driving
• Be sure items placed on the floor behind the front seats cannot roll under the
seats.
u They can interfere with the driver’s ability to operate the pedals, the operation
of the seats, or the operation of the sensors under the seats.
• Everyone in the vehicle must fasten their seat belt.
2Fastening a Seat Belt P. 35
•Make sure that the indicators in the ins trument panel come on when you start the
vehicle, and go off soon after.
u Always have a dealer check the vehicle if a problem is indicated.
2 Indicators P. 70
17 FIT -31T5A6200.book 308 ページ ２０１６年５月２７日　金曜日　午後６時３３分

382
uuMaintenance Under the Hood uRefilling Window Washer Fluid
Maintenance

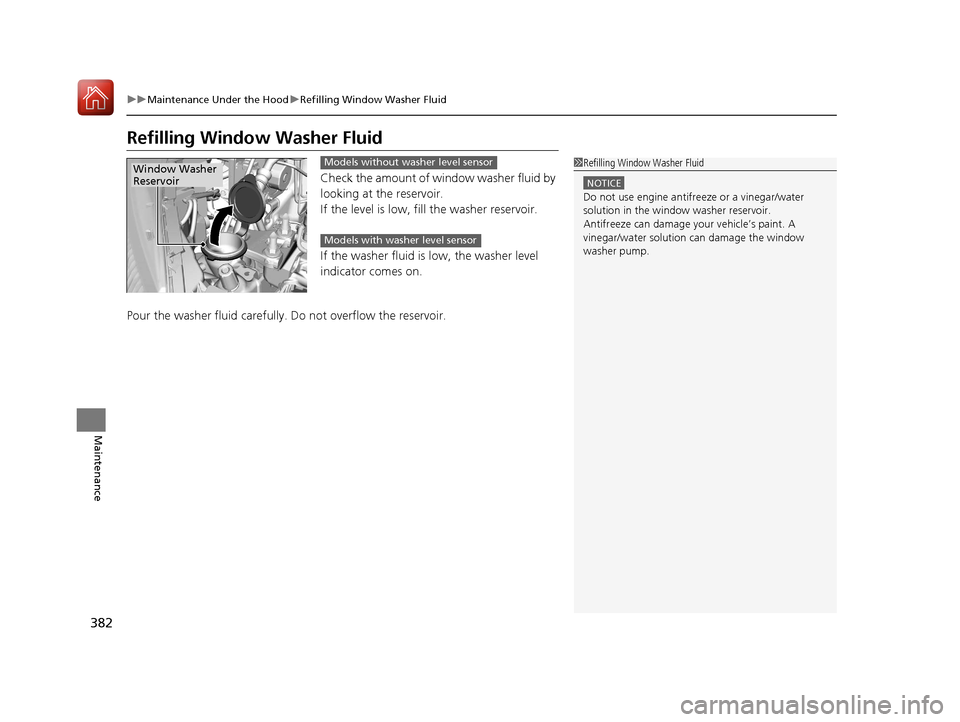

Refilling Window Washer Fluid
Check the amount of window washer fluid by
looking at the reservoir.
If the level is low, fill the washer reservoir.
If the washer fluid is low, the washer level
indicator comes on.
Pour the washer fluid carefully. Do not overflow the reservoir.
1Refilling Window Washer Fluid
NOTICE
Do not use engine antifreeze or a vinegar/water
solution in the window washer reservoir.
Antifreeze can damage y our vehicle’s paint. A
vinegar/water solution can damage the window
washer pump.
Window Washer
ReservoirModels without washer level sensor
Models with washer level sensor
17 FIT -31T5A6200.book 382 ページ ２０１６年５月２７日　金曜日　午後６時３３分

403
Maintenance
Battery
Checking the Battery
The battery condition is being monitored by the sensor on the negative terminal. If
there is a problem with the sensor, the warning message on the information display
will let you know. Have your vehicle checked by a dealer.
Check the battery termina ls for corrosion monthly.
If your vehicle’s battery is disconnected or goes dead:
• The audio system is disabled.
2 Audio System Theft Protection P. 170
•The clock resets.
2 Clock P. 90
•The navigation system* is disabled.
2 Refer to the navigation system manual
1Battery
WARNING: Battery post, terminals,
and related accessories contain lead
and lead compounds.
Wash your hands after handling.
When replacing the battery, the replacement must be
of the same specifications.
Consult a dealer for more information.
3WARNING
The battery gives off explosive hydrogen
gas during normal operation.
A spark or flame can cause the battery to
explode with enough force to kill or
seriously hurt you.
When conducting any battery
maintenance, wear prot ective clothing and
a face shield, or have a skilled technician do
it.
* Not available on all models
17 FIT -31T5A6200.book 403 ページ ２０１６年５月２７日　金曜日　午後６時３３分

433Continued
Handling the Unexpected
Fuses
Fuse Locations
If any electrical devices are not working,
turn the ignition switch to LOCK
(0*1 and
check to see if any appl icable fuse is blown.
■Fuse box A
Located near the brake fluid reservoir. Push
the tabs to open the box.
Fuse locations are shown on the fuse box
cover. Locate the fuse in question by the
fuse number and box cover number.
■Engine Compartment Fuse Box
Tab
■Circuit protected and fuse rating
Circuit ProtectedAmps
1Headlight Low Beam Main20 A
2CDC*(30 A)
3Hazard10 A
4DBW15 A
5Wiper(30 A)
6Stop10 A
7IGP15 A
8IG Coil15 A
9EOP*(10 A)
10INJ(20 A)
11––
12Main Fan30 A
13Starter SW(30 A)
14MG Clutch(7.5 A)
15Battery Sensor(7.5 A)
16––
17Daytime Running Lights(7.5 A)
18Horn10 A
19Fog Light*(15 A)
20UB ECU*(7.5 A)
*1 : Models with the smart entry system have an ENGINE START/STOP button instead of an ignition
switch.
*2 : Models with smart entry system
*3 : Models without smart entry system
Circuit ProtectedAmps
21Back Up Main15 A
22Interior Lights7.5 A
23Sub Fan(30 A)
24––
25Smart Entry Auto Start*2(7.5 A)
26ST MG*3(7.5 A)
27––
28––
29Back Up(10 A)
30IGP LAF(10 A)
31IGPS(7.5 A)
32Right Headlight Low Beam10 A
33Left Headlight Low Beam10 A
* Not available on all models
17 FIT -31T5A6200.book 433 ページ ２０１６年５月２７日　金曜日　午後６時３３分

Index
455
Index
Index
Numbers
7-Speed Manual Shift Mode................... 327
A
ABS (Anti-lock Brake System) .................. 353
Accessories and Modifications ................ 362
Accessory Power Socket ........................... 152
Additives Coolant .................................................. 378
Engine Oil ............................................... 373
Washer ................................................... 382
Additives, Engine Oil ............................... 373
Adjusting Front Seats.............................................. 135
Head Restraints ....................................... 142
Headlights .............................................. 383
Mirrors.................................................... 133
Rear Seats ............................................... 139
Steering Wheel ....................................... 132
Adjusting the Sound ................................ 200
Air Conditioning System Climate Control System .......................... 160
Defrosting the Windshield
and Windows....................................... 161
Dust and Pollen Filter .............................. 407
Air Conditioning System
(Heating and Cooling System) Cooling................................................... 159
Defrosting the Windshield
and Windows....................................... 159 Heating ................................................... 158
Heating and Cooling System .................... 157
Air Pressure ....................................... 395, 443
Airbags ........................................................ 41
Advanced Airbags ..................................... 47
Airbag Care ............................................... 53
Event Data Recorder .................................... 0
Front Airbags (SRS) .................................... 44
Indicator .............................................. 51, 73
Passenger Airbag Off Indicator .................. 52
Sensors ...................................................... 41
Side Airbags .............................................. 48
Side Curtain Airbags .................................. 50
Anti-lock Brake System (ABS) .................. 353
Indicator .................................................... 73
Armrest ..................................................... 146
Audio Remote Controls ............................ 171
Audio System ............................................ 166
Adjusting the Sound ................................ 178
Auxiliary Input Jack .................................. 168
Error Messages ........................................ 222
General Information ................................ 226
MP3/WMA/AAC .............................. 188, 213
Recommended CDs ................................. 226
Recommended Devices ............................ 228
Remote Controls ................................. 5, 171
Security Code .......................................... 170
Theft Protection ....................................... 170
USB Flash Drives ...................................... 228
USB Port(s) .............................................. 167
Audio/Information Screen ............... 174, 195Authorized Manuals
................................ 451
Auto Door Locking/Unlocking ................. 105
Customize ............................................... 106
Automatic Climate Control Sensors ........ 163
Auxiliary Input Jack .................................. 168
Average Fuel Economy .............................. 87
B
Battery...................................................... 403
Charging System Indicator................. 71, 429
Jump Starting .......................................... 424
Maintenance (Checki ng the Battery) ........ 403
Maintenance (Replacing) ......................... 405
Belts (Seat) .................................................. 32
Beverage Holders ..................................... 150
Bluetooth ® HandsFreeLink ®..................... 251
Booster Seats (For Children) ...................... 65
Brake System ............................................ 351
Anti-lock Brake System (ABS)................... 353
Brake Assist System ................................. 354
Fluid ........................................................ 381
Foot Brake............................................... 352
Indicator............................................ 70, 431
Parking Brake .......................................... 351
Brake System Indicator .............................. 70
Brightness Control (Instrument Panel) .... 130
Bulb Replacement .................................... 383
Back-Up Light and Rear Turn Signal Lights ................................................... 387
Brake/Tail/Rear Side Marker Lights ........... 388
