2017 HONDA CLARITY FUEL CELL tow

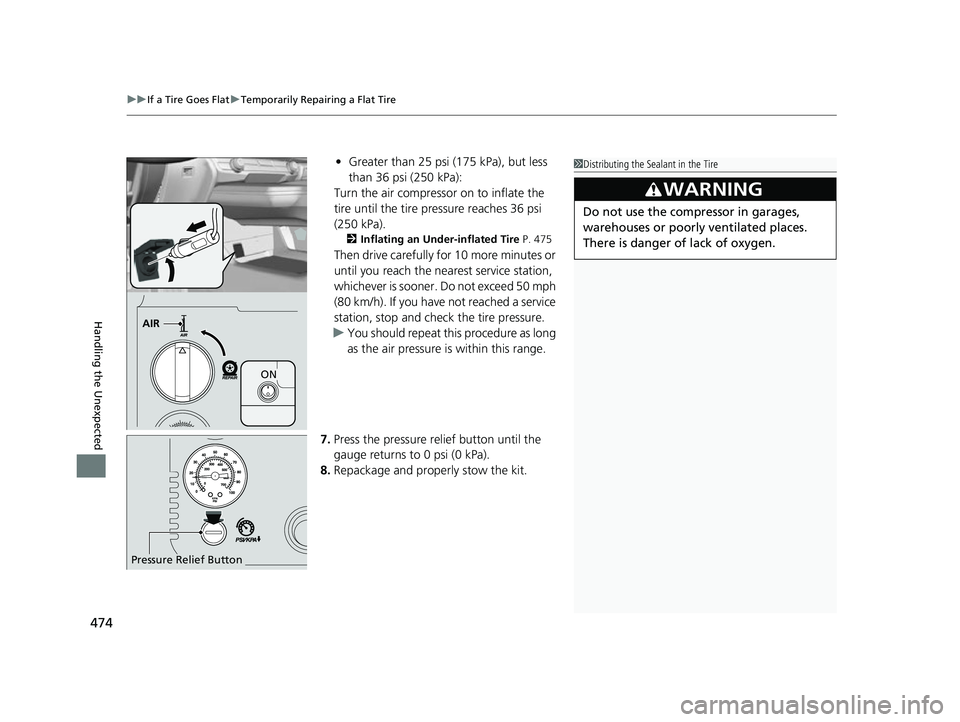

uuIf a Tire Goes Flat uTemporarily Repairing a Flat Tire
474
Handling the Unexpected
• Greater than 25 psi (175 kPa), but less
than 36 psi (250 kPa):
Turn the air compressor on to inflate the
tire until the tire pressure reaches 36 psi
(250 kPa).
2 Inflating an Under-inflated Tire P. 475
Then drive carefully for 10 more minutes or
until you reach the nearest service station,
whichever is sooner. Do not exceed 50 mph
(80 km/h). If you have not reached a service
station, stop and check the tire pressure.
u You should repeat this procedure as long
as the air pressure is within this range.
7. Press the pressure relief button until the
gauge returns to 0 psi (0 kPa).
8. Repackage and properly stow the kit.
AIR
ON
Pressure Relief Button
1Distributing the Sealant in the Tire
3WARNING
Do not use the compressor in garages,
warehouses or poorly ventilated places.
There is danger of lack of oxygen.
17 CLARITY FCV PPO-31TRT6000.book 474 ページ ２０１６年１０月２７日　木曜日　午後３ 時１１分

477

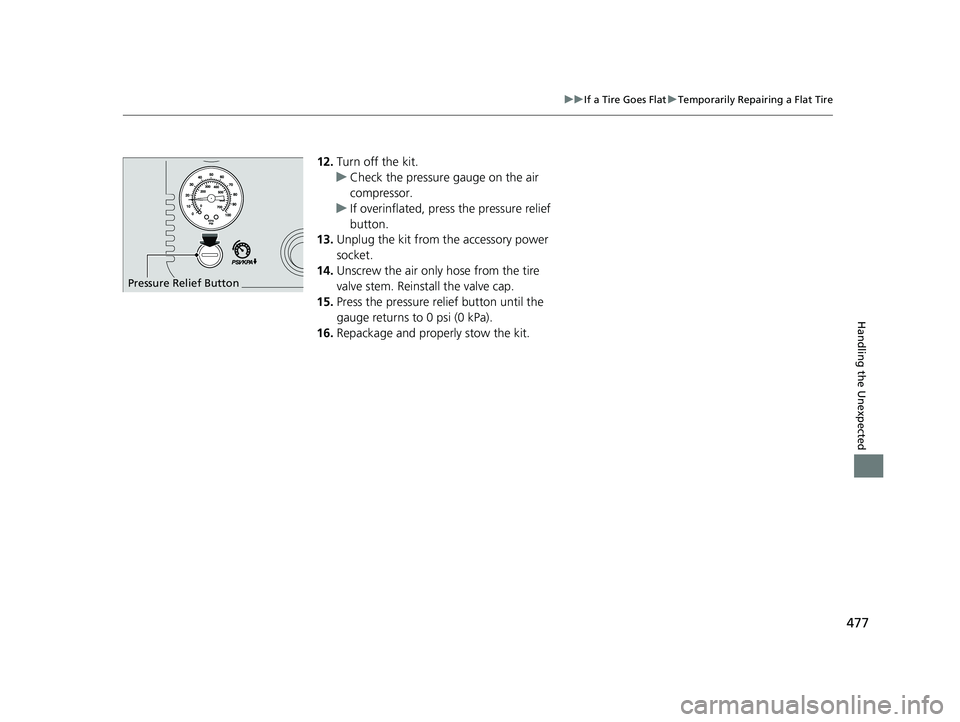

uuIf a Tire Goes Flat uTemporarily Repairing a Flat Tire
Handling the Unexpected
12. Turn off the kit.
u Check the pressure gauge on the air
compressor.
u If overinflated, press the pressure relief
button.
13. Unplug the kit from the accessory power
socket.
14. Unscrew the air only hose from the tire
valve stem. Reinstall the valve cap.
15. Press the pressure relief button until the
gauge returns to 0 psi (0 kPa).
16. Repackage and properly stow the kit.
Pressure Relief Button
17 CLARITY FCV PPO-31TRT6000.book 477 ページ ２０１６年１０月２７日　木曜日　午後３ 時１１分

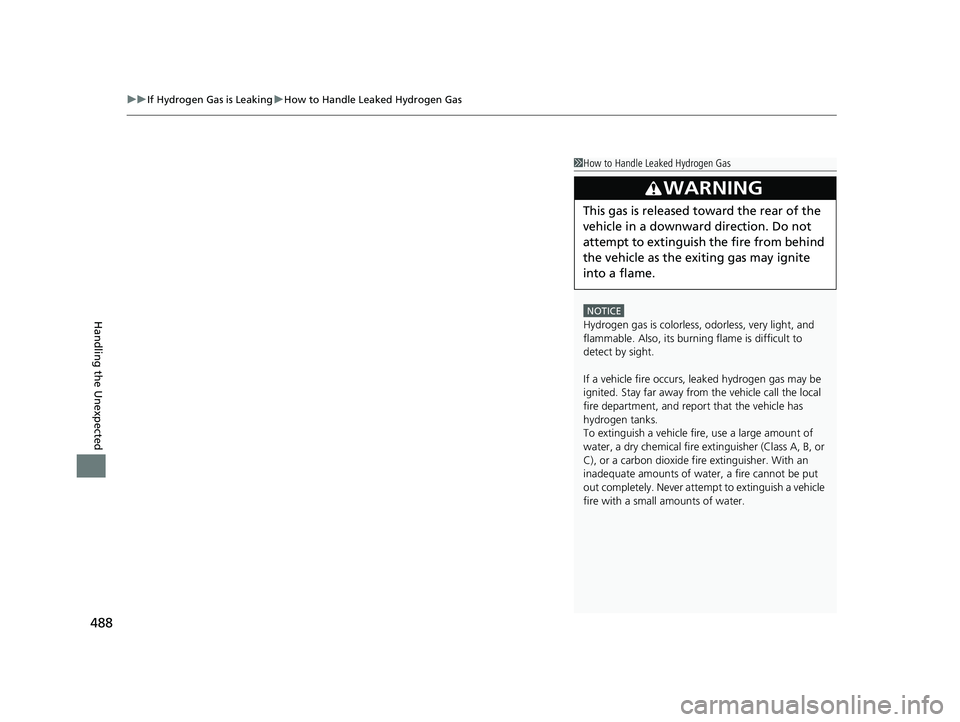

uuIf Hydrogen Gas is Leaking uHow to Handle Leaked Hydrogen Gas
488
Handling the Unexpected
1How to Handle Leaked Hydrogen Gas
NOTICE
Hydrogen gas is colorless, odorless, very light, and
flammable. Also, its burni ng flame is difficult to
detect by sight.
If a vehicle fire occurs, le aked hydrogen gas may be
ignited. Stay far away from the vehicle call the local
fire department, and repor t that the vehicle has
hydrogen tanks.
To extinguish a vehicle fire, use a large amount of
water, a dry chemical fire extinguisher (Class A, B, or
C), or a carbon dioxide fi re extinguisher. With an
inadequate amounts of wate r, a fire cannot be put
out completely. Never attemp t to extinguish a vehicle
fire with a small amounts of water.
3WARNING
This gas is released toward the rear of the
vehicle in a downward direction. Do not
attempt to extinguish the fire from behind
the vehicle as the exiting gas may ignite
into a flame.
17 CLARITY FCV PPO-31TRT6000.book 488 ページ ２０１６年１０月２７日　木曜日　午後３ 時１１分

493

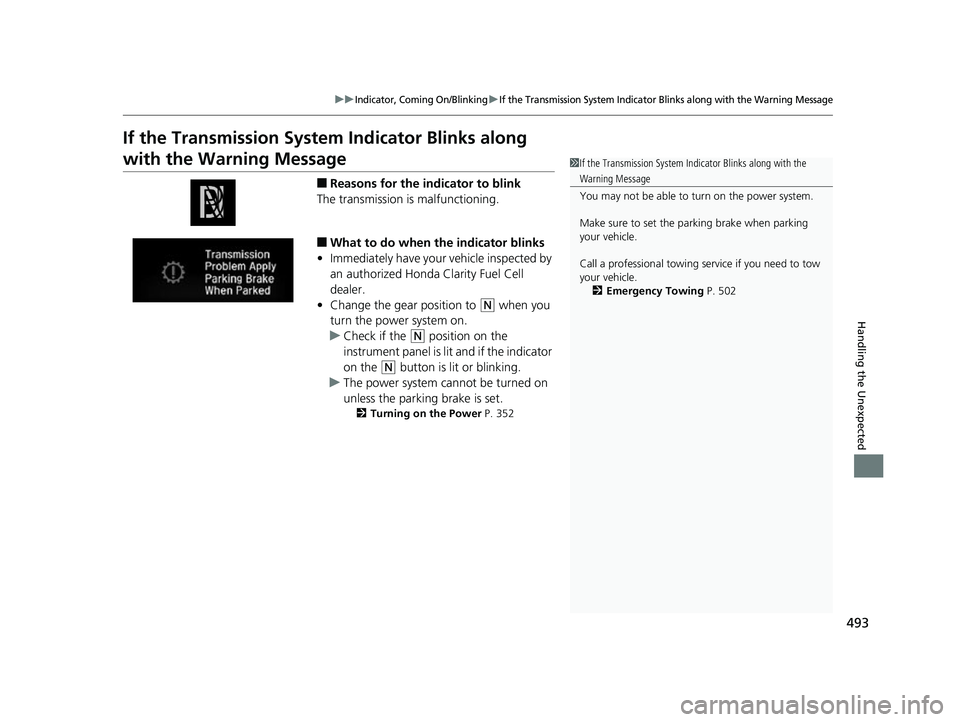

uuIndicator, Coming On/BlinkinguIf the Transmission System Indicator Blinks along with the Warning Message
Handling the Unexpected
If the Transmission System Indicator Blinks along
with the Warning Message
■Reasons for the indicator to blink
The transmission is malfunctioning.
■What to do when the indicator blinks
• Immediately have your vehicle inspected by
an authorized Honda Clarity Fuel Cell
dealer.
• Change the gear position to
(N when you
turn the power system on.
u Check if the
(N position on the
instrument panel is lit and if the indicator
on the
(N button is lit or blinking.
u The power system cannot be turned on
unless the parking brake is set.
2 Turning on the Power P. 352
1If the Transmission System In dicator Blinks along with the
Warning Message
You may not be able to turn on the power system.
Make sure to set the parking brake when parking
your vehicle.
Call a professional towing service if you need to tow
your vehicle. 2 Emergency Towing P. 502
17 CLARITY FCV PPO-31TRT6000.book 493 ページ ２０１６年１０月２７日　木曜日　午後３ 時１１分

502
Handling the Unexpected
Emergency Towing
Call a professional towing service if you need to tow your vehicle.
■Flat bed equipment
The operator loads your vehicle on the back of a truck.
This is the only way you can safely transport your vehicle.
Any other towing method will da mage the vehicle’s drive system.
1Emergency Towing
NOTICE
Trying to lift or tow your vehicle by the bumpers will
cause serious damage. The bumpers are not designed
to support the vehicle's weight.
NOTICE
Improper towing, such as towing behind a
motorhome or other motor vehicle can damage the
transmission.
Never tow your vehicle with just a rope or chain.
It is very dangerous since ropes or chains may shift
from side to side or break.
Do not use the hook on the rear of your vehicle for
the towing of other vehicles or emergency removal of
your vehicle. The hook may break.
If your vehicle needs to be towed backward, contact
an authorized Honda Clarity Fuel Cell dealer or a
professional towing service.
Hook
17 CLARITY FCV PPO-31TRT6000.book 502 ページ ２０１６年１０月２７日　木曜日　午後３ 時１１分

503
Handling the Unexpected

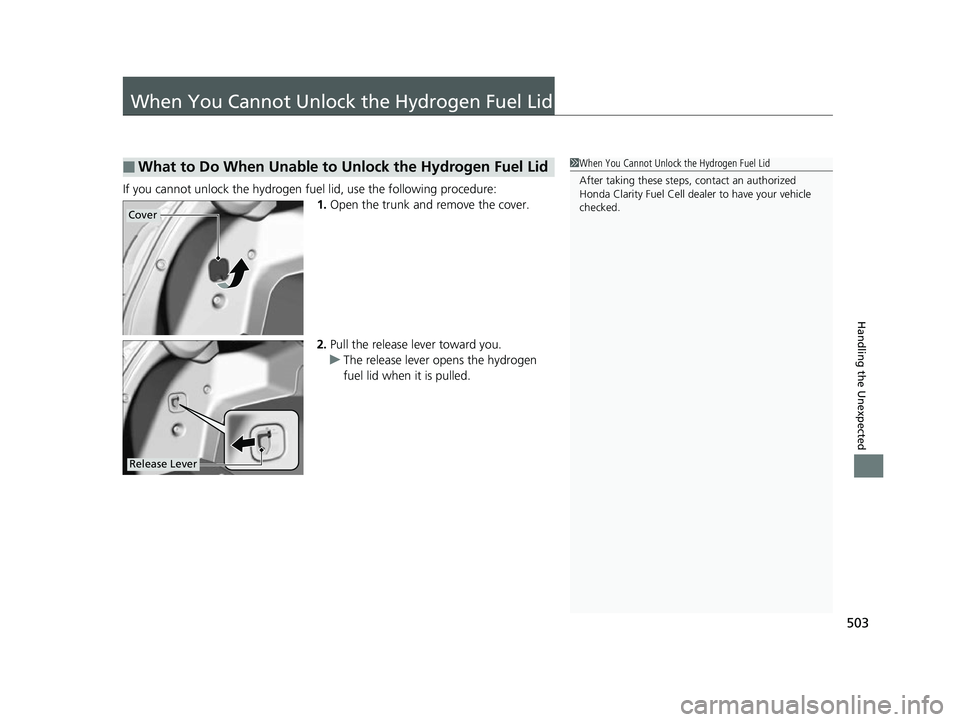

When You Cannot Unlock the Hydrogen Fuel Lid
If you cannot unlock the hydrogen fuel lid, use the following procedure:
1.Open the trunk and remove the cover.
2. Pull the release lever toward you.
u The release lever opens the hydrogen
fuel lid when it is pulled.
■What to Do When Unable to Unlock the Hydrogen Fuel Lid1When You Cannot Unlock the Hydrogen Fuel Lid
After taking these steps, contact an authorized
Honda Clarity Fuel Cell dealer to have your vehicle
checked.
Cover
Release Lever
17 CLARITY FCV PPO-31TRT6000.book 503 ページ ２０１６年１０月２７日　木曜日　午後３ 時１１分

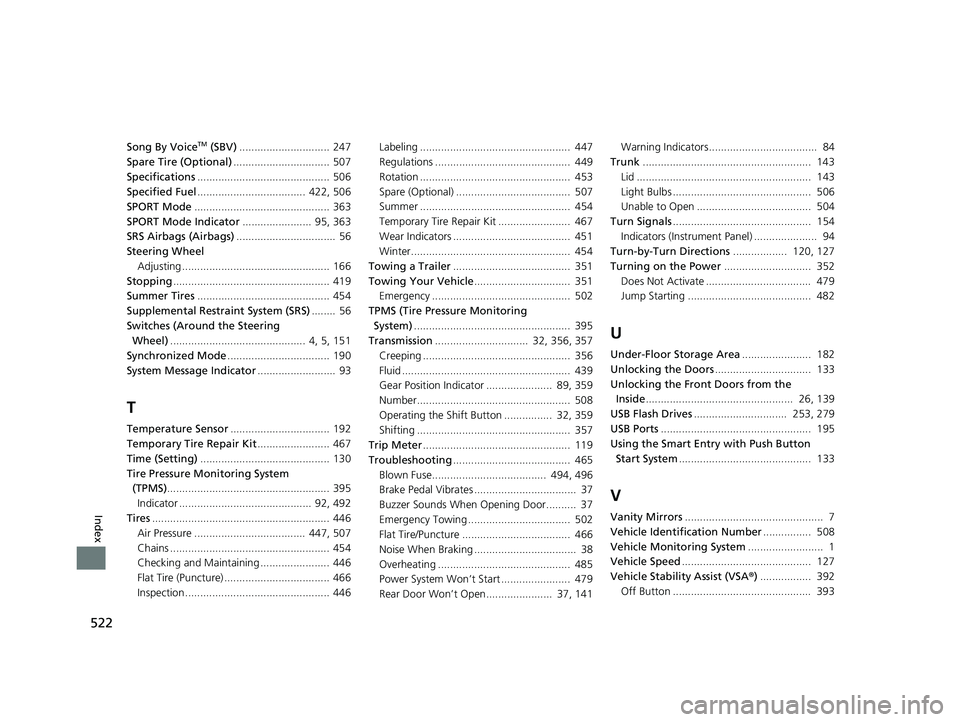

522
Index
Song By VoiceTM (SBV).............................. 247
Spare Tire (Optional) ................................ 507
Specifications ............................................ 506
Specified Fuel .................................... 422, 506
SPORT Mode ............................................. 363
SPORT Mode Indicator ....................... 95, 363
SRS Airbags (Airbags) ................................. 56
Steering Wheel
Adjusting ................................................. 166
Stopping .................................................... 419
Summer Tires ............................................ 454
Supplemental Restraint System (SRS) ........ 56
Switches (Around the Steering Wheel) ............................................. 4, 5, 151
Synchronized Mode .................................. 190
System Message Indicator .......................... 93
T
Temperature Sensor................................. 192
Temporary Tire Repair Kit ........................ 467
Time (Setting) ........................................... 130
Tire Pressure Monitoring System (TPMS) ...................................................... 395
Indicator ............................................ 92, 492
Tires ........................................................... 446
Air Pressure ..................................... 447, 507
Chains ..................................................... 454
Checking and Maintaining ....................... 446
Flat Tire (Puncture) ................................... 466
Inspection ................................................ 446 Labeling .................................................. 447
Regulations ............................................. 449
Rotation .................................................. 453
Spare (Optional) ...................................... 507
Summer .................................................. 454
Temporary Tire Re
pair Kit ........................ 467
Wear Indicators ....................................... 451
Winter..................................................... 454
Towing a Trailer ....................................... 351
Towing Your Vehicle ................................ 351
Emergency .............................................. 502
TPMS (Tire Pressure Monitoring System) .................................................... 395
Transmission ............................... 32, 356, 357
Creeping ................................................. 356
Fluid ........................................................ 439
Gear Position Indicator ...................... 89, 359
Number................................................... 508
Operating the Shift Button ................ 32, 359
Shifting ................................................... 357
Trip Meter ................................................. 119
Troubleshooting ....................................... 465
Blown Fuse...................................... 494, 496
Brake Pedal Vibrates .................................. 37
Buzzer Sounds When Opening Door.......... 37
Emergency Towing .................................. 502
Flat Tire/Puncture .................................... 466
Noise When Braking .................................. 38
Overheating ............................................ 485
Power System Won’t Start ....................... 479
Rear Door Won’t Open...................... 37, 141 Warning Indicators.................................... 84
Trunk ........................................................ 143
Lid .......................................................... 143
Light Bulbs .............................................. 506
Unable to Open ...................................... 504
Turn Signals .............................................. 154
Indicators (Instru ment Panel) ..................... 94
Turn-by-Turn Directions .................. 120, 127
Turning on the Power ............................. 352
Does Not Activate ................................... 479
Jump Starting ......................................... 482
U
Under-Floor Storage Area ....................... 182
Unlocking the Doors ................................ 133
Unlocking the Fron t Doors from the
Inside ................................................. 26, 139
USB Flash Drives ............................... 253, 279
USB Ports .................................................. 195
Using the Smart Entr y with Push Button
Start System ............................................ 133
V
Vanity Mirrors .............................................. 7
Vehicle Identification Number ................ 508
Vehicle Monitoring System ......................... 1
Vehicle Speed ........................................... 127
Vehicle Stability Assist (VSA ®) ................. 392
Off Button .............................................. 393
