2017 HONDA CLARITY FUEL CELL ABS

452
uuChecking and Maintaining Tires uTire and Wheel Replacement
Maintenance

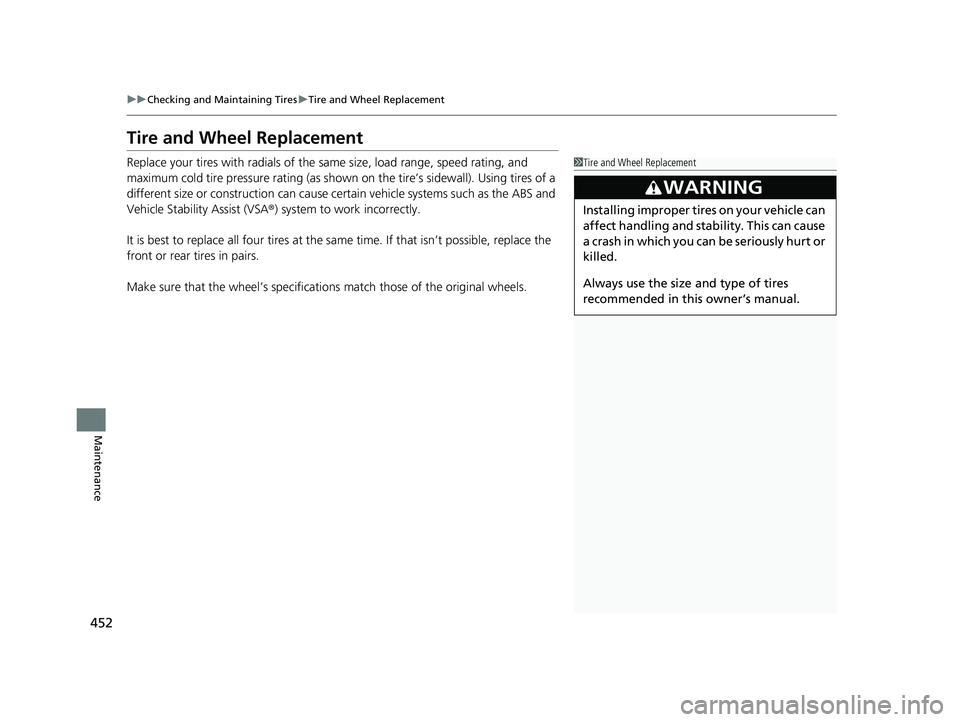

Tire and Wheel Replacement
Replace your tires with radials of the sa me size, load range, speed rating, and
maximum cold tire pressure ra ting (as shown on the tire’s sidewall). Using tires of a
different size or construction can cause ce rtain vehicle systems such as the ABS and
Vehicle Stabilit y Assist (VSA®) system to work incorrectly.
It is best to replace all four tires at the same time. If that isn’t possible, replace the
front or rear tires in pairs.
Make sure that the wheel’s specifications match those of the original wheels.1 Tire and Wheel Replacement
3WARNING
Installing improper tires on your vehicle can
affect handling and stability. This can cause
a crash in which you can be seriously hurt or
killed.
Always use the size and type of tires
recommended in this owner’s manual.
17 CLARITY FCV PPO-31TRT6000.book 452 ページ ２０１６年１０月２７日　木曜日　午後３ 時１１分

481
uuPower System Won’t StartuEmergency Power System Off
Handling the Unexpected
Emergency Power System Off
The POWER button may be used to turn the power system off due to an emergency
situation even while driving. If you must tu rn the power system off, do either of the
following operations:
• Press and hold the POWER button for about two seconds.
• Firmly press the POWER button three times.
The steering wheel will not lock. However, because turning off the power system
disables the power assist the power system provides to the steering and braking
systems, it will require significantly more physical effort and time to steer and slow
the vehicle. Use both feet on the brake pe dal to slow down the vehicle and stop
immediately in a safe place.
The gear position auto matically changes to
(P after the vehicle comes to a complete
stop. Then, the power mode changes to VEHICLE OFF.
1 Emergency Power System Off
Do not press the button while driving unless it is
absolutely necessary for the power system to be
turned off.
17 CLARITY FCV PPO-31TRT6000.book 481 ページ ２０１６年１０月２７日　木曜日　午後３ 時１１分

490
uuIndicator, Coming On/BlinkinguIf the Brake System Indicator (Red) Comes On or Blinks
Handling the Unexpected
If the Brake System Indicator (Red) Comes On or
Blinks
■Reasons for the indicator to come on
• The brake fluid is low.
• There is a malfunction in the brake system.
■What to do when the indicator comes on while driving
Depress the brake pedal lightly to check pedal pressure.
• If normal, check the brake fluid level the next time you stop.
• If abnormal, take immediate action . If necessary, downshift the
transmission to slow the vehicle using regenerative braking.
■Reason for the indicator to blink
• There is a problem with the electric parking brake system.
■What to do when the indicator blinks
Avoid using the parking brake and ha ve your vehicle checked by an
authorized Honda Clarity Fuel Cell dealer immediately.
If the Electric Power Steeri ng (EPS) System Indicator
Comes On
■Reasons for the indicator to come on
• Comes on if there is a problem with the EPS system.
■What to do when the indicator comes on
Stop the vehicle in a safe place, tu rn off the power system, and turn on
the power system again.
If the indicator re-appears and stays on, immediately have your vehicle
inspected by an authorized Ho nda Clarity Fuel Cell dealer.
1If the Brake System Indicator (Red) Comes On or Blinks
Have your vehicle re paired immediately.
It is dangerous to drive with low brake fluid. If there
is no resistance from the brake pedal, stop
immediately in a safe plac e. If necessary, downshift
the gears.
If the brake system indicator and ABS indicator come
on simultaneously, the elec tronic brake distribution
system is not working. Th is can result in vehicle
instability under sudden braking.
Have your vehicle inspected by an authorized Honda
Clarity Fuel Cell dealer immediately.
If the brake system indicator (red) blinks at the same
time when the brake system indicator (amber) comes
on, the parking br ake may not work.
Avoid using the parking brak e and have your vehicle
checked by an authorized Honda Clarity Fuel Cell
dealer immediately. 2 If the Brake System Indicator (Red) Comes
On or Blinks at the Same Time When the
Brake System Indicator (Amber) Comes On
P. 491
17 CLARITY FCV PPO-31TRT6000.book 490 ページ ２０１６年１０月２７日　木曜日　午後３ 時１１分

494
Handling the Unexpected
Fuses
Fuse Locations
If any electrical devices are not working, set
the power mode to VEHICLE OFF (LOCK),
and check to see if any applicable fuse is
blown.
There are two fuse boxes in the motor
compartment.
Fuse locations are shown on the fuse box
cover. Locate the fuse in question by the
fuse number and box cover number.
Located near the windshield washer
reservoir. Push the tabs to open the box.
■Motor Compartment Fuse Box
Tab
■Circuit protected and fuse rating
Circuit ProtectedAmps
1BATTERY200 A
2
EPS70 A
ESB40 A
ABS/VSA_FSR20 A
SUB FUSE BOX 440 A
P-ACT30 A
−−
H/L LO MAIN30 A
3
WIPER MOTOR 130 A
WIPER MOTOR 230 A
IG MAIN 130 A
IG MAIN 230 A
4 HAZARD 10 A
5IGB15 A
6 IG CRASH 10 A
7IGA7.5 A
8 P-ACT_DRV 7.5 A
9SHIFTER7.5 A
10 STOP LIGHT 7.5 A
11VBU7.5 A
12 RFC
60 A
FUSE BOX MAIN 3 50 A
FUSE BOX MAIN 1 60 A H/L HI MAIN 40 A
PREMIUM AUDIO 30 A
FUSE BOX MAIN 2 40 A ABS/VSA MOTOR 40 A −−
SMALL MAIN 20 A
SUB FUSE BOX 2-1 40 A
13HEATER MOTOR40 A
14 REAR DEFROSTER 40 A
15BATT FAN15 A
16 BATT SNSR 7.5 A
17H2 PMP30 A
18 A/C MAIN/DRL 10 A
19EGR PMP20 A
20 BATT SNSR (IR) 10 A
21BACK UP10 A
22 AUDIO 15 A
23IGB LEAK SNSR5 A
24 R H/L LO 7.5 A
25L H/L LO7.5 A
26 IGB ECU 5 A
Circuit ProtectedAmps
17 CLARITY FCV PPO-31TRT6000.book 494 ページ ２０１６年１０月２７日　木曜日　午後３ 時１１分

496
uuFuses uFuse Locations
Handling the Unexpected
There are five fuse boxes on the driver’s
side.
■Fuse Box A
Located under the dashboard.
Fuse locations are shown on the label on
the under panel.
Locate the fuse in question by the fuse
number and label number.
■Driver’s Side Interior Fuse Box
Fuse Label
■Circuit protected and fuse rating
Circuit ProtectedAmps
1ACC7.5 A
2−−
3−−
4SHIFTER7.5 A
5OPTION MAIN7.5 A
6SRS OPTION7.5 A
7METER10 A
8FUEL PUMP7.5 A
9OPTION7.5 A
10CTR ACC SOCKET20 A
11−−
12R SIDE DOOR LOCK10 A
13L SIDE DOOR UNLOCK10 A
14RR L P/W20 A
15AS P/W20 A
16DOOR LOCK20 A
17P-DRV7.5 A
18IGIR7.5 A
19WASHER15 A
20ESB7.5 A
21ACG7.5 A
22DRL7.5 A
23IGFC37.5 A
24FR SENSOR CAMERA5A
25DR DOOR LOCK10 A
26R SIDE DOOR UNLOCK10 A
27RR R P/W20 A
28DR P/W20 A
29FR ACC SOCKET20 A
30INTERIOR LIGHT7.5 A
31DR P/SEAT REC20 A
32FR SEAT HEATER20 A
33DR P/SEAT SLI20 A
34ABS/VSA7.5 A
35SRS10 A
36−−
37LID ACT10 A
38L SIDE DOOR LOCK10 A
39DR DOOR UNLOCK10 A
Circuit ProtectedAmps
17 CLARITY FCV PPO-31TRT6000.book 496 ページ ２０１６年１０月２７日　木曜日　午後３ 時１１分
