2017 HONDA ACCORD HYBRID engine filter

485
Maintenance
This chapter discusses basic maintenance.
Before Performing MaintenanceInspection and Maintenance ............ 486
Safety When Performing Maintenance..... 487Parts and Fluids Used in Maintenance Service ........................................... 488
Maintenance Minder
TM..................... 489
Maintenance Under the Hood
Maintenance Items Under the Hood ..... 493Opening the Hood ........................... 494
Recommended Engine Oil ................ 495
Oil Check ......................................... 496
Adding Engine Oil ............................ 497
Changing the Engine Oil and Oil Filter ..... 498
Cooling System ................................ 500
Inverter Coolant ............................... 502
Transmission Fluid ............................ 503
Brake Fluid ....................................... 504
Refilling Window Washer Fluid......... 505
Replacing Light Bulbs ....................... 506
Checking and Maintaining Wiper
Blades .......................................... 514
Checking and Maintaining Tires
Checking Tires ................................. 516
Tire and Loading Information Label ...... 517Tire Labeling .................................... 517DOT Tire Quality Grading (U.S. Vehicles)....... 519
Wear Indicators ............................... 521
Tire Service Life ................................ 521
Tire and Wheel Replacement ........... 522
Tire Rotation .................................... 523
Winter Tires ..................................... 524
12-Volt Battery ................................. 525
Remote Transmitter Care Replacing the Button Battery ........... 526
Climate Control System Maintenance ... 527
Cleaning
Interior Care .................................... 528
Exterior Care.................................... 530
Accessories and Modifications ........ 533
17 ACCORD FHEV-31T3W6200.book 485 ページ ２０１６年４月１１日　月曜日　午後２時４０分

491
uuMaintenance MinderTMuTo Use Maintenance MinderTM
Continued
Maintenance
■Maintenance Service Items1Maintenance Service Items
•Independent of the Maintenance Minder
information, replace the brake fluid every 3 years.
•Inspect idle speed every 160,000 miles (256,000
km).
•Adjust the valves during services A, B, 1, 2, or 3 if
they are noisy.
Maintenance Minder
Message
System Message
Indicator
Sub Items
Main Item
*1: If a message Service does not appear more than 12 months after the display is reset, change the
engine oil every year.
# : See information on maintenance and emissions warranty.
CODEMaintenance Main Items
A
●Replace engine oil*1
B●Replace engine oil*1 and oil filter●Inspect front and rear bra kes/service as necessary●Check parking brake adjustment●Inspect tie rod ends, steering gearbox, and boots●Inspect suspension components●Inspect driveshaft boots●Inspect brake hoses and li nes (Including ABS/VSA)●Inspect all fluid levels and condition of fluids●Inspect exhaust system#
●Inspect fuel lines and connections#
●Check expiration date for TRK bottle
*2: If you drive in dusty conditions, replace the air cleaner element every 15,000 miles (24,000 km).
*3: If you drive primarily in urban areas that have high concentrations of soot in the air from industry and
from diesel-powered vehicles, replace the dust and pollen filter every 15,000 miles (24,000 km).
*4: Driving in mountainous areas at very low vehicle speeds results in higher transmission temperatures. This requires transmission fluid changes more frequently than recommended by the Maintenance
Minder. If you regularly drive your vehicle under these conditions, have the transmission fluid changed
every 47,500 miles (75,000 km) or 3 years.
CODEMaintenance Sub Items
1
●Rotate tires
2●Replace air cleaner element*2
●Replace dust and pollen filter*3
3●Replace transmission fluid*4
4●Replace spark plugs●Inspect valve clearance
5
●Replace engine coolant
17 ACCORD FHEV-31T3W6200.book 491 ページ ２０１６年４月１１日　月曜日　午後２時４０分

498
uuMaintenance Under the Hood uChanging the Engine Oil and Oil Filter
Maintenance
Changing the Engine Oil and Oil Filter
You must change the engine oil and oil filter regularly in order to maintain the
engine's lubrication. The engine may be damaged if they are not changed regularly.
Turning the power system on automatically starts the engine if the High Voltage
battery charge level gauge shows two segments or less.
2 High Voltage Battery Charge Level Gauge P. 99
Change the oil and filter in accordance with the maintenance message on the multi-
information display.
1.Remove the engine under cover.
2. Run the engine until it reaches normal
operating temperature, and then turn the
engine off.
3. Open the hood and remo ve the engine oil
fill cap.
4. Remove the drain bolt and washer from the
bottom of the engine, and drain the oil into
a suitable container.
1Changing the Engine Oil and Oil Filter
NOTICE
You may damage the environment if you do not
dispose of the oil in a suitable way. If you are
changing the oil by yourself , appropriately dispose of
the used oil. Put the oil in a sealed container and take
it to a recycling center. Do not throw the oil away
into a garbage can or onto the ground.
Drain Bolt
Washer
17 ACCORD FHEV-31T3W6200.book 498 ページ ２０１６年４月１１日　月曜日　午後２時４０分

499
uuMaintenance Under the Hood uChanging the Engine Oil and Oil Filter
Maintenance
5. Remove the oil filter and dispose of the
remaining oil.
6. Check that the filter gasket is not stuck to
the engine contact surface.
u If it is stuck, you must detach it.
7. Wipe away dirt and dust adhering to the
contact surface of the engine block, and
install a new oil filter.
u Apply a light coat of new engine oil to
the oil gasket.
8. Put a new washer on the drain bolt, then
reinstall the drain bolt.
u Tightening torque:
30 lbf∙ft (40 N∙m, 4.0 kgf∙m)
9. Pour the recommended engine oil into the
engine.
u Engine oil change capacity (including
filter):
4.0 US qt (3.8 L)
10. Reinstall the engine oil fill cap securely and
start the engine.
11. Run the engine for a few minutes, and
then check that there is no leak from the
drain bolt or oil filter.
12. Stop the engine, wait for three minutes,
and then check the oil level on the
dipstick.
u If necessary, add more engine oil.1Changing the Engine Oil and Oil Filter
You will need a special wrench to replace the oil
filter. You can buy this wrench from a dealer.
When installing the new oil filter, follow the
instructions supplied with the oil filter.
Reinstall the engine oil fill cap. Start the engine. The
low oil pressure indicator should go off within five
seconds. If it does not, turn off the engine, and check
your work.
Oil Filter
17 ACCORD FHEV-31T3W6200.book 499 ページ ２０１６年４月１１日　月曜日　午後２時４０分

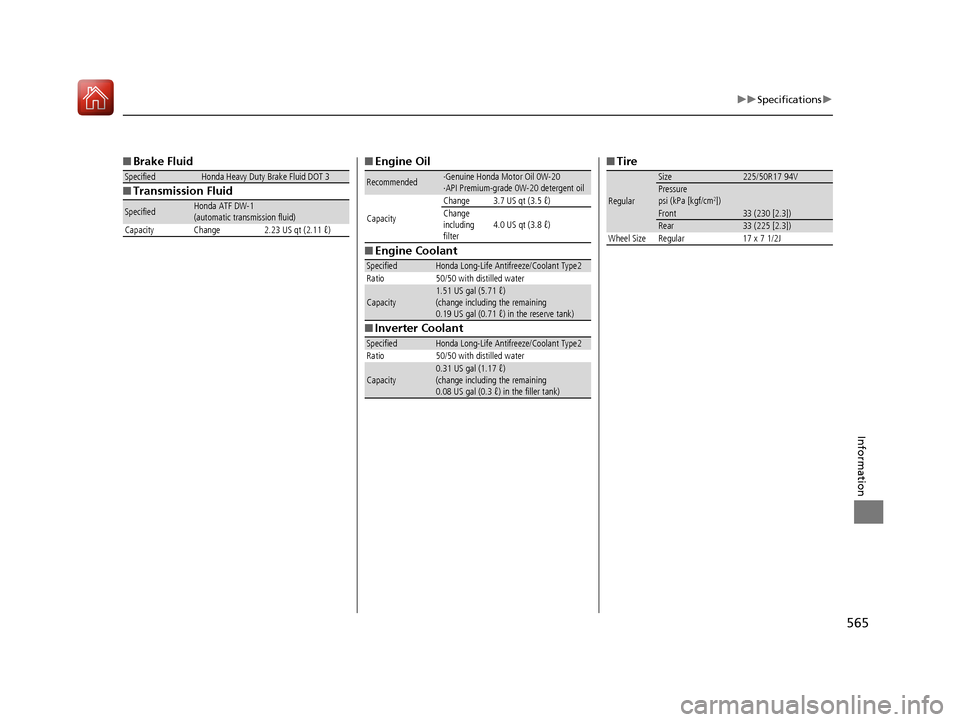

565
uuSpecifications u
Information
■Brake Fluid
■ Transmission Fluid
SpecifiedHonda Heavy Duty Brake Fluid DOT 3
SpecifiedHonda ATF DW-1
(automatic transmission fluid)
Capacity Change 2.23 US qt (2.11 ℓ)
■ Engine Oil
■ Engine Coolant
■ Inverter Coolant
Recommended·Genuine Honda Motor Oil 0W-20
·API Premium-grade 0W-20 detergent oil
Capacity Change 3.7 US qt (3.5 ℓ)
Change
including
filter
4.0 US qt (3.8 ℓ)
SpecifiedHonda Long-Life Antifreeze/Coolant Type2
Ratio 50/50 with distilled water
Capacity1.51 US gal (5.71 ℓ)
(change including the remaining
0.19 US gal (0.71 ℓ) in the reserve tank)
SpecifiedHonda Long-Life Antifreeze/Coolant Type2
Ratio 50/50 with distilled water
Capacity0.31 US gal (1.17 ℓ)
(change including the remaining
0.08 US gal (0.3 ℓ) in the filler tank)
■ Tire
Regular
Size225/50R17 94VPressure
psi (kPa [kgf/cm2])Front33 (230 [2.3])Rear33 (225 [2.3])
Wheel Size Regular 17 x 7 1/2J
17 ACCORD FHEV-31T3W6200.book 565 ページ ２０１６年４月１１日　月曜日　午後２時４０分
