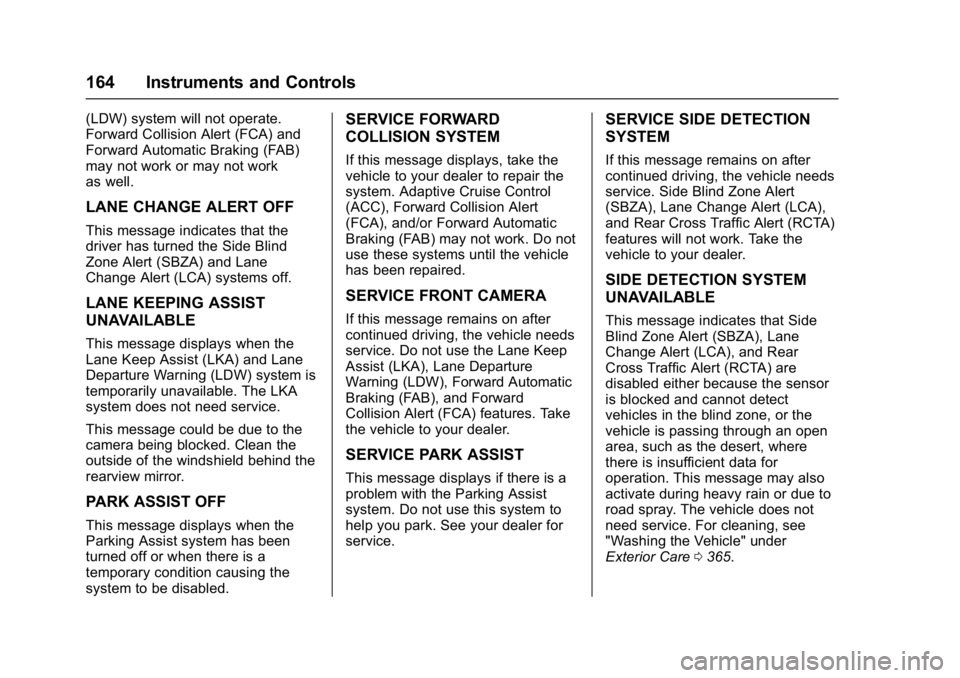

164 Instruments and Controls
(LDW) system will not operate.
Forward Collision Alert (FCA) and
Forward Automatic Braking (FAB)
may not work or may not work
as well.
LANE CHANGE ALERT OFF
This message indicates that the
driver has turned the Side Blind
Zone Alert (SBZA) and Lane
Change Alert (LCA) systems off.
LANE KEEPING ASSIST
UNAVAILABLE
This message displays when the
Lane Keep Assist (LKA) and Lane
Departure Warning (LDW) system is
temporarily unavailable. The LKA
system does not need service.
This message could be due to the
camera being blocked. Clean the
outside of the windshield behind the
rearview mirror.
PARK ASSIST OFF
This message displays when the
Parking Assist system has been
turned off or when there is a
temporary condition causing the
system to be disabled.
SERVICE FORWARD
COLLISION SYSTEM
If this message displays, take the
vehicle to your dealer to repair the
system. Adaptive Cruise Control
(ACC), Forward Collision Alert
(FCA), and/or Forward Automatic
Braking (FAB) may not work. Do not
use these systems until the vehicle
has been repaired.
SERVICE FRONT CAMERA
If this message remains on after
continued driving, the vehicle needs
service. Do not use the Lane Keep
Assist (LKA), Lane Departure
Warning (LDW), Forward Automatic
Braking (FAB), and Forward
Collision Alert (FCA) features. Take
the vehicle to your dealer.
SERVICE PARK ASSIST
This message displays if there is a
problem with the Parking Assist
system. Do not use this system to
help you park. See your dealer for
service.
SERVICE SIDE DETECTION
SYSTEM
If this message remains on after
continued driving, the vehicle needs
service. Side Blind Zone Alert
(SBZA), Lane Change Alert (LCA),
and Rear Cross Traffic Alert (RCTA)
features will not work. Take the
vehicle to your dealer.
SIDE DETECTION SYSTEM
UNAVAILABLE
This message indicates that Side
Blind Zone Alert (SBZA), Lane
Change Alert (LCA), and Rear
Cross Traffic Alert (RCTA) are
disabled either because the sensor
is blocked and cannot detect
vehicles in the blind zone, or the
vehicle is passing through an open
area, such as the desert, where
there is insufficient data for
operation. This message may also
activate during heavy rain or due to
road spray. The vehicle does not
need service. For cleaning, see
"Washing the Vehicle" under
Exterior Care0365.

GMC Yukon/Yukon XL/Denali Owner Manual (GMNA-Localizing-U.S./
Canada/Mexico-9955936) - 2017 - crc - 7/13/16
Instruments and Controls 173
are available. The Alert setting
disables FAB. SeeForward
Automatic Braking (FAB) 0257.
Select Off, Alert and Brake, or Alert.
Go Notifier
This feature will give a reminder that
Adaptive Cruise Control provides
when it has brought the vehicle to a
complete stop behind another
stopping vehicle, and then that
vehicle drives on.
Select Off or On.
Park Assist
This allows the feature to be turned
on or off. See Assistance Systems
for Parking or Backing 0252.
Select Off, On, or On with Towbar
Attached.
Side Blind Zone Alert
This allows the feature to be turned
on or off. See Side Blind Zone Alert
(SBZA) 0259.
Select Off or On. Rear Cross Traffic Alert
This allows the feature to be turned
on or off. See
Assistance Systems
for Parking or Backing 0252.
Select Off or On.
Comfort and Convenience
Select the Comfort and
Convenience menu and the
following may display:
. Auto Memory Recall
. Easy Exit Options
. Chime Volume
. Reverse Tilt Mirror
. Auto Mirror Folding
. Auto Wipe in Reverse Gear
Auto Memory Recall
This allows the feature to be turned
on or off. See Memory Seats 066.
Select On or Off.
Easy Exit Options
This allows the feature to be turned
on or off. See Memory Seats 066.
Select On or Off. Chime Volume
This allows the selection of the
chime volume level.
Press + or
−to adjust the volume.
Reverse Tilt Mirror
When on, the driver and/or
passenger mirrors will tilt downward
when the vehicle is shifted to
R (Reverse) to improve visibility of
the ground near the rear wheels.
Select Off, On - Driver and
Passenger, On - Driver, or On -
Passenger.
Auto Mirror Folding
When on, the outside rearview
mirrors will automatically fold or
unfold when the Remote Keyless
Entry (RKE) transmitter
QorK
button is pressed and held.
Select Off or On.
Auto Wipe in Reverse Gear
When on and the front wiper is on
and wiping, the rear wiper will
automatically activate when the
vehicle is shifted to R (Reverse).

GMC Yukon/Yukon XL/Denali Owner Manual (GMNA-Localizing-U.S./
Canada/Mexico-9955936) - 2017 - crc - 7/5/16
194 Climate Controls
Caution
Using a razor blade or sharp
object to clear the inside rear
window can damage the rear
window defogger. Repairs would
not be covered by the vehicle
warranty. Do not clear the inside
rear window with sharp objects.
Heated Mirror : If equipped with
heated outside rearview mirrors, the
mirrors heat to help clear fog or frost
from the surface of the mirror when
the rear window defog button is
pressed. See Heated Mirrors 055.
Rear Climate Controls
O:Press to turn the rear climate
control system on or off.
AUTO : Press AUTO to control the
rear passenger temperature, air
delivery, and fan speed. AUTO
appears in the display when
automatic operation is active. If any
of the climate control settings
except rear temperature are
manually adjusted, this cancels full
automatic operation. Fan Control :
Press up or down to
increase or decrease the rear
passenger area fan speed.
Air Delivery Mode Control : Press
up or down to change the direction
of the rear passenger airflow.
Repeatedly press the switch until
the desired mode appears on the
display. Multiple presses will cycle
through the delivery selections.
Temperature Control : Press up or
down to increase or decrease the
airflow temperature into the rear
passenger area.
RCTRL : Press to lock or unlock
control of the rear climate control
system from the rear seat
passengers. When locked, the rear
climate control can only be adjusted
from the front seat.
Remote Start Climate Control
Operation
If equipped with the remote start
feature, the climate control system
will come on when the vehicle is
started remotely, depending on the
outside temperature. The rear
window defogger and heated seats, if equipped, may also come on. See
Remote Vehicle Start
040 and
Heated and Ventilated Front
Seats 068.
Sensors
The solar sensor monitors the solar
heat. Do not cover the solar sensor
or the system will not work properly.
There is also an exterior
temperature sensor behind the front
grille. This sensor reads the outside
air temperature and helps maintain
the temperature inside the vehicle.
Any cover on the front of the
vehicle, including a snowplow, could
cause a false reading in the
displayed temperature.

GMC Yukon/Yukon XL/Denali Owner Manual (GMNA-Localizing-U.S./
Canada/Mexico-9955936) - 2017 - crc - 7/5/16
Driving and Operating 257
Tailgating Alert
The vehicle-ahead indicator will
display amber when you are
following a vehicle ahead much too
closely.
Selecting the Alert Timing
The Collision Alert control is on the
steering wheel. Press
[/3to
set the FCA timing to Far, Medium,
Near, or on some vehicles, Off. The
first button press shows the current
setting on the DIC. Additional button
presses will change this setting. The
chosen setting will remain until it is
changed and will affect the timing of
both the Collision Alert and the
Tailgating Alert features. The timing
of both alerts will vary based on
vehicle speed. The faster the
vehicle speed, the farther away the
alert will occur. Consider traffic and
weather conditions when selecting the alert timing. The range of
selectable alert timing may not be
appropriate for all drivers and
driving conditions.
If your vehicle is equipped with
Adaptive Cruise Control (ACC),
changing the FCA timing setting
automatically changes the ACC
following gap setting (Far, Medium,
or Near).
Unnecessary Alerts
FCA may provide unnecessary
alerts for turning vehicles, vehicles
in other lanes, objects that are not
vehicles, or shadows. These alerts
are normal operation and the
vehicle does not need service.
Cleaning the System
If the FCA system does not seem to
operate properly, cleaning the
outside of the windshield in front of
the camera sensor behind the
rearview mirror, and cleaning the
front of the vehicle where radar
sensors are located, may correct
the issue.
For cleaning instructions, see
“Washing the Vehicle”
under
Exterior Care 0365.
System operation may also be
limited under snow, heavy rain,
or road spray conditions.
Forward Automatic
Braking (FAB)
If the vehicle has Forward Collision
Alert (FCA), it also has FAB, which
includes Intelligent Brake
Assist (IBA). When the system
detects a vehicle ahead in your path
that is traveling in the same
direction that you may be about to
crash into, it can provide a boost to
braking or automatically brake the
vehicle. This can help avoid or
lessen the severity of crashes when
driving in a forward gear. Depending
on the situation, the vehicle may
automatically brake moderately or
hard. This forward automatic
braking can only occur if a vehicle is
detected. This is shown by the FCA
vehicle ahead indicator being lit.
See Forward Collision Alert (FCA)
System 0255.

GMC Yukon/Yukon XL/Denali Owner Manual (GMNA-Localizing-U.S./
Canada/Mexico-9955936) - 2017 - crc - 7/5/16
262 Driving and Operating
Warning (Continued)
The LKA and LDW systems
may not:. Provide an alert or enough
steering assist to avoid a
lane departure or crash.
. Detect lane markings under
poor weather or visibility
conditions. This can occur if
the windshield or
headlamps are blocked by
dirt, snow, or ice, if they are
not in proper condition, or if
the sun shines directly into
the camera.
. Detect road edges.
. Detect lanes on winding or
hilly roads.
If LKA only detects lane markings
on one side of the road, it will
only assist or provide an LDW
alert when approaching the lane
on the side where it has detected
a lane marking. Even with LKA
and LDW, you must steer the (Continued)
Warning (Continued)
vehicle. Always keep your
attention on the road and
maintain proper vehicle position
within the lane, or vehicle
damage, injury, or death could
occur. Always keep the
windshield, headlamps, and
camera sensors clean and in
good repair. Do not use LKA in
bad weather conditions.
{Warning
Using LKA while towing a trailer
or on slippery roads could cause
loss of control of the vehicle and
a crash. Turn the system off.
How the System Works
The LKA camera sensor is on the
windshield ahead of the rearview
mirror.
To turn LKA on and off, press
A
to the left of the steering wheel. When on,
Ais green if LKA is
available to assist and provide LDW
alerts. It may assist by gently
turning the steering wheel and
display
Aas amber if the vehicle
approaches a detected lane marking
without using a turn signal in that
direction. It may also provide an
LDW alert by flashing
Aamber
as the lane marking is crossed.
Additionally, there will be three
beeps, or the driver seat will pulse
three times, on the right or left,
depending on the lane departure
direction.
The LKA system does not
continuously steer the vehicle.
If LKA does not detect active driver
steering, an alert and chime may be
provided. Steer the vehicle to
dismiss.
When the System Does Not
Seem to Work Properly
The system performance may be
affected by:
. Close vehicles ahead.

GMC Yukon/Yukon XL/Denali Owner Manual (GMNA-Localizing-U.S./
Canada/Mexico-9955936) - 2017 - crc - 7/5/16
Vehicle Care 321
The vehicle may not be equipped
with all of the fuses, relays, and
features shown.Item Usage
1 –
2 – Item Usage
3 –
4 Accessory power outlet 1
5 Retained accessory power
6 APO/BATT
7 Universal garage door opener/Interior
rearview mirror
8 SEO/Retained accessory power
9 –
10 Body control module 3
11 Body control module 5
12 Steering wheel control backlighting
13 –
14 –
15 –
16 Discrete logic ignition sensor
17 Video processing module

GMC Yukon/Yukon XL/Denali Owner Manual (GMNA-Localizing-U.S./
Canada/Mexico-9955936) - 2017 - crc - 7/5/16
Index 417
Child RestraintsInfants and Young Children . . . 100
Lower Anchors and Tethers
for Children . . . . . . . . . . . . . . . . . 105
Older Children . . . . . . . . . . . . . . . . . . 98
Securing . . . . . . . . . . . . . . . . . .113, 116
Systems . . . . . . . . . . . . . . . . . . . . . . 102
Child-View Mirror . . . . . . . . . . . . . . . . 57
Cleaning Exterior Care . . . . . . . . . . . . . . . . . 365
Interior Care . . . . . . . . . . . . . . . . . . 369
Climate Control Systems Dual Automatic . . . . . . . . . . . . . . . 191
Rear . . . . . . . . . . . . . . . . . . . . . . . . . . 195
Clock . . . . . . . . . . . . . . . . . . . . . . . . . . . 129
Cluster, Instrument . . . . . . . . . . . . . 134
Collision Damage Repair . . . . . . . 398
Compartments Storage . . . . . . . . . . . . . . . . . . . . . . . 120
Compass . . . . . . . . . . . . . . . . . . . . . . . 128 Messages . . . . . . . . . . . . . . . . . . . . 159
Connections OnStar
®. . . . . . . . . . . . . . . . . . . . . . 407
Control Traction and Electronic
Stability . . . . . . . . . . . . . . . . . . . . . 239
Control of a Vehicle . . . . . . . . . . . . . 201
Convenience Net . . . . . . . . . . . . . . . 122 Convex Mirrors . . . . . . . . . . . . . . . . . . 54
Coolant
Engine . . . . . . . . . . . . . . . . . . . . . . . . 299
Engine Temperature Gauge . . 139
Engine TemperatureWarning Light . . . . . . . . . . . . . . . 148
Cooling . . . . . . . . . . . . . . . . . . . . 191, 195
Cooling System . . . . . . . . . . . . . . . . . 298
Engine Messages . . . . . . . . . . . . 161
Courtesy Transportation Program . . . . . . . . . . . . . . . . . . . . . . . 397
Cruise Control . . . . . . . . . . . . . . . . . . 242 Light . . . . . . . . . . . . . . . . . . . . . . . . . . 151
Messages . . . . . . . . . . . . . . . . . . . . 159
Cruise Control, Adaptive . . . . . . . . 244
Cupholders . . . . . . . . . . . . . . . . . . . . . 120
Customer Assistance . . . . . . . . . . . 394 Offices . . . . . . . . . . . . . . . . . . . . . . . . 393
Text Telephone (TTY)Users . . . . . . . . . . . . . . . . . . . . . . . 394
Customer Information
Service PublicationsOrdering Information . . . . . . . . 400
Customer Satisfaction Procedure . . . . . . . . . . . . . . . . . . . . . 391
D
Damage Repair, Collision . . . . . . . 398
Danger, Warning, and Caution . . . . 2
Data CollectionInfotainment System . . . . . . . . . . 404
OnStar . . . . . . . . . . . . . . . . . . . . . . . 403
Data Recorders, Event . . . . . . . . . 403
Daytime Running Lamps (DRL) . . . . . . . . . . . . . . . . . . 184
Defensive Driving . . . . . . . . . . . . . . . 201
Delayed Locking . . . . . . . . . . . . . . . . . 43
Diagnostics
OnStar
®. . . . . . . . . . . . . . . . . . . . . . 409
Distracted Driving . . . . . . . . . . . . . . . 200
Dome Lamps . . . . . . . . . . . . . . . . . . . 187
Door
Ajar Light . . . . . . . . . . . . . . . . . . . . . 151
Ajar Messages . . . . . . . . . . . . . . . 160
Delayed Locking . . . . . . . . . . . . . . . . 43
Locks . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Power Locks . . . . . . . . . . . . . . . . . . . . 42
Drive Belt Routing, Engine . . . . . . 390
Driver Assistance Systems . . . . . 251
Driver Information Center (DIC) . . . . . . . . . . . . . . . . . . 152
Driving Assistance Systems . . . . . . . . . . 255

GMC Yukon/Yukon XL/Denali Owner Manual (GMNA-Localizing-U.S./
Canada/Mexico-9955936) - 2017 - crc - 7/5/16
420 Index
Heated and Ventilated FrontSeats . . . . . . . . . . . . . . . . . . . . . . . . . . 68
Heated Mirrors . . . . . . . . . . . . . . . . . . . 55
Heater Engine . . . . . . . . . . . . . . . . . . . . . . . . 222
Heating . . . . . . . . . . . . . . . . . . . . 191, 195
High-Beam On Light . . . . . . . . . . . . 150
High-Speed Operation . . . . . . . . . . 334
Hill and Mountain Roads . . . . . . . . 209
Hill Start Assist (HSA) . . . . . . . . . . 238
Hood . . . . . . . . . . . . . . . . . . . . . . . . . . . 286
Horn . . . . . . . . . . . . . . . . . . . . . . . . . . . . 126
How to Wear Safety Belts Properly . . . . . . . . . . . . . . . . . . . . . . . . 78
HVAC . . . . . . . . . . . . . . . . . . . . . . 191, 195
I
Ignition Positions . . . . . . . . . . 217, 219
Ignition Transmission Lock Check . . . . . . . . . . . . . . . . . . . . . . . . . 310
Immobilizer . . . . . . . . . . . . . . . . . . . . . . 52
Indicator
Vehicle Ahead . . . . . . . . . . . . . . . . 147
Infants and Young Children, Restraints . . . . . . . . . . . . . . . . . . . . . 100
Infotainment . . . . . . . . . . . . . . . . . . . . 190
Infotainment System . . . . . . . . . . . . 404
Instrument Cluster . . . . . . . . . . . . . . 134 Instrument Panel
Storage Area . . . . . . . . . . . . . . . . . 120
Interior Rearview Mirrors . . . . . . . . . 57
Introduction . . . . . . . . . . . . . . . . . . . . . . . 2
J
Jump Starting - North America . . . . . . . . . . . . . . . . . . . . . . . 357
K
Key and Lock Messages . . . . . . . . 162
Keyless EntryRemote (RKE) System . . . . . 32, 34
Keys . . . . . . . . . . . . . . . . . . . . . . . . . 28, 31
L
Labeling, Tire Sidewall . . . . . . . . . . 328
Lamps Daytime Running (DRL) . . . . . . 184
Dome . . . . . . . . . . . . . . . . . . . . . . . . . 187
Exterior Controls . . . . . . . . . . . . . . 181
Exterior Lamps OffReminder . . . . . . . . . . . . . . . . . . . 183
License Plate . . . . . . . . . . . . . . . . . 314
Malfunction Indicator . . . . . . . . . 144
Messages . . . . . . . . . . . . . . . . . . . . 163
On Reminder . . . . . . . . . . . . . . . . . 151 Lamps (cont'd)
Reading . . . . . . . . . . . . . . . . . . . . . . 187
Lane Change Alert (LCA) . . . . . . . 259
Lane Departure Warning (LDW) . . . . . . . . . . . . . . . . 261
Lane Keep Assist (LKA) . . . . . . . . 261
Lane Keep Assist Light . . . . . . . . . 147
Lap Belt . . . . . . . . . . . . . . . . . . . . . . . . . 84
Lap-Shoulder Belt . . . . . . . . . . . . . . . 79
LATCH System Replacing Parts after aCrash . . . . . . . . . . . . . . . . . . . . . . . .113
LATCH, Lower Anchors and Tethers for Children . . . . . . . . . . . 105
LED Lighting . . . . . . . . . . . . . . . . . . . . 313
Level Control Automatic . . . . . . . . . . . . . . . . . . . . . 241
Liftgate . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Lighting
Entry . . . . . . . . . . . . . . . . . . . . . . . . . 188
Exit . . . . . . . . . . . . . . . . . . . . . . . . . . . 188
Illumination Control . . . . . . . . . . . 186
LED . . . . . . . . . . . . . . . . . . . . . . . . . . 313
Lights . . . . . . . . . . . . . . . . . . . . . . . . . . . 147 Airbag Readiness . . . . . . . . . . . . . 142
Antilock Brake System(ABS) Warning . . . . . . . . . . . . . . 146
Brake System Warning . . . . . . . 145
