2017 GMC SIERRA 1500 engine coolant

GMC Sierra/Sierra Denali Owner Manual (GMNA-Localizing-U.S./Canada/
Mexico-9955992) - 2017 - crc - 5/3/16
364 Vehicle Care
Adding Washer Fluid
The vehicle has a low washer fluid
message on the DIC that comes on
when the washer fluid is low. The
message is displayed for
15 seconds at the start of each
ignition cycle. When the WASHER
FLUID LOW ADD FLUID message
displays, washer fluid will need to
be added to the windshield washer
fluid reservoir.
Open the cap with the washer
symbol on it. Add washer fluid until
the tank is full. SeeEngine
Compartment Overview 0343 for
reservoir location.
Caution
. Do not use washer fluid that
contains any type of water
repellent coating. This can
cause the wiper blades to
chatter or skip.
. Do not use engine coolant
(antifreeze) in the
windshield washer. It can
damage the windshield
washer system and paint.
. Do not mix water with
ready-to-use washer fluid.
Water can cause the
solution to freeze and
damage the washer fluid
tank and other parts of the
washer system.
. When using concentrated
washer fluid, follow the
manufacturer instructions for
adding water.
. Fill the washer fluid tank
only three-quarters full when
it is very cold. This allows
for fluid expansion if
(Continued)
Caution (Continued)
freezing occurs, which could
damage the tank if it is
completely full.
Brakes
Disc brake pads have built-in wear
indicators that make a high-pitched
warning sound when the brake pads
are worn and new pads are needed.
The sound can come and go or be
heard all the time the vehicle is
moving, except when applying the
brake pedal firmly.
{Warning
The brake wear warning sound
means that soon the brakes will
not work well. That could lead to
a crash. When the brake wear
warning sound is heard, have the
vehicle serviced.

GMC Sierra/Sierra Denali Owner Manual (GMNA-Localizing-U.S./Canada/
Mexico-9955992) - 2017 - crc - 5/3/16

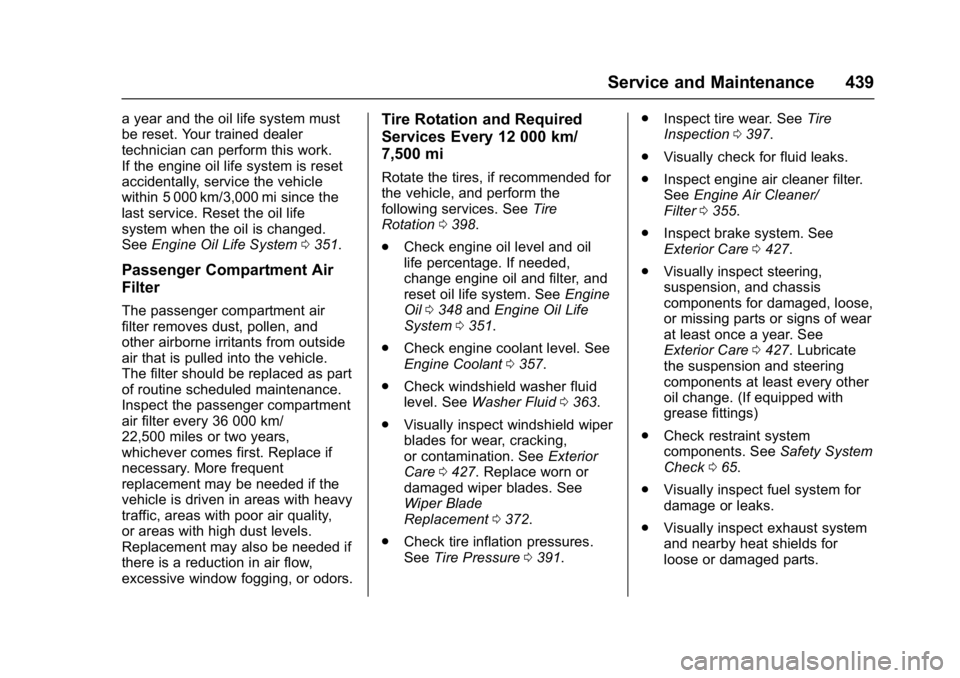

Service and Maintenance 439
a year and the oil life system must
be reset. Your trained dealer
technician can perform this work.
If the engine oil life system is reset
accidentally, service the vehicle
within 5 000 km/3,000 mi since the
last service. Reset the oil life
system when the oil is changed.
SeeEngine Oil Life System 0351.
Passenger Compartment Air
Filter
The passenger compartment air
filter removes dust, pollen, and
other airborne irritants from outside
air that is pulled into the vehicle.
The filter should be replaced as part
of routine scheduled maintenance.
Inspect the passenger compartment
air filter every 36 000 km/
22,500 miles or two years,
whichever comes first. Replace if
necessary. More frequent
replacement may be needed if the
vehicle is driven in areas with heavy
traffic, areas with poor air quality,
or areas with high dust levels.
Replacement may also be needed if
there is a reduction in air flow,
excessive window fogging, or odors.
Tire Rotation and Required
Services Every 12 000 km/
7,500 mi
Rotate the tires, if recommended for
the vehicle, and perform the
following services. See Tire
Rotation 0398.
. Check engine oil level and oil
life percentage. If needed,
change engine oil and filter, and
reset oil life system. See Engine
Oil 0348 andEngine Oil Life
System 0351.
. Check engine coolant level. See
Engine Coolant 0357.
. Check windshield washer fluid
level. See Washer Fluid 0363.
. Visually inspect windshield wiper
blades for wear, cracking,
or contamination. See Exterior
Care 0427. Replace worn or
damaged wiper blades. See
Wiper Blade
Replacement 0372.
. Check tire inflation pressures.
See Tire Pressure 0391. .
Inspect tire wear. See Tire
Inspection 0397.
. Visually check for fluid leaks.
. Inspect engine air cleaner filter.
See Engine Air Cleaner/
Filter 0355.
. Inspect brake system. See
Exterior Care 0427.
. Visually inspect steering,
suspension, and chassis
components for damaged, loose,
or missing parts or signs of wear
at least once a year. See
Exterior Care 0427. Lubricate
the suspension and steering
components at least every other
oil change. (If equipped with
grease fittings)
. Check restraint system
components. See Safety System
Check 065.
. Visually inspect fuel system for
damage or leaks.
. Visually inspect exhaust system
and nearby heat shields for
loose or damaged parts.

GMC Sierra/Sierra Denali Owner Manual (GMNA-Localizing-U.S./Canada/
Mexico-9955992) - 2017 - crc - 5/3/16
Service and Maintenance 447

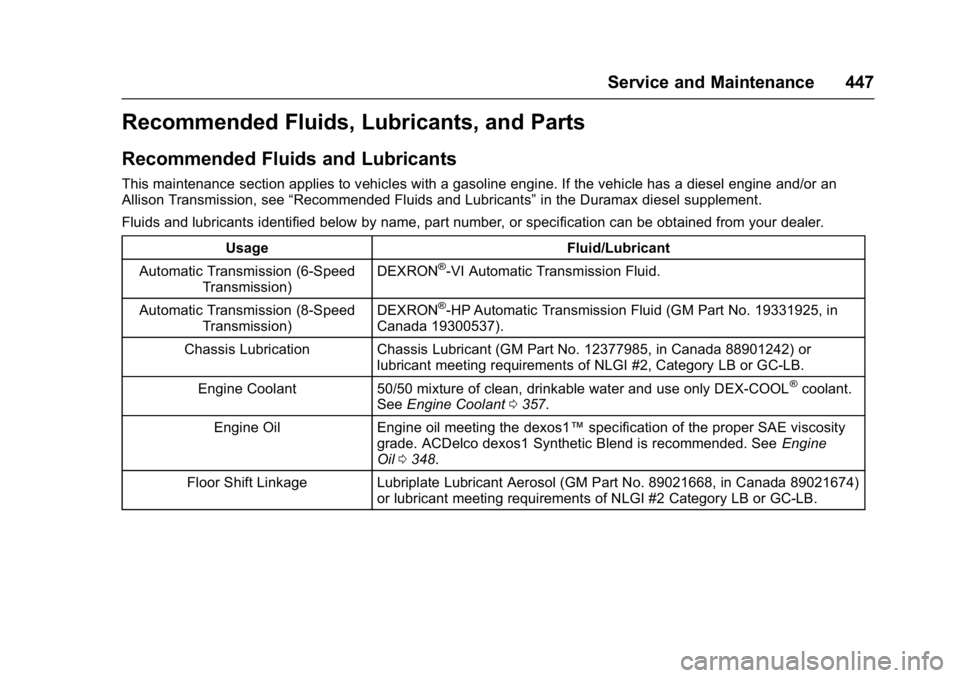

Recommended Fluids, Lubricants, and Parts
Recommended Fluids and Lubricants
This maintenance section applies to vehicles with a gasoline engine. If the vehicle has a diesel engine and/or an
Allison Transmission, see“Recommended Fluids and Lubricants” in the Duramax diesel supplement.
Fluids and lubricants identified below by name, part number, or specification can be obtained from your dealer.
Usage Fluid/Lubricant
Automatic Transmission (6-Speed Transmission) DEXRON
®-VI Automatic Transmission Fluid.
Automatic Transmission (8-Speed Transmission) DEXRON
®-HP Automatic Transmission Fluid (GM Part No. 19331925, in
Canada 19300537).
Chassis Lubrication Chassis Lubricant (GM Part No. 12377985, in Canada 88901242) or lubricant meeting requirements of NLGI #2, Category LB or GC-LB.
Engine Coolant 50/50 mixture of clean, drinkable water and use only DEX-COOL
®coolant.
See Engine Coolant 0357.
Engine Oil Engine oil meeting the dexos1™ specification of the proper SAE viscosity
grade. ACDelco dexos1 Synthetic Blend is recommended. See Engine
Oil 0348.
Floor Shift Linkage Lubriplate Lubricant Aerosol (GM Part No. 89021668, in Canada 89021674) or lubricant meeting requirements of NLGI #2 Category LB or GC-LB.

GMC Sierra/Sierra Denali Owner Manual (GMNA-Localizing-U.S./Canada/
Mexico-9955992) - 2017 - crc - 5/3/16
Index 483
California (cont'd)Perchlorate Materials
Requirements . . . . . . . . . . . . . . . 341
California
Proposition
65 Warning . . . . . . . . . .340, 366, 418
Canadian Vehicle Owners . . . . . . . . 2
Capacities and Specifications . . . . . . . . . . . . . . . . . 453
Carbon Monoxide Engine Exhaust . . . . . . . . . . . . . . . 266
Tailgate . . . . . . . . . . . . . . . . . . . . . . . . . 36
Winter Driving . . . . . . . . . . . . . . . . 248
Cargo
Tie-Downs . . . . . . . . . . . . . . . . . . . . .110
Cargo Lamp . . . . . . . . . . . . . . . . . . . . 172
Caution, Danger, and Warning . . . . 3
CD Player . . . . . . . . . . . . . . . . . . . . . . 191
Center Console Storage . . . . . . . . 109
Center High-Mounted Stoplamp (CHMSL) and
Cargo Lamp . . . . . . . . . . . . . . . . . . . 375
Chains, Tire . . . . . . . . . . . . . . . . . . . . 405
Charging
Wireless . . . . . . . . . . . . . . . . . . . . . . .118
Charging System Light . . . . . . . . . 132
Check Ignition Transmission Lock . . . 371 Check (cont'd)
Malfunction Indicator
Engine Light . . . . . . . . . . . . . . . . 133
Child Restraints
Infants and Young Children . . . . . 83
Lower Anchors and Tethersfor Children . . . . . . . . . . . . . . . . . . . 88
Older Children . . . . . . . . . . . . . . . . . . 81
Securing . . . . . . . . . . . . . . . . . . . . 95, 98
Systems . . . . . . . . . . . . . . . . . . . . . . . . 85
Cleaning Exterior Care . . . . . . . . . . . . . . . . . 427
Interior Care . . . . . . . . . . . . . . . . . . 432
Climate Control Systems
Dual Automatic . . . . . . . . . . . . . . . 231
Clock . . . . . . . . . . . . . . . . . . . . . . . . . . . 115
Cluster, Instrument . . . . . . . . . . . . . 121
Collision Damage Repair . . . . . . . 464
Compartments Storage . . . . . . . . . . . . . . . . . . . . . . . 108
Compass . . . . . . . . . . . . . . . . . . . . . . . 115 Messages . . . . . . . . . . . . . . . . . . . . 146
Connections
OnStar
®. . . . . . . . . . . . . . . . . . . . . . 473
Control . . . . . . . . . . . . . . . . . . . . . . . . . 286 Traction and ElectronicStability . . . . . . . . . . . . . . . . . . . . . 284 Control Light
Hill Descent . . . . . . . . . . . . . . . . . . 136
Control of a Vehicle . . . . . . . . . . . . . 239
Convex Mirrors . . . . . . . . . . . . . . . . . . 41
Coolant Engine . . . . . . . . . . . . . . . . . . . . . . . . 357
Engine Temperature Gauge . . 127
Engine TemperatureWarning Light . . . . . . . . . . . . . . . 138
Cooling System . . . . . . . . . . . . . . . . . 356 Engine Messages . . . . . . . . . . . . 146
Courtesy Transportation Program . . . . . . . . . . . . . . . . . . . . . . . 463
Cruise Control . . . . . . . . . . . . . . . . . . 287 Light . . . . . . . . . . . . . . . . . . . . . . . . . . 140
Cupholders . . . . . . . . . . . . . . . . . . . . . 108
Customer Assistance . . . . . . . . . . . 460
Offices . . . . . . . . . . . . . . . . . . . . . . . . 459
Text Telephone (TTY)Users . . . . . . . . . . . . . . . . . . . . . . . 460
Customer Information
Service PublicationsOrdering Information . . . . . . . . 466
Customer Satisfaction Procedure . . . . . . . . . . . . . . . . . . . . . 457

GMC Sierra/Sierra Denali Owner Manual (GMNA-Localizing-U.S./Canada/
Mexico-9955992) - 2017 - crc - 5/3/16
484 Index
D
Damage Repair, Collision . . . . . . . 464
Danger, Warning, and Caution . . . . 3
Data CollectionInfotainment System . . . . . . . . . . 470
OnStar . . . . . . . . . . . . . . . . . . . . . . . 470
Data Recorders, Event . . . . . . . . . 469
Daytime Running Lamps (DRL) . . . . . . . . . . . . . . . . . . 169
Defensive Driving . . . . . . . . . . . . . . . 239
Delayed Locking . . . . . . . . . . . . . . . . . 35
Diagnostics
OnStar
®. . . . . . . . . . . . . . . . . . . . . . 475
Distracted Driving . . . . . . . . . . . . . . . 238
Dome Lamps . . . . . . . . . . . . . . . . . . . 173
Door
Ajar Light . . . . . . . . . . . . . . . . . . . . . 141
Ajar Messages . . . . . . . . . . . . . . . 146
Delayed Locking . . . . . . . . . . . . . . . . 35
Locks . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Power Locks . . . . . . . . . . . . . . . . . . . . 35
Drive Belt Routing, Engine . . . . . . 456
Driver Assistance Systems . . . . . 290
Driver Information Center (DIC) . . . . . . . . . . . . . . . . . . 141
Driving Assistance Systems . . . . . . . . . . 293 Driving (cont'd)
Characteristics and
Towing Tips . . . . . . . . . . . . . . . . . 304
Defensive . . . . . . . . . . . . . . . . . . . . . 239
Drunk . . . . . . . . . . . . . . . . . . . . . . . . . 239
For Better Fuel Economy . . . . . . . 26
Hill and Mountain Roads . . . . . . 247
If the Vehicle is Stuck . . . . . . . . . 249
Loss of Control . . . . . . . . . . . . . . . 241
Off-Road . . . . . . . . . . . . . . . . . . . . . 242
Off-Road Recovery . . . . . . . . . . . 241
Vehicle Load Limits . . . . . . . . . . . 250
Wet Roads . . . . . . . . . . . . . . . . . . . 246
Winter . . . . . . . . . . . . . . . . . . . . . . . . 248
Dual Automatic Climate Control System . . . . . . . . . . . . . . . . 231
E
E85 or FlexFuel . . . . . . . . . . . . . . . . 301
Electrical Equipment,Add-On . . . . . . . . . . . . . . . . . . . . . . . 334
Electrical System Engine Compartment FuseBlock . . . . . . . . . . . . . . . . . . . . . . . . 376
Fuses . . . . . . . . . . . . . . . . . . . . . . . . 376
Instrument Panel Fuse Block . . . . . . . . . . . . . . . . . . . 379, 381
Overload . . . . . . . . . . . . . . . . . . . . . 376 Emergency
OnStar
®. . . . . . . . . . . . . . . . . . . . . . 472
Engine Air Cleaner/Filter . . . . . . . . . . . . . 355
Check and Service EngineSoon Light . . . . . . . . . . . . . . . . . . 133
Compartment Overview . . . . . . . 343
Coolant . . . . . . . . . . . . . . . . . . . . . . . 357
Coolant Heater . . . . . . . . . . . . . . . 262
Coolant Temperature Gauge . . . . . . . . . . . . . . . . . . . . . . 127
Coolant Temperature Warning Light . . . . . . . . . . . . . . . 138
Cooling System . . . . . . . . . . . . . . . 356
Cooling System Messages . . . 146
Drive Belt Routing . . . . . . . . . . . . 456
Exhaust . . . . . . . . . . . . . . . . . . . . . . 266
Fan . . . . . . . . . . . . . . . . . . . . . . . . . . . 362
Oil Life System . . . . . . . . . . . . . . . 351
Oil Messages . . . . . . . . . . . . . . . . . 147
Oil Pressure Gauge . . . . . . . . . . 126
Oil Pressure Light . . . . . . . . . . . . 139
Overheated Protection Operating Mode . . . . . . . . . . . . . 362
Overheating . . . . . . . . . . . . . . . . . . 360
Power Messages . . . . . . . . . . . . . 147
Running While Parked . . . . . . . . 267
Starting . . . . . . . . . . . . . . . . . . . . . . . 260

GMC Sierra/Sierra Denali Owner Manual (GMNA-Localizing-U.S./Canada/
Mexico-9955992) - 2017 - crc - 5/3/16
Index 485
Entry Lighting . . . . . . . . . . . . . . . . . . . 174
Equipment, Towing . . . . . . . . . . . . . 324
Event Data Recorders . . . . . . . . . . 469
Exit Lighting . . . . . . . . . . . . . . . . . . . . 174
Extender, Safety Belt . . . . . . . . . . . . 65
Exterior Lamp Controls . . . . . . . . . 166
Exterior Lamps Off Reminder . . . 168
F
FanEngine . . . . . . . . . . . . . . . . . . . . . . . . 362
Fast Idle System . . . . . . . . . . . . . . . . 261
Features
Memory . . . . . . . . . . . . . . . . . . . . . . . . . 11
Filter, Engine Air Cleaner . . . . . . . . . . . 355
Fixed Mast Antenna . . . . . . . . . . . . 190
Flash-to-Pass . . . . . . . . . . . . . . . . . . . 169
Flashers, Hazard Warning . . . . . . 170
Flat Tire . . . . . . . . . . . . . . . . . . . . . . . . 406 Changing . . . . . . . . . . . . . . . . . . . . . 408
FlexFuel E85 . . . . . . . . . . . . . . . . . . . . . . . . . . . 301
Floor Console Storage . . . . . . . . . . 110
Floor Mats . . . . . . . . . . . . . . . . . . . . . . 435
Fluid AutomaticTransmission . . . . . . . . . . . 352, 354
Brakes . . . . . . . . . . . . . . . . . . . . . . . . 365 Fluid (cont'd)
Four-Wheel Drive
Transfer Case . . . . . . . . . . . . . . . 274
Power Steering . . . . . . . . . . . . . . . 363
Washer . . . . . . . . . . . . . . . . . . . . . . . 363
Fog Lamps . . . . . . . . . . . . . . . . . . . . . 171
Folding Mirrors . . . . . . . . . . . . . . . . . . 43
Forward Automatic Braking . . . . . 295
Forward Collision Alert (FCA) System . . . . . . . . . . . . . . . . . 293
Four-Wheel Drive . . . . . . . . . . 274, 367
Four-Wheel-Drive Light . . . . . . . . . 136
Frequency Statement Radio . . . . . . . . . . . . . . . . . . . . . . . . . 467
Front Axle . . . . . . . . . . . . . . . . . . . . . . 368
Front Fog Lamp Light . . . . . . . . . . . . . . . . . . . . . . . . . . 140
Front Seats
Heated and Ventilated . . . . . . . . . . 55
Fuel . . . . . . . . . . . . . . . . . . . . . . . . . . . . 300 Additives . . . . . . . . . . . . . . . . . . . . . 301
Economy Driving . . . . . . . . . . . . . . . 26
Filling a Portable FuelContainer . . . . . . . . . . . . . . . . . . . 304
Filling the Tank . . . . . . . . . . . . . . . 302
Foreign Countries . . . . . . . . . . . . 301
Gauge . . . . . . . . . . . . . . . . . . . . . . . . 125
Low Fuel Warning Light . . . . . . . 139 Fuel (cont'd)
Management, Active . . . . . . . . . . 266
Requirements, California . . . . . 301
System Messages . . . . . . . . . . . . 147
Full-Size Spare Tire . . . . . . . . . . . . 417
Fuses . . . . . . . . . . . . . . . . . . . . . . . . . . 376 Engine Compartment FuseBlock . . . . . . . . . . . . . . . . . . . . . . . . 376
Instrument Panel Fuse
Block . . . . . . . . . . . . . . . . . . . 379, 381
G
Garage Door Opener . . . . . . . . . . . 162Programming . . . . . . . . . . . . . . . . . 162
Gauges Engine CoolantTemperature . . . . . . . . . . . . . . . . 127
Engine Oil Pressure . . . . . . . . . . 126
Fuel . . . . . . . . . . . . . . . . . . . . . . . . . . 125
Odometer . . . . . . . . . . . . . . . . . . . . . 125
Speedometer . . . . . . . . . . . . . . . . . 125
Tachometer . . . . . . . . . . . . . . . . . . . 125
Transmission Temperature . . . . 128
Trip Odometer . . . . . . . . . . . . . . . . 125
Voltmeter . . . . . . . . . . . . . . . . . . . . . 128
Warning Lights and Indicators . . . . . . . . . . . . . . . . . . . 120
General Information
Service and Maintenance . . . . . 437

GMC Sierra/Sierra Denali Owner Manual (GMNA-Localizing-U.S./Canada/
Mexico-9955992) - 2017 - crc - 5/3/16
486 Index
General Information (cont'd)Towing . . . . . . . . . . . . . . . . . . . . . . . . 304
Vehicle Care . . . . . . . . . . . . . . . . . . 340
Glass Replacement . . . . . . . . . . . . . 372
Glove Box . . . . . . . . . . . . . . . . . . . . . . 108
GM Mobility Reimbursement
Program . . . . . . . . . . . . . . . . . . . . . . . 461
H
Halogen Bulbs . . . . . . . . . . . . . . . . . . 373
Hazard Warning Flashers . . . . . . . 170
Head Restraints . . . . . . . . . . . . . . . . . 51
HeadlampsAiming . . . . . . . . . . . . . . . . . . . . . . . . 373
Automatic . . . . . . . . . . . . . . . . . . . . . 169
Bulb Replacement . . . . . . . . . . . . 373
Daytime Running
Lamps (DRL) . . . . . . . . . . . . . . . . 169
Flash-to-Pass . . . . . . . . . . . . . . . . . 169
High Intensity Discharge
(HID) Lighting . . . . . . . . . . . . . . . 373
High-Beam On Light . . . . . . . . . . 140
High/Low Beam Changer . . . . . 168
Lamps On Reminder . . . . . . . . . 140
Heated Steering Wheel . . . . . . . . . . . . . . . .114
Heated and Ventilated Front Seats . . . . . . . . . . . . . . . . . . . . . . . . . . 55
Heated Mirrors . . . . . . . . . . . . . . . . . . . 43 Heater
Engine Coolant . . . . . . . . . . . . . . . 262
High Voltage Devices and Wiring . . . . . . . . . . . . . . . . . . . . . . . . . 376
High-Beam On Light . . . . . . . . . . . . 140
High-Speed Operation . . . . . . . . . . 393
Hill and Mountain Roads . . . . . . . . 247
Hill Descent Control (HDC) . . . . . 286
Hill Descent Control Light . . . . . . . 136
Hill Start Assist (HSA) . . . . . . . . . . 283
Home Page . . . . . . . . . . . . . . . . 181, 183
Hood . . . . . . . . . . . . . . . . . . . . . . . . . . . 342
Horn . . . . . . . . . . . . . . . . . . . . . . . . . . . . 114
How to Wear Safety Belts Properly . . . . . . . . . . . . . . . . . . . . . . . . 60
I
Idle SystemFast . . . . . . . . . . . . . . . . . . . . . . . . . . 261
Ignition Positions . . . . . . . . . . . . . . . 259
Ignition Transmission Lock Check . . . . . . . . . . . . . . . . . . . . . . . . . 371
Immobilizer . . . . . . . . . . . . . . . . . . . . . . 40
Indicator Vehicle Ahead . . . . . . . . . . . . . . . . 137
Infants and Young Children,
Restraints . . . . . . . . . . . . . . . . . . . . . . 83
Infotainment . . . . . . . . . . . . . . . . . . . . 176
Infotainment System . . . . . . . . . . . . 470 Instrument Cluster . . . . . . . . . . . . . . 121
Instrument Panel
Storage Area . . . . . . . . . . . . . . . . . 108
Interior Rearview Mirrors . . . . . . . . . 45
Introduction . . . . . . . . . . . . . . . . . . . . . . . 2
J
Jack Auxiliary . . . . . . . . . . . . . . . . . . . . . . 202
Jump Starting - North America . . . . . . . . . . . . . . . . . . . . . . . 418
K
Key and Lock Messages . . . . . . . . 148
Keyless EntryRemote (RKE) System . . . . . . . . . 31
Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
L
Labeling, Tire Sidewall . . . . . . . . . . 385
Lamps
Auxiliary RoofMounted Lamp . . . . . . . . . . . . . . 171
Cargo . . . . . . . . . . . . . . . . . . . . . . . . . 172
Daytime Running (DRL) . . . . . . 169
Dome . . . . . . . . . . . . . . . . . . . . . . . . . 173
Exterior Controls . . . . . . . . . . . . . . 166
Exterior Lamps Off Reminder . . . . . . . . . . . . . . . . . . . 168
Malfunction Indicator . . . . . . . . . 133

GMC Sierra/Sierra Denali Owner Manual (GMNA-Localizing-U.S./Canada/
Mexico-9955992) - 2017 - crc - 5/3/16
Index 487
Lamps (cont'd)Messages . . . . . . . . . . . . . . . . . . . . 148
On Reminder . . . . . . . . . . . . . . . . . 140
Reading . . . . . . . . . . . . . . . . . . . . . . 173
Lane Departure Warning (LDW) . . . . . . . . . . . . . . . . 296
Lane Departure Warning Light . . . . . . . . . . . . . . . . . . . . . . . . . . 136
Lane Keep Assist (LKA) . . . . . . . . 298
Lane Keep Assist Light . . . . . . . . . 136
Lap Belt . . . . . . . . . . . . . . . . . . . . . . . . . 64
Lap-Shoulder Belt . . . . . . . . . . . . . . . 61
LATCH System Replacing Parts after a
Crash . . . . . . . . . . . . . . . . . . . . . . . . . 94
LATCH, Lower Anchors and Tethers for Children . . . . . . . . . . . . 88
LED Lighting . . . . . . . . . . . . . . . . . . . . 373
Light
Hill Decent Control . . . . . . . . . . . 136
Lighting Entry . . . . . . . . . . . . . . . . . . . . . . . . . 174
Exit . . . . . . . . . . . . . . . . . . . . . . . . . . . 174
Illumination Control . . . . . . . . . . . 172
LED . . . . . . . . . . . . . . . . . . . . . . . . . . 373
Lights . . . . . . . . . . . . . . . . . . . . . . . . . . . 136 Airbag On-Off . . . . . . . . . . . . . . . . . 130
Airbag Readiness . . . . . . . . . . . . . 130 Lights (cont'd)
Antilock Brake System
(ABS) Warning . . . . . . . . . . . . . . 135
Brake System Warning . . . . . . . 134
Charging System . . . . . . . . . . . . . 132
Cruise Control . . . . . . . . . . . . . . . . 140
Door Ajar . . . . . . . . . . . . . . . . . . . . . 141
Engine Coolant Temperature Warning . . . . . . . 138
Engine Oil Pressure . . . . . . . . . . 139
Flash-to-Pass . . . . . . . . . . . . . . . . . 169
Four-Wheel-Drive . . . . . . . . . . . . . 136
Front Fog Lamp . . . . . . . . . . . . . . 140
High-Beam On . . . . . . . . . . . . . . . . 140
High/Low Beam Changer . . . . . 168
Lane Departure Warning . . . . . . 136
Low Fuel Warning . . . . . . . . . . . . 139
Safety Belt Reminders . . . . . . . . 129
Security . . . . . . . . . . . . . . . . . . . . . . 140
StabiliTrak
®OFF . . . . . . . . . . . . . 137
Tire Pressure . . . . . . . . . . . . . . . . . 138
Tow/Haul Mode . . . . . . . . . . . . . . . 136
Traction Control System (TCS)/StabiliTrak
®. . . . . . . . . . 138
Traction Off . . . . . . . . . . . . . . . . . . . 137
Locking Rear Axle . . . . . . . . . . . . . . 286
Locks Automatic Door . . . . . . . . . . . . . . . . . 35 Locks (cont'd)
Delayed Locking . . . . . . . . . . . . . . . . 35
Door . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Lockout Protection . . . . . . . . . . . . . . 36
Power Door . . . . . . . . . . . . . . . . . . . . . 35
Safety . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Loss of Control . . . . . . . . . . . . . . . . . 241
Low Fuel Warning Light . . . . . . . . . 139
Low-Profile Tires . . . . . . . . . . . . . . . . 385
Lower Anchors and Tethers for Children (LATCH
System) . . . . . . . . . . . . . . . . . . . . . . . . 88
Lumbar Adjustment . . . . . . . . . . . . . . 52 Front Seats . . . . . . . . . . . . . . . . . . . . . 52
M
Maintenance
Records . . . . . . . . . . . . . . . . . . . . . . 451
Maintenance and Care
Additional . . . . . . . . . . . . . . . . . . . . . 444
Maintenance Schedule . . . . . . . . . 438 Recommended Fluids andLubricants . . . . . . . . . . . . . . . . . . . 447
Transfer Case . . . . . . . . . . . . . . . . 274
Malfunction Indicator Lamp . . . . . 133
Manual Mirrors . . . . . . . . . . . . . . . . . . 41
Manual Mode . . . . . . . . . . . . . . . . . . . 270
Manual Windows . . . . . . . . . . . . . . . . 46
Memory Features . . . . . . . . . . . . . . . . 11
