2017 FORD FOCUS bulb

2. Carefully remove the cover.
3. Disconnect the electrical connector.
4. Release the clip and remove the bulb.
Headlamp High Beam
1. Remove the headlamp. See
Removing a Headlamp (page 227). 2. Carefully remove the cover.
3. Disconnect the electrical connector.
4. Release the clip and remove the bulb.
HID Headlamps
If your vehicle has high-intensity discharge
headlamps, these lamps operate at a high
voltage. Contact an authorized dealer. Cornering Lamp (If Equipped)
1. Remove the headlamp. See
Removing a Headlamp
(page 227). 2. Carefully remove the cover.
3. Depress the clip to remove the bulb
holder.
4. Remove the bulb holder by pulling it straight out.
5. Remove the bulb by pulling it straight out.
Note: Do not touch the bulb glass.
Front Direction Indicator
1. Remove the headlamp. See Removing a Headlamp
(page 227).
229
Focus (CDH) Canada/United States of America, HM5J 19A321 AA enUSA, Edition date: 201608, First Printing MaintenanceE133106
24 E133105
24 3
2
3
4
E221808

2. Carefully remove the cover.
3.
Turn the bulb holder counterclockwise
and remove it.
4. Press the bulb in and turn the bulb counterclockwise to remove it.
Side Marker Bulb
1. Remove the headlamp. See Removing a Headlamp (page 227). 2. Carefully remove the cover.
3. Remove the bulb holder by pulling it
straight out.
4. Remove the bulb by pulling it straight out.
Front Fog Lamp
1. Remove fog lamp grille from the front fascia then unscrew the fog lamp. 2. Disconnect the electrical connector.
3.
Turn the bulb holder counterclockwise
and remove it.
Note: You cannot separate the bulb from
the bulb holder.
230
Focus (CDH) Canada/United States of America, HM5J 19A321 AA enUSA, Edition date: 201608, First Printing MaintenanceE184153
3
4
2 2
E184156 2
E1841573

Rear Lamps - 4 Door
Direction indicator and rear lamp
bulb.
A.
Brake lamp bulb.
B.
Brake Lamp, Rear Lamp and Direction
Indicator 1. Carefully remove the cover. 2. Remove the wing nuts and detach the
clip.
3. Remove the lamp. 4. Disconnect the electrical connector.
5.
Turn the bulb holder counterclockwise
and remove it.
6. Press the bulb in and turn the bulb counterclockwise to remove it.
231
Focus (CDH) Canada/United States of America, HM5J 19A321 AA enUSA, Edition date: 201608, First Printing MaintenanceA
B
E133714 E133702 2
E133703 E133713
4

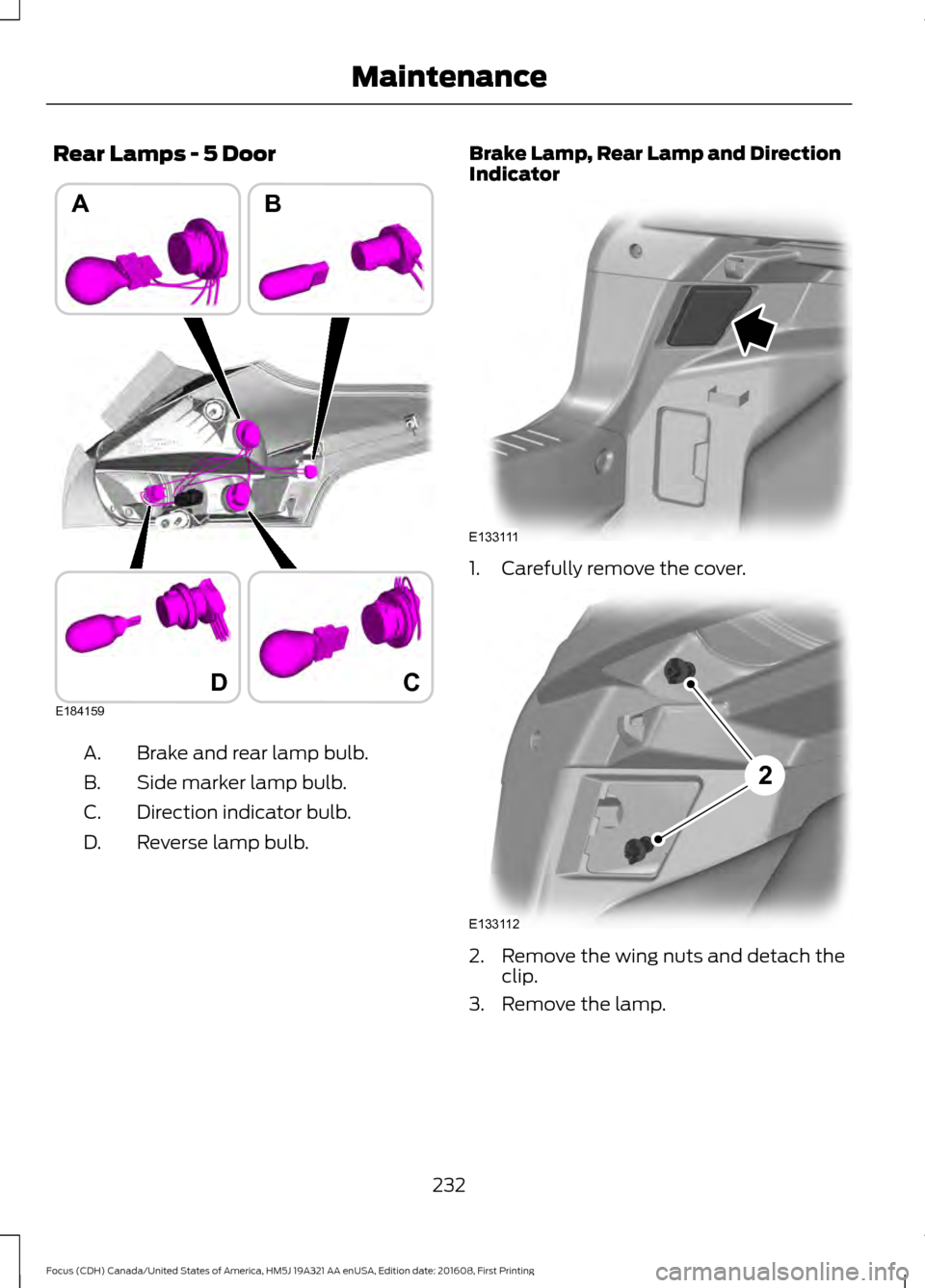

Rear Lamps - 5 Door
Brake and rear lamp bulb.
A.
Side marker lamp bulb.
B.
Direction indicator bulb.
C.
Reverse lamp bulb.
D. Brake Lamp, Rear Lamp and Direction
Indicator
1. Carefully remove the cover.
2. Remove the wing nuts and detach the
clip.
3. Remove the lamp.
232
Focus (CDH) Canada/United States of America, HM5J 19A321 AA enUSA, Edition date: 201608, First Printing MaintenanceD
AB
E184159
C E133111 E133112
2

4. Disconnect the electrical connector.
5.
Turn the bulb holder counterclockwise
and remove it.
6. Remove the bulb by pulling it straight out. LED Rear Lamps (If Equipped)
These lamps have LED bulbs. Contact an
authorized dealer.
Replacing Licence Plate and High
Mounted Brake Lamp Bulbs
These lamps have LED bulbs. Contact an
authorized dealer.
BULB SPECIFICATION CHART
Replacement bulbs are specified in the
chart below. Headlamp bulbs must be
marked with an authorized “D.O.T.” for
North America to ensure lamp
performance, light brightness and pattern
and safe visibility. The correct bulbs will
not damage the lamp assembly or void the
lamp assembly warranty and will provide
quality bulb burn time. Trade number
Function
H1LL
Headlamps high beam (Halogen)
D3S
* Headlamps high beam (HID)
H11LL
Headlamp low beam (Halogen)
D3S
* Headlamp low beam (HID)
H1LL
Daytime running lamps
LED
* Daytime running lamps (High series)
193
Park lamp - front
LED
* Park lamp - front (High series)
WY21W
Direction indicator - front
PY21W
Direction indicator - front (High series)
H8
Fog lamps
WY5W
Sidemarker - front
233
Focus (CDH) Canada/United States of America, HM5J 19A321 AA enUSA, Edition date: 201608, First Printing MaintenanceE184158
4

B
