2017 FORD F450 SUPER DUTY heater

Protected componentsFuse amp ratingFuse or relay number
Powertrain control module.20A11
Emissions (MIL).20A12
Cooling fan.20A13A/C compressor.Engine brake.
Noise suppression cap.20A14Mass air flow sensor.Emissions.Glow plugs.Urea.
Compressed natural gas fuel controlmodule.15A15
Not used.—6
Not used.—7
Not used.—8
Not used.—9
Heated exterior mirrors.15A110
CNG relay.—11
Heated rear window.40A212
Not used.—13
Powertrain control module relay.—14
Horn.20A115
A/C clutch relay power.10A116
Rear heated window and heated mirrorsrelay.—17
Not used.—18
Not used.—19
Supplemental air heater bank #1 relay.—20
313
Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 201710, Second Printing
Fuses

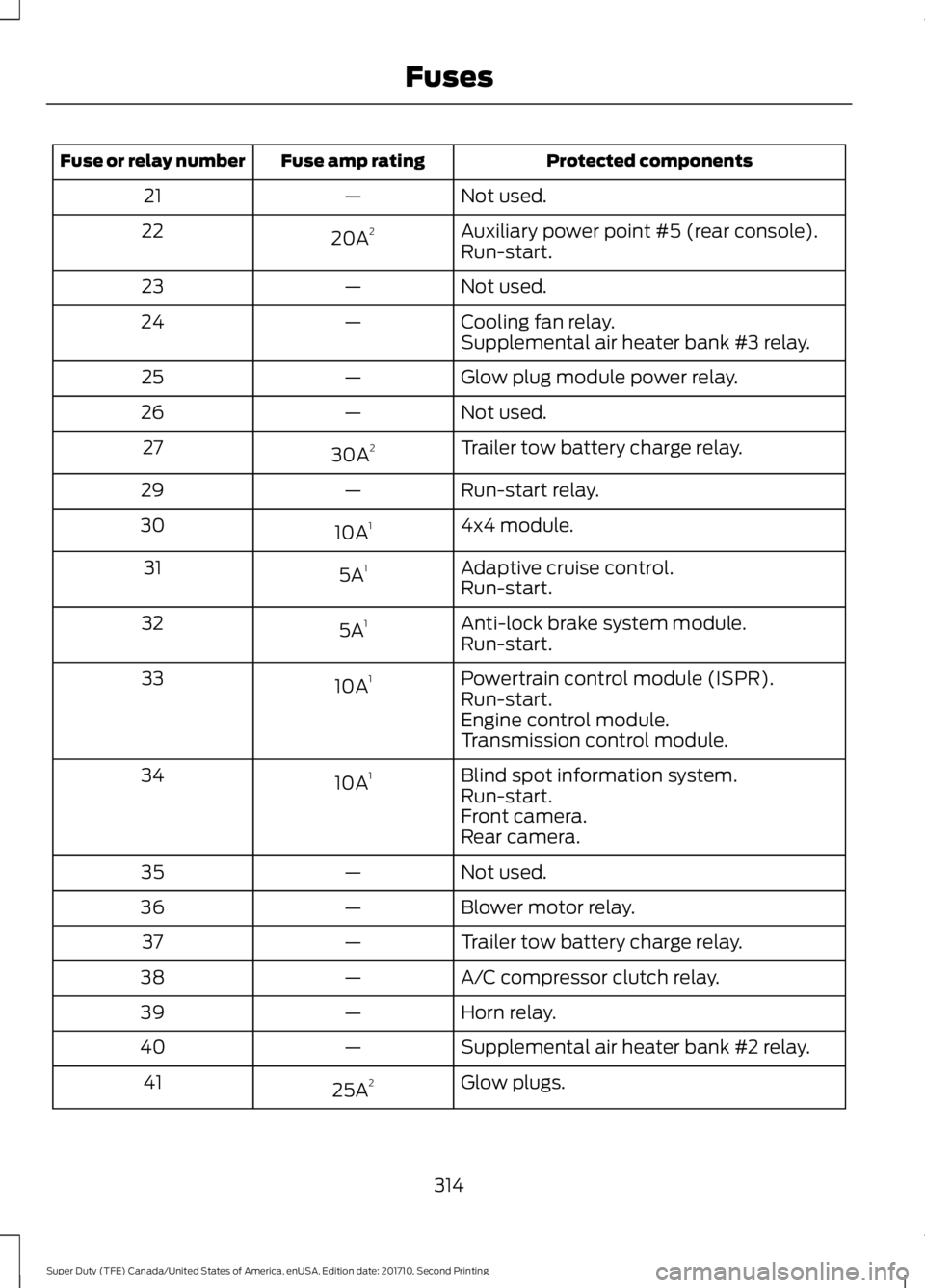

Protected componentsFuse amp ratingFuse or relay number
Not used.—21
Auxiliary power point #5 (rear console).20A222Run-start.
Not used.—23
Cooling fan relay.—24Supplemental air heater bank #3 relay.
Glow plug module power relay.—25
Not used.—26
Trailer tow battery charge relay.30A227
Run-start relay.—29
4x4 module.10A130
Adaptive cruise control.5A131Run-start.
Anti-lock brake system module.5A132Run-start.
Powertrain control module (ISPR).10A133Run-start.Engine control module.Transmission control module.
Blind spot information system.10A134Run-start.Front camera.Rear camera.
Not used.—35
Blower motor relay.—36
Trailer tow battery charge relay.—37
A/C compressor clutch relay.—38
Horn relay.—39
Supplemental air heater bank #2 relay.—40
Glow plugs.25A241
314
Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 201710, Second Printing
Fuses

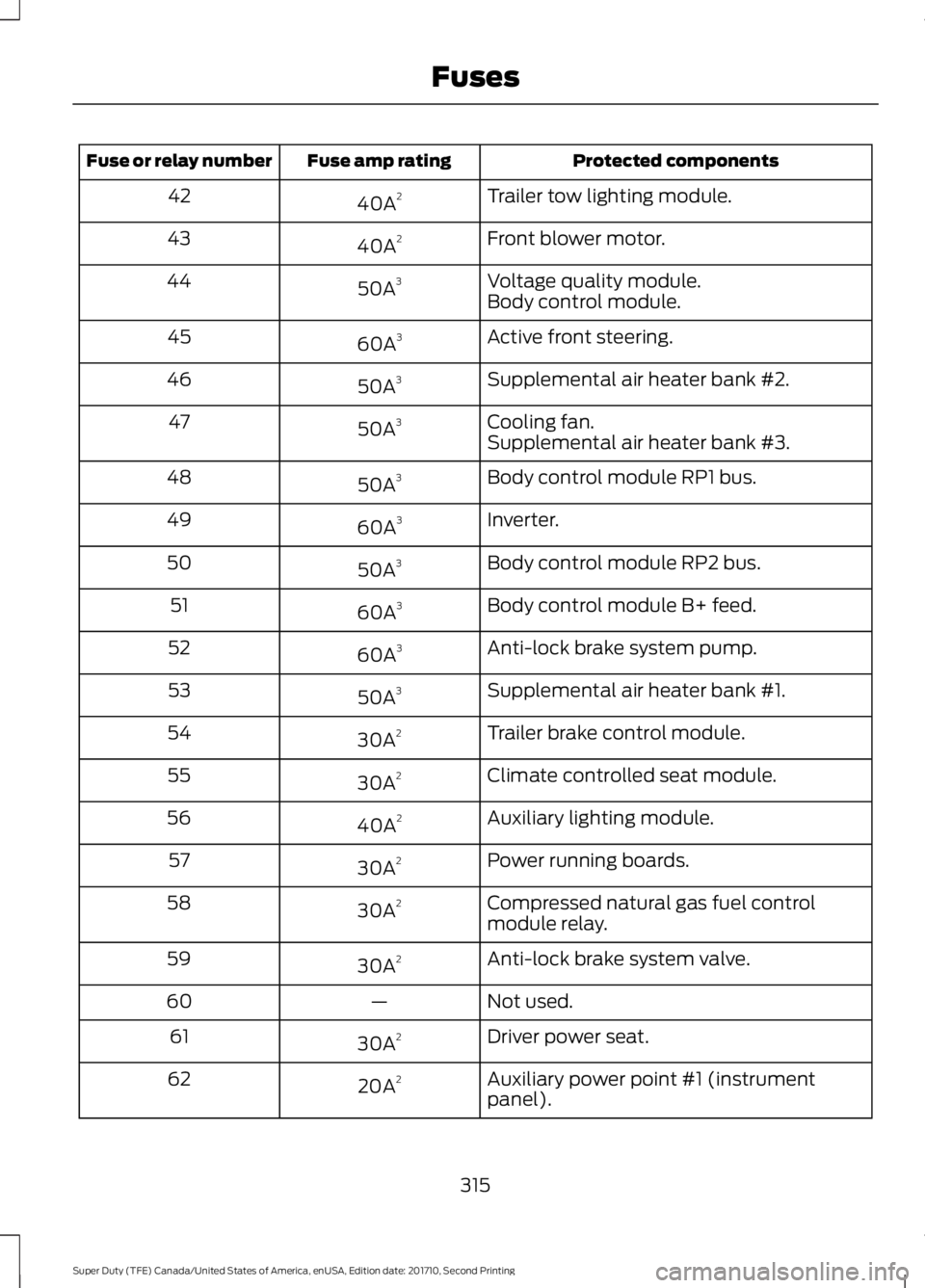

Protected componentsFuse amp ratingFuse or relay number
Trailer tow lighting module.40A242
Front blower motor.40A243
Voltage quality module.50A344Body control module.
Active front steering.60A345
Supplemental air heater bank #2.50A346
Cooling fan.50A347Supplemental air heater bank #3.
Body control module RP1 bus.50A348
Inverter.60A349
Body control module RP2 bus.50A350
Body control module B+ feed.60A351
Anti-lock brake system pump.60A352
Supplemental air heater bank #1.50A353
Trailer brake control module.30A254
Climate controlled seat module.30A255
Auxiliary lighting module.40A256
Power running boards.30A257
Compressed natural gas fuel controlmodule relay.30A258
Anti-lock brake system valve.30A259
Not used.—60
Driver power seat.30A261
Auxiliary power point #1 (instrumentpanel).20A262
315
Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 201710, Second Printing
Fuses

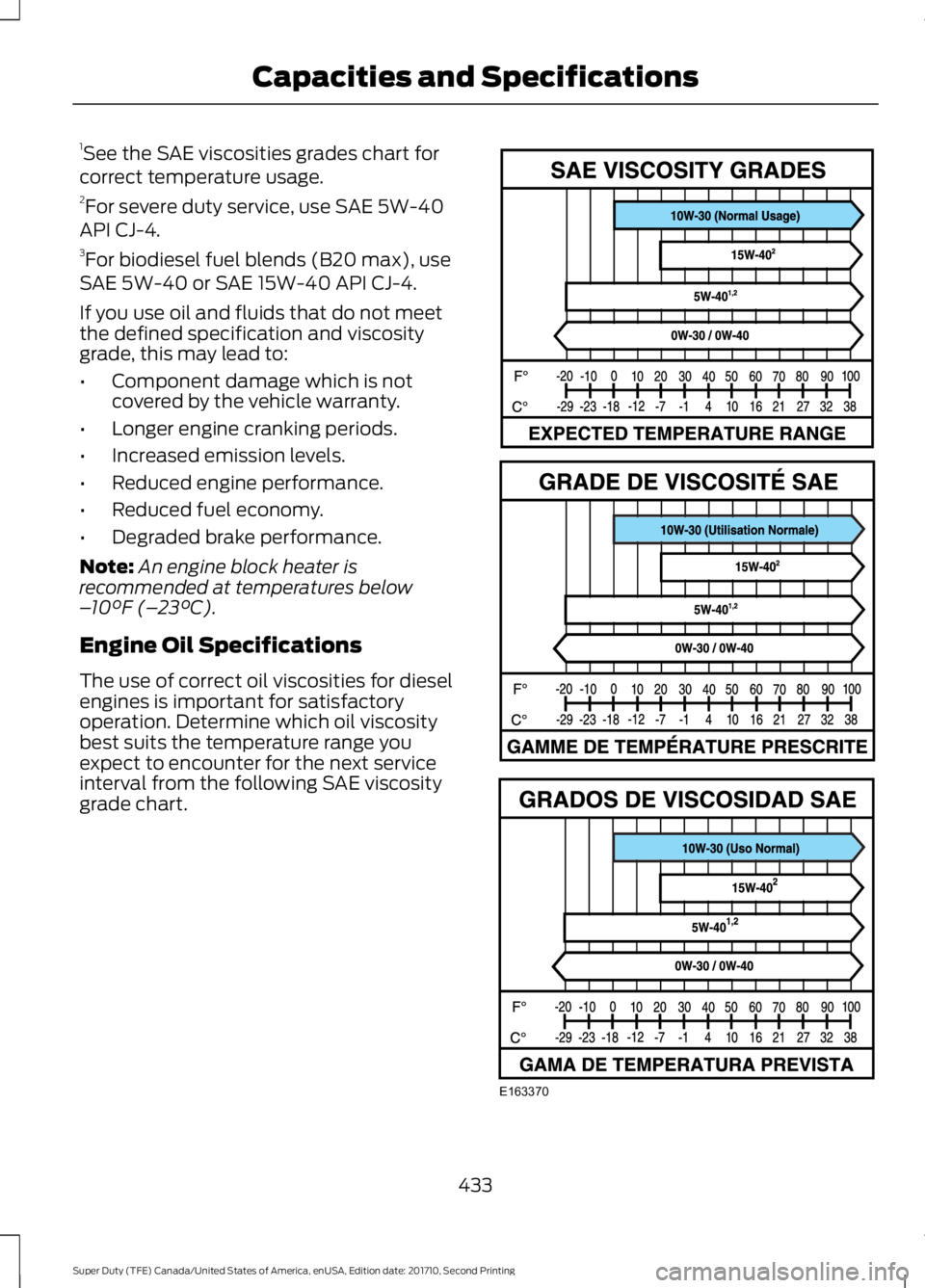

1See the SAE viscosities grades chart forcorrect temperature usage.2For severe duty service, use SAE 5W-40API CJ-4.3For biodiesel fuel blends (B20 max), useSAE 5W-40 or SAE 15W-40 API CJ-4.
If you use oil and fluids that do not meetthe defined specification and viscositygrade, this may lead to:
•Component damage which is notcovered by the vehicle warranty.
•Longer engine cranking periods.
•Increased emission levels.
•Reduced engine performance.
•Reduced fuel economy.
•Degraded brake performance.
Note:An engine block heater isrecommended at temperatures below–10°F (–23°C).
Engine Oil Specifications
The use of correct oil viscosities for dieselengines is important for satisfactoryoperation. Determine which oil viscositybest suits the temperature range youexpect to encounter for the next serviceinterval from the following SAE viscositygrade chart.
433
Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 201710, Second Printing
Capacities and SpecificationsE163370

SiriusXM Traffic and Travel Link (If
Equipped)
WARNING
Driving while distracted can result inloss of vehicle control, crash andinjury. We strongly recommend thatyou use extreme caution when using anydevice that may take your focus off theroad. Your primary responsibility is the safeoperation of your vehicle. We recommendagainst the use of any hand-held devicewhile driving and encourage the use ofvoice-operated systems when possible.Make sure you are aware of all applicablelocal laws that may affect the use ofelectronic devices while driving.
Note:SiriusXM Traffic and Travel Link maynot be available in all markets.
Note:In order to use SiriusXM Traffic andTravel Link, your vehicle must havenavigation.
Note:A paid subscription is required toaccess and use these features. Go towww.siriusxm.com/travellink for moreinformation.
Note:Visit www.siriusxm.com/traffic andclick on Coverage map and details for acomplete listing of all traffic areas coveredby SiriusXM Traffic and Travel Link.
Note:Neither Sirius nor Ford is responsiblefor any errors or inaccuracies in the SiriusXMTraffic and Travel Link services or its use invehicles.
When you subscribe to SiriusXM Trafficand Travel Link, it can help you locate thebest gas prices, find movie listings, getcurrent traffic alerts, view the currentweather map, get accurate ski conditionsand see scores to current sports games.
Action and DescriptionMenu Item
Touch these buttons to identify traffic incidents on your route,near your vehicle’s current location or near any of your favoriteplaces, if programmed.
Traffic on Route
Traffic Nearby
Touch this button to view fuel prices at stations close to yourvehicle’s location or on an active navigation route.Fuel Prices
Touch this button to view nearby movie theaters and theirshow times, if available.Movie Listings
Touch this button to view the nearby weather, current weather,or the five-day forecast for the chosen area.Weather
Select to see the weather map,which can show storms, radarinformation, charts and winds.
Map
540
Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 201710, Second Printing
SYNC™ 3 (If Equipped)

Tightening lug nuts
Tighten the lug nuts to the specified torque at 500 miles(800 km) after any wheel disturbance (such as tire rota-tion, changing a flat tire or wheel removal).
Vehicles with single rearwheels
Tighten the wheel lug nuts to the specified torque at 100miles (160 km), and again at 500 miles (800 km) of newvehicle operation and after any wheel disturbance (suchas tire rotation, changing a flat tire or wheel removal).
Vehicles with dual rearwheels
Note:Tighten the lug nuts to the specified torque. See Technical Specifications (page413).
Multi-point Inspection
In order to keep your vehicle running right,it is important to have the systems on yourvehicle checked regularly. This can helpidentify potential issues and prevent majorproblems. We recommend having thefollowing multi-point inspection performedat every scheduled maintenance intervalto help make sure your vehicle keepsrunning great.
Multi-point inspection
Horn operationAccessory drive belt(s)
Radiator, cooler, heater and A/C hosesBattery performance
Suspension component for leaks ordamageEngine and cabin air filter
Steering and linkageExhaust system
Tires (including spare) for wear and proper
pressure**Exterior lamps and hazard warning systemoperation
Windshield for cracks, chips or pitsFluid levels*; fill if necessary
Washer spray and wiper operationFor oil and fluid leaks
* Brake, coolant recovery reservoir, automatic transmission, power steering and windowwasher.**If your vehicle is equipped with a temporary mobility kit, check the tire sealant expirationUse By date on the canister. Replace as needed.
575
Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 201710, Second Printing
Scheduled Maintenance
